VALVE BODY
AUTOMATIC TRANSMISSION OVERHAUL
23B-64
DISASSEMBLY SERVICE POINT
<<A>> SOLENOID VALVES REMOVAL
Mark the solenoid valves with white paint to make
assembly easier.
REASSEMBLY SERVICE POINTS

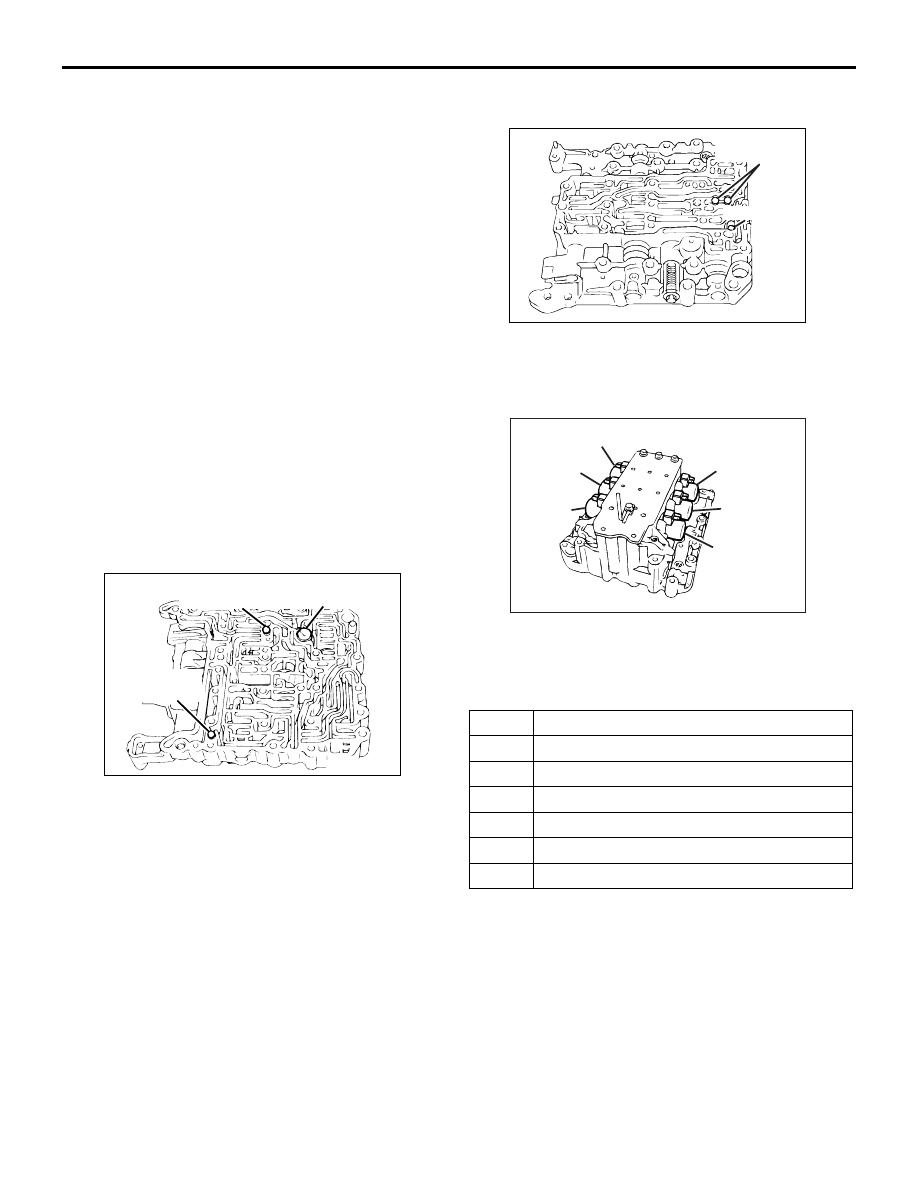

>>A<< SPRING, STEEL BALL, DAMPING VALVE
AND DAMPING VALVE SPRING INSTALLATION
AK
202088
AB
Damping valve
and spring
Steel ball
and spring
Steel ball
and spring
1. Install the steel balls (two pieces) and springs (two
pieces) to the inside valve body as shown.
2. Install the damping valve and spring to the inside
valve body as shown.
>>B<< SPRING AND STEEL BALL
INSTALLATION
AK202214AB
Steel ball
Steel balls
and springs
Install the steel balls (three pieces) and springs (two
pieces) to the inside valve body as shown.
>>C<< SOLENOID VALVES INSTALLATION
AK202190
1
2
3
4
5
6
AB
1. Apply ATF or petroleum jelly (Vaseline) to the O-
ring and install carefully.
2. Install the solenoid valves by referring to the
marks applied during disassembly.
NO.
Name
1
Underdrive solenoid valve
2
Second solenoid valve
3
Damper clutch control solenoid valve
4
Overdrive solenoid valve
5
Low-reverse solenoid valve
6
Reduction solenoid valve
60. Underdrive pressure control valve
sleeve
61. Underdrive pressure control valve
62. Underdrive pressure control valve
spring
63. Roller
64. Second pressure control valve
sleeve
65. Second pressure control valve
66. Second pressure control valve
spring
67. Plate
68. fail-save valve C sleeve
69. fail-save valve C
70. fail-save valve body
Disassembly steps ( つづき )
