AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-188

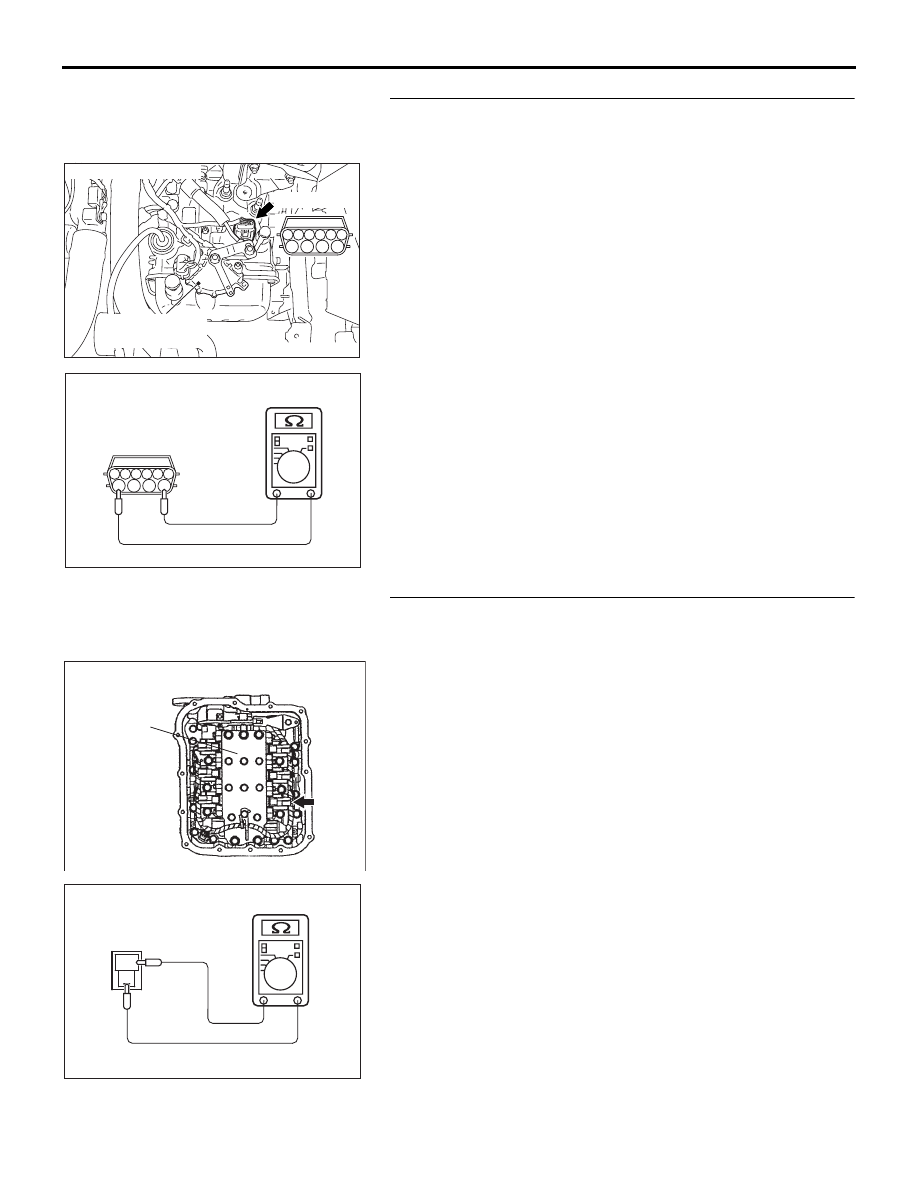

STEP 4. Measure the damper clutch control solenoid valve
resistance at A/T control solenoid valve assembly
connector B-108.
(1) Disconnect connector B-108 and measure at the solenoid

valve side.

(2) Measure the resistance between solenoid valve assembly

connector B-108 terminals 7 and 10.

Resistance value: 2.7

−3.4 Ω [at 20°C (68°F)]

Q: Is the measured resistance 2.7

−3.4 Ω [at 20°C (68°F)]?

YES : Go to Step 6.
NO :  Go to Step 5.

STEP 5. Measure the solenoid valve resistance at the
damper clutch control solenoid valve assembly inside the
transmission.
(1) Disconnect connector B-108-4 and measure at the solenoid

valve side.

(2) Measure the resistance between damper clutch control

solenoid valve terminals 1 and 2.

Resistance value: 2.7

−3.4 Ω [at 20°C (68°F)]

Q: Is the measured resistance 2.7

−3.4 Ω [at 20°C (68°F)?

YES : Replace the harness wire between A/T control

solenoid valve assembly connector B-108 and the
solenoid valves.

NO :  Replace the damper clutch control solenoid valve.

Refer to GROUP 23B, Valve Body

23B-62

.

AC306322

CONNECTOR: B-108

B-108 (GR)

AC

TRANSMISSION
RANGE SWITCH

2

7

1

8

3

9

4

6

10

5

AC210697

2

7

1

8

3

9

4

6

10

5

AB

B-108 HARNESS CONNECTOR:
A/T CONTROL SOLENOID
VALVE ASSEMBLY SIDE

CONNECTOR: B-108-4

B-108-4

VALVE BODY
ASSEMBLY

10DB104A

2

1

AC201141BD

B-108-4 HARNESS CONNECTOR:

TORQUE CONVERTER CLUTCH

SOLENOID VALVE SIDE

AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-189

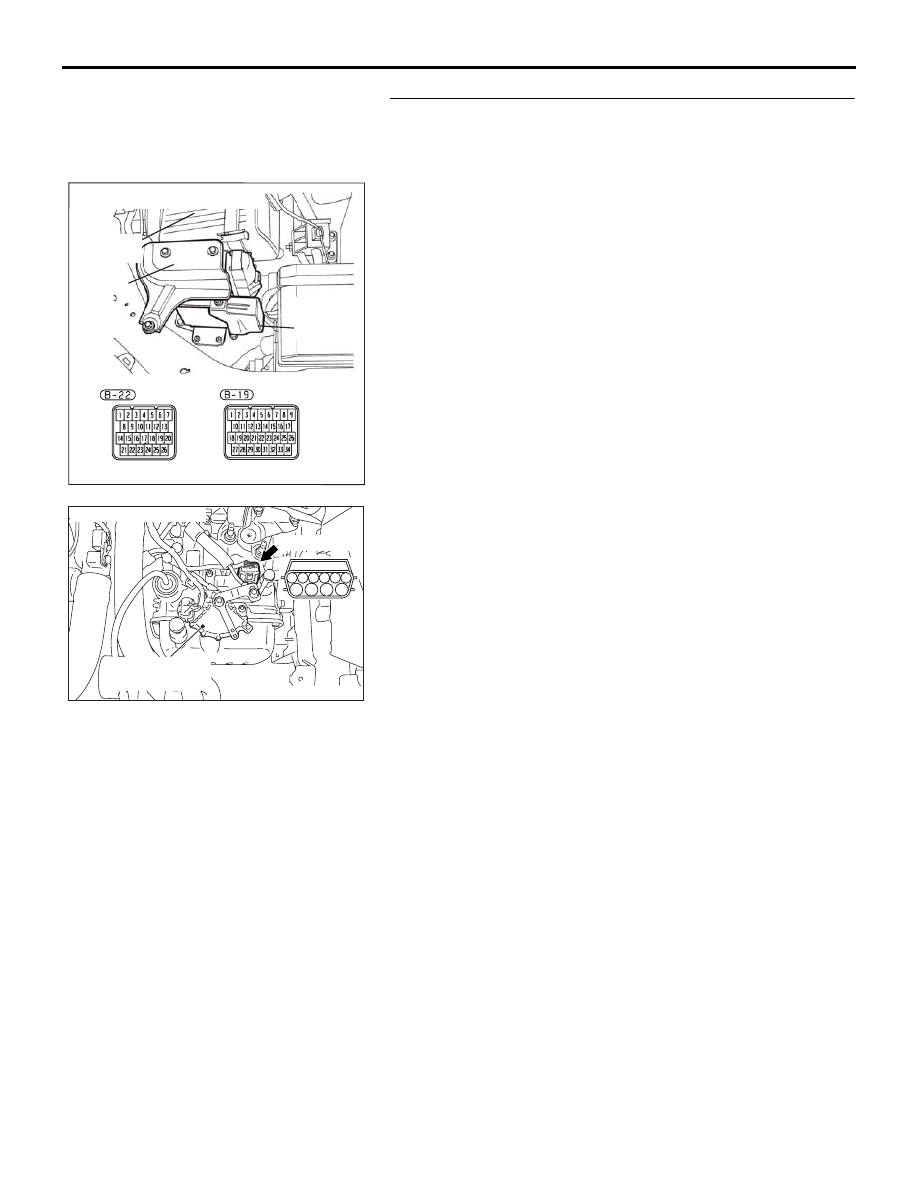

STEP 6. Check A/T-ECU connector B-22 and A/T control
solenoid valve assembly connector B-108 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 7.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

16DB564A

COVER

AIR

CLEANER

A/T

CONTROL

UNIT

CONNECTORS:  B-19, B-22

AC306322

CONNECTOR: B-108

B-108 (GR)

AC

TRANSMISSION
RANGE SWITCH

2

7

1

8

3

9

4

6

10

5

AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-190

STEP 7. Check the harness for an open or short circuit to
ground between A/T-ECU connector B-22 terminal 8 and
A/T control solenoid valve assembly connector B-108
terminal 7.
Q: Is the harness wire in good condition?

YES : Replace the A/T-ECU.
NO :  Repair or replace the harness wire.

16DB564A

COVER

AIR

CLEANER

A/T

CONTROL

UNIT

CONNECTORS:  B-19, B-22

AC306322

CONNECTOR: B-108

B-108 (GR)

AC

TRANSMISSION
RANGE SWITCH

2

7

1

8

3

9

4

6

10

5

AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-191

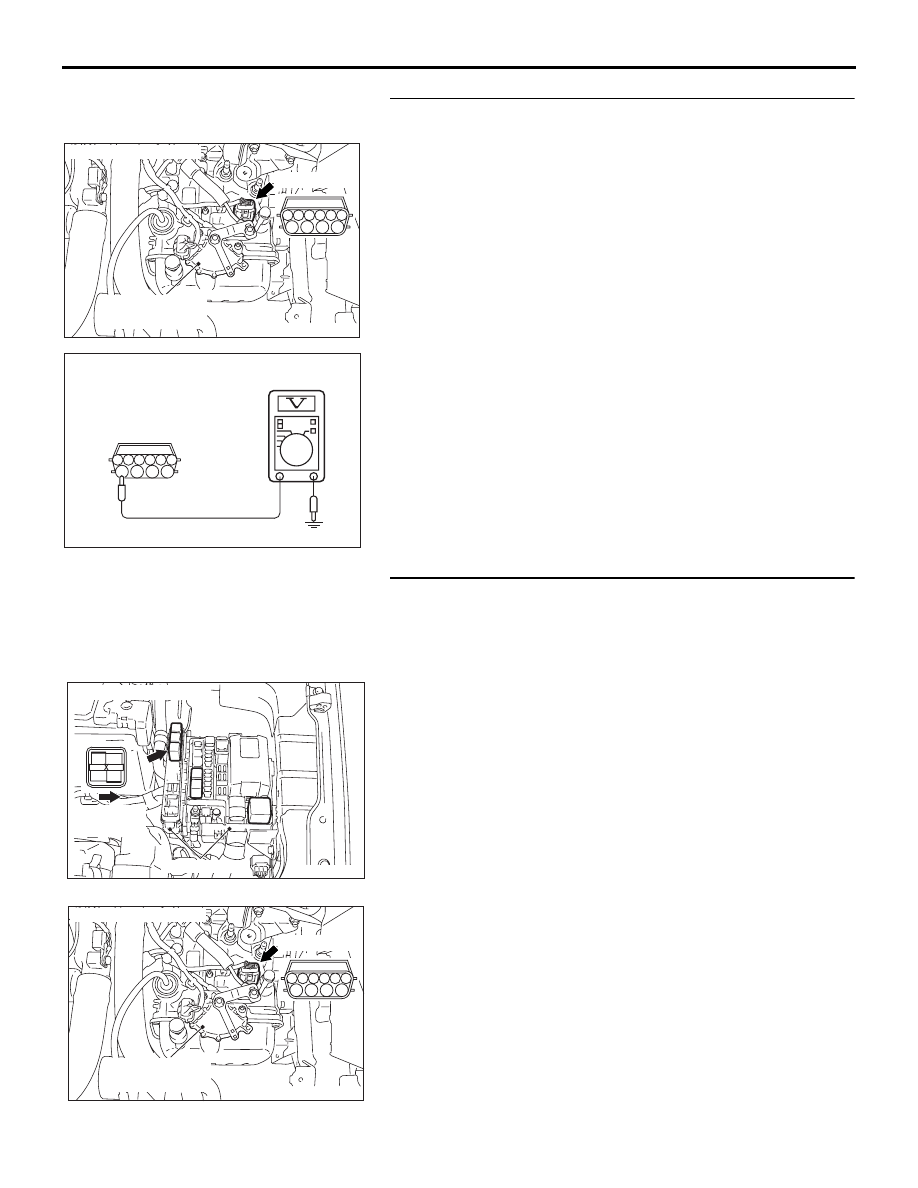

STEP 8. Measure the supply voltage at A/T control
solenoid valve assembly connector B-108.
(1)  Disconnect solenoid valve assembly harness connector

B-108.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between harness connector B-108

terminal 10 and ground.

• The voltage should equal battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the measured voltage battery positive voltage?

YES : Go to Step 11.
NO :  Go to Step 9.

STEP 9. Check A/T control relay connector B-16X in the
engine component relay box and A/T control solenoid
valve assembly connector B-108 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 10.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC306322

CONNECTOR: B-108

B-108 (GR)

AC

TRANSMISSION
RANGE SWITCH

2

7

1

8

3

9

4

6

10

5

AC210676

2

5

6

10

4

9

3

8

1

7

AB

B-108 HARNESS
CONNECTOR:
COMPONENT SIDE

10DB098A

RELAY BOX

CONNECTOR: B-16X



2

1

3 4

FRONT OF
VEHICLE

AC306322

CONNECTOR: B-108

B-108 (GR)

AC

TRANSMISSION
RANGE SWITCH

2

7

1

8

3

9

4

6

10

5
