AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-108

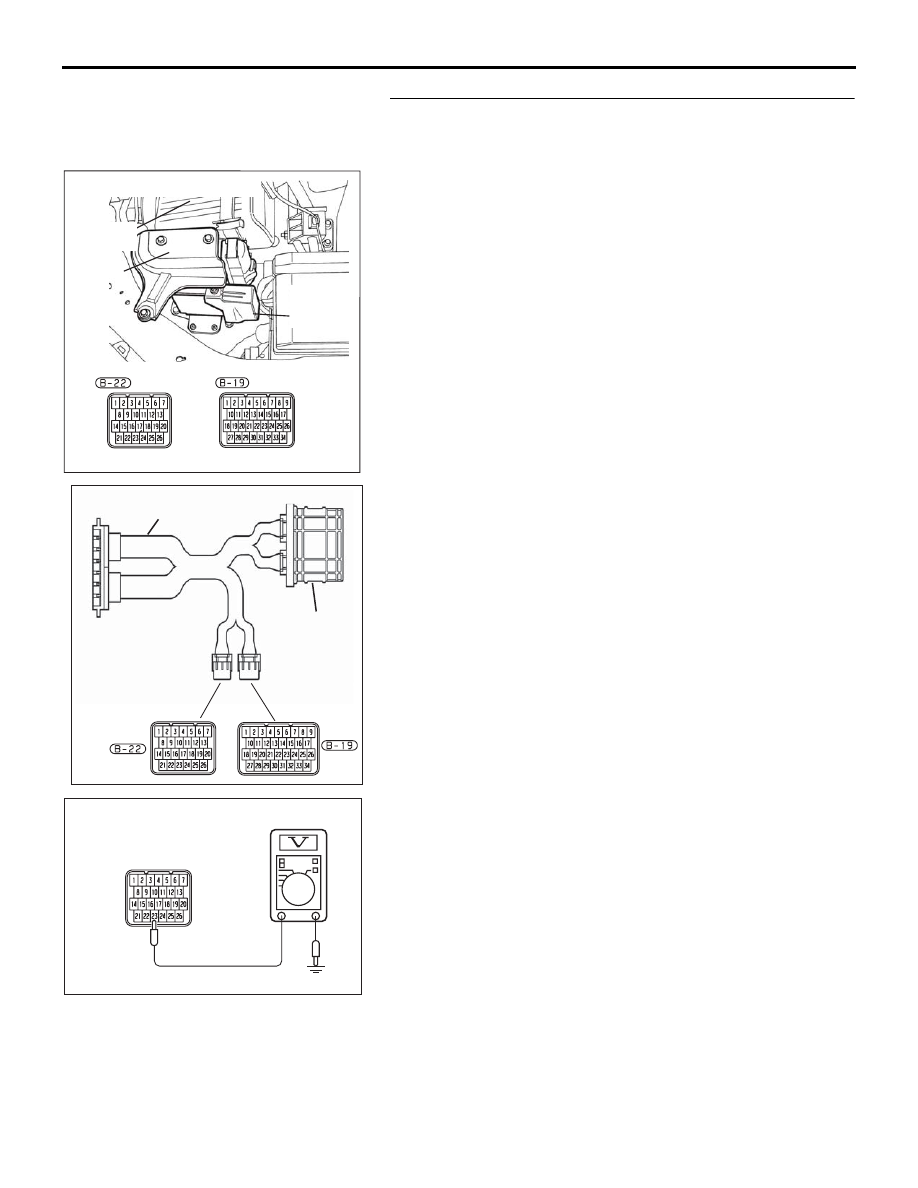

STEP 14. Measure the transmission inhibitor switch output
voltage at A/T-ECU connector B-22 by using check
harness special tool MB992045.
(1) Disconnect all the connectors from the A/T-ECU.

(2) Connect special tool MB992045 (check harness) between

the A/T-ECU and the body-side harness connector.

(3) Turn the ignition switch to the "ON" position.
(4) Move the selector lever to the "R" position.

(5) Measure the voltage between connector B-22 terminal 23

and ground.

• The voltage should measure below battery positive volt-

age.

(6) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the measured voltage battery positive voltage?

YES : Go to Step 11.
NO :  Go to Step 15.

16DB564A

COVER

AIR

CLEANER

A/T

CONTROL

UNIT

CONNECTORS:  B-19, B-22

10DB161A

A/T-ECU CHECK HARNESS
    MB992045

A/T-ECU

A/T-ECU CHECK
HARNESS
CONNECTORS

10DB095A

B-22 HARNESS

CONNECTOR:

AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-109

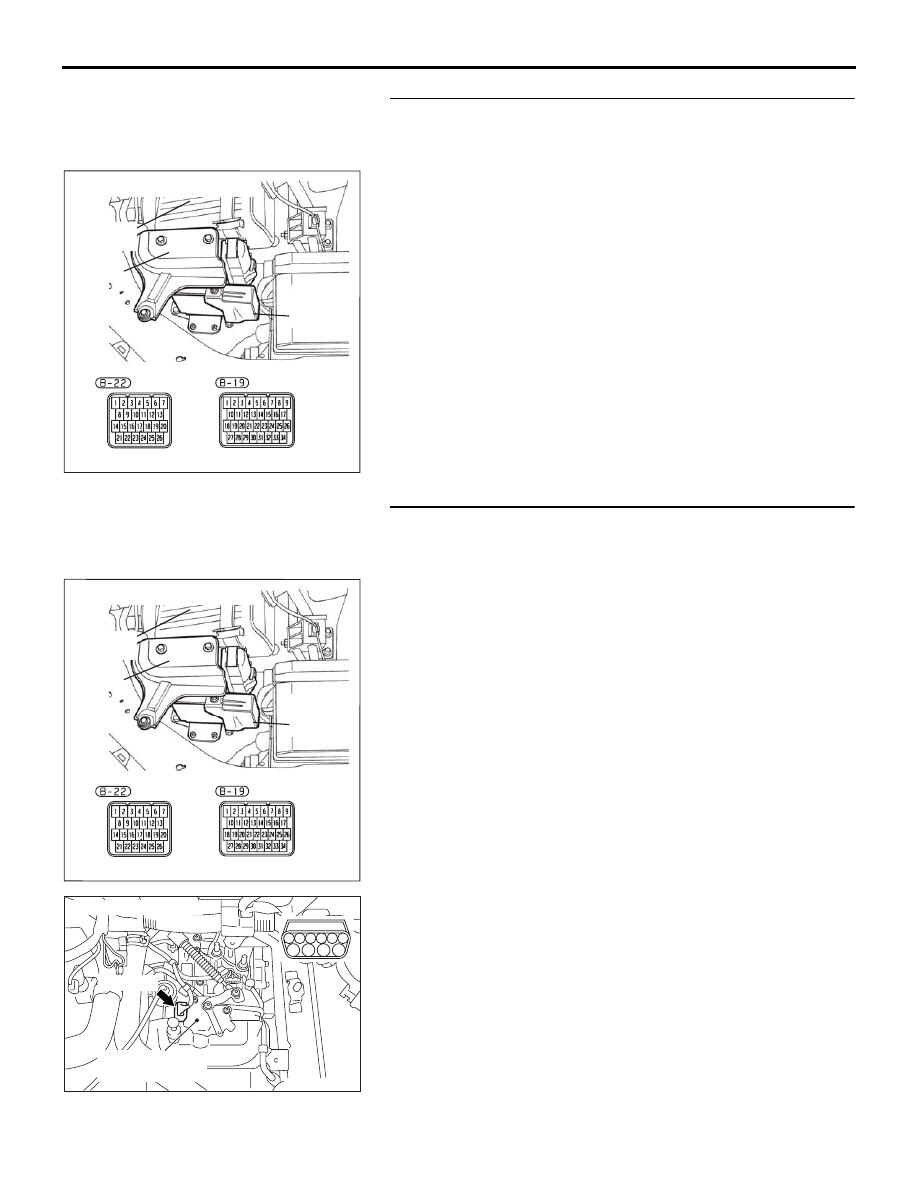

STEP 15. Check A/T-ECU connector B-22 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 16.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 16. Check harness for open circuit or short circuit to
ground between A/T-ECU connector B-22 terminal 23 and
transmission inhibitor switch connector B-110 terminal 7.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair or replace the harness wire.

16DB564A

COVER

AIR

CLEANER

A/T

CONTROL

UNIT

CONNECTORS:  B-19, B-22

16DB564A

COVER

AIR

CLEANER

A/T

CONTROL

UNIT

CONNECTORS:  B-19, B-22

AC210068

CONNECTOR: B-110

B-110 (B)

AE

TRANSMISSION
RANGE SWITCH

1

7

2

8

3

5

9

4

10

6

AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-110

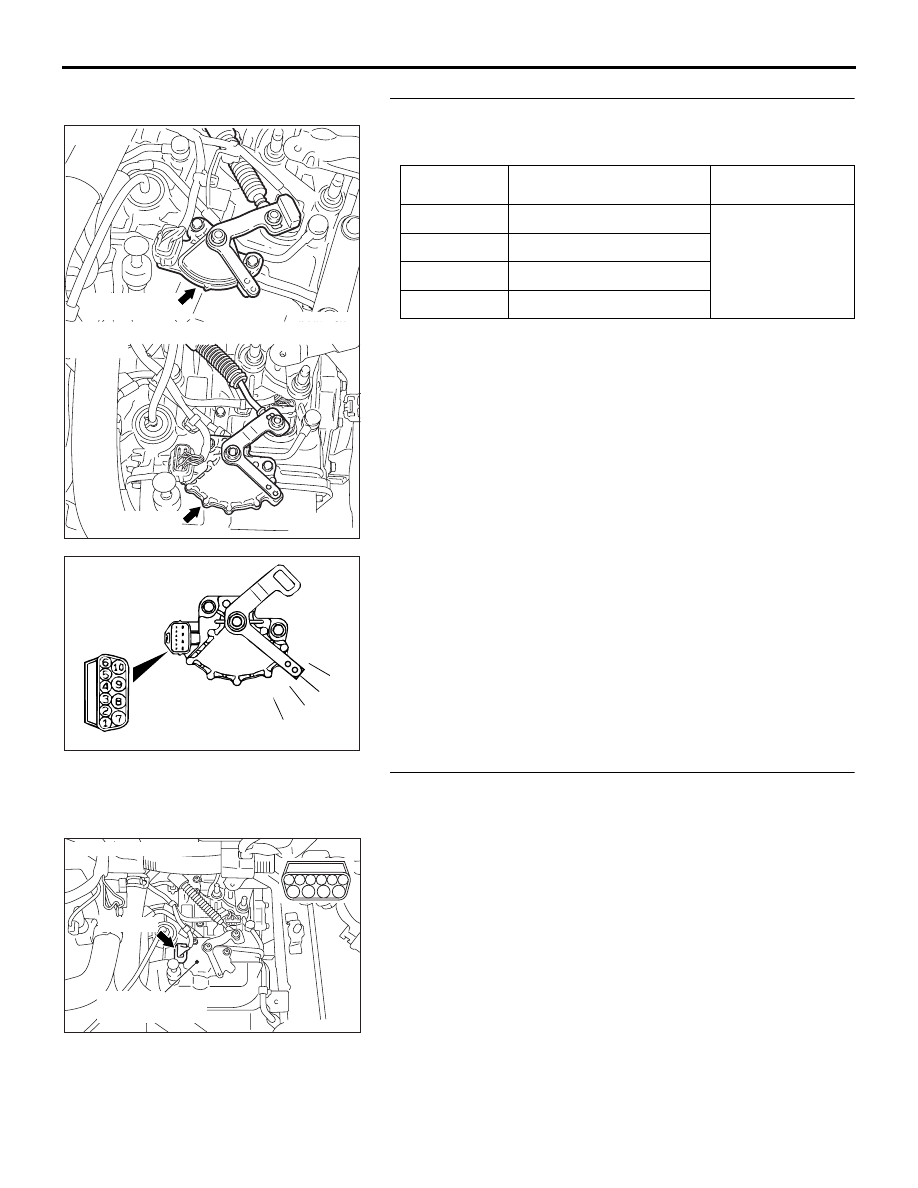

STEP 17. Check the transmission inhibitor switch.
Measure the resistance between the terminals for each trans-
mission range as indicated in the table below.

Q: Is the measured resistance less than 2 ohms for each

transmission range?
YES : Go to Step 18.
NO :  Replace the transmission inhibitor switch. Refer to

GROUP 23B, Transmission

23B-13

.

STEP 18. Check transmission inhibitor switch connector
B-110 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 19.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

TRANSMISSION
RANGE

TERMINAL CONNECTION OF
TESTER

SPECIFIED CONDITION

P

3

− 8, 9 − 10

Less than 2 ohms.

R

7

− 8

N

4

− 8, 9 − 10

D

1

− 8

AC305881

AC305532

AC305679

<F4A4B>

<F4A5A>

AC

TRANSMISSION
RANGE SWITCH

TRANSMISSION
RANGE SWITCH

AC210182AC

P

R

N

D

<F4A5A>

AC210068

CONNECTOR: B-110

B-110 (B)

AE

TRANSMISSION
RANGE SWITCH

1

7

2

8

3

5

9

4

10

6

AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-111

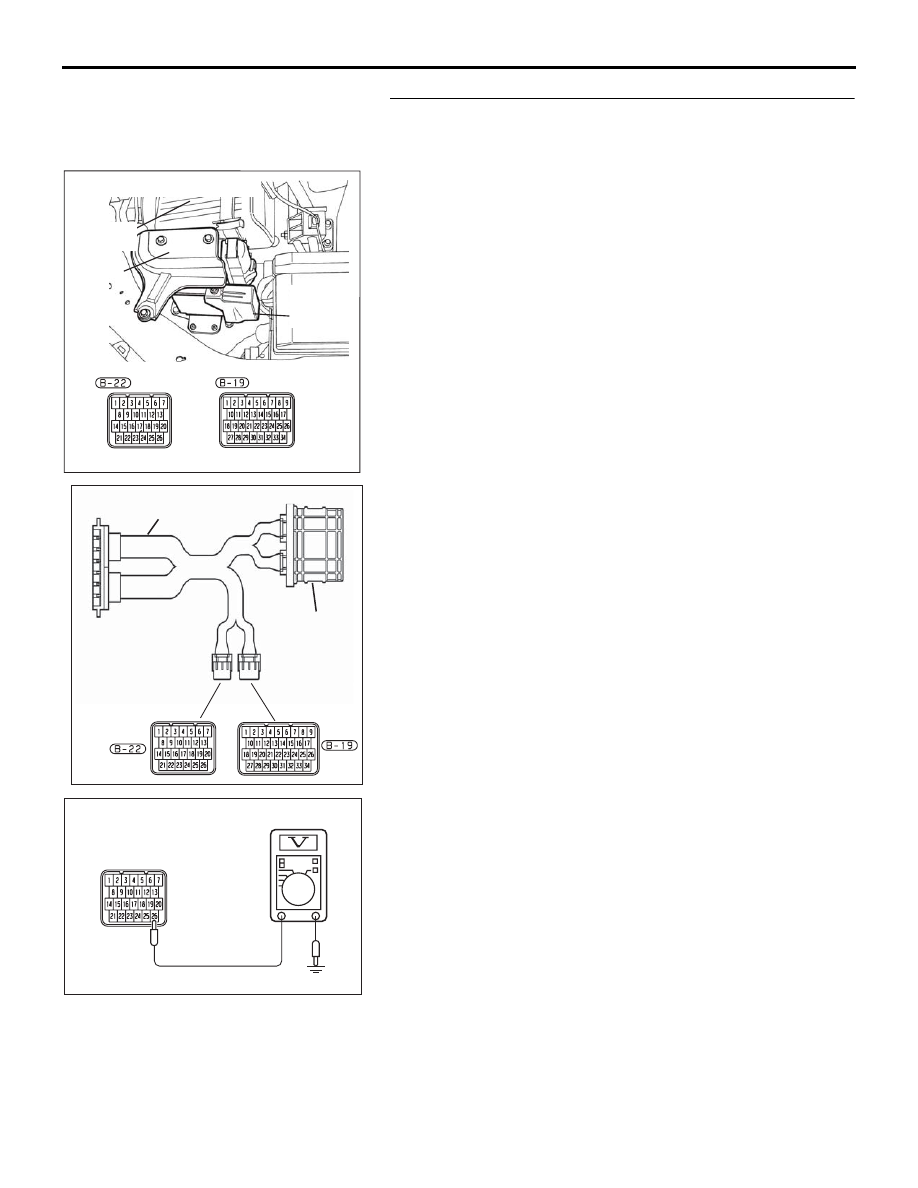

STEP 19. Measure the transmission inhibitor switch output
voltage at A/T-ECU connector B-22 by using check
harness special tool MB992045.
(1) Disconnect all the connectors from the A/T-ECU.

(2) Connect special tool MB992045 (check harness) between

the A/T-ECU and the body-side harness connector.

(3) Turn the ignition switch to the "ON" position.
(4) Move the selector lever to the "N" position.

(5) Measure the voltage between connector B-22 terminal 26

and ground.

• The voltage should measure battery positive voltage.

(6) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the measured voltage battery positive voltage?

YES : Go to Step 11.
NO :  Go to Step 20.

16DB564A

COVER

AIR

CLEANER

A/T

CONTROL

UNIT

CONNECTORS:  B-19, B-22

10DB161A

A/T-ECU CHECK HARNESS
    MB992045

A/T-ECU

A/T-ECU CHECK
HARNESS
CONNECTORS

10DB096A

B-22 HARNESS

CONNECTOR:
