AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-44

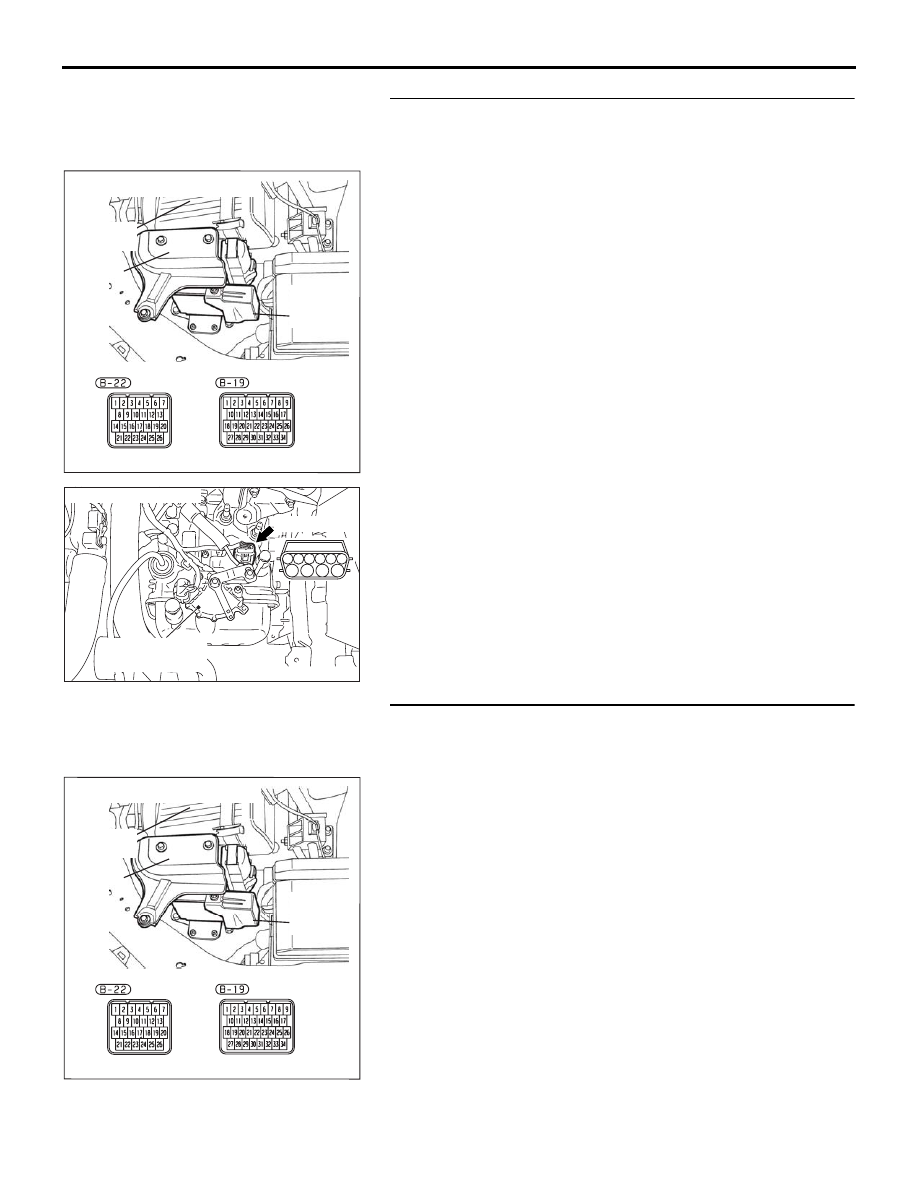

STEP 10. Check A/T-ECU connector B-22 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 11.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 11. Check the harness for open circuit or short
circuit to ground between A/T-ECU connector B-22
terminal 6 and A/T control solenoid valve connector B-108
terminal 1.
Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair or replace the harness wire.

16DB564A

COVER

AIR

CLEANER

A/T

CONTROL

UNIT

CONNECTORS:  B-19, B-22

16DB564A

COVER

AIR

CLEANER

A/T

CONTROL

UNIT

CONNECTORS:  B-19, B-22

AC306322

CONNECTOR: B-108

B-108 (GR)

AC

TRANSMISSION
RANGE SWITCH

2

7

1

8

3

9

4

6

10

5

AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-45

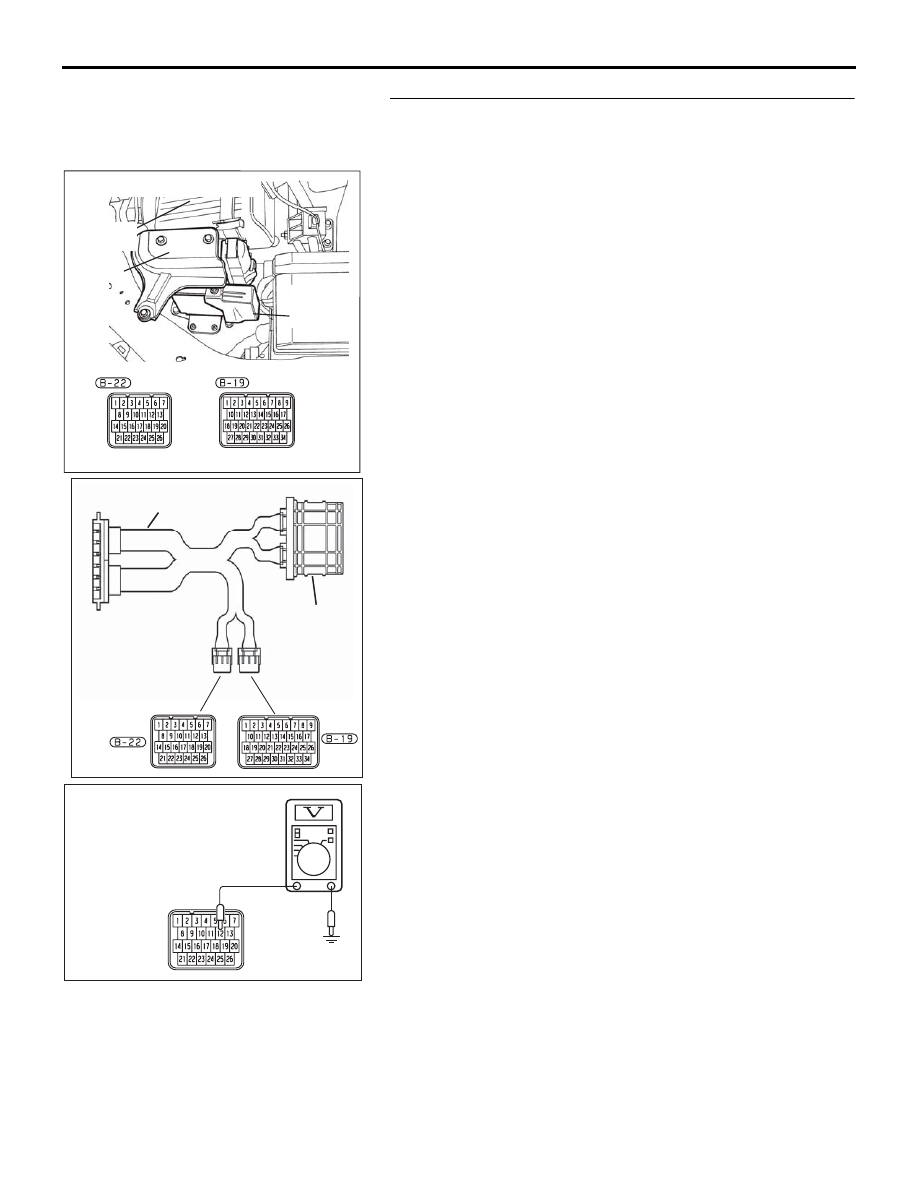

STEP 12. Measure the ground voltage at A/T-ECU
connector B-22 by using check harness special tool
MB992045.
(1) Disconnect all the connectors from the A/T-ECU.

(2) Connect special tool MB992045 (check harness) between

the A/T-ECU and the body-side harness connector.

(3) Turn the ignition switch to the "ON" position.

(4) Measure the voltage between terminal 12 and ground.

• Voltage should measure 0.5 volt or less.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the measured voltage within the specified range?

YES : Go to Step 13.
NO :  Go to Step 14.

16DB564A

COVER

AIR

CLEANER

A/T

CONTROL

UNIT

CONNECTORS:  B-19, B-22

10DB161A

A/T-ECU CHECK HARNESS
    MB992045

A/T-ECU

A/T-ECU CHECK
HARNESS
CONNECTORS

10DB082A

B-22  CONNECTOR:

AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-46

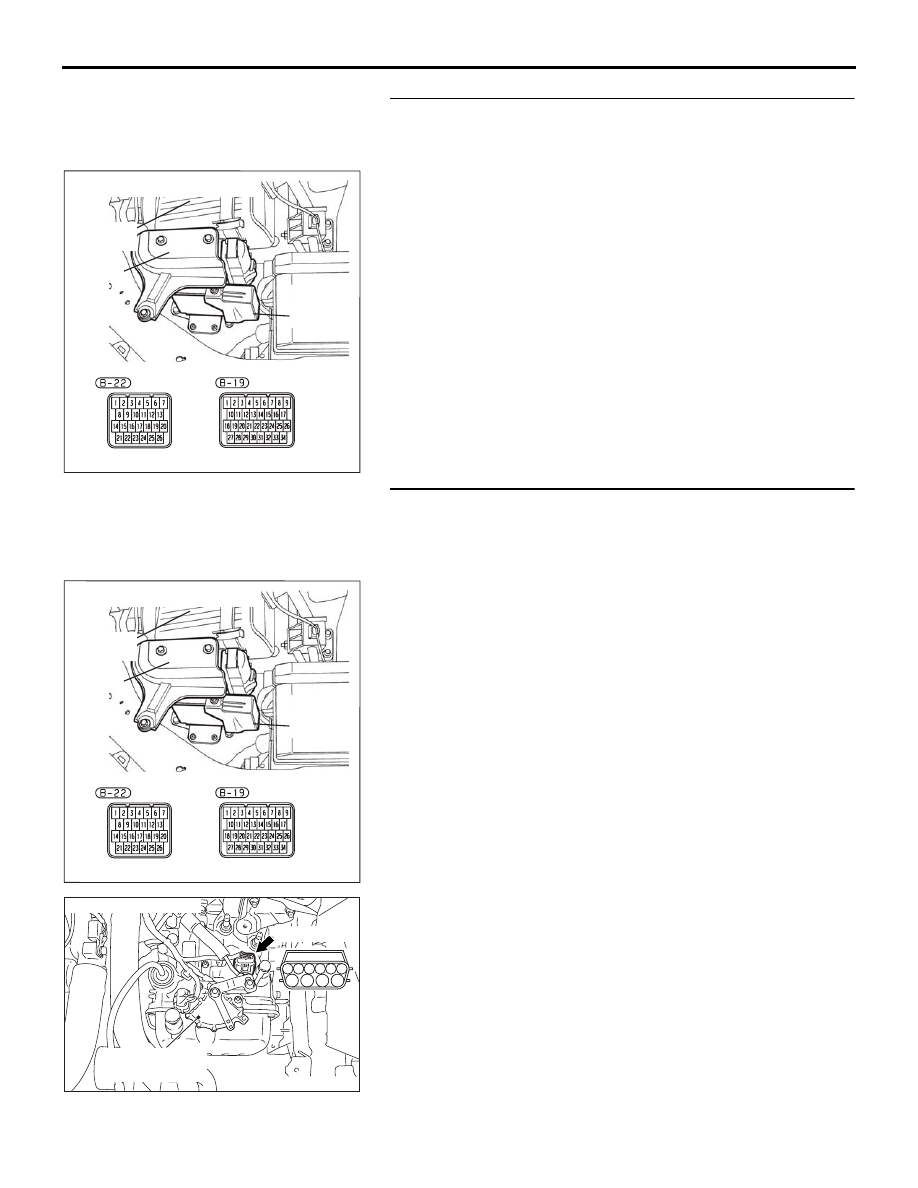

STEP 13. Check the harness for open circuit or damage
between A/T-ECU connector B-22 terminal 12 and A/T
control solenoid valve connector B-108 terminal 2.
Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair or replace the harness wire.

STEP 14. Check A/T-ECU connector B-22 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 6.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

16DB564A

COVER

AIR

CLEANER

A/T

CONTROL

UNIT

CONNECTORS:  B-19, B-22

AC306322

CONNECTOR: B-108

B-108 (GR)

AC

TRANSMISSION
RANGE SWITCH

2

7

1

8

3

9

4

6

10

5

16DB564A

COVER

AIR

CLEANER

A/T

CONTROL

UNIT

CONNECTORS:  B-19, B-22

AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-47

(P0712): Transmission Fluid Temperature Sensor System (Short Circuit)

.

TRANSMISSION FLUID TEMPERATURE
SENSOR SYSTEM CIRCUIT

 Refer to

P.23A-36

.

.

CIRCUIT OPERATION

 Refer to

P.23A-36

.

.

DTC SET CONDITIONS

Check Conditions, Judgement Criteria

• Transmission fluid temperature sensor voltage:

0.2 volt or less. (1 second)

.

OBD-II DRIVE CYCLE PATTERN

Start the engine, keep the vehicle stopped in "P"
range for 5 seconds.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Malfunction of the transmission fluid temperature

sensor circuit

• Damaged harness or connector

• Malfunction of the A/T-ECU

Circuit drawings

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80
