Mitsubishi 380. Manual - part 371





AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-24

3rd gear
incorrect ratio
(

P.23A-196

).

Does not
shift from 3
to 4 or 4 to
3

Low-reverse
solenoid valve
system
(

P.23A-133

).

Reduction
solenoid valve
system
(

P.23A-154

).

3rd gear
incorrect ratio
(

P.23A-196

).

4th gear
incorrect ratio
(

P.23A-196

).

Does not
shift from 4
to 5 or 5 to
4

Underdrive
solenoid valve
system(

23A-200

).

Second
solenoid valve
system
(

P.23A-154

).

4th gear
incorrect ratio
(

P.23A-196

).

5th gear
incorrect ratio
(

P.23A-196

).

STEP

CONDITION
BEFORE
TEST/OPERATION

TEST/OPERATION

STANDARD

INSPECTION
ITEM

INSPECTION
PROCEDURE
PAGE

AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-25

TORQUE CONVERTER STALL TEST

M1231005400362

This test measures the maximum engine speed when the
selector lever is in the "D" or "R" position and the torque con-
verter stalls. This tests the operation of the torque converter,
starter motor and one-way clutch operation, as well as the hold-
ing performance of the clutches and brakes in the transmission.

WARNING

Do not let anyone stand in front of or behind the vehi-
cle while this test is performed.

1. Check the transmission fluid level and temperature. Check

the engine coolant temperature.

• Transmission fluid level: At the "HOT" mark on the dipstick

• Transmission fluid temperature: 70 − 80°C

• Engine coolant temperature: 80 − 100°C

NOTE: Measures transmission fluid temperature with
diagnostic tool MB991958 (MUT-III sub assembly).

2. Check both rear wheels.

3. Pull the parking brake lever on, with the brake pedal fully

depressed.

4. Start the engine.

9

Transmission
range: N (on a
flat and straight
road)

Monitor data list
No.22 and No.23
with the diagnostic
tool MB991958
(MUT-III sub
assembly)
(1) Move selector
lever to R range,
drive at constant
speed of 10 km/h

The ratio between
data list No.22 and
No.23 should be the
same as the gear
ratio when reversing.

Does not
shift

Input shaft
speed sensor
system
(

P.23A-55

).

Output shaft
speed sensor
system
(

P.23A-72

).

Reverse gear
incorrect ratio
(

P.23A-196

).

STEP

CONDITION
BEFORE
TEST/OPERATION

TEST/OPERATION

STANDARD

INSPECTION
ITEM

INSPECTION
PROCEDURE
PAGE

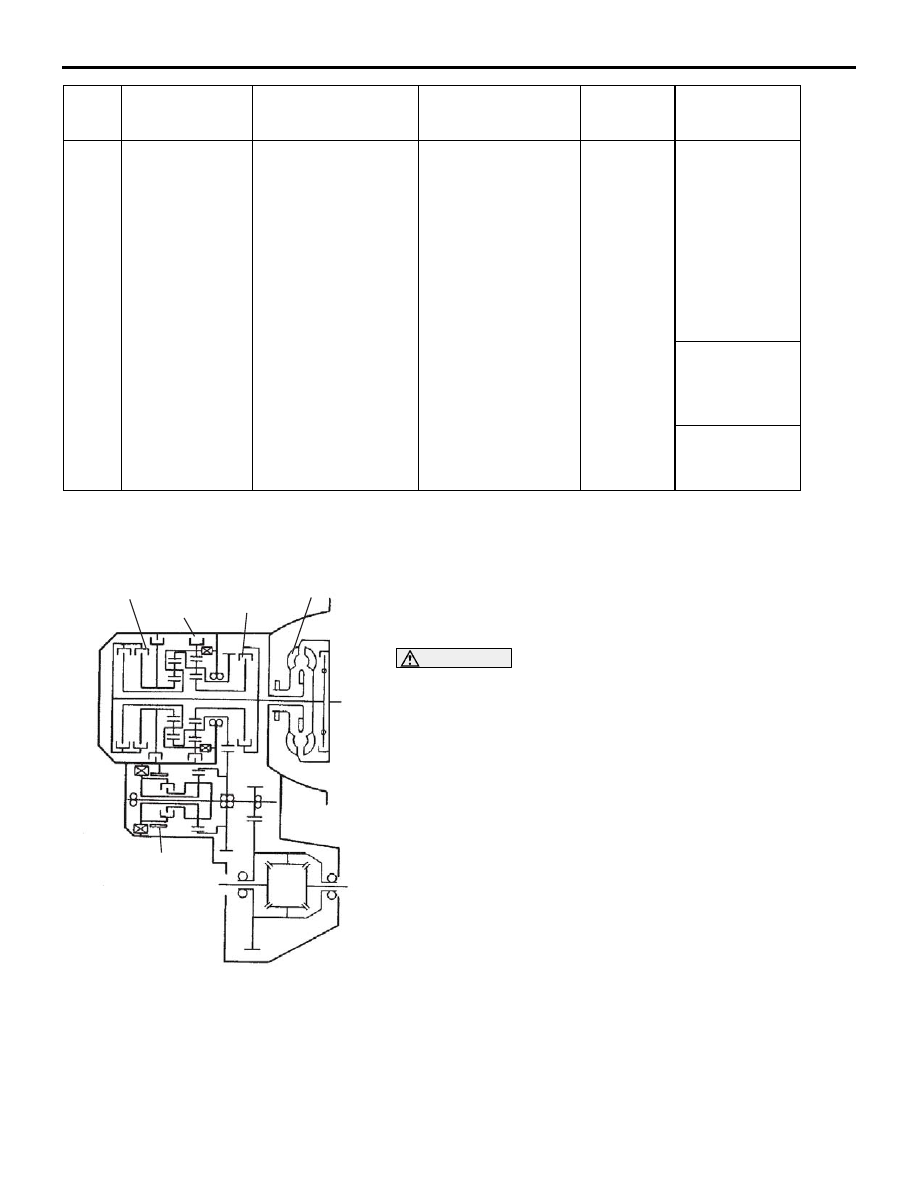

10DB148A

Reverse

clutch

Low-

reverse

brake

Under-

drive

clutch

Second

brake

Reverse

clutch

AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-26

CAUTION

• The throttle should not be fully open for any more than

five seconds.

• If you repeat the stall test when the transmission fluid

temperature is greater than 80

°C, move the selector

lever to the "N" position and let the engine run at
approximately 1,000 r/min for at least one minute. Wait
until the transmission fluid temperature returns to 80

°C

or less.

5. Move the selector lever to the "D" position. Fully depress the

accelerator pedal and read the maximum engine speed at
this time.

Standard value: Stall speed: 2,100

 2,600 r/min

6. Move the selector lever to the "R" position. Fully depress the

accelerator pedal and read the maximum engine speed.

Standard value: Stall speed: 2,100

 2,600 r/min

TORQUE CONVERTER STALL TEST JUDGMENT
RESULTS

1. Stall speed is too high in both "D" and "R" range

• Malfunction of the torque converter (Slippage on the splines

of the torque converter and the input shaft)

• Low line pressure

• Low-reverse brake slippage and malfunction of the one-way

clutch

2. Stall speed is too high in "D" range only

• Underdrive clutch slippage

3. Stall speed is too high in "R" range only

• Reverse clutch slippage

4. Stall speed is too low in both "D" and "R" ranges

• Malfunction of the torque converter (Slippage of the

one-way clutch)

• Insufficient engine output

HYDRAULIC PRESSURE TESTS

M1231005500392

CAUTION

The transmission fluid temperature should be between 70
 80°C during the test.
1. Check the transmission fluid level and temperature. Check

engine coolant temperature.

• Transmission fluid level: "HOT" mark on the dipstick

• Transmission fluid temperature: 70 − 80°C

• Engine coolant temperature: 80 − 100°C

2. Raise the vehicle so that the wheels are free to turn.

AUTOMATIC TRANSMISSION DIAGNOSIS

AUTOMATIC TRANSMISSION

23A-27

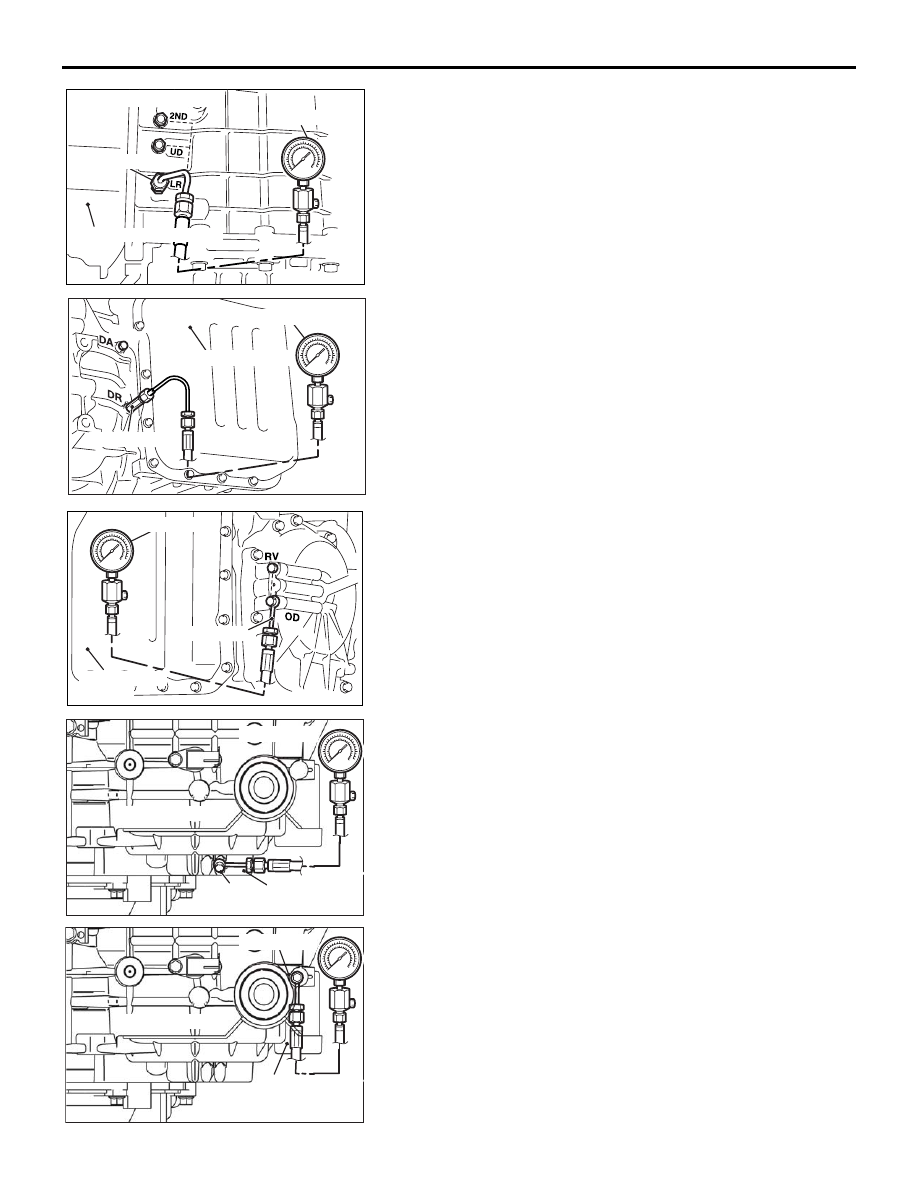

3. Connect the special tools (3.0 MPa (427 psi) oil pressure

gauge [MD998330] and adapters [MD998332, MD998900])
to each pressure discharge port.

NOTE:

.

• 2ND: Second brake pressure port

• UD: Underdrive clutch pressure port

• LR: Low-reverse brake pressure port

• DR: Torque converter release pressure port

• DA: Torque converter apply pressure port

• RV: Reverse clutch pressure port

• OD: Overdrive clutch pressure port

• DIR: Direct clutch pressure port

• RED: Reduction clutch pressure port

4. Restart the engine.

5. Check that there are no leaks around the special tool port

adapters.

6. Measure the hydraulic pressure at each port under the

conditions given in the standard hydraulic pressure table,
and check that the measured values are within the standard
value ranges.

7. If the pressure is not within the standard value, stop the

engine and refer to the hydraulic pressure test diagnosis
table.

8. Remove the O-ring from the port plug and replace it.

9. Remove the special tool, and install the plugs to the

hydraulic pressure ports.

10.Start the engine and check that there are no leaks around

the plugs.

AC006151AB

MD998900

MD998330

VALVE BODY
COVER

AC006150

<UNDER SIDE VIEW>

VALVE BODY COVER

MD998332

MD998330

AB

AC006149

MD998332

MD998330

VALVE BODY COVER

AB

10DB153A

MD998900

DIR

PORT

MD998330

TOPSIDE

10DB154A

MD998900

TOPSIDE

RED PORT
