ENGINE CONTROL

ENGINE AND EMISSION CONTROL

17-8

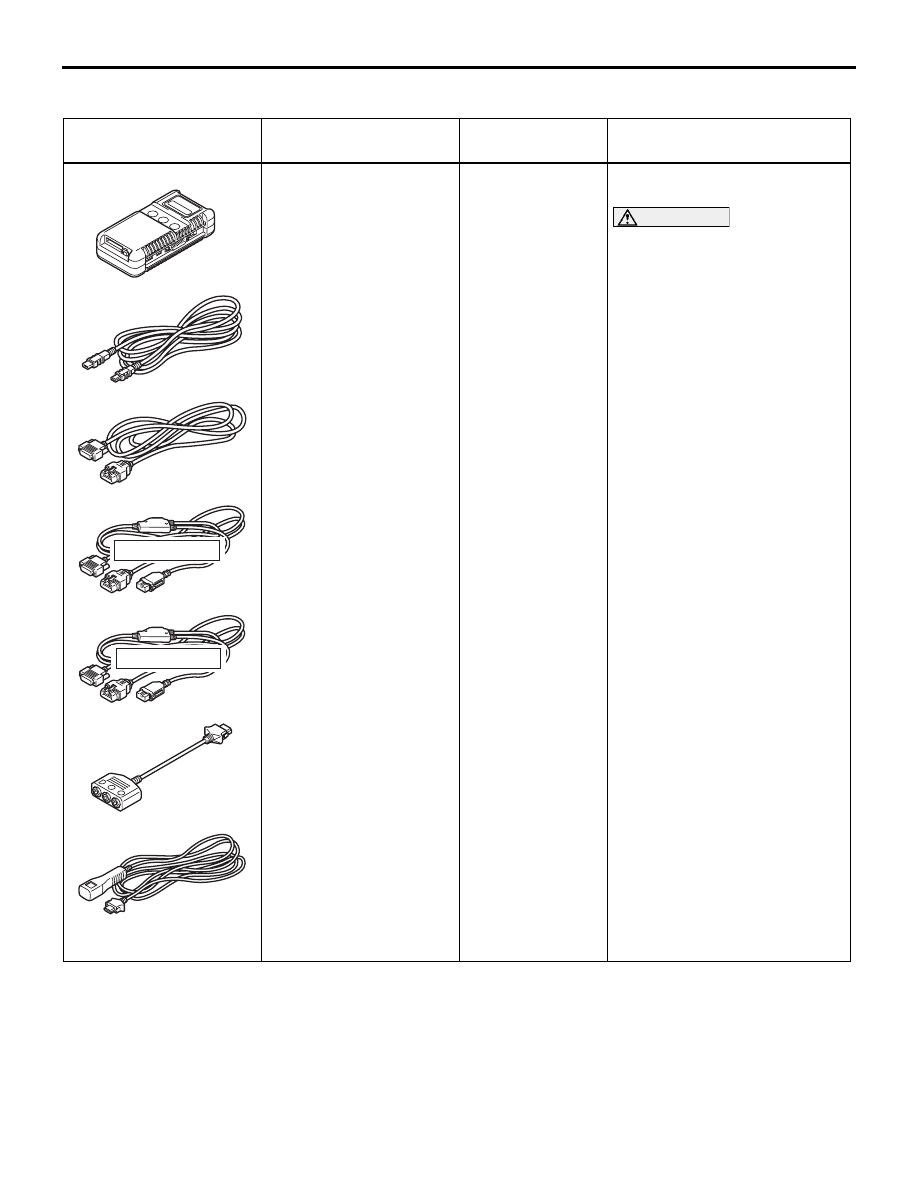

SPECIAL TOOL

M1171000600045

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III sub assembly

A: Vehicle

communication
interface (V.C.I.)

B: MUT-III USB cable
C: MUT-III main harness

A (Vehicles with CAN
communication
system)

D: MUT-III main harness

B (Vehicles without
CAN communication
system)

E: MUT-III main harness

C (for Daimler Chrysler
models only)

F: MUT-III measurement

adapter

G: MUT-III trigger

harness

MB991824-KIT

NOTE: G:
MB991826 MUT-III
trigger harness is
not necessary
when pushing
V.C.I. ENTER key.

Checking diagnostic trouble
codes

CAUTION

For vehicles with CAN
communication, use MUT-III
main harness A to send
simulated vehicle speed. If
you connect MUT-III main
harness B instead, the CAN
communication does not
function correctly.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

ENGINE CONTROL

ENGINE AND EMISSION CONTROL

17-9

ACCELERATOR PEDAL

REMOVAL AND INSTALLATION

M1171003000116

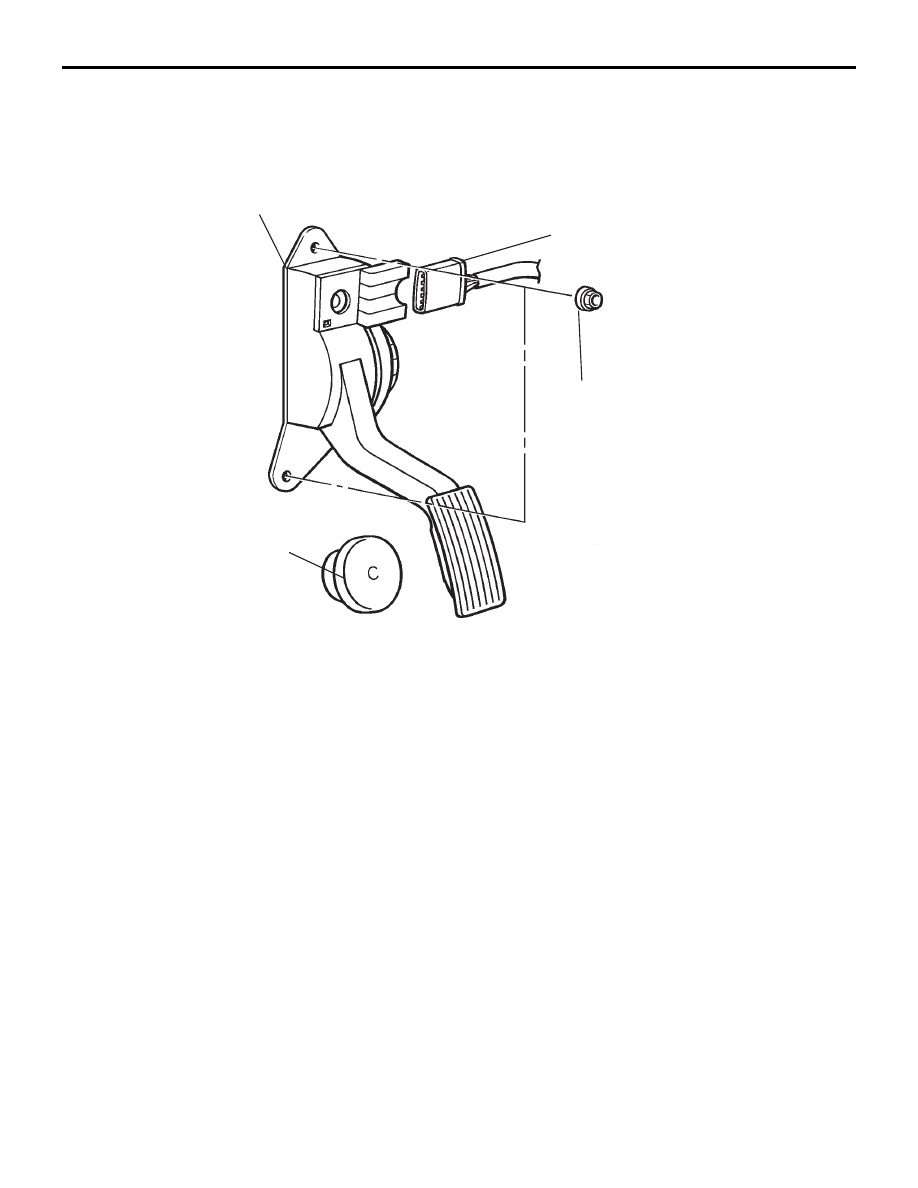

1

13 ± 2 N·m
111 ± 22 in-lb

2

3

REMOVAL STEPS

1. ACCELERATOR PEDAL POSITION

(APP) SENSOR CONNECTOR

2. ACCELERATOR PEDAL ASSEMBLY
3. ACCELERATOR STOPPER

REMOVAL STEPS (Continued)

AUTO-CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-10

AUTO-CRUISE CONTROL

GENERAL DESCRIPTION

M1172000100281

By using the auto-cruise control system, the driver
can select and maintain a desired cruising speed
[between 40 km/h (25 mph) and 200 km/h (124
mph)] without depressing the accelerator pedal.

NOTE: If engine speed reaches and exceeds 6000
r/min the Auto Cruise Control System will be can-
celled automatically.

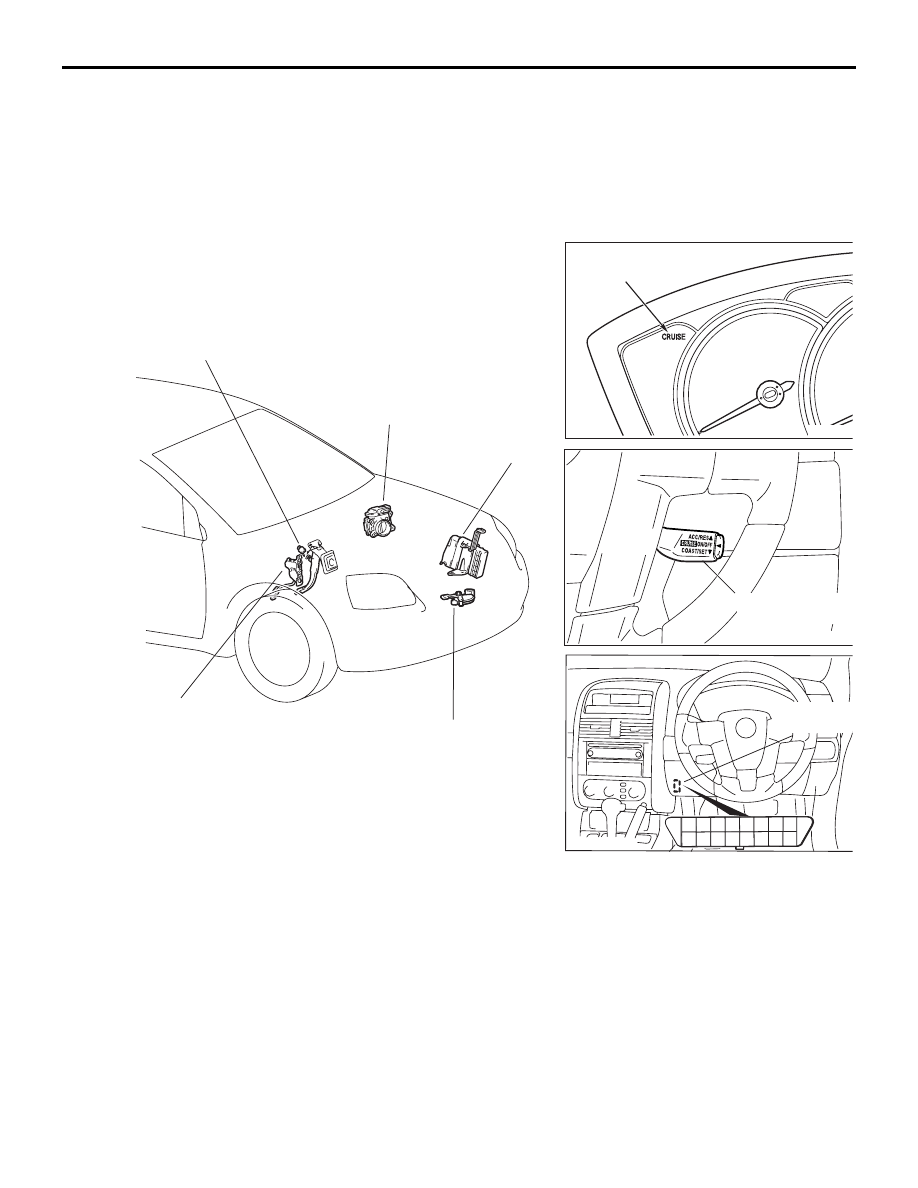

CONSTRUCTION DIAGRAM

AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS

INTRODUCTION TO AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS

M1172003300251

The auto-cruise control system allows driving without
stepping on the accelerator pedal by setting a ran-
dom speed between 40 km/h (25 mph) and 200 km/h
(124 mph). Problems in this system can be investi-
gated by the following methods.

Auto-cruise control system diagnostic
trouble codes

The auto-cruise control system consists of the
Engine ECU, control switches and sensors. The con-
trol switches and sensors monitor the state of the
vehicle. The Engine ECU controls the throttle valve
opening angle in the throttle body in accordance with
the input signals from the switches and sensors. If
the Engine ECU detects a problem on any of those

17DB039A

AC20619

AC305701

AC305702

9 10 11 12 13 14 15 16

1 2 3 4 5 6 7 8

AC30570

STOPLIGHT SWITCH

ENGINE

     ECU

TRANSMISSION
RANGE SWITCH

THROTTLE BODY
(BUILT-IN THROTTLE
POSITION SENSOR
AND THROTTLE
ACTUATOR CONTROL
MOTOR)

"CRUISE" INDICATOR
LIGHT

AUTO-CRUISE
CONTROL SWITCH

DATA LINK
CONNECTOR

ACCELERATOR PEDAL
(BUILT-IN ACCELERATOR
PEDAL POSITION SENSOR)

AUTO-CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-11

components, the Engine ECU estimates where the
problem may be occurring, and will set a diagnostic
trouble code. Diagnostic trouble codes cover the
auto-cruise control switch, stoplamp switch and
Engine ECU.

DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1172002000484

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will check most of the
possible causes of an auto-cruise control system
problem.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Check the vehicle for any auto-cruise control

system DTC. (Refer to

P.17-11

, Diagnostic

Function

− How to Read and Erase Diagnostic

Trouble Codes).

4. If you can verify the condition but no auto-cruise

control system DTCs are set, the malfunction may
be intermittent. (Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How

to Cope with Intermittent Malfunction

P.00-14

).

5. If you can verify the condition but there are no

auto-cruise control system DTCs, or the system
cannot communicate with Diagnostic Tool
MB991958 (MUT-III sub assembly), and find the
fault. (Refer to

P.17-53

, Symptom Chart).

6. If there is an auto-cruise control system DTC,

record the number of the code, then erase the
code from Engine ECU memory using the
Diagnostic Tool MB991958 (MUT-III sub
assembly). (Refer to

P.17-11

, Diagnostic Function

− How to Read and Erase Diagnostic Trouble
Codes).

7. Re-create the auto-cruise control system DTC set

conditions to see if the same Auto-cruise Control
System DTC will set again. (Refer to

P.17-11

Diagnostic Function

− How to Read and Erase

Diagnostic Trouble Codes).

• If the same Auto-cruise Control System DTC sets

again, perform the diagnostic procedures for the
set code. (Refer to

P.17-14

, Diagnostic Trouble

Code Chart).

DIAGNOSTIC FUNCTION

M1172004900171

HOW TO CONNECT THE DIAGNOSTIC TOOL.

Required Special Tools:

• MB991958: Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A
