DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-30

DISC BRAKE ASSEMBLY

REMOVAL AND INSTALLATION

M1351008000050

Required Special Tool:

• MB990520: Disc Brake Piston Expander

Pre-removal Operation
• Brake Fluid Draining

Post-installation Operation
• Brake Fluid Supplying and Air Bleeding (Refer to

P.35A-16

).

15DB181A

N

100 ± 10 N·m

74 ± 7 ft-lb

2

1

3

30 ± 4 N·m

22 ± 3 ft-lb

4

<FRONT>

15DB193A

N

60 ± 5 N·m

45 ± 3 ft-lb

2

3

4

<REAR>

1

30 ± 4 N·m

22 ± 3 ft-lb

REMOVAL STEPS

BRAKE FLUID DRAINING

1. BRAKE HOSE CONNECTION
2. GASKET
3. BRAKE CALIPER ASSEMBLY
4. BRAKE DISC

INSTALLATION STEPS

BRAKE FLUID DRAINING

4. BRAKE DISC
3. BRAKE CALIPER ASSEMBLY
2. GASKET

1. BRAKE HOSE CONNECTION

BRAKE FLUID SUPPLYING AND AIR
BLEEDING (Refer to

P.35A-16

.)

>>A<<

BRAKE DRAG FORCE CHECK

INSTALLATION STEPS (Continued)

DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-31

INSTALLATION SERVICE POINT

.

>>A<< BRAKE DRAG FORCE CHECK

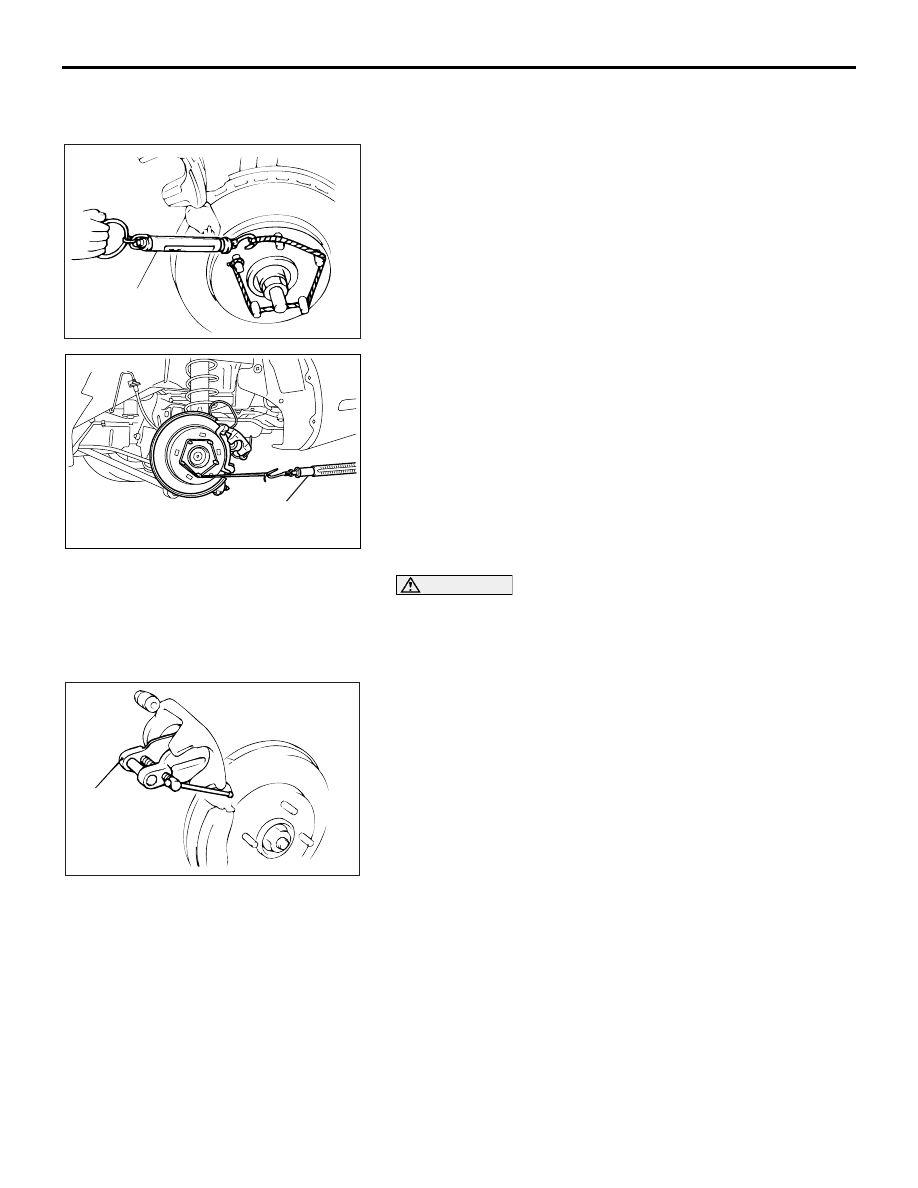

1. In order to measure the brake drag force, measure the hub

torque with the pads removed by the following procedure.
Use a spring scale  to measure the hub torque in the forward
direction. Record hub torque with pads removed.

CAUTION

Do not let any oil, grease or other contamination get onto
the friction surfaces of the pads and brake discs.
2. After re-installing the caliper support to the knuckle, install

the pad clips and the pads to the caliper support.

3. Clean the piston and insert into cylinder with special tool

MB990520.

4. Be careful that the piston boot does not become caught,

when lowering the caliper assembly and installing the lock
pin bolt.

5. Check the brake drag force as follows.

(1) Start the engine and hold the brake pedal down for 5

seconds. [Pedal depression force: approximately 200 N
(45 pound)]

(2) Stop the engine.
(3) Turn the brake disc forward 10 times.

AC000906AG

SPRING SCALE

<FRONT>

AC305370

SPRING SCALE

AB

<REAR>

AC002027

MB990520

AB

DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-32

(4) Use a spring scale to measure the hub torque with pads

installed in the same direction as earlier.

(5) Calculate the drag force of the disc brake [difference

between hub torque with pads installed and hub torque
with pads removed].

Standard value:
<Front

3.8L engine> 64 N (14 pounds) or less

<Rear> 54 N (12 pounds) or less

6. If the brake drag force exceeds the standard value,

disassemble and clean the piston. Check for corrosion or
worn piston seal, and check the sliding condition of the lock
pin and guide pin.

INSPECTION

M1351008100046

.

BRAKE DISC CHECK

• Disc wear (Refer to

P.35A-19

).

• Disc run-out (Refer to

P.35A-19

).

AC000908

SPRING SCALE

AF

<FRONT>

AC305369

SPRING SCALE

AB

<REAR>

DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-33

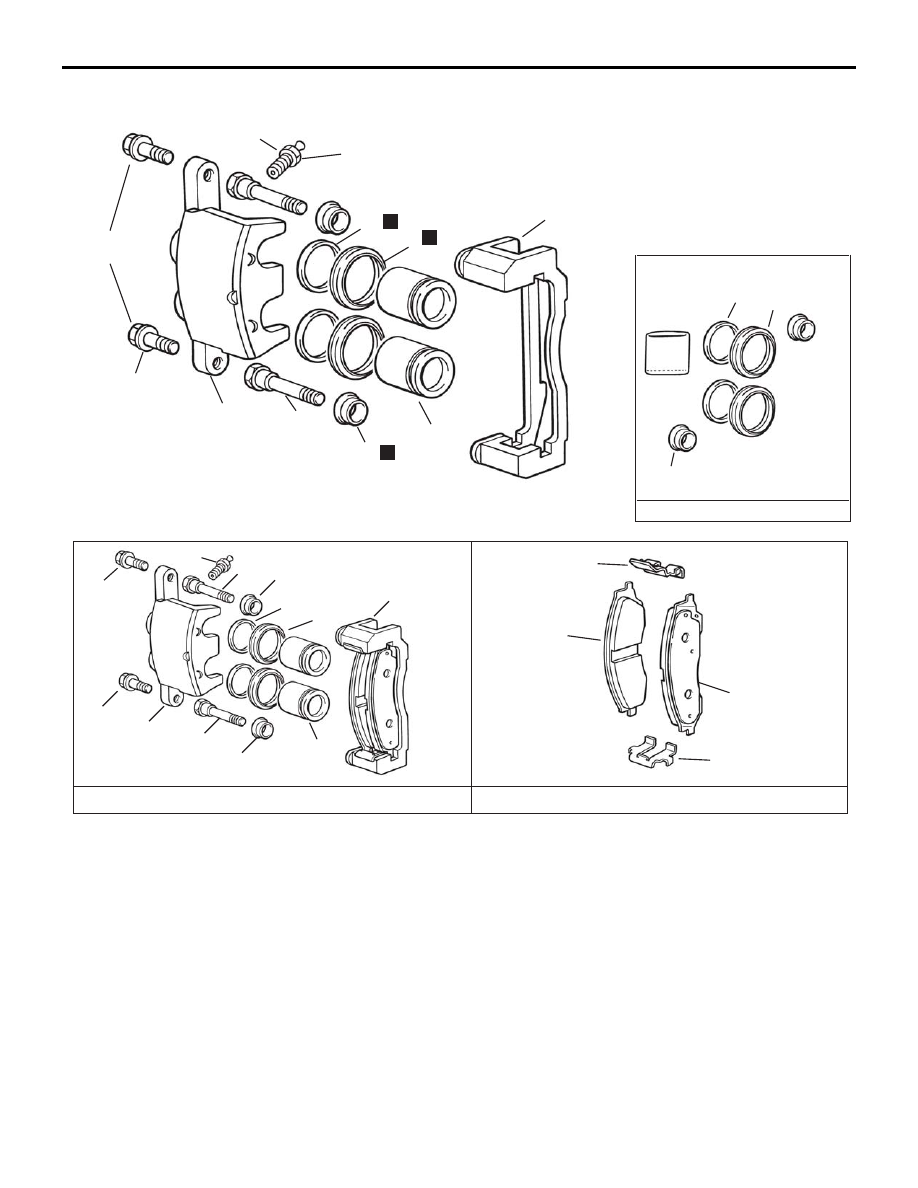

DISASSEMBLY AND ASSEMBLY <FRONT>

M1351008200065

15DB187A

CALIPER SEAL KIT

CALIPER KIT

GREASE

PAD SET

9

11

4

1

N

10

8

5

6

7

12

9

4

11

N

6

7

N

8

5

36.5 ± 1.5 N·m

12.5 ± 1.5 N·m

10

11

1

2

2

12

4

6

7

7

10

DISASSEMBLY STEPS

1. PAD & SHIM ASSEMBLY
2. CLIP
3. N/A
4. GUIDE PIN BOLT
5. CALIPER BODY
6. GUIDE PIN

7. BOOT
8. CALIPER SUPPORT

<<A>>

9. CALIPER PISTON

<<A>>

10. PISTON BOOT

<<B>>

11. PISTON SEAL

DISASSEMBLY STEPS (Continued)
