TRANSAXLE MOUNTING

POWER PLANT MOUNT

32-6

INSTALLATION SERVICE POINT

.

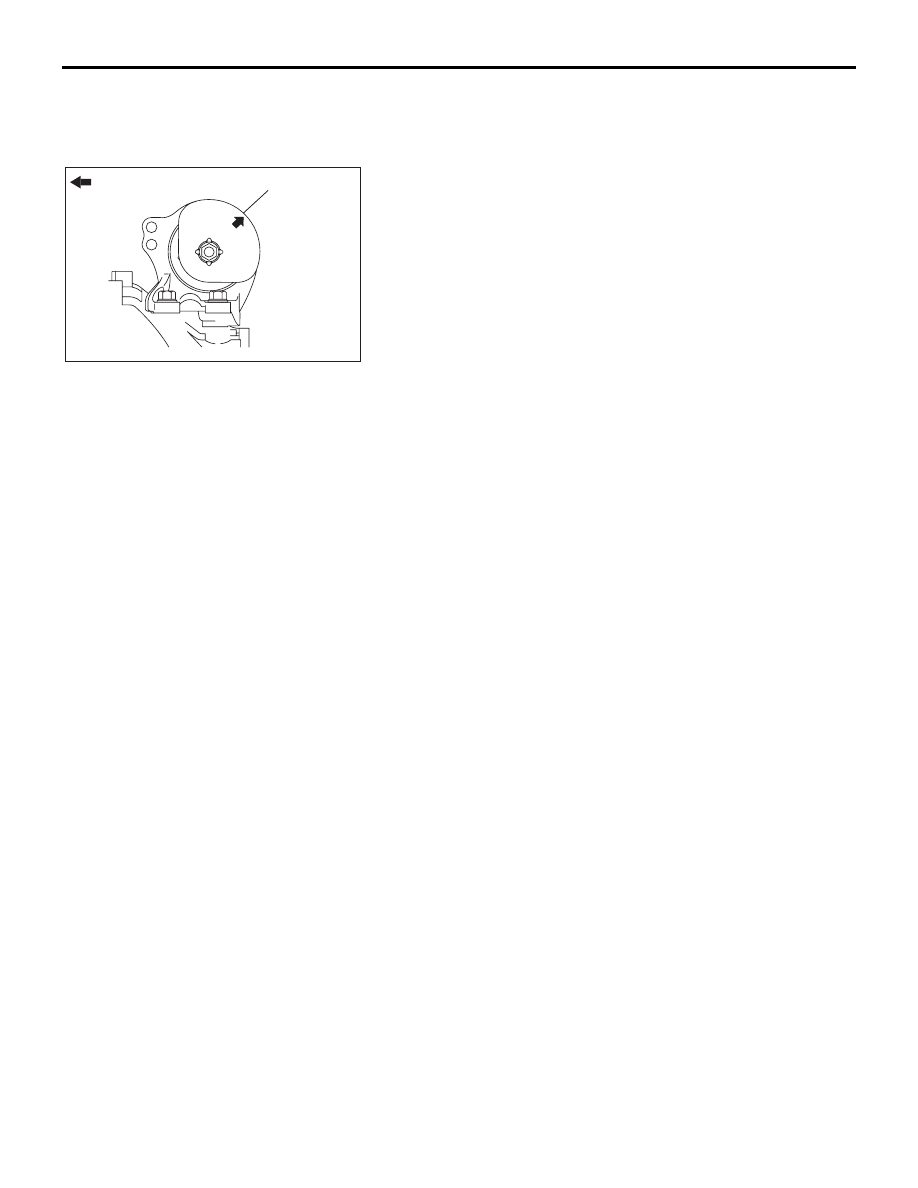

>>A<< TRANSAXLE MOUNTING STOPPER
INSTALLATION

Install the transaxle mounting stopper so that its arrow points
upward.

AC205424

ENGINE SIDE

TRANSAXLE
MOUNTING
STOPPER

AC

ENGINE ROLL STOPPER AND CENTREMEMBER

POWER PLANT MOUNT

32-7

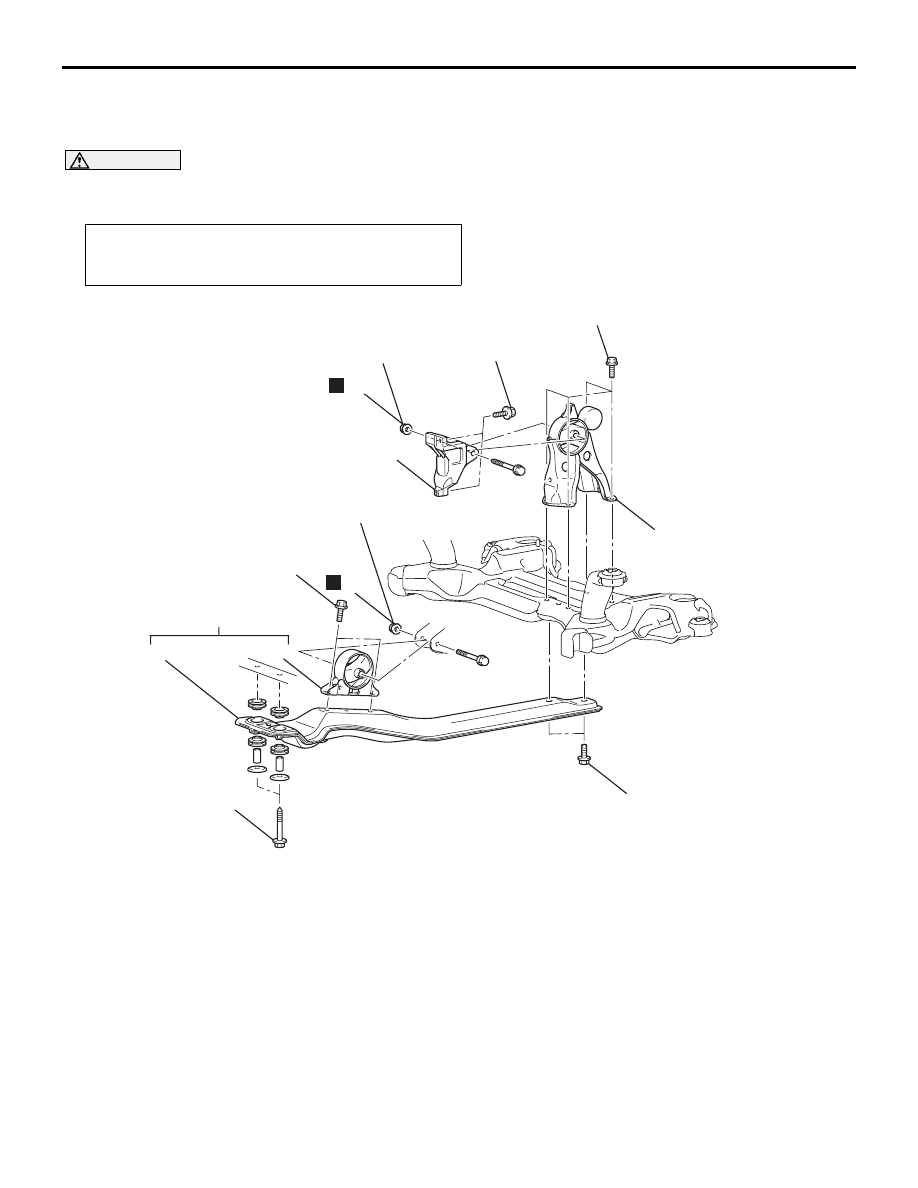

ENGINE ROLL STOPPER AND CENTREMEMBER

REMOVAL AND INSTALLATION

M1321002300306

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal and Post-installation Operation
Side Under Cover Removal and Installation (Refer to
GROUP 51, Under Cover

P.51-13

).

21DB023A

1

7

6

5

4

3

2

83 ± 12 N·m

61 ± 9 ft-lb

83 ± 12 N·m

61 ± 9 ft-lb

90 ± 10 N·m

67 ± 7 ft -lb

58 ± 7 N·m*

43 ± 5 ft-lb*

N

N

69 ± 10 N·m*

69 ± 10 N·m*

58 ± 7 N·m*

43 ± 5 ft-lb*

FRONT ROLL STOPPER AND
CENTREMEMBER REMOVAL
STEPS

1.

SELF-LOCKING NUT

2.

ENGINE FRONT ROLL STOPPER
BRACKET AND
CENTREMEMBER

>>B<<

3.

ENGINE FRONT ROLL STOPPER
BRACKET

4.

CENTREMEMBER

REAR ROLL STOPPER
REMOVAL STEPS

•

FRONT AXLE NO.1
CROSSMEMBER ASSEMBLY
(REFER TO

P.32-9

).

5.

ENGINE REAR ROLL STOPPER
BRACKET
REAR ROLL STOPPER
BRACKET REMOVAL STEPS

•

FRONT NO.1 EXHAUST PIPE
(REFER TO GROUP 15,
EXHAUST PIPE AND MAIN
MUFFLER

P.15-14

).

1.

SELF-LOCKING NUT

ENGINE ROLL STOPPER AND CENTREMEMBER

POWER PLANT MOUNT

32-8

INSTALLATION SERVICE POINTS

.

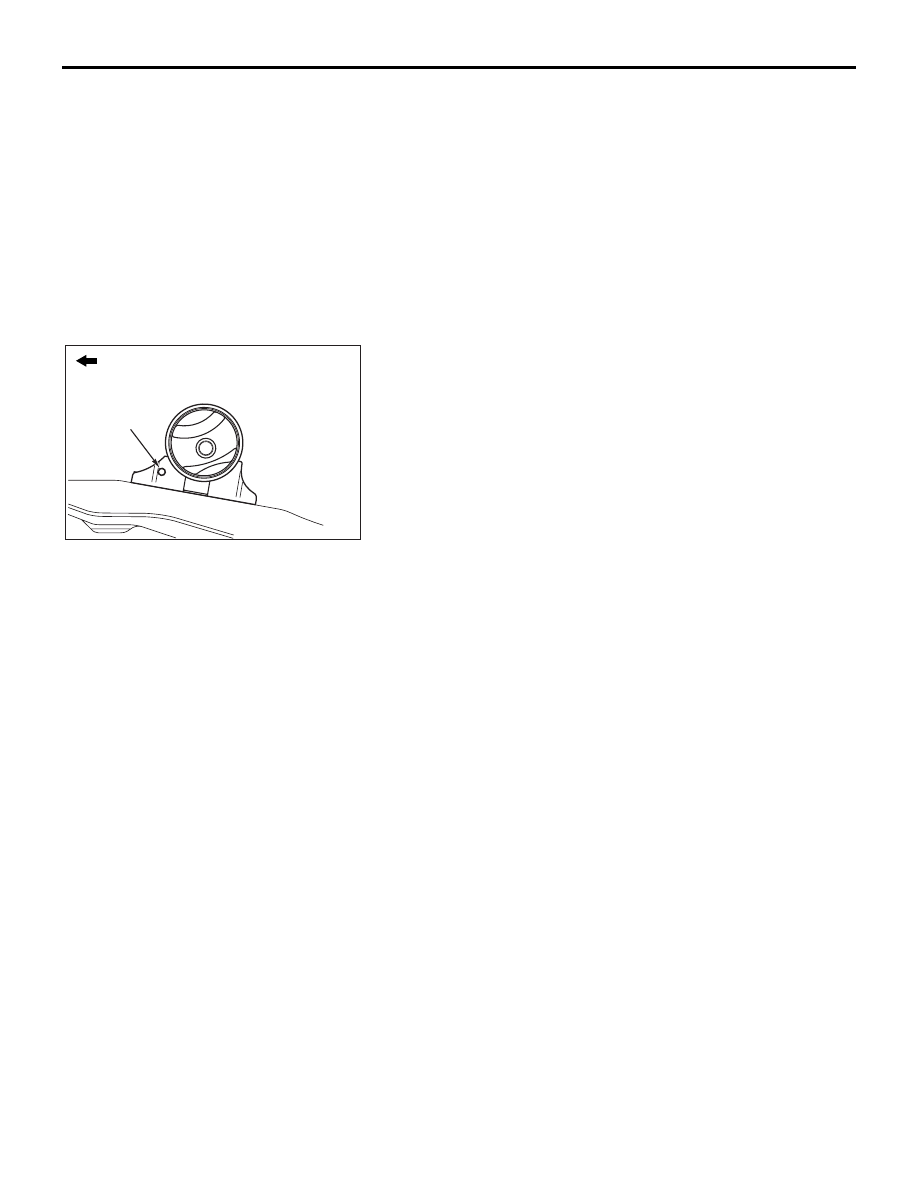

>>B<< ENGINE FRONT ROLL STOPPER
BRACKET INSTALLATION

Install the engine front roll stopper bracket so that its hole
points towards the front side of the vehicle.

2.

ENGINE FRONT ROLL STOPPER
BRACKET AND
CENTREMEMBER

6.

SELF-LOCKING NUT

7.

TRANSAXLE CASE REAR ROLL
STOPPER BRACKET

REAR ROLL STOPPER
BRACKET REMOVAL STEPS

AC205425

AC306965

FRONT OF VEHICLE

HOLE

AB

CROSSMEMBER

POWER PLANT MOUNT

32-9

CROSSMEMBER

REMOVAL AND INSTALLATION

M1321003200551

CAUTION

• Before removing the steering wheel and air bag module assembly, always refer to GROUP 52B -

Service Precautions (

P.52B-16

), Air bag Module and Clock Spring (

P.52B-237

). Also, set the front

wheels so that they are facing straight forward, and remove the ignition key. If you fail to do this,
the SRS clock spring will be damaged, causing the SRS air bag to be inoperative and serious
injury.

• *

1

: Indicates parts which should be initially tightened, and then fully tightened after placing the

vehicle horizontally and loading the full weight of the engine on the vehicle body.

• *

2

: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle

on the ground in the unladen condition.

Pre-removal Operation
• Power Steering Fluid Draining (Refer to GROUP 37,

On-vehicle Service

− Fluid Replacement

P.37-18

).

• Power Steering Hoses Removal and Installation (Refer to

GROUP 37, Power Steering Hoses P.37A-57).

• Air Bag Module and Steering Wheel Assembly Removal

(Refer to GROUP 37, Steering Wheel

P.37-23

).

• Clock Spring Removal (Refer to GROUP 52B, Air Bag

Module and Clock Spring

P.52B-237

).

• Floor Console Assembly Removal (Refer to GROUP 52A,

Floor Console Assembly

P.52A-10

).

• Front Scuff Plate (LH) and Cowl Side Trim (LH) Removal

(Refer to GROUP 52A, Trims

P.52A-11

).

• Trunk Lid Release Handle Cover Removal (Refer to

GROUP 42, Trunk Lid

P.42-63

).

• Accelerator Stopper Removal (Refer to GROUP 17,

Accelerator Pedal

P.17-9

).

• Front Floor Carpet Removal

• Centremember Removal (Refer to

P.32-7

).

Post-installation Operation
• Centremember Installation (Refer to

P.32-7

).

• Front Floor Carpet Installation

• Accelerator Stopper Installation (Refer to GROUP 17,

Accelerator Pedal

P.17-9

).

• Trunk Lid Release Handle Cover Installation (Refer to

GROUP 42, Trunk Lid

P.42-63

).

• Front Scuff Plate (LH) and Cowl Side Trim (LH) Installa-

tion (Refer to GROUP 52A, Trims

P.52A-11

).

• Floor Console Assembly Installation (Refer to GROUP

52A, Floor Console Assembly

P.52A-10

).

• Clock Spring Installation (Refer to GROUP 52B, Air Bag

Module and Clock Spring

P.52B-237

).

• Steering Wheel Assembly and Air Bag Module Installation

(Refer to

P.37-23

).

• Check the dust cover for cracks or damage by pushing it

with your finger.

• Power Steering Fluid Supplying (Refer to GROUP 37,

On-vehicle Service

− Fluid Replacement

P.37-18

).

• Power Steering Fluid Line Bleeding (Refer to

P.37-18

).

• Checking Steering Wheel Position with Wheels Straight

Ahead.

• Front Wheel Alignment Adjustment (Refer to GROUP 33,

On-vehicle Service

− Front Wheel Alignment Check and

Adjustment

P.33-6

).
