AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-128

STEP 9. Check the wiring harness between A/C-ECU
connector C-16 (terminal 27) and the ground.
Q: Is the wiring harness between A/C-ECU connector C-16

(terminal 27) and ground in good condition?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

. check

that the air conditioning works normally.

NO :  Repair the wiring harness. Check that the air

conditioning works normally.

INSPECTION PROCEDURE 12: When Sunlight Intensity Changes, Air Outlet Temperature Does Not
Change.

.

CIRCUIT OPERATION

When the blower air temperature cannot be changed
even if the preset temperature is changed, the sen-
sors may be defective.

.

TROUBLESHOOTING HINTS

• Improper amount of refrigerant

• Malfunction of the A/C pressure sensor

• Malfunction of the photo sensor

• Malfunction of the A/C-ECU

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

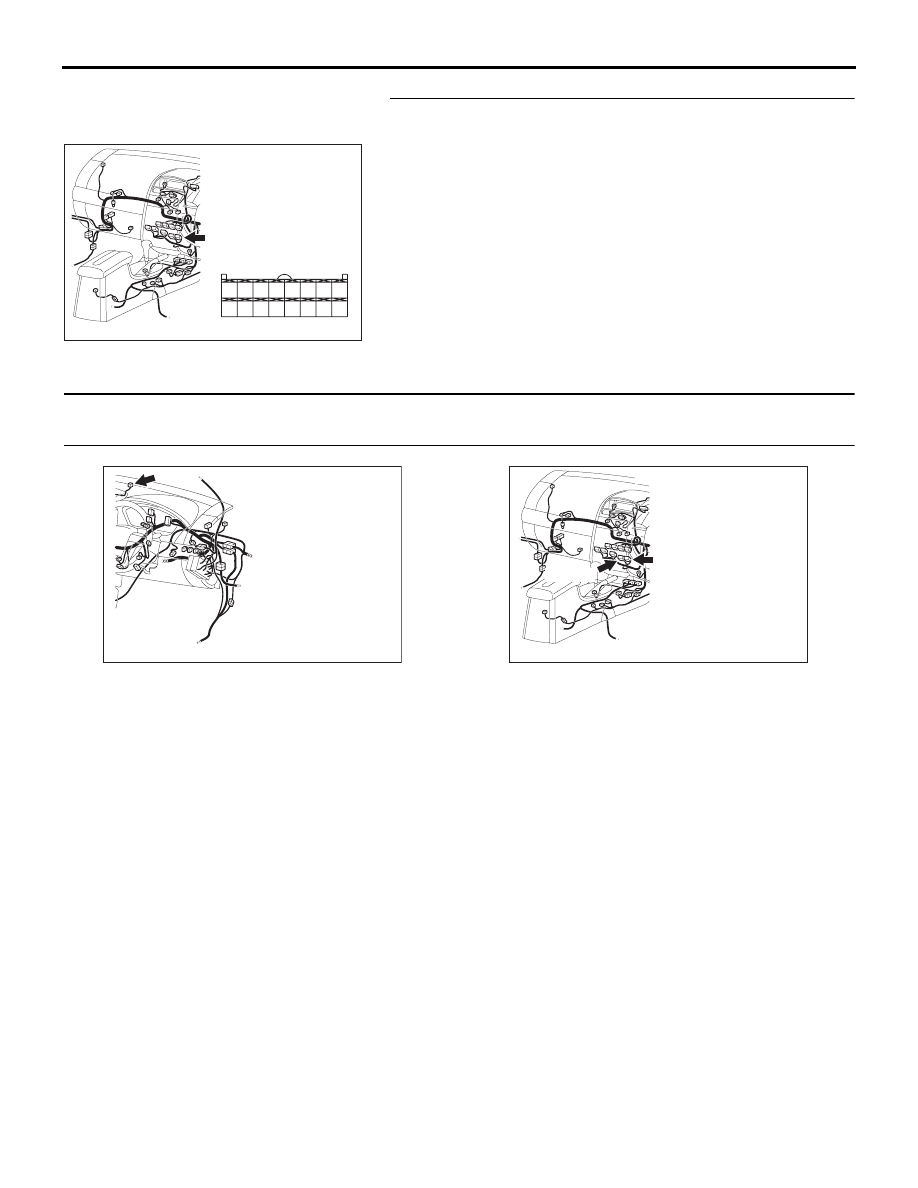

25DB132A

HARNESS SIDE

C-16 (B)

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

CONNECTOR: C-16

25DB135A

C-04

CONNECTORS: C-04

25DB068A

C-16 (B)

C-15 (B)

CONNECTORS: C-15, C-16

AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-129

DIAGNOSIS

Required Special Tools:

•  : Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

STEP 1. Check the defogger and outside/inside air
selection damper control motor operation.

Q: Do the defogger and outside/inside air selection damper

control motor work normally?
YES : Go to Step 2.
NO :  Refer to GROUP 55, AUTO A/C Diagnosis,

P.55-70

.

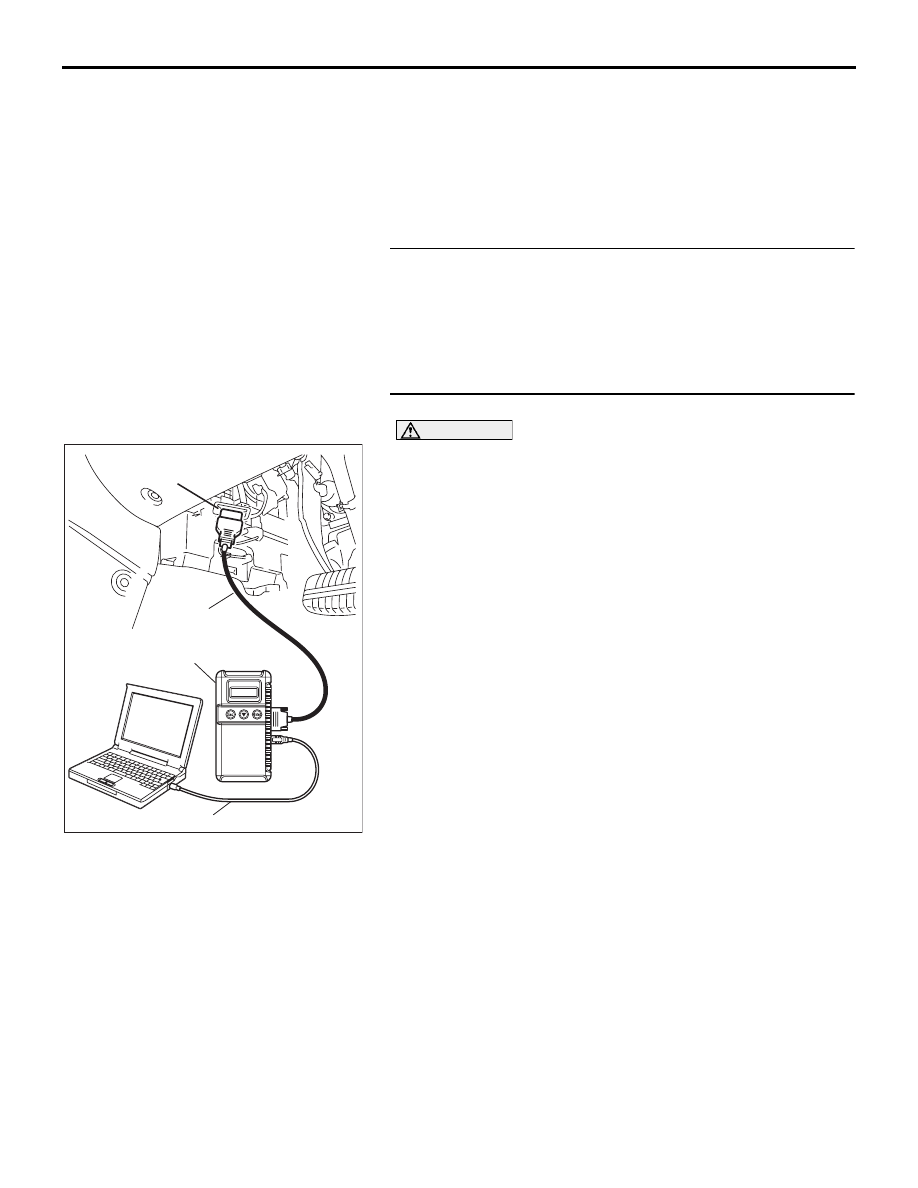

STEP 2. Using scan tool , read diagnostic trouble code.

CAUTION

To prevent damage to scan tool , always turn the ignition
switch to the "LOCK" (OFF) position before connecting or
disconnecting scan tool .
Check if an A/C-ECU DTC is set.

1. Connect scan tool  to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Refer to

P.55-9

.

NO :  Go to Step 3.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-130

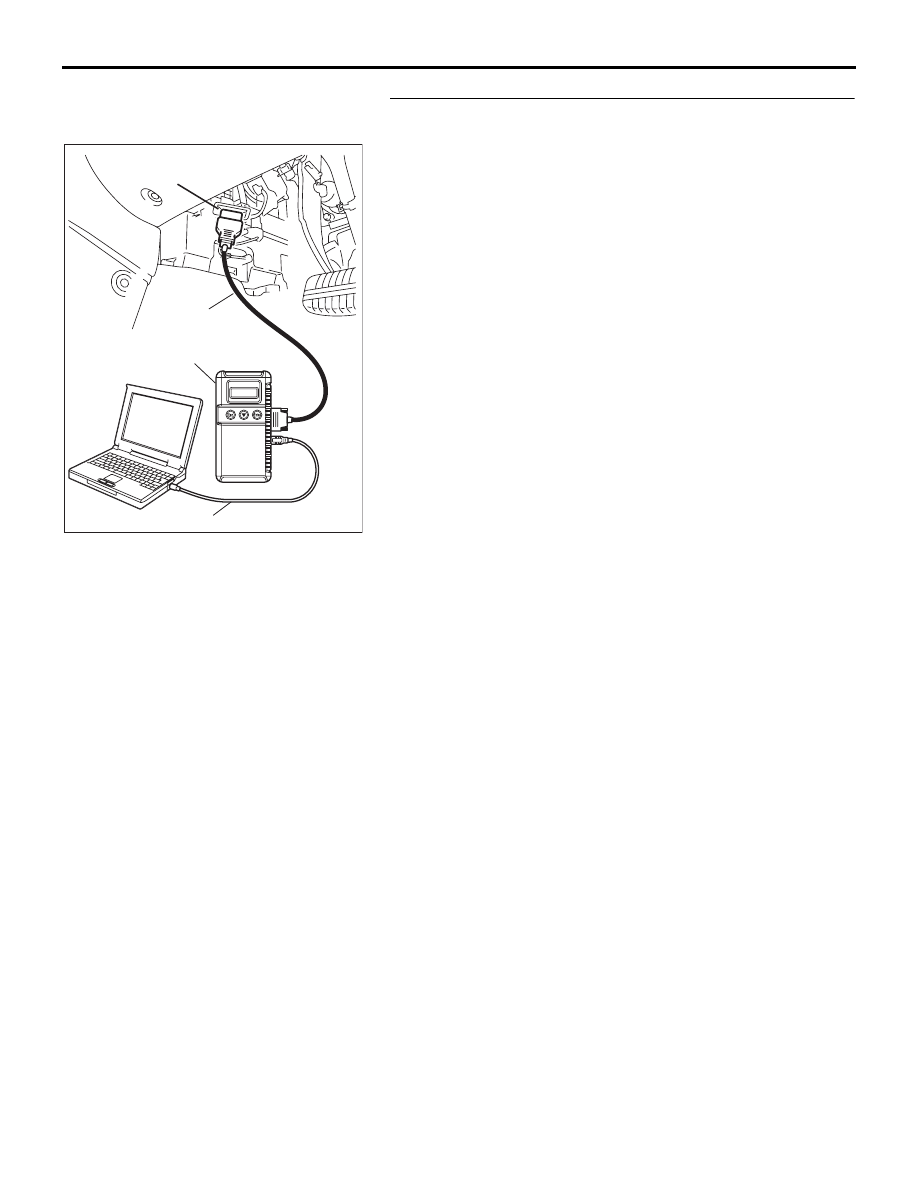

STEP 3. Using scan tool , check data list item 67: Photo
sensor.
(1) Connect scan tool  to the data link connector.
(2) Start the engine.
(3) Set scan tool  to the data reading mode for item 67: Photo

sensor.

• Check that the display on the scan tool changes when

the photo sensor is covered with hands.

(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the sensor within the specified range?

YES : Go to Step 7.
NO :  Go to Step 4.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-131

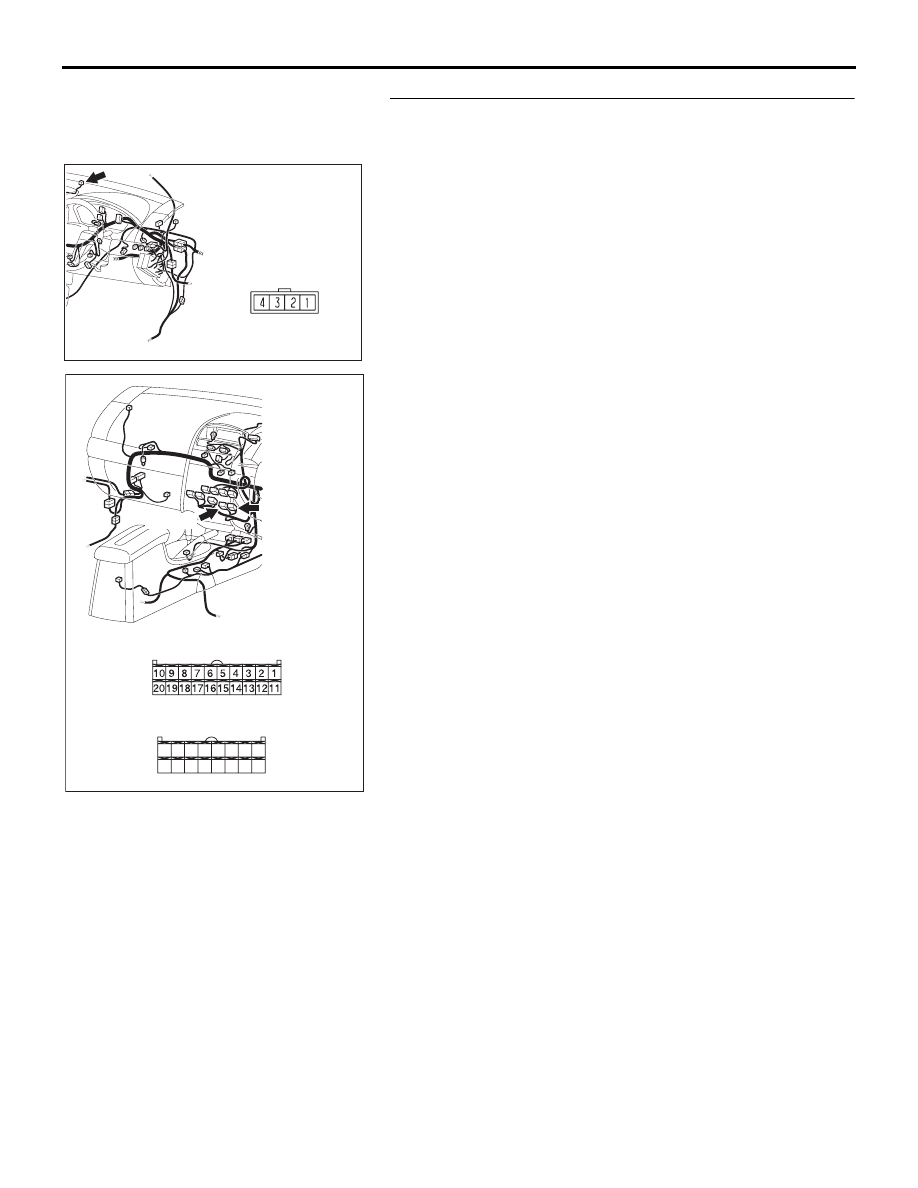

STEP 4. Check A/C-ECU connectors C-15, C-16 and photo
sensor connector C-04 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q:  Are A/C-ECU connectors C-15, C-16 and photo sensor

connector C-04 in good condition?
YES : Go to Step 5.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the air conditioning works normally.

25DB136A

CONNECTOR: C-04

HARNESS SIDE

25DB070A

CONNECTORS: C-15, C-16

C-16 (B)

HARNESS SIDE

C-16

C-15

C-15 (B)

HARNESS SIDE

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36
