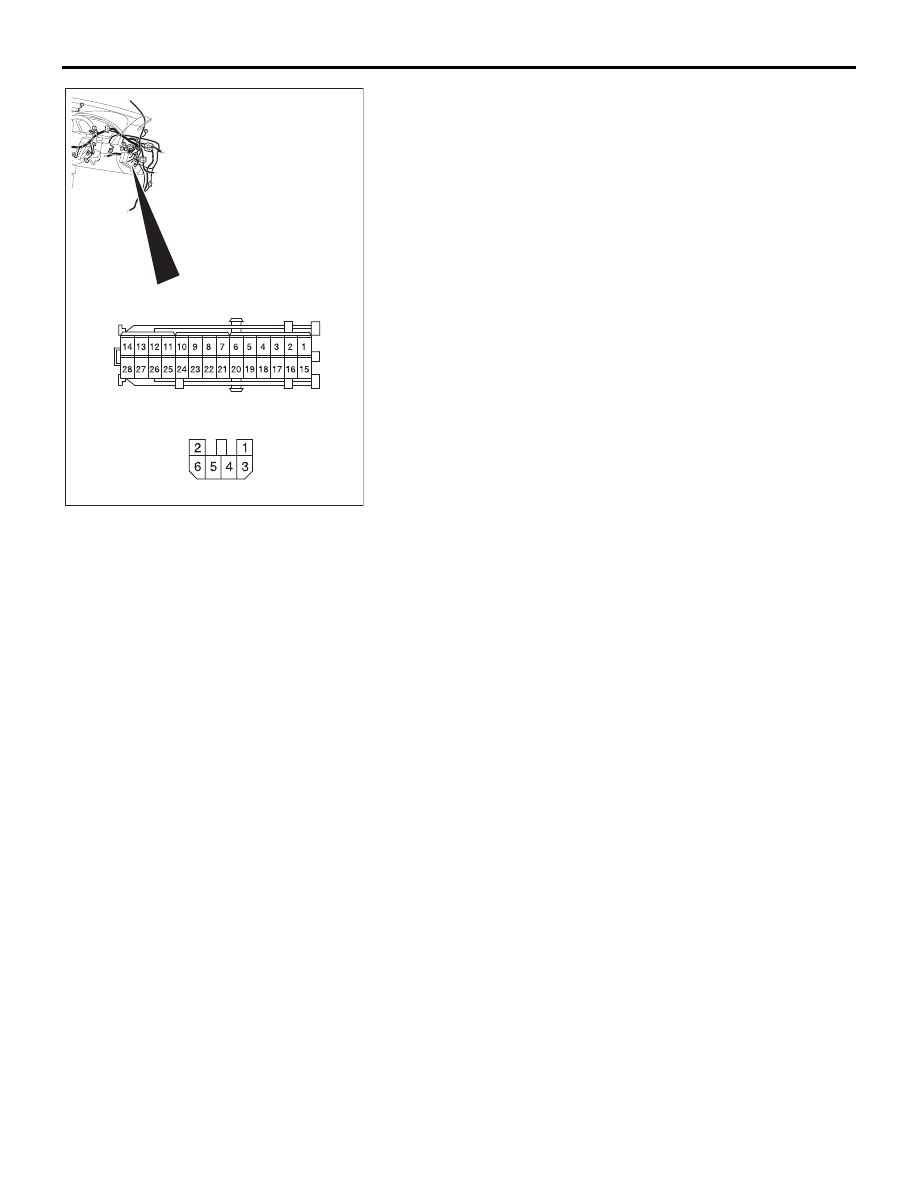

AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-72

NOTE: Also check junction block connectors C-211(terminal
16) and C-215 (terminal 2) for loose, corroded, or damaged ter-
minals, or terminals pushed back in the connector. If junction
block connector C-211 or C-215 is damaged, repair or replace
the connector as described in GROUP 00E, Harness Connec-
tor Inspection

P.00E-2

.

Q: Is the wiring harness between outside/inside air

selection damper control motor connector C-106
(terminal 1) and the ignition switch (IG2) in good
condition?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Repair the wiring harness. Check that the

outside/inside air selection damper control motor
works normally.

25DB096A

CONNECTORS: C-211, C-215

HARNESS SIDE

C-211

HARNESS SIDE

C-215

AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-73

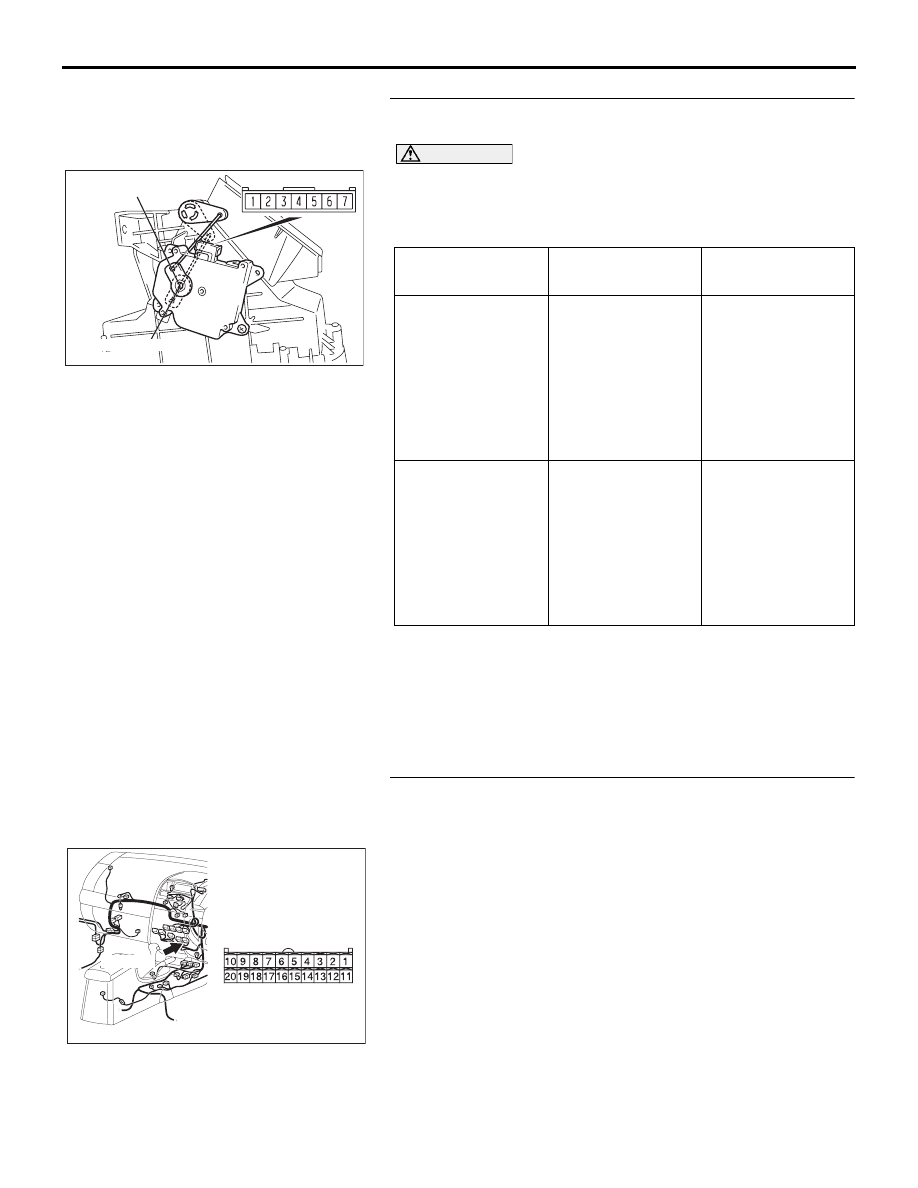

STEP 5. Check the outside/inside air selection damper
control motor.

CAUTION

Cut off the battery voltage when the damper is in the
inside/outside air position.
Check the outside/inside air selection damper control motor by
the following procedures.

Q: Does outside/inside air selection damper control motor

work normally?
YES : Go to Step 6.
NO :  Replace the outside/inside air selection damper

control motor. Check that the outside/inside air
selection damper control motor works normally.

STEP 6. Check A/C-ECU connector C-15 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is A/C-ECU connector C-15 in good condition?

YES : Go to Step 7.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the outside/inside air selection damper control
motor works normally.

LEVER POSITION BATTERY

CONNECTION

LEVER
OPERATION

At the outside
position

• Connect

terminal 1 to the
positive battery
terminal

• Connect

terminal 5 to the
negative battery
terminal

The lever moves
from the outside
position to the
inside position

At the inside
position

• Connect

terminal 1 to the
positive battery
terminal

• Connect

terminal 4 to the
negative battery
terminal

The lever moves
from the inside
position to the
outside position

25DB067A

OUTSIDE POSITION

INSIDE POSITION

C-106

25DB092A

C-15

CONNECTOR: C-15

HARNESS SIDE

C-15

AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-74

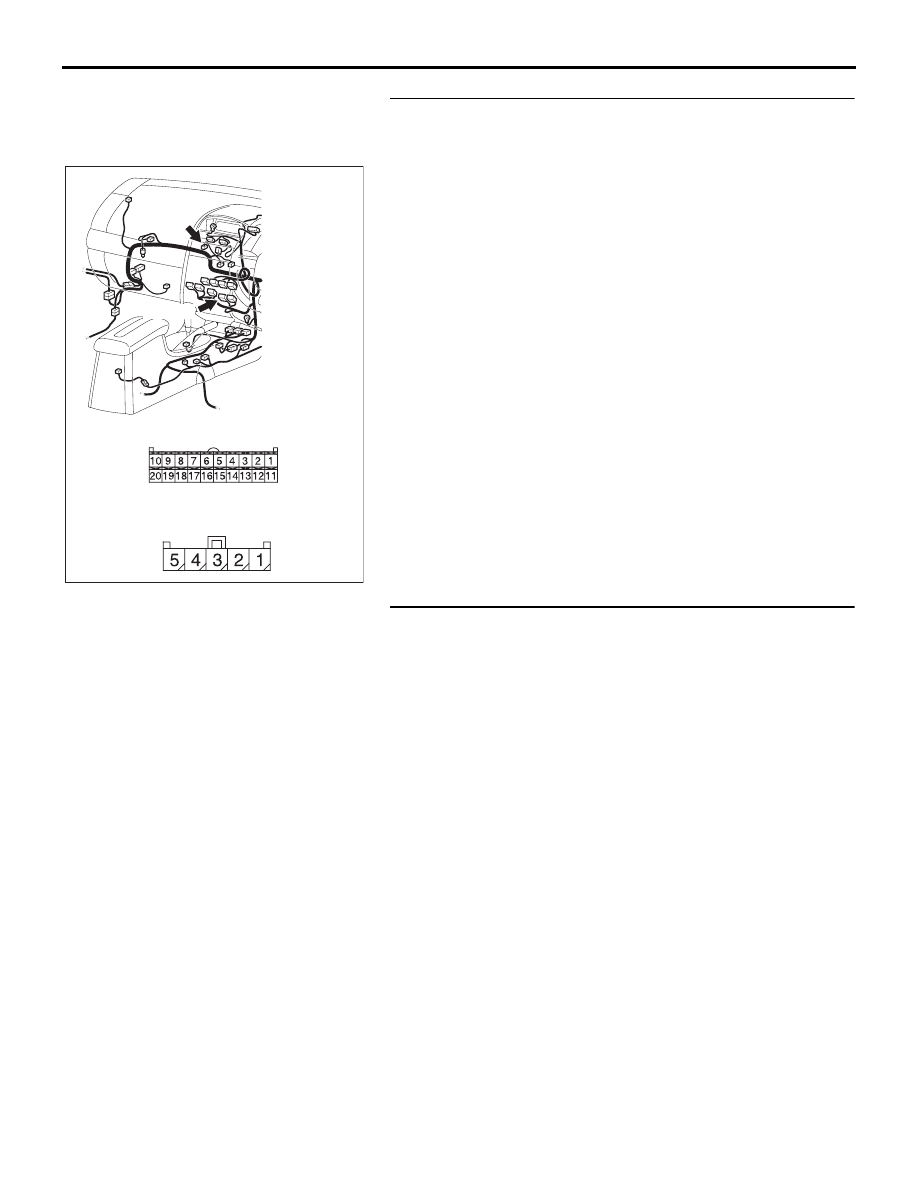

STEP 7. Check the wiring harness between outside/inside
air selection damper control motor connector C-106
(terminals 5 and 7) and A/C-ECU C-15 (terminals 5 and 6).
Q: Are the wiring harness between outside/inside air

selection damper control motor connector C-106
(terminals 4 and 5) and A/C-ECU C-16 (terminals 5 and
6) in good condition?
YES : Go to Step 8.
NO :  Repair the wiring harness. Check that the

outside/inside air selection damper control motor
works normally.

STEP 8. Retest the system.

Q: Does a malfunction take place again?

YES : Replace the A/C-ECU, and check that the

outside/inside air selection damper control motor
works normally.

NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

25DB098A

HARNESS SIDE

C-15

CONNECTORS: C-15, C-106

C-106

HARNESS SIDE

C-106

C-15 (B)

AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-75

INSPECTION PROCEDURE 4: When the A/C is Operating, Temperature Inside the Passenger
Compartment does not Decrease (Cool Air is not Emitted).

.

TECHNICAL DESCRIPTION (COMMENT)

If cool air is not distributed when the A/C switch is on,
the A/C compressor relay system may be defective.

.

TROUBLESHOOTING HINTS

• Improper amount of refrigerant

• Malfunction of the air thermo sensor

• Malfunction of the ambient air temperature sen-

sor

• Malfunction of the A/C pressure sensor

• Malfunction of the A/C compressor relay

• Malfunction of the A/C refrigerant temperature

switch

• Malfunction of the air conditioning compressor

clutch

• Malfunction of the A/C-ECU

• Malfunction of the ECU

• Damaged harness wires or connectors

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

•  : Scan Tool (MUT-III Sub Assembly)

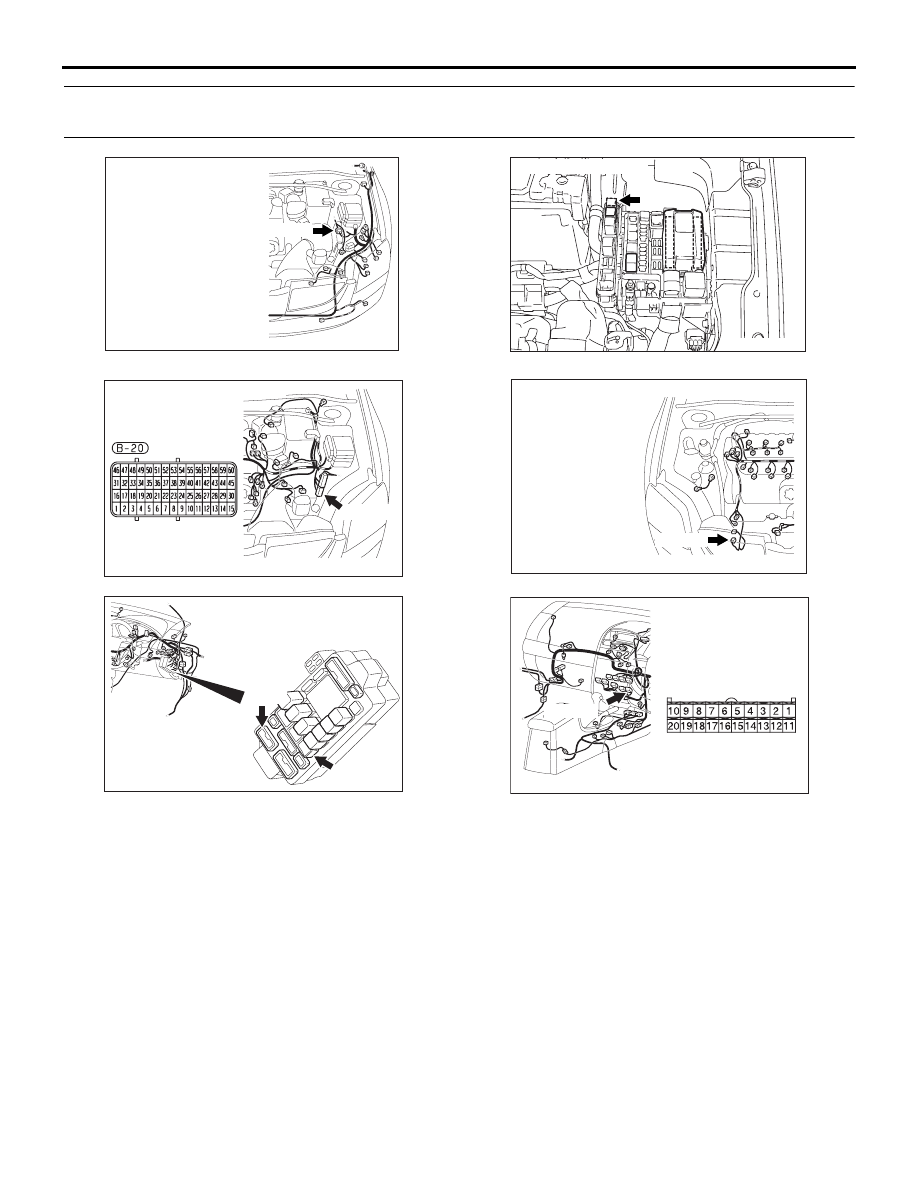

AC305210

CONNECTOR: A-13

AS

A-13 (GR)

AC305977AK

CONNECTOR: B-18X

25DB148A

B-20

CONNECTOR: B-20

AC305218

B-28 (B)

AC

CONNECTOR: B-28 <3.8 L>

25DB101A

CONNECTORS: C-214, C-215

JUNCTION BLOCK

(FRONT VIEW)

C-215

C-214

25DB092A

C-15

CONNECTOR: C-15

HARNESS SIDE

C-15
