Mitsubishi 380. Manual - part 127





DOOR TRIM

INTERIOR

52A-16

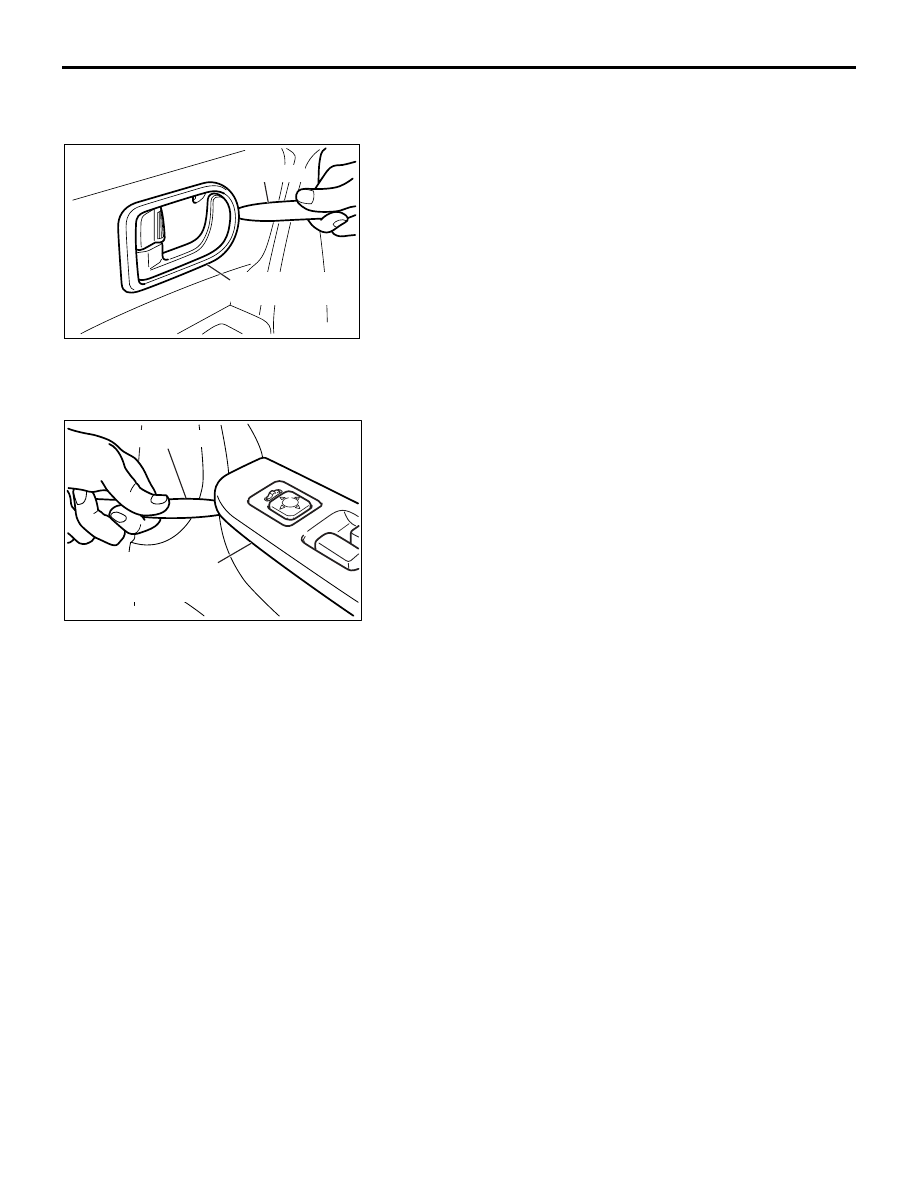

REMOVAL SERVICE POINTS

.

<<A>> INSIDE HANDLE COVER REMOVAL

Insert special tool MB990784 as shown to remove the inside
handle cover.

.

<<B>> POWER WINDOW SWITCH PANEL
ASSEMBLY REMOVAL

Insert special tool MB990784 as shown to remove the power
window switch panel assembly.

AC206689

MB990784

INSIDE HANDLE
COVER

AB

19DB053A

MB990784

POWER WINDOW
SWITCH PANEL
ASSEMBLY

DOOR TRIM

INTERIOR

52A-17

DISASSEMBLY AND ASSEMBLY

M1521006900100

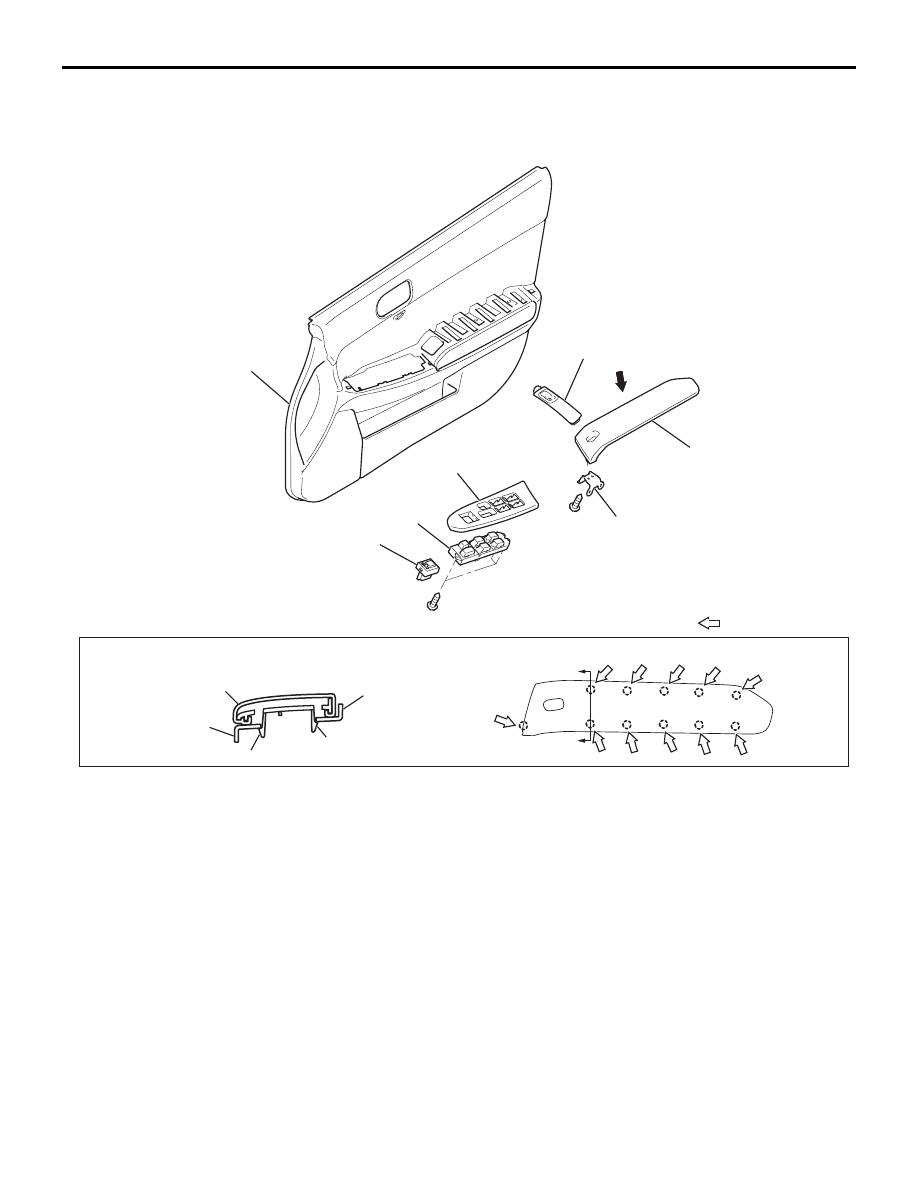

<FRONT DOOR TRIM>

19DB054A

1

2

3

4

5

6

7

A

VIEW A

B

B

NOTE
          : CLAW POSITION

SECTION B – B

6

7

7

CLAW

CLAW

DISASSEMBLY STEPS

1.

ASSIST GRIP

2.

POWER WINDOW MAIN SWITCH

3.

REMOTE CONTROLLED MIRROR
SWITCH

4.

POWER WINDOW MEIN SWITCH
PANEL

5.

ARMREST BRACKET

6.

ARMREST

7.

FRONT DOOR TRIM

DISASSEMBLY STEPS

DOOR TRIM

INTERIOR

52A-18

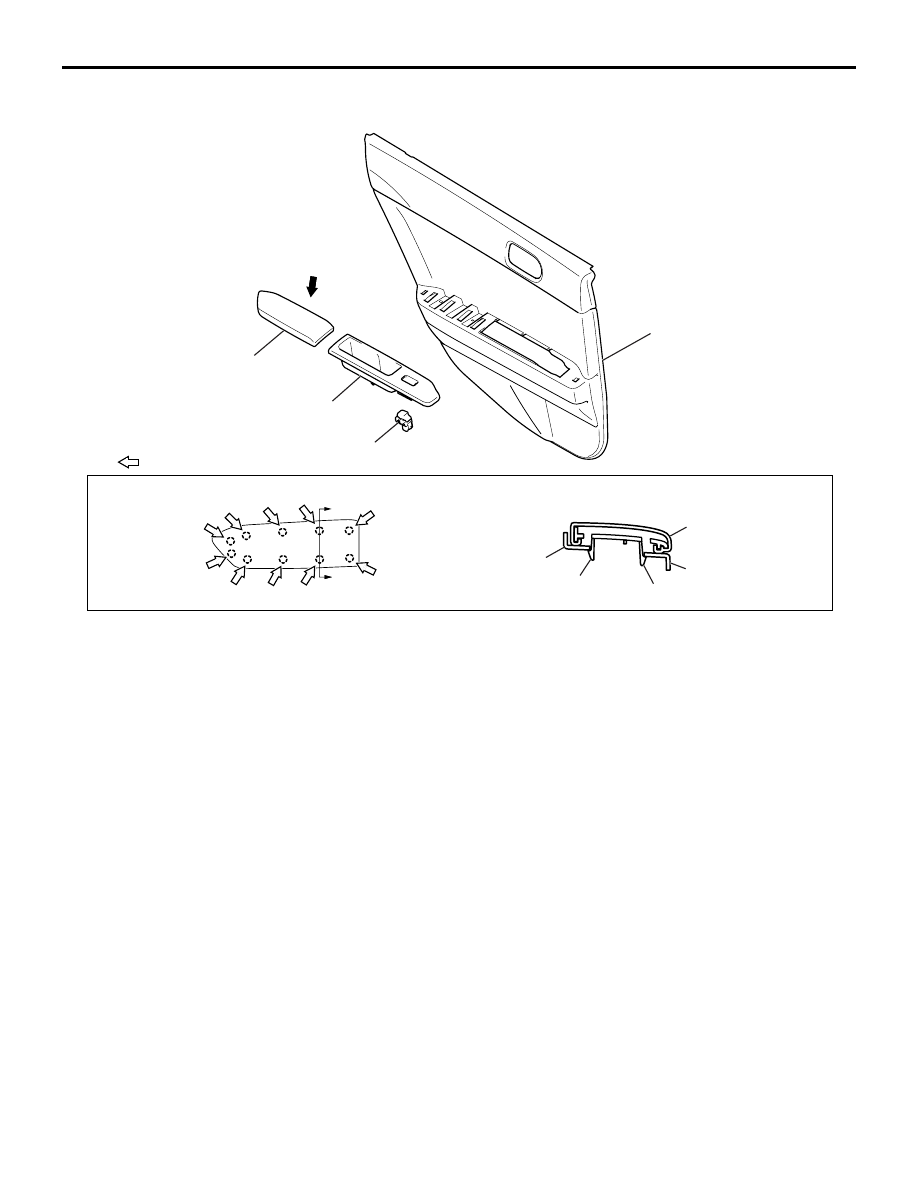

<REAR DOOR TRIM>

AC307442AB

1

2

3

4

NOTE
          : CLAW POSITION

SECTION B – B

VIEW A

A

3

4

4

CLAW

CLAW

DISASSEMBLY STEPS

1.

POWER WINDOW SUB SWITCH

2.

POWER WINDOW SUB SWITCH
PANEL

3.

ARMREST

4.

REAR DOOR TRIM

DISASSEMBLY STEPS

HEADLINING

INTERIOR

52A-19

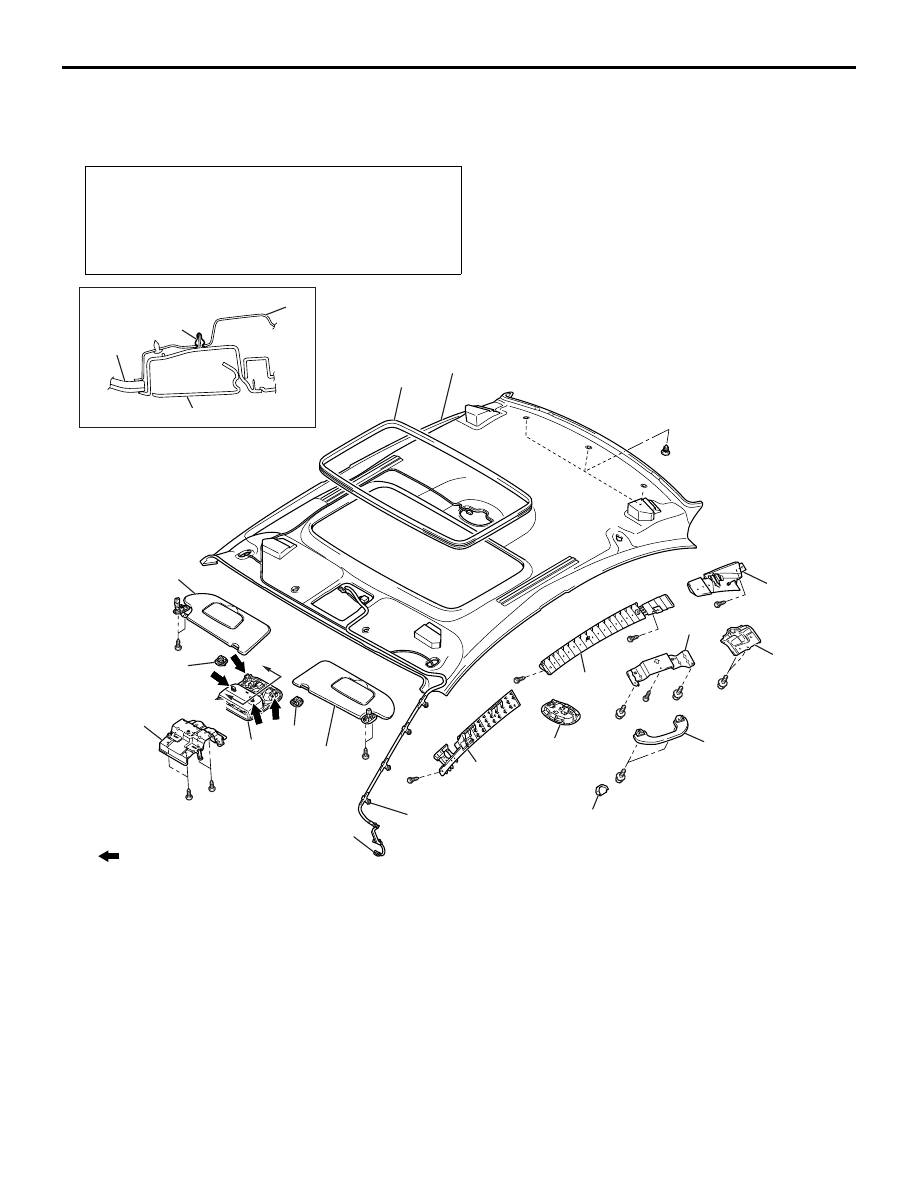

HEADLINING

REMOVAL AND INSTALLATION

M1521001400360

Pre-removal and Post-installation Operation
• Front Seat Assembly (Refer to

P.52A-21

.)

• Removal and Installation of Rear Seat Cushion Assembly

and Rear Seatback Assembly (Refer to

P.52A-55

.)

• Removal and Installation of Front Pillar Trim, Center Pillar

Trim Upper and Rear Pillar Trim (Refer to

P.52A-11

.)

AC307811

NOTE
          : CLIP POSITION

SECTION A – A

11

1

2

3

2

1

12

4

13

6

15

16

14

7

10

10

3

CLIP

AB

5

11

A

A

8

9

REMOVAL STEPS

1.

SUN VISOR

2.

SUN VISOR HOLDER

3.

OVERHEAD CONSOLE
ASSEMBLY

4.

DOME LIGHT ASSEMBLY (REFER
TO GROUP 54A, DOME LIGHT

P.54A-163

.)

5.

ASSIST GRIP PLUG

6.

ROOF INSIDE ASSIST GRIP
<VEHICLES WITH ROOF INSIDE
ASSIST GRIP>

7.

SUNROOF OPENING TRIM
<VEHICLES WITH SUNROOF>

8.

ROOF HARNESS CLAMP

•

INSTRUMENT PANEL SIDE
COVER (REFER TO

P.52A-4

.)

9.

ROOF HARNESS CONNECTOR

•

FLOOR CONSOLE ASSEMBLY
(REFER TO

P.52A-10

.)

•

PARKING BRAKE LEVER
ASSEMBLY MOUNTING BOLT
(REFER TO GROUP 36, PARKING
BRAKE LEVER

P.36-6

.)

<<A>>

10. HEADLINING ASSEMBLY
11. OVERHEAD CONSOLE BRACKET
12. FRONT HEADLINING PAD

REMOVAL STEPS (Continued)
