INPUT SIGNAL PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-421

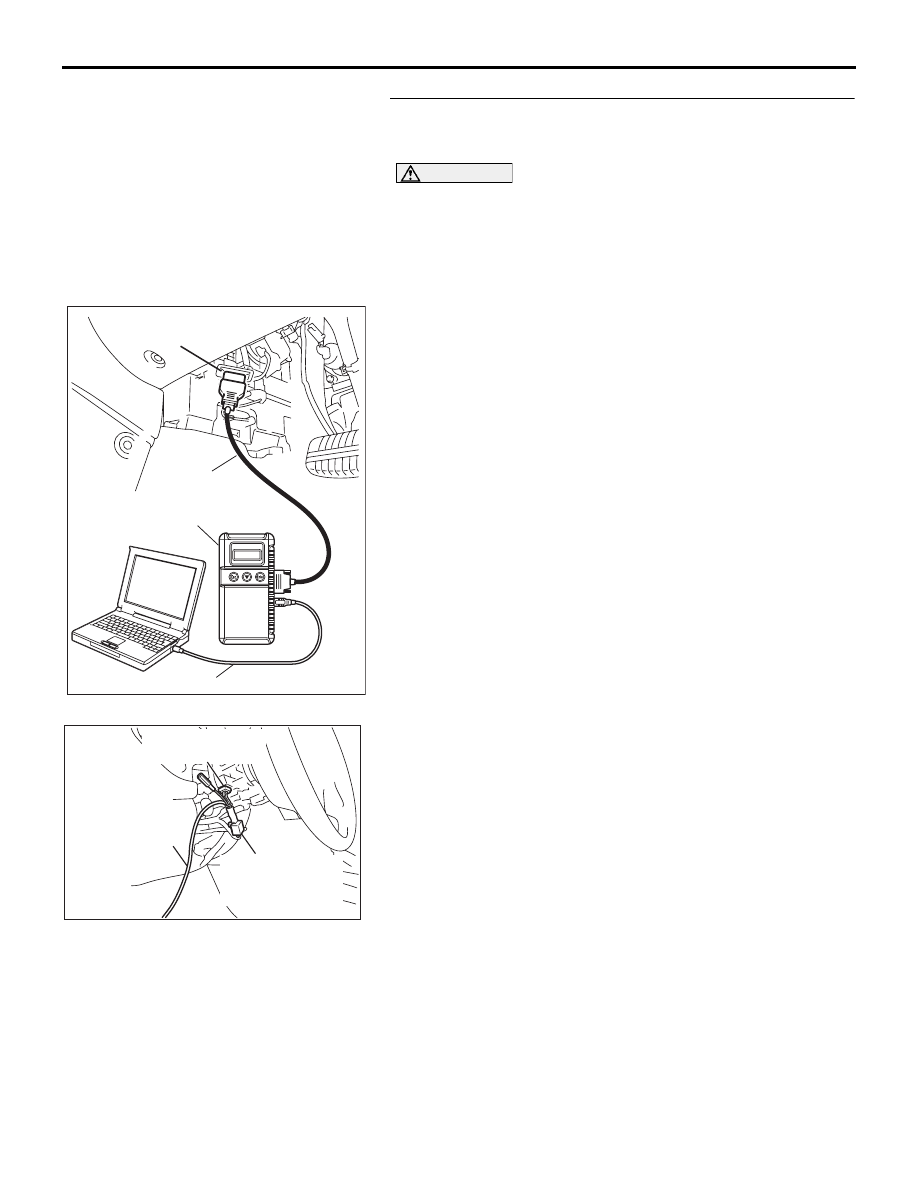

STEP 1. Use diagnostic tool MB991958 to select "ECU
COMM Check" on the SWS monitor display.
Check the column-ECU.

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958. Connect special tool MB991910 before con-
necting special tool MB991812. Be sure to connect special
tool MB991806 after turning on special tool MB991824.
(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Operate the diagnostic tool according to the procedure

below to display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) Diagnostic tool (MUT-III) should show "OK" on the "ECU

COMM Check" menu for the "COLUMN ECU" menu.

Q: Is "OK" displayed for the "COLUMN ECU" menu?

YES : Go to Step 2.
NO :  Refer to Inspection Procedure A-2 "Communication

with the column switch (column-ECU) is not possible

P.54B-68

."

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB

INPUT SIGNAL PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-422

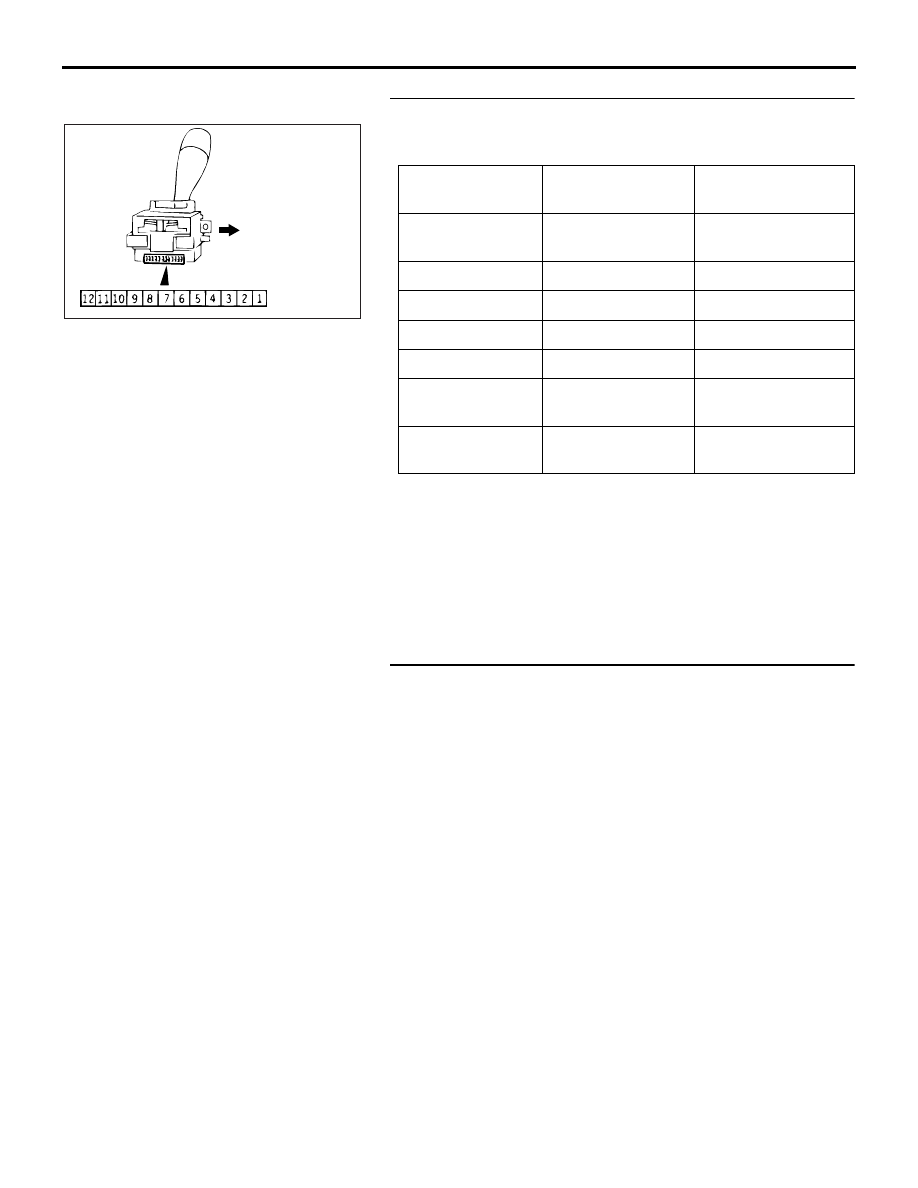

STEP 2. Check the turn-signal lamp and lighting switch.
Remove the turn-signal lamp and the lighting switch. Then
check continuity between the switch terminals.

Q: Are the turn-signal lamp and lighting switch in good

condition?
YES : Go to Step 3.
NO :  Replace the turn-signal lamp and the lighting switch.

The input signal from the column switch (turn-signal
lamp and lighting switch) should be able to be
checked and the functions described in the "CIRCUIT
OPERATION" should work normally.

STEP 3. Replace the column switch.
(1) Replace the column switch.
(2) The input signal from the column switch (turn-signal lamp

and lighting switch) should be able to be checked and the
functions described in the "CIRCUIT OPERATION" should
work normally.

Q: Is the input signal from the column switch (turn-signal

lamp and lighting switch) input normal?
YES : No action is necessary and testing is complete.
NO :  Replace the ETACS-ECU. The input signal from the

column switch (turn-signal lamp and lighting switch)
should be able to be checked and the functions
described in the "CIRCUIT OPERATION" should work
normally.

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

OFF

1

− 2, 2 − 3, 2 − 11,

2

− 12, 5 − 9, 7 − 9

Open circuit

Taillight switch

5

− 9

Less than 2 ohms

Headlamp switch

5

− 9, 7 − 9

Less than 2 ohms

Passing switch

2

− 12

Less than 2 ohms

Dimmer switch

2

− 11, 2 − 12

Less than 2 ohms

Turn-signal lamp
switch (LH)

1

− 2

Less than 2 ohms

Turn-signal lamp
switch (RH)

2

− 3

Less than 2 ohms

AC003177

UPPER SIDE

AB

INPUT SIGNAL PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-423

INSPECTION PROCEDURE M-6: Column switch: ETACS-ECU does not receive any signal from the
windshield mist wiper switch, the windshield intermittent wiper switch, the windshield low-speed
wiper switch, the windshield high-speed wiper switch or the windshield washer switch.

NOTE: This troubleshooting procedure requires the
use of diagnostic tool MB991958 and SWS monitor
kit MB991813. For details on how to use the SWS
monitor, refer to "How to connect SWS monitor

P.54B-13

."

.

CIRCUIT OPERATION

The ETACS-ECU operates the windshield wiper and
washer according to signal from the windshield wiper
and washer switch.

.

TECHNICAL DESCRIPTION (COMMENT)

If the signal is not normal, the windshield wiper and
washer do not work normally.

.

TROUBLESHOOTING HINTS

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

• The column switch may be defective (windshield

wiper and washer switch)

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

•  MB991958: Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Test Probe Harness

INPUT SIGNAL PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-424

STEP 1. Use diagnostic tool MB991958 to select "ECU
COMM Check" on the SWS monitor display.
Check the column-ECU.

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958. Connect special tool MB991910 before con-
necting special tool MB991812. Be sure to connect special
tool MB991806 after turning on special tool MB991824.
(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Operate the diagnostic tool according to the procedure

below to display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) Diagnostic tool (MUT-III) should show "OK" on the "ECU

COMM Check" menu for the "COLUMN ECU" menu.

Q: Is "OK" displayed for the "COLUMN ECU" menu?

YES : Go to Step 2.
NO :  Refer to Inspection Procedure A-2 "Communication

with the column switch (column-ECU) is not possible

P.54B-68

."

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB
