TRANSMISSION
AUTOMATIC TRANSMISSION OVERHAUL
23B-28

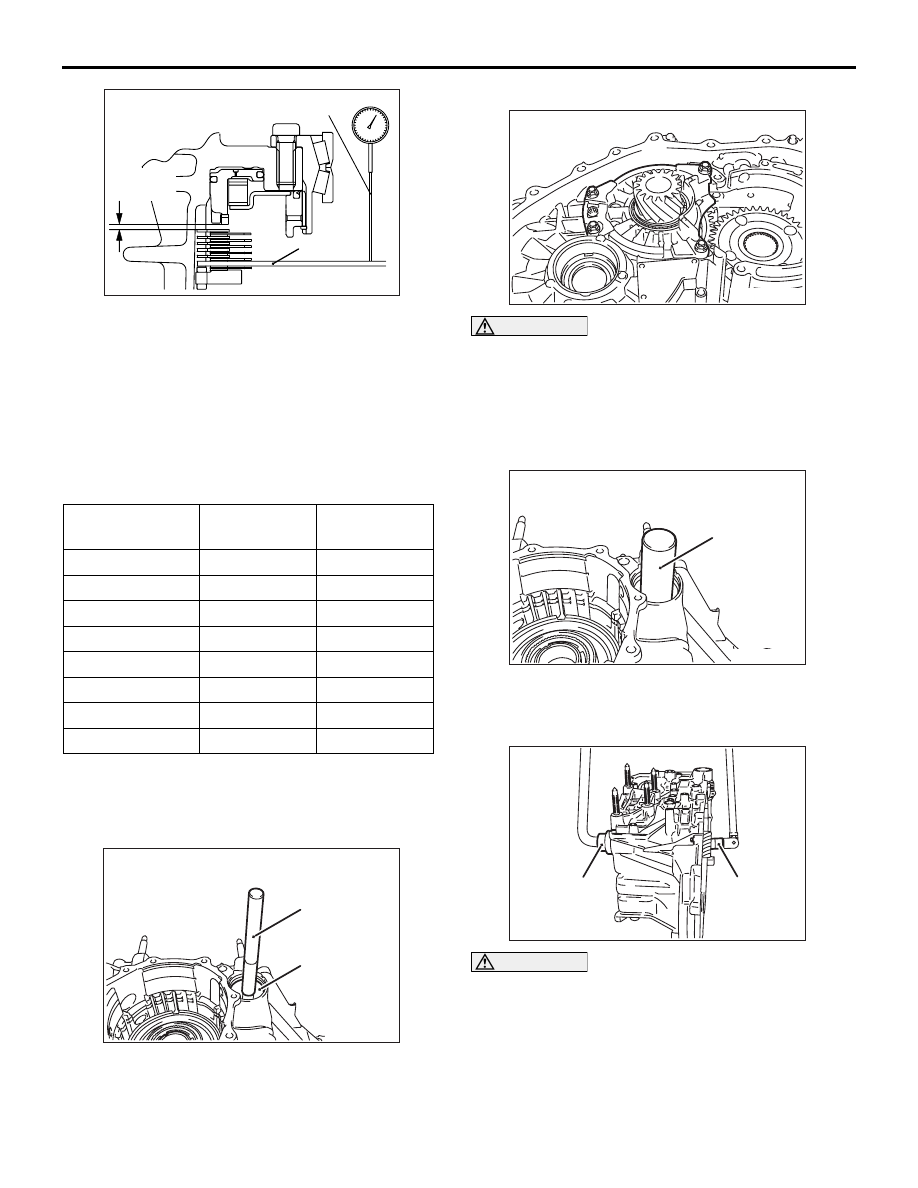

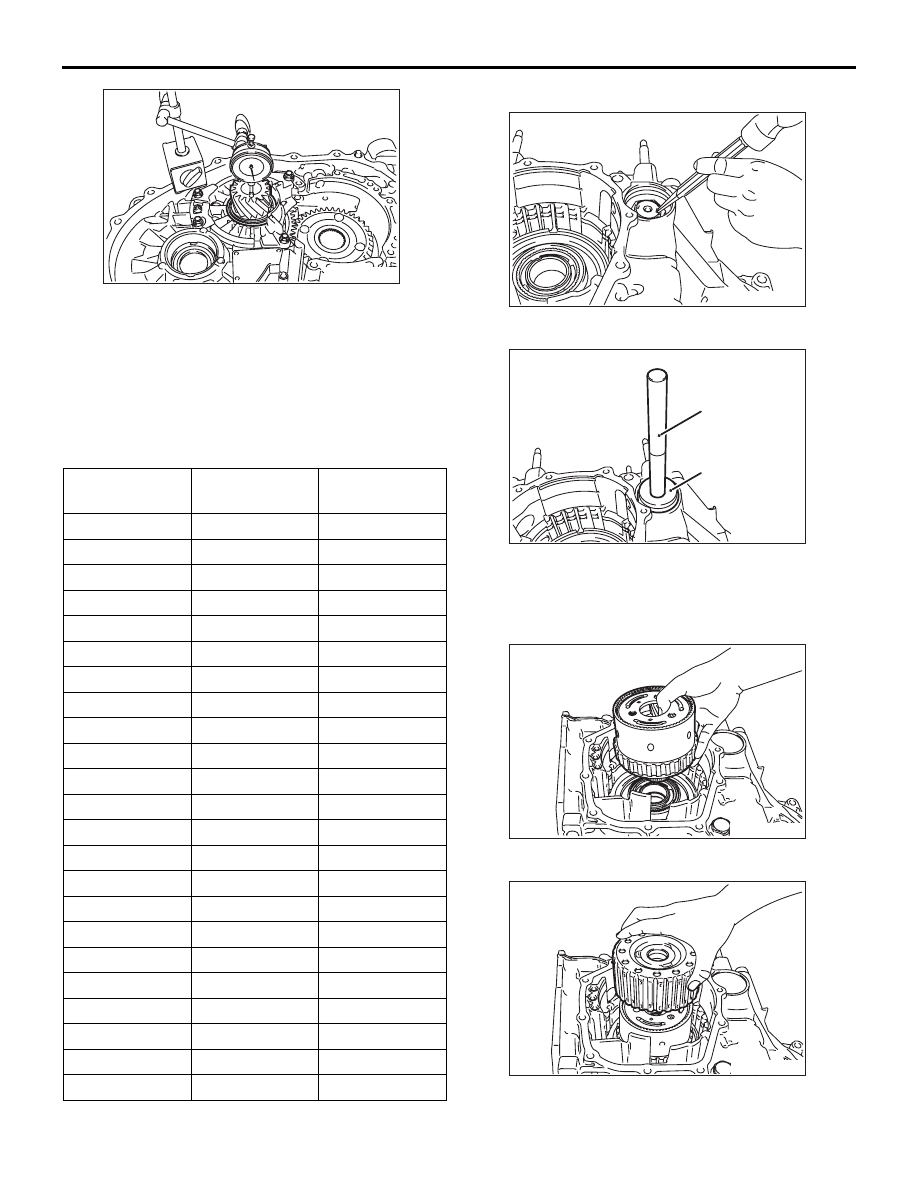

17.Move the special tool Clearance dummy plate
(MB991631) and measure the amount of
movement using a dial gauge fitted with the
special tool Dial gauge extension (MD998913).
Select a pressure plate whose thickness
corresponds to the measured amount of
movement from the following table.
Standard value of low-reverse brake end
play (reference): 1.65
− 2.11 mm
Available pressure plates
18.Remove all the parts has been installed in steps
7. through 17.
19.Install the snap ring in the groove formed in the
output shaft hole in the transmission case.
20.Use the special tool to drive the output shaft
bearing outer race into the transmission case.
• Installer adapter (MB990930)
• Handle (MB990938)
CAUTION
Do not reuse the output shaft bearing retainer
mounting bolts as they are pre-coated with a
sealant.
21.Install the output shaft bearing retainer mounting
bolts and tighten them to the specified torque of
29
± 2 N⋅m.
22.Use the special tool Bearing installer (MD998350)
to install the collar and taper roller bearing on the
output shaft.
CAUTION
The lock nut thread is left-handed.
23.Apply ATF to a new lock nut, and use the special
tool to tighten the lock nut to the specified torque
of 170
± 10 N⋅m. Then loosen the nut one turn,
then tighten it again to the specified torque.
• Torque wrench socket (MB990607)
• Special socket (MB991625)
Amount of
movement mm
Thickness
mm
Identification
mark
1.3
− 1.5
1.6
L
1.5
− 1.7
1.8
1
1.7
− 1.9
2.0
0
1.9
− 2.1
2.2
2
2.1
− 2.3
2.4
4
2.3
− 2.5
2.6
6
2.5
− 2.7
2.8
8
2.7
− 2.9
3.0
D
AK301753
MD998913
MB991631
AE
Movement
amount
AK300492AC
MB990938
MB990930
AK300493
AK300494AC
MD998350
AK300484AC
MB990607
MB991625
