TRANSMISSION CONTROL

MANUAL TRANSMISSION (FF)

22A-9

CAUTION

Insert thoroughly the gearshift link clip, shift
cable and select cable until they click in place.
3. After installing the new gearshift link clip to the

cable bracket of the transmission, install the shift
cable and select cable to the cable bracket.
NOTE: The clip is reversible.

4. Move the shift lever to all positions and check that

the operation is smooth.

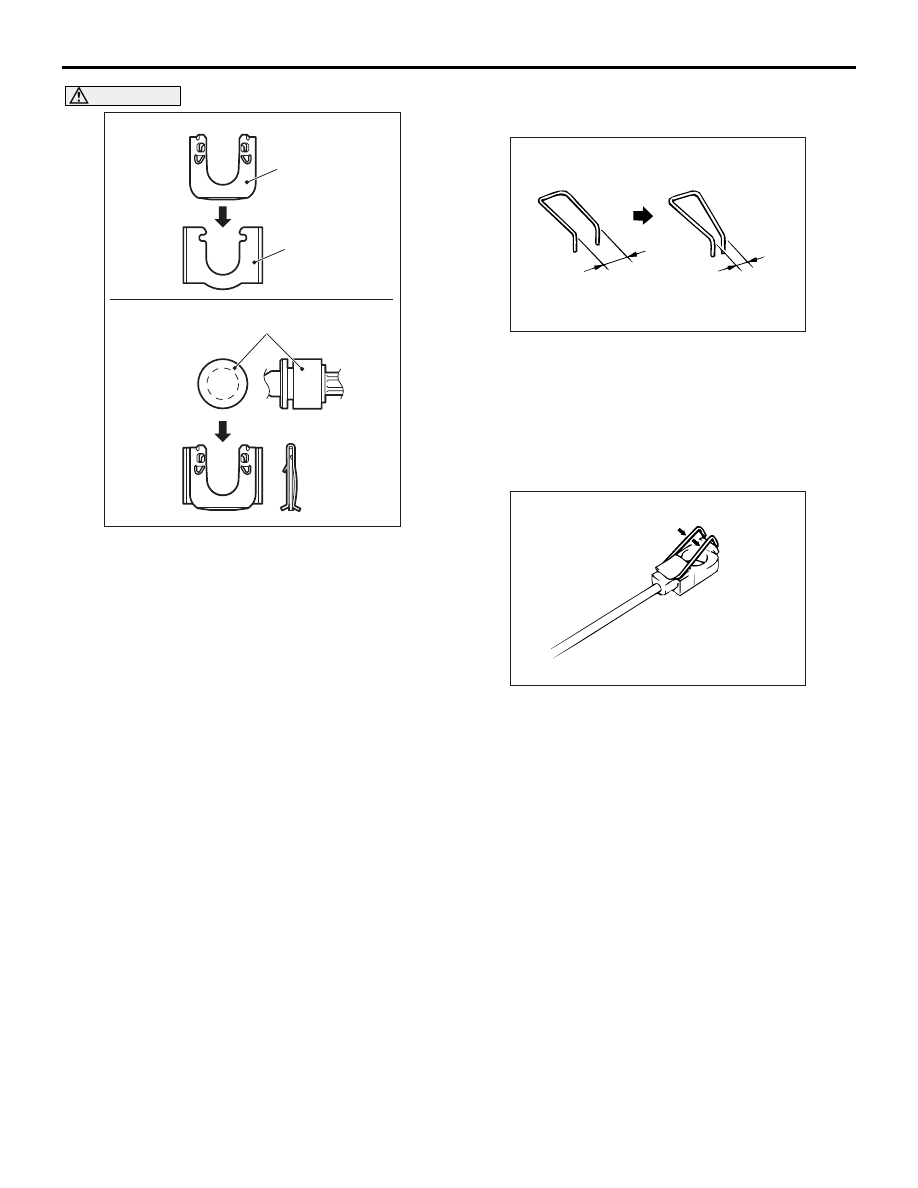

>>B<< GEARSHIFT CABLE CLIP
INSTALLATION

1. Make sure that there is no excessive play at the

shift cable end gearshift cable clip. If there is
excessive play or the gearshift cable clip is
disengaged from the shift cable end, check the
clip opening gap. If the gap is more than 9.5 mm,
squeeze the gearshift cable clip until the relaxed
gap reaches 5 to 8 mm.

2. Engage the gearshift cable clip with the shift cable

hook securely, and push the gearshift cable clip
with your thumbs until it clicks in place.

3. Install the shift cable to the shift lever.

AC210558

Shift cable, Select cable

New gearshift
link clip

Cable bracket

AB

AC210559 AB

9.5 mm

5 - 8 mm

AC210560 AB

TRANSMISSION CONTROL

MANUAL TRANSMISSION (FF)

22A-10

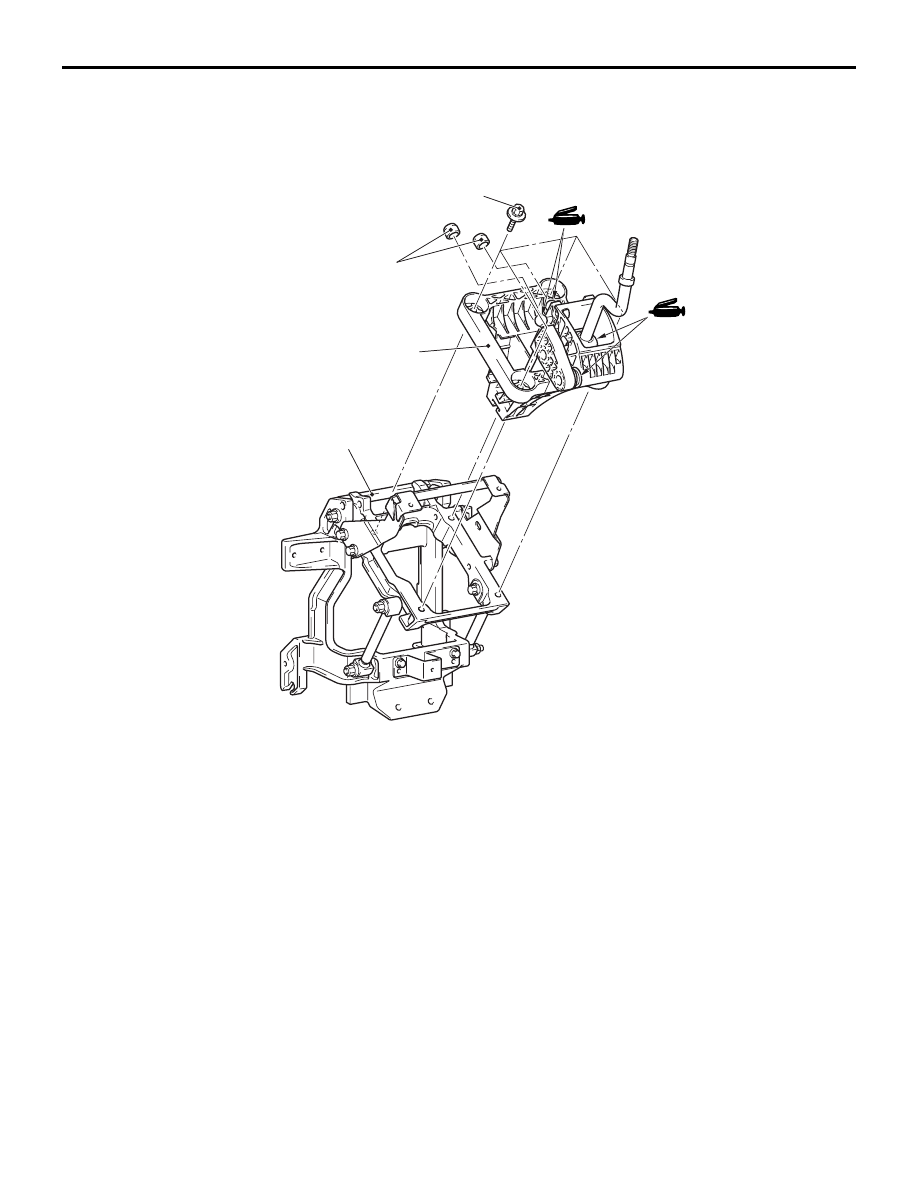

SHIFT LEVER ASSEMBLY

DISASSEMBLY AND REASSEMBLY

M1221004000218

AC311632

1

2

3

AB

12 ± 2 N·m

Disassembly steps

1.

Gearshift control lever assembly

2.

Gearshift link bushing

3.

Gearshift link bracket

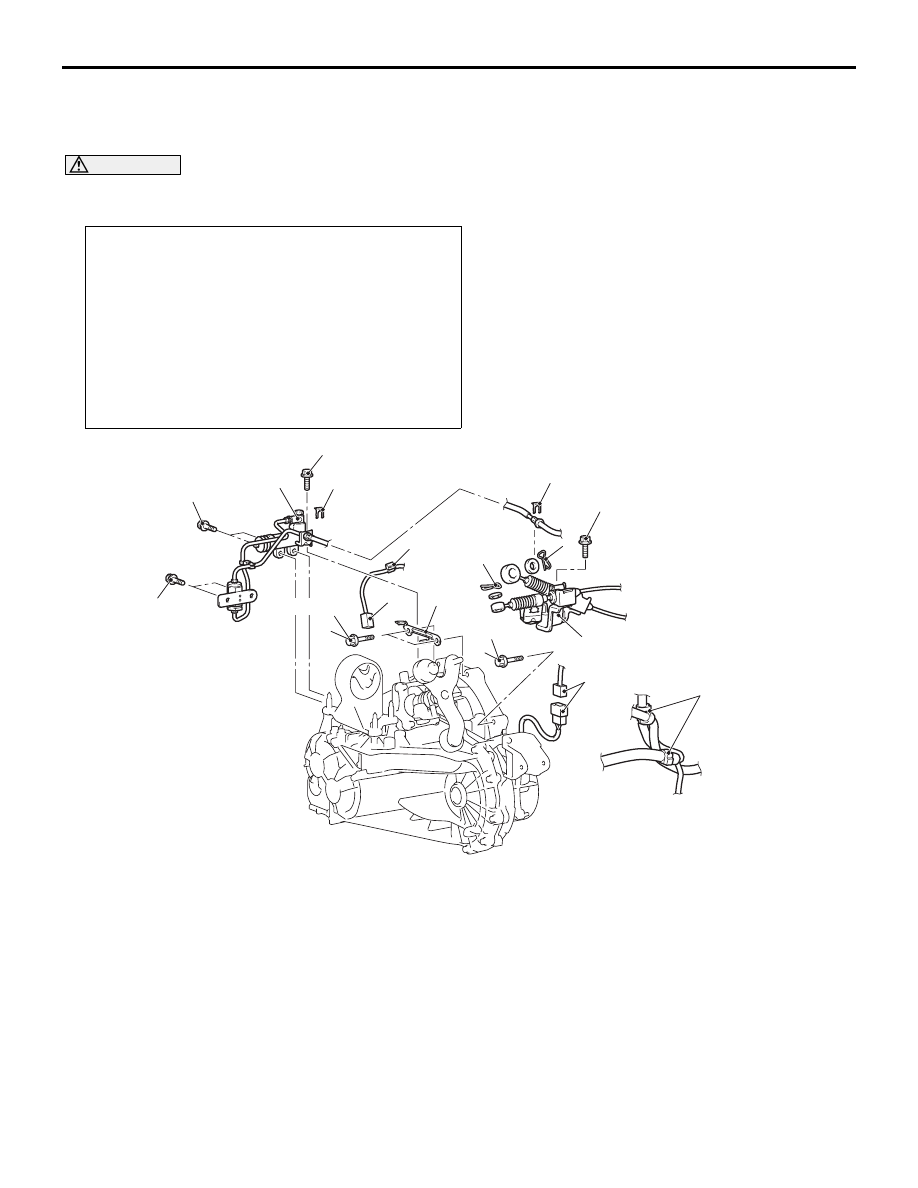

Disassembly steps (Continued)

TRANSMISSION ASSEMBLY

MANUAL TRANSMISSION (FF)

22A-11

TRANSMISSION ASSEMBLY

REMOVAL AND INSTALLATION

M1221002700330

CAUTION

*: Indicates parts which should be temporarily tightened, and then fully tightened after installing the
engine into the vehicle.

Pre-removal and Post-installation Operation
• Air Cleaner assembly, Air Cleaner Bracket Removal and

Installation (Refer to GROUP 15, Air Cleaner

P.15-3

).

• Battery and Battery Tray Removal and Installation.

• Transmission Oil Draining and Refilling (Refer to

P.22A-6

).

• Under Cover Removal and Installation (Refer to GROUP

51, Front Bumper

P.51-3

). <LHD>

• Drive Shaft Removal and Installation (Refer to GROUP 26

P.26-11

).

• Stator Motor Assembly Removal and Installation (Refer to

GROUP 16, Stator Motor Assembly

P.16-18

).

AC310807AC

1

3

8

48 ± 5 N·m

6

6

7

18 ± 3 N·m

9

2

48 ± 5 N·m

18 ± 3 N·m

4

18 ± 3 N·m

8

18 ± 3 N·m

5

5

1

Removal steps

1.

Transmission harness clamp

2.

Back-up lamp switch connector
connection

3.

Vehicle speed sensor harness
connector connection

4.

Clutch release cylinder and clutch
oil pipe

5.

Clip

6.

Snap pin

7.

Cable bracket and cable assembly
<Transmission side>

>>B<<

8.

Transmission assembly upper part
coupling bolts

9.

Harness clamp bracket

Removal steps (Continued)

TRANSMISSION ASSEMBLY

MANUAL TRANSMISSION (FF)

22A-12

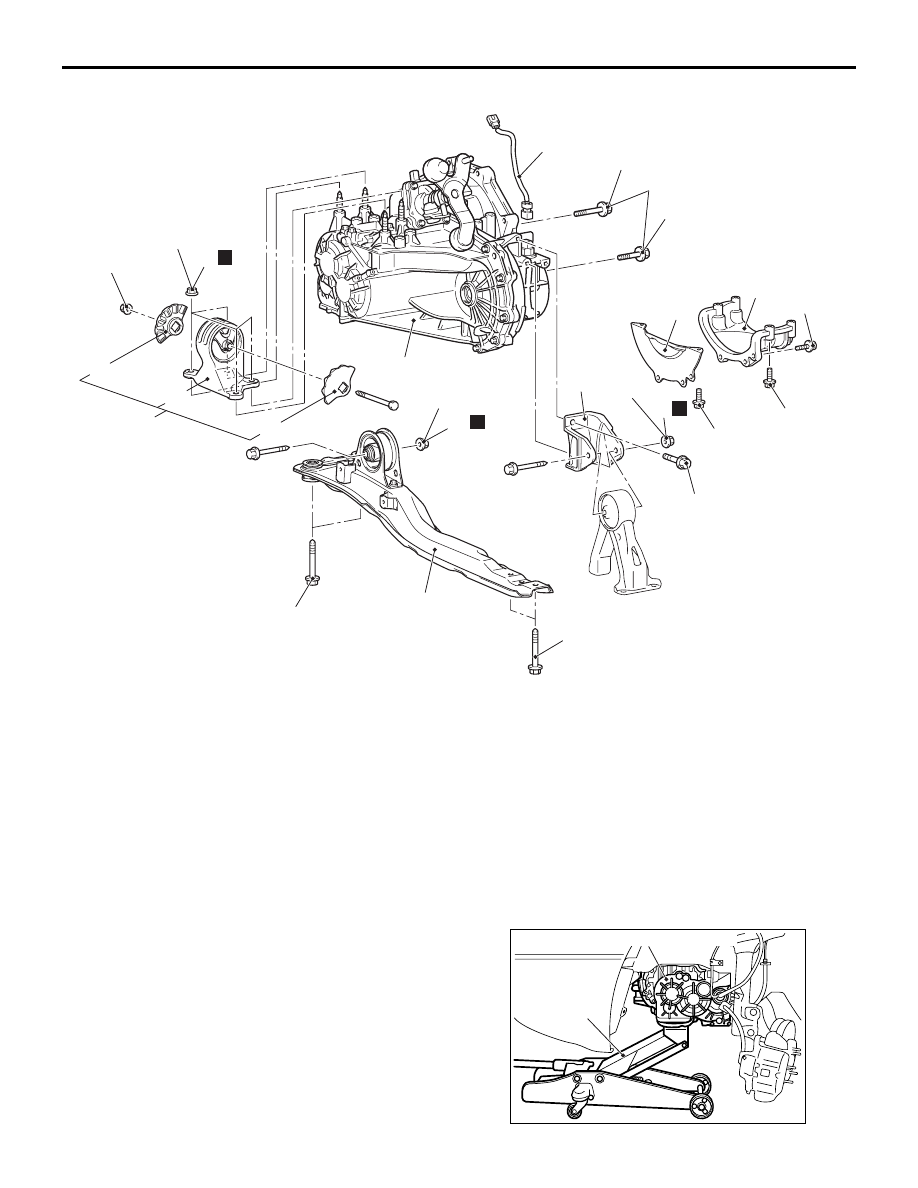

REMOVAL SERVICE POINTS
<<A>> ENGINE AND TRANSMISSION
ASSEMBLY
SUPPORTING/TRANSMISSION
MOUNTING BRACKET ASSEMBLY
REMOVAL

AC310808

18

19

18

17

83 ± 12 N·m*

22

57 ± 7 N·m*

15

11

26 ± 5 N·m

9.0 ± 1.0 N·m

57 ± 7 N·m*

90 ± 10 N·m

49 ± 9 N·m

49 ± 9 N·m

13

AB

20

48 ± 5 N·m

48 ± 5 N·m

10

12

14

83 ± 12 N·m*

16

N

N

22 ± 4 N·m

21

N

Removal steps

•

Front exhaust pipe, Catalytic
converter connection (Refer to
GROUP 15, Exhaust pipe and
main muffler

P.15-9

).

10. Transmission stay
11. Flywheel housing front lower

cover

12. Self locking nut
13. Centremember assembly
14. Self locking nut
15. Rear roll mount bracket

<<A>>

•

Engine and transmission
assembly supporting

16. Self locking nut

<<A>>

17. Transmission mounting bracket

assembly

>>A<<

18. Transmission mounting stopper
19. Transmission mounting body side

bracket

<<B>>

•

Engine assembly supporting

20. Transmission assembly lower part

coupling bolts

21. Vehicle speed sensor sub harness
22. Transmission assembly

Removal steps (Continued)

AC210384

Garage jack

Engine and transmission assembly

AB
