TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-359

YES :

Check and repair harness between ignition

coil connector and engine-ECU <M/T>
connector or engine-A/T-ECU <A/T>
connector

a. Check and repair harness between

B-02 (terminal No. 3) No. 1 ignition
coil connector and C-111 (terminal
No. 31) engine-ECU <M/T> or
engine-A/T-ECU <A/T> connector.

b. Check and repair harness between

B-03 (terminal No. 3) No. 2 ignition
coil connector and C-111 (terminal
No. 32) engine-ECU <M/T> or
engine-A/T-ECU <A/T> connector.

c. Check and repair harness between

B-04 (terminal No. 3) No. 3 ignition
coil connector and C-111 (terminal
No. 35) engine-ECU <M/T> or
engine-A/T-ECU <A/T> connector.

d. Check and repair harness between

B-05 (terminal No. 3) No. 4 ignition
coil connector and C-111 (terminal
No. 52) engine-ECU <M/T> or
engine-A/T-ECU <A/T> connector.

• Check output line for open circuit.

NO :

Repair or replace.

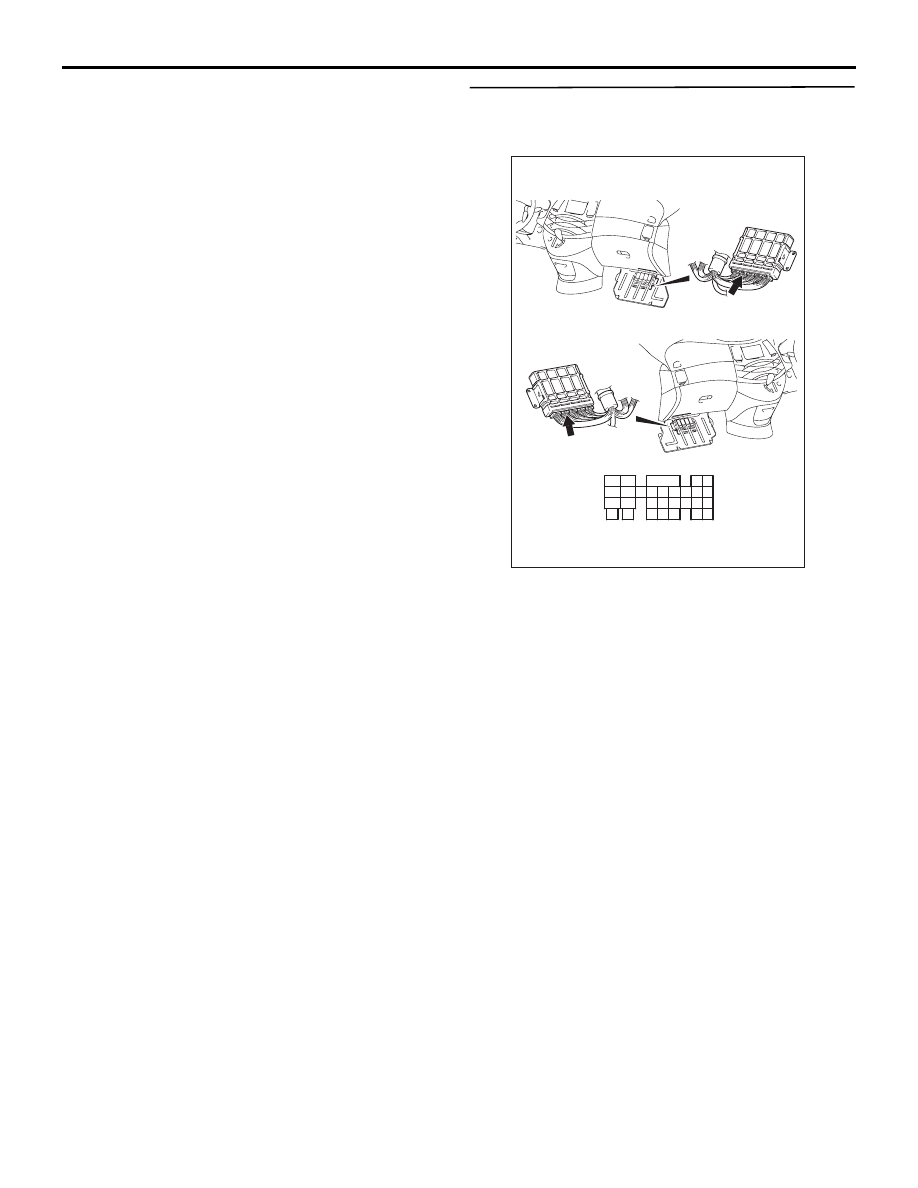

STEP 9. Connector check: C-111 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Repair or replace.

AK305625AB

Connector: C-111

<L.H. drive vehicles>

<R.H. drive vehicles>

C-111 (GR)

C-111 (GR)

Harness side connector

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-360

STEP 10. Check harness between ignition coil
connector and engine-ECU <M/T> connector or
engine-A/T-ECU <A/T> connector.

a. Check and repair harness between B-02

(terminal No. 3) No. 1 ignition coil connector and
C-111 (terminal No. 31) engine-ECU <M/T> or
engine-A/T-ECU <A/T> connector.

b. Check and repair harness between B-03

(terminal No. 3) No. 2 ignition coil connector and
C-111 (terminal No. 32) engine-ECU <M/T> or
engine-A/T-ECU <A/T> connector.

c. Check and repair harness between B-04

(terminal No. 3) No. 3 ignition coil connector and
C-111 (terminal No. 35) engine-ECU <M/T> or
engine-A/T-ECU <A/T> connector.

d. Check and repair harness between B-05

(terminal No. 3) No. 4 ignition coil connector and
C-111 (terminal No. 52) engine-ECU <M/T> or
engine-A/T-ECU <A/T> connector.

• Check output line for short circuit.

Q: Are the check results normal?

YES :

Go to Step 11 .

NO :

Repair.

STEP 11. Check the trouble symptoms.

Q: Does trouble symptom persist?

YES :

Replace engine-ECU <M/T> or

engine-A/T-ECU <A/T>.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

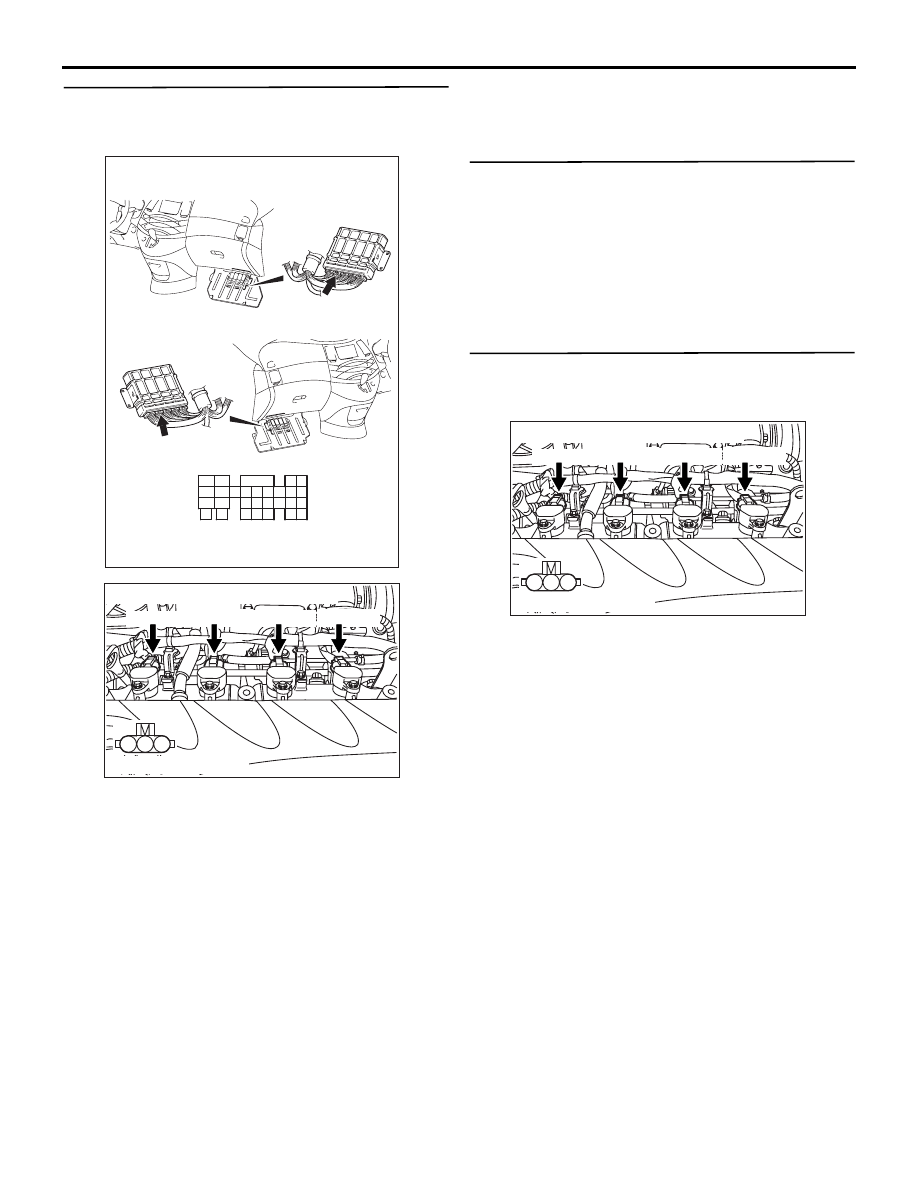

STEP 12. Perform resistance measurement at
B-02, B-03, B-04 and B-05 ignition coil
connectors.

• Disconnect connector, and measure at harness

side.

• Resistance between terminal No. 2 and earth.

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Check and repair harness between ignition

coil connector and body earth

a. Check and repair harness between

B-02 (terminal No. 2) No. 1 ignition
coil connector and body earth

b. Check and repair harness between

B-03 (terminal No. 2) No. 2 ignition
coil connector and body earth

c. Check and repair harness between

B-04 (terminal No. 2) No. 3 ignition
coil connector and body earth

d. Check and repair harness between

B-05 (terminal No. 2) No. 4 ignition
coil connector and body earth

• Check earthing line for open

circuit and damage.

AK305625AB

Connector: C-111

<L.H. drive vehicles>

<R.H. drive vehicles>

C-111 (GR)

C-111 (GR)

Harness side connector

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AK300980

1

2

3

AC

B-02 (GR) B-03 (GR) B-04 (GR) B-05 (GR)

Connectors: B-02, B-03, B-04, B-05

Harness side connector

AK300980

1

2

3

AC

B-02 (GR) B-03 (GR) B-04 (GR) B-05 (GR)

Connectors: B-02, B-03, B-04, B-05

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-361

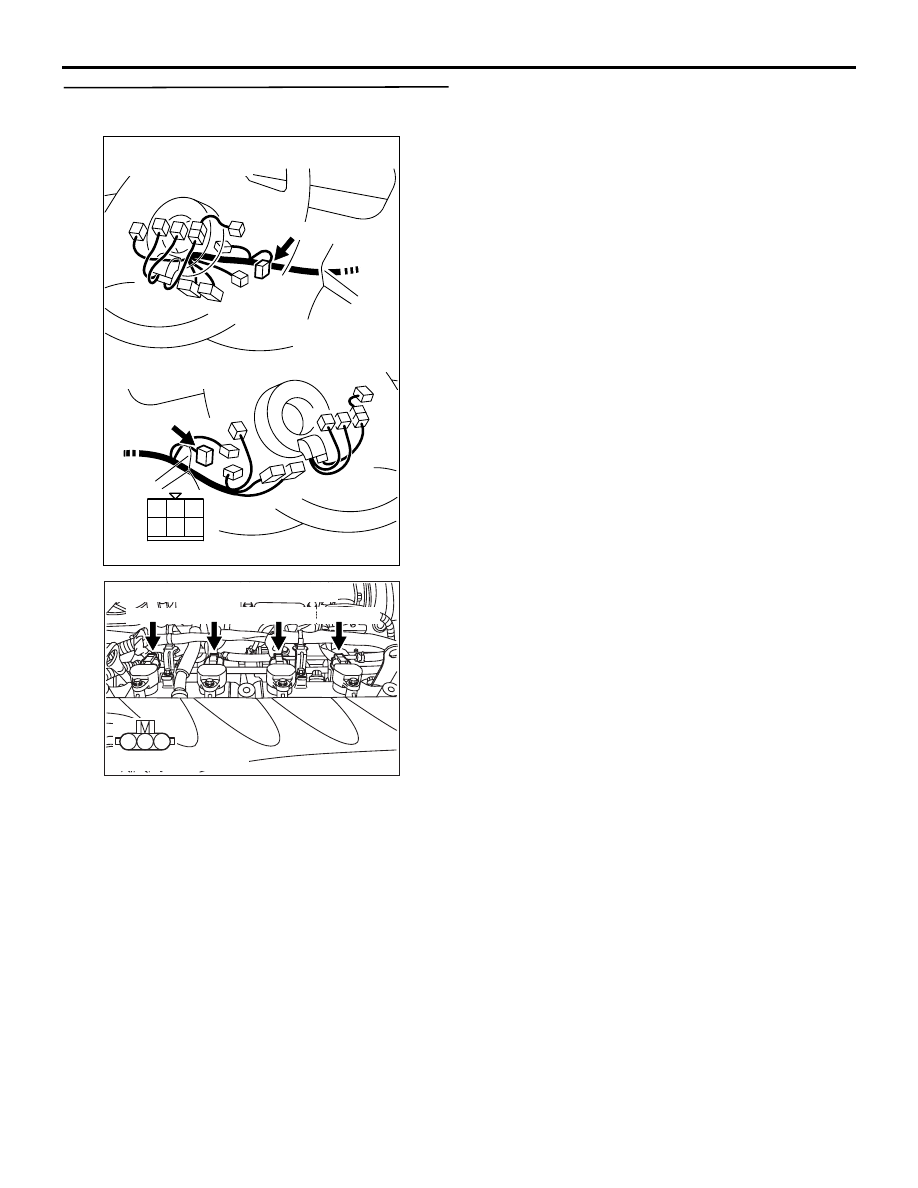

STEP 13. Check harness between ignition switch
connector and ignition coil connector.

a. Check and repair harness between C-307

(terminal No. 2) ignition switch connector and
B-02 (terminal No. 1) No. 1 ignition coil connector

b. Check and repair harness between C-307

(terminal No. 2) ignition switch connector and
B-03 (terminal No. 1) No. 2 ignition coil connector

c. Check and repair harness between C-307

(terminal No. 2) ignition switch connector and
B-04 (terminal No. 1) No. 3 ignition coil connector

d. Check and repair harness between C-307

(terminal No. 2) ignition switch connector and
B-05 (terminal No. 1) No. 4 ignition coil connector

NOTE: Before checking harness, check intermediate
connectors C-18, C-202 and C-205, and repair if
necessary.

• Check power supply line for damage.

Q: Are the check results normal?

YES :

Go to Step 14 .

NO :

Repair.

1

2

3

4

5

6

AK305629

 C-307

 C-307

Connector: C-307

Harness side connector

<R.H.drive vehicle>

<L.H.drive vehicle>

AB

AK300980

1

2

3

AC

B-02 (GR) B-03 (GR) B-04 (GR) B-05 (GR)

Connectors: B-02, B-03, B-04, B-05

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-362

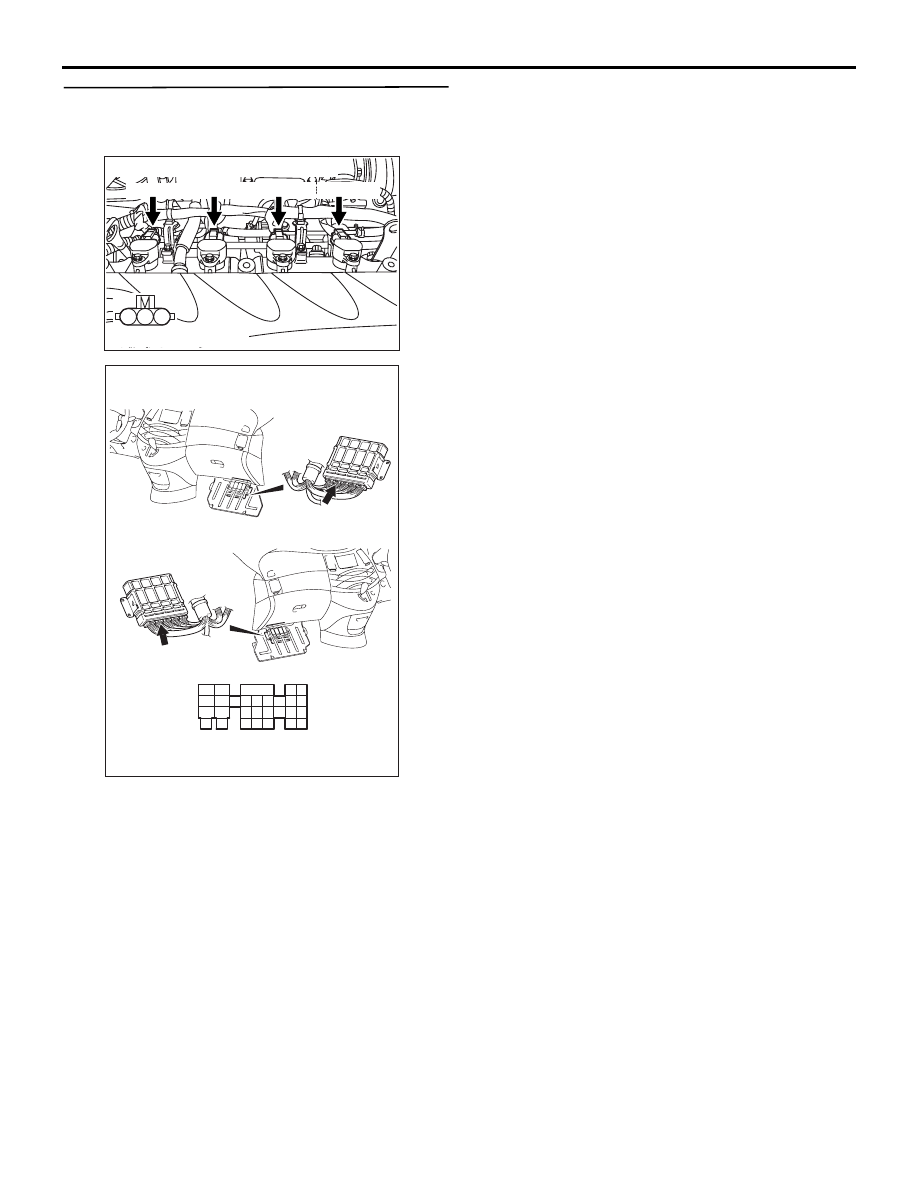

STEP 14. Check harness between ignition coil
connector and engine-ECU <M/T> connector or
engine-A/T-ECU <A/T> connector.

a. Check and repair harness between B-02

(terminal No. 3) No. 1 ignition coil connector and
C-111 (terminal No. 31) engine-ECU <M/T> or
engine-A/T-ECU <A/T> connector.

b. Check and repair harness between B-03

(terminal No. 3) No. 2 gnition coil connector and
C-111 (terminal No. 32) engine-ECU <M/T> or
engine-A/T-ECU <A/T> connector.

c. Check and repair harness between B-04

(terminal No. 3) No. 3 ignition coil connector and
C-111 (terminal No. 35) engine-ECU <M/T> or
engine-A/T-ECU <A/T> connector.

d. Check and repair harness between B-05

(terminal No. 3) No. 4 ignition coil connector and
C-111 (terminal No. 52) engine-ECU <M/T> or
engine-A/T-ECU <A/T> connector.

• Check output line for damage.

Q: Are the check results normal?

YES :

Go to Step 11 .

NO :

Repair.

AK300980

1

2

3

AC

B-02 (GR) B-03 (GR) B-04 (GR) B-05 (GR)

Connectors: B-02, B-03, B-04, B-05

Harness side connector

AK305625AB

Connector: C-111

<L.H. drive vehicles>

<R.H. drive vehicles>

C-111 (GR)

C-111 (GR)

Harness side connector

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51
