TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-39

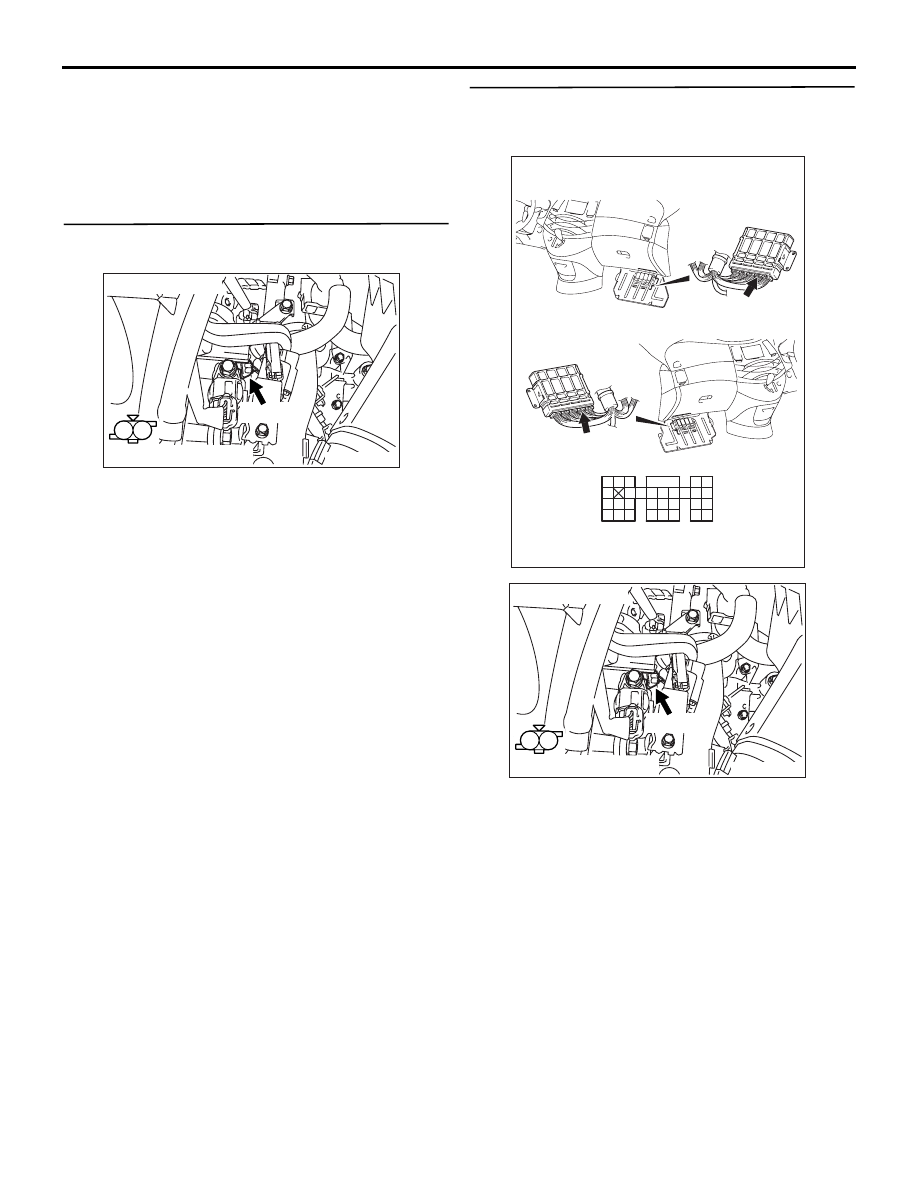

STEP 5. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair or replace.

STEP 6. Check harness between B-08 (terminal
No. 2) engine coolant temperature sensor
connector and C-113 (terminal No. 96)
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.

NOTE: Before checking harness, check intermediate
connector C-116, and repair if necessary.

• Check earthing line for open circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair.

STEP 7. MUT-III data list

• Item 21: Engine coolant temperature sensor

OK:

Engine cold state: At ambient temperature

(atmospheric temperature) or equivalent.

Engine hot state: At 80

− 120 °C

Q: Is the check result normal?

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK300971

1

2

AC

Harness side connector

B-08 (B)

Connector: B-08

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-40

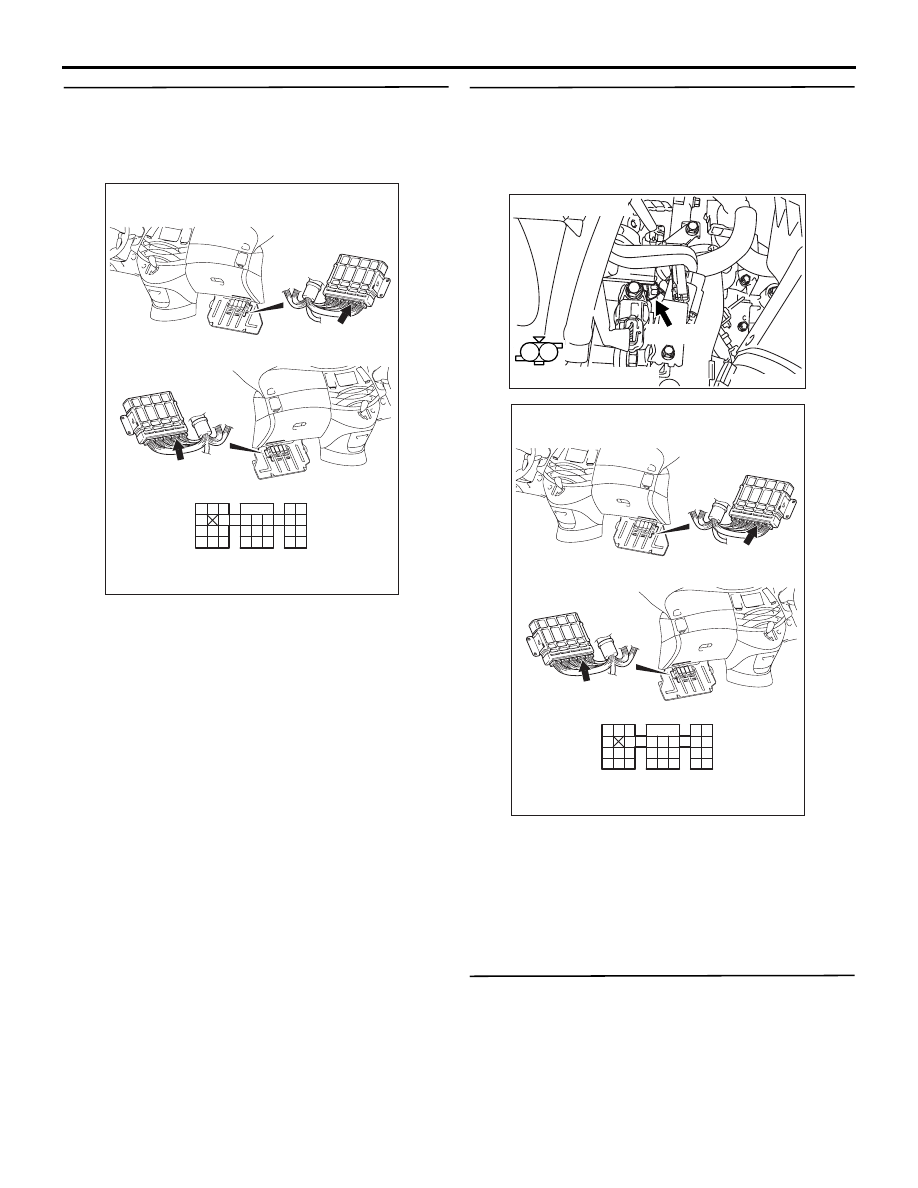

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

NO :

Replace engine-ECU <M/T> or
engine-A/T-ECU <A/T>.

STEP 8. Perform voltage measurement at B-08
engine coolant temperature sensor connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 1 and earth.

OK: 4.5

− 4.9 V

Q: Is the check result normal?

YES :

Go to Step 13 .

NO :

Go to Step 9 .

STEP 9. Perform voltage measurement at C-113
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.

• Measure engine-ECU <M/T> or engine-A/T-ECU

<A/T> terminal voltage.

• Disconnect B-08 engine coolant temperature

sensor.

• Ignition switch: ON

• Voltage between terminal No. 98 and earth.

OK: 4.5

− 4.9 V

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Go to Step 11 .

AK300971

1

2

AC

Harness side connector

B-08 (B)

Connector: B-08

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK300971

1

2

AC

Harness side connector

B-08 (B)

Connector: B-08

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-41

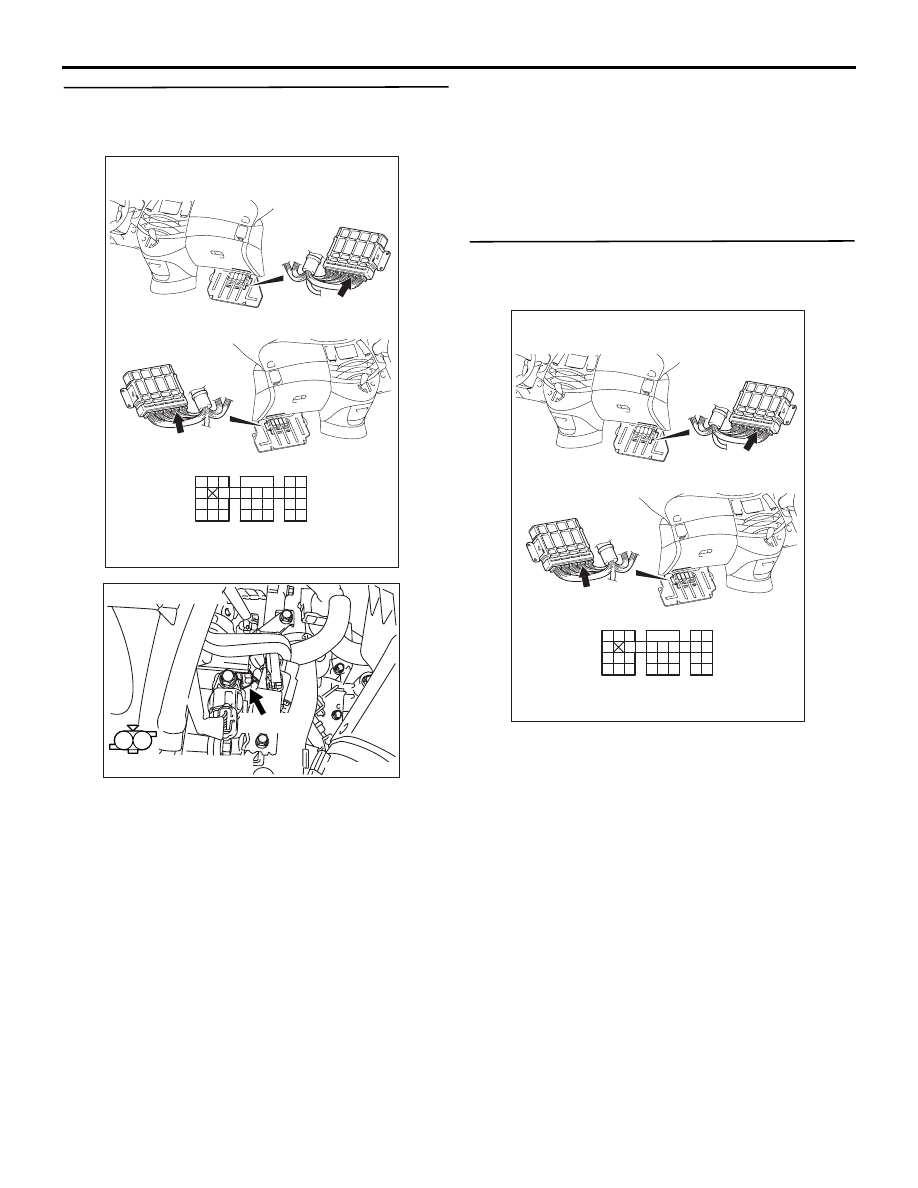

STEP 10. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Check and repair harness between B-08

(terminal No. 1) engine coolant temperature
sensor connector and C-113 (terminal No.
98) engine-ECU <M/T> connector or
engine-A/T-ECU <A/T> connector.

• Check output line for open circuit.

NO :

Repair or replace.

STEP 11. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Go to Step 12 .

NO :

Repair or replace.

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK300971

1

2

AC

Harness side connector

B-08 (B)

Connector: B-08

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-42

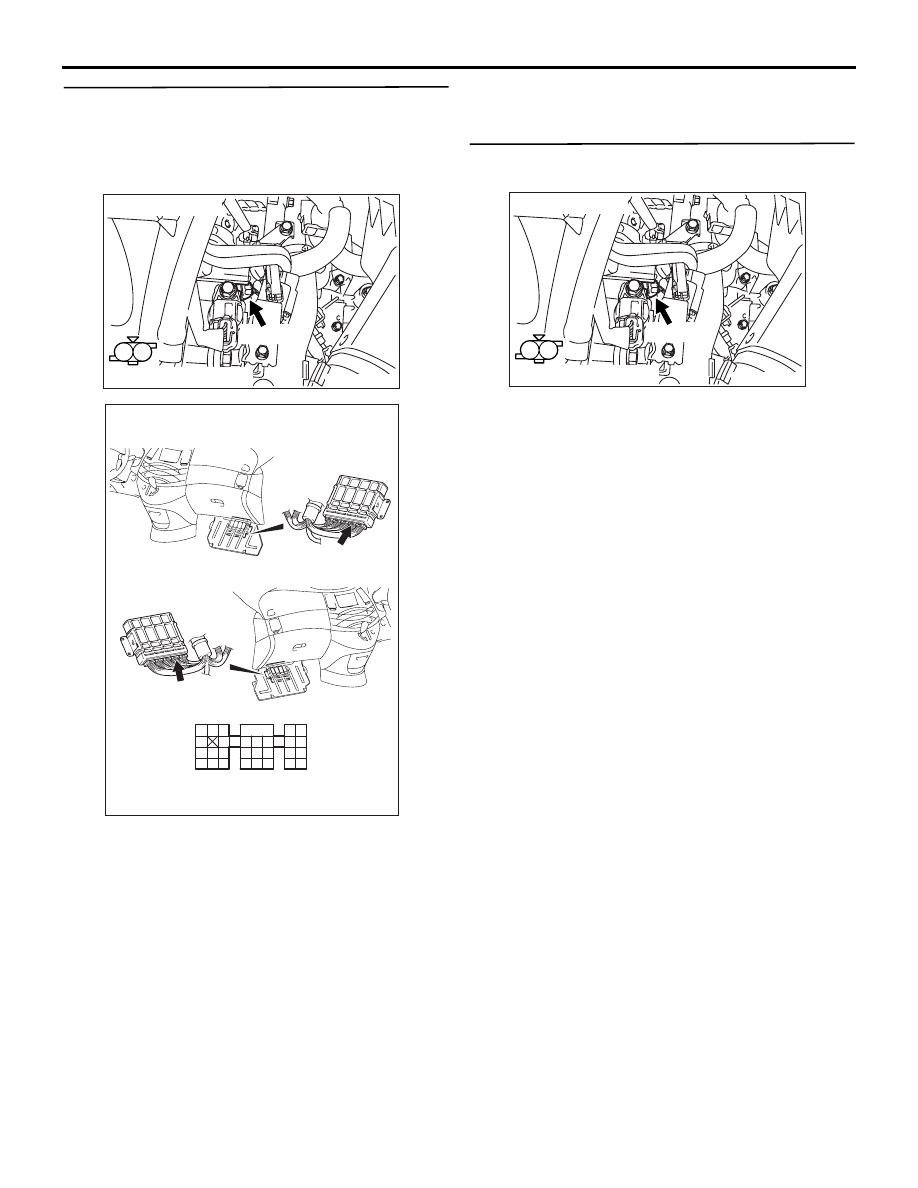

STEP 12. Check harness between B-08 (terminal
No. 1) engine coolant temperature sensor
connector and C-113 (terminal No. 98)
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector

• Check output line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair.

STEP 13. Perform voltage measurement at B-08
engine coolant temperature sensor connector.

• Use special tool test harness (MB991709) to

connect connector, and measure at pick-up
harness.

• Ignition switch: ON

• Voltage between terminal No. 1 and earth.

OK:

Engine coolant temperature at

−20°C: 3.9 − 4.5

V

Engine coolant temperature at 0

°C: 3.2 − 3.8 V

Engine coolant temperature at 20

°C: 2.3 − 2.9

V

Engine coolant temperature at 40

°C: 1.3 − 1.9

V

Engine coolant temperature at 60

°C: 0.7 − 1.3

V

Engine coolant temperature at 80

°C: 0.3 − 0.9

V

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Go to Step 14 .

AK300971

1

2

AC

Harness side connector

B-08 (B)

Connector: B-08

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK300971

1

2

AC

Harness side connector

B-08 (B)

Connector: B-08
