DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-290

terminal No.8 and body earth

OK: 1 k

Ω or more

(5) Resistance between C-09 joint connector (CAN2)

terminal No.5 and body earth

OK: 1 k

Ω or more

(6) Resistance between C-09 joint connector (CAN2)

terminal No.9 and body earth

OK: 1 k

Ω or more

(7) Resistance between C-09 joint connector (CAN2)

terminal No.4 and body earth

OK: 1 k

Ω or more

(8) Resistance between C-09 joint connector (CAN2)

terminal No.3 and body earth

OK: 1 k

Ω or more

(9) Resistance between C-09 joint connector (CAN2)

terminal No.7 and body earth

OK: 1 k

Ω or more

Q: Are the check result normal?

YES <all of the measurement results show 1 k

Ω or

more> :

Go to Step 48.

NO <The resistance between terminal No.6 and
body earth is less than 1 k

Ω> :

Go to Step 34.

NO <The resistance between terminal No.8 and
body earth is less than 1 k

Ω> :

Go to Step 35.

NO <The resistance between terminal No.5 and
body earth is less than 1 k

Ω> :

Go to Step 37.

NO <The resistance between terminal No.9 and
body earth is less than 1 k

Ω> :

Go to Step 39.

NO <The resistance between terminal No.4 and
body earth is less than 1 k

Ω> :

Go to Step 43.

NO <The resistance between terminal No.3 and
body earth is less than 1 k

Ω> :

Go to Step 45.

NO <The resistance between terminal No.7 and
body earth is less than 1 k

Ω> :

Go to Step 47.

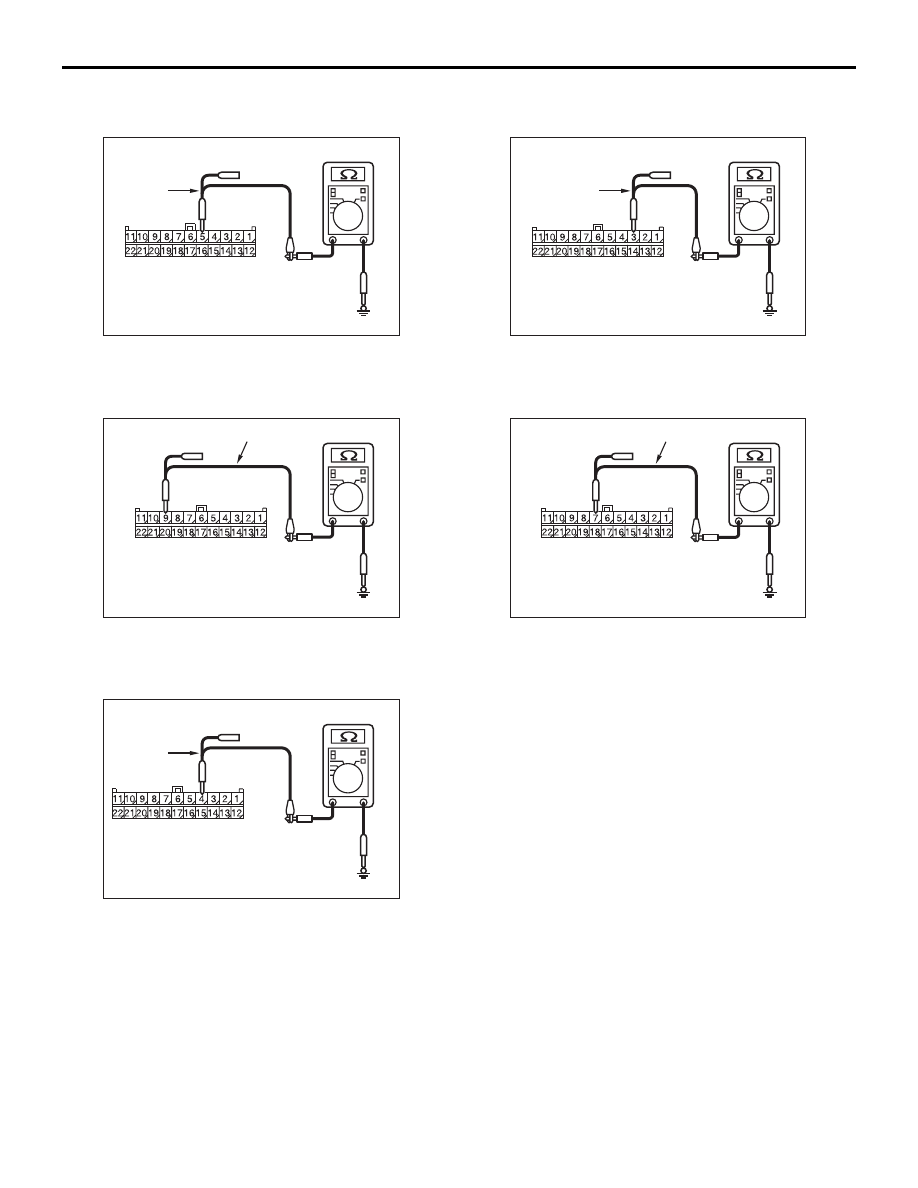

AC209364LU

Harness side: C-09

Test
harness

AC209364MI

Harness side: C-09

Test harness

AC209364LY

Harness side: C-09

Test
harness

AC209364MM

Harness side: C-09

Test
harness

AC209364MJ

Harness side: C-09

Test harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-291

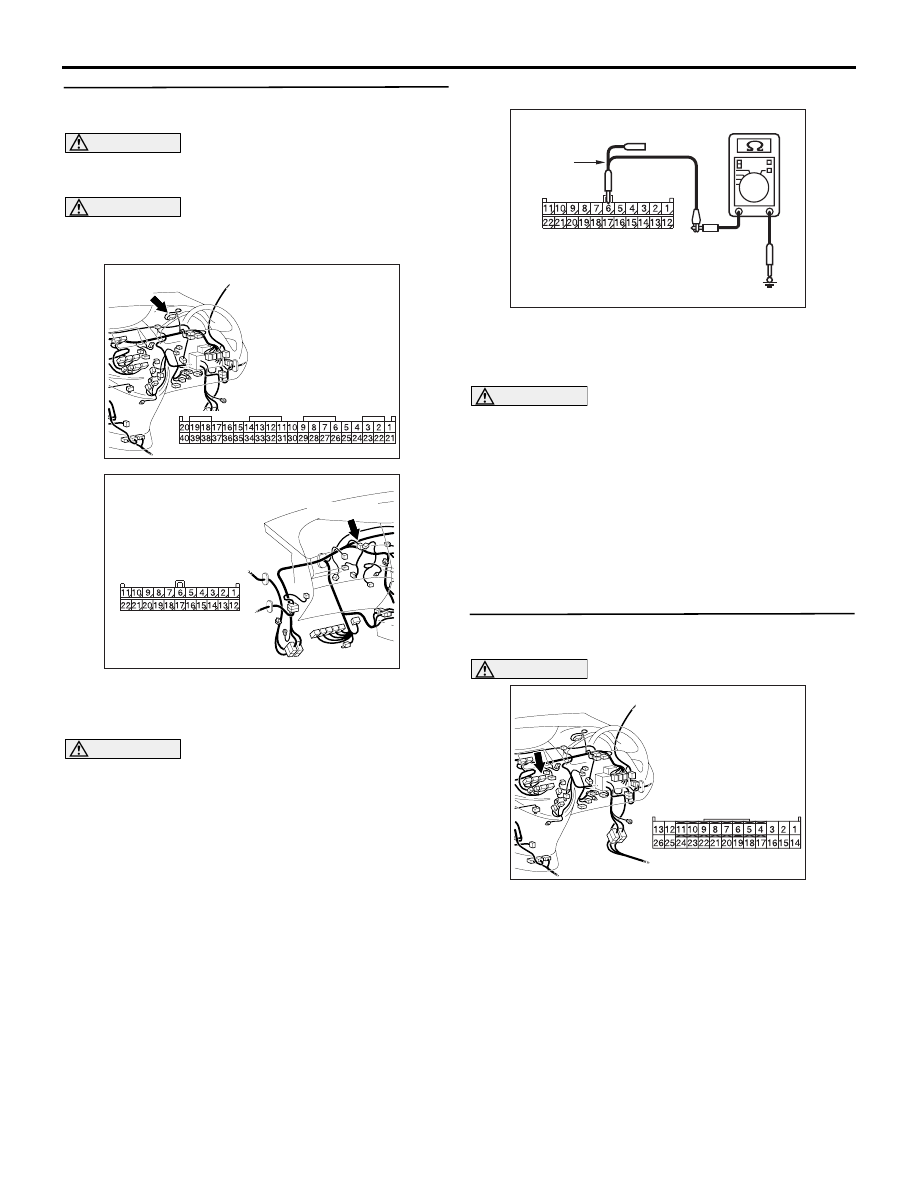

STEP 34. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

combination meter connector, and measure at
the wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.6 and body earth

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 20,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-526

.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
combination meter connector.

STEP 35. Connector check: C-106 A/C-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 36.

NO :

Repair the defective connector.

AC310631AX

Connector: C-02 <RHD>

Harness side

C-02

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC209364LX

Harness side: C-09

Test
harness

AC310631AB

Connectors: C-106 <RHD>

Harness side

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-292

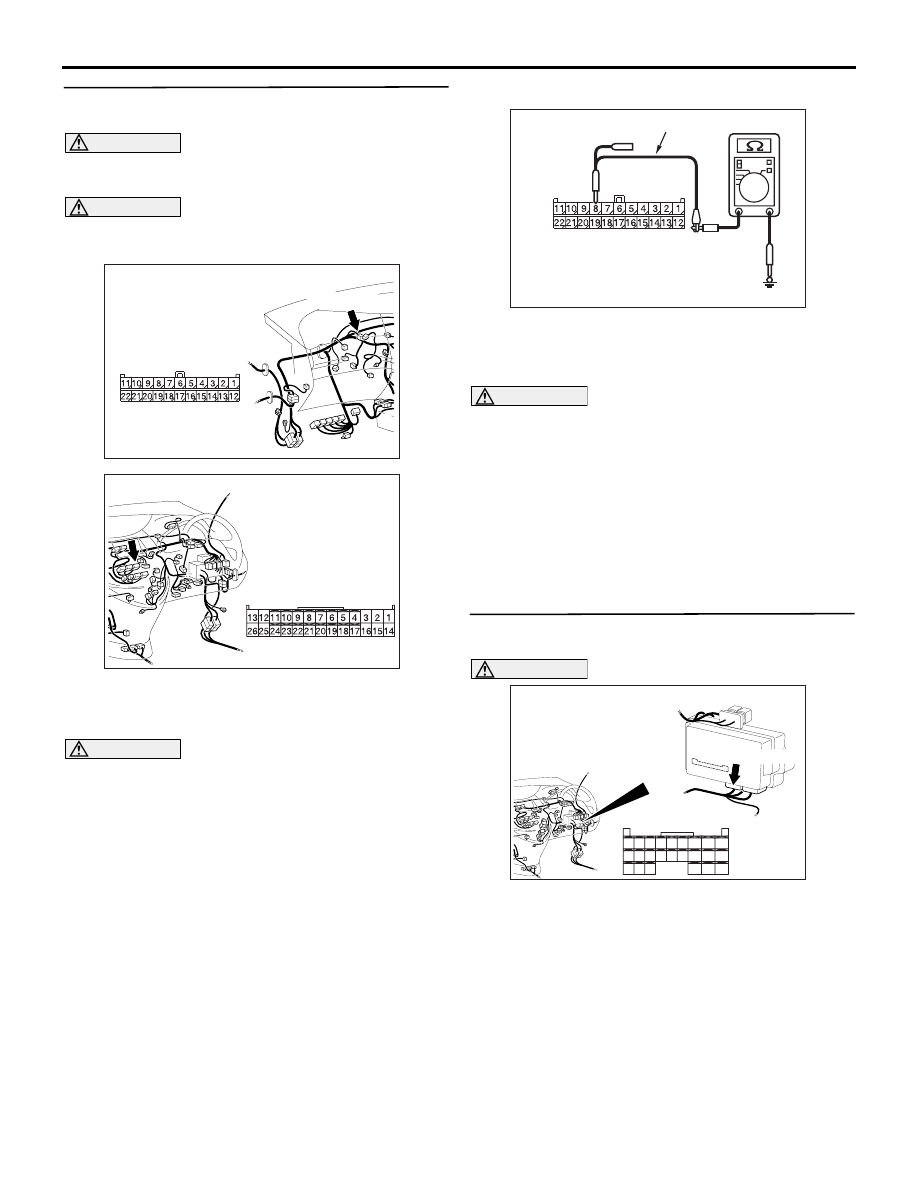

STEP 36. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

A/C-ECU connector, and measure at the wiring
harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.8 and body earth

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 20,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-526

.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
A/C-ECU connector.

STEP 37. Connector check: C-221 ETACS-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 38.

NO :

Repair the defective connector.

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC310631AB

Connectors: C-106 <RHD>

Harness side

AC209364ME

Harness side: C-09

Test harness

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-293

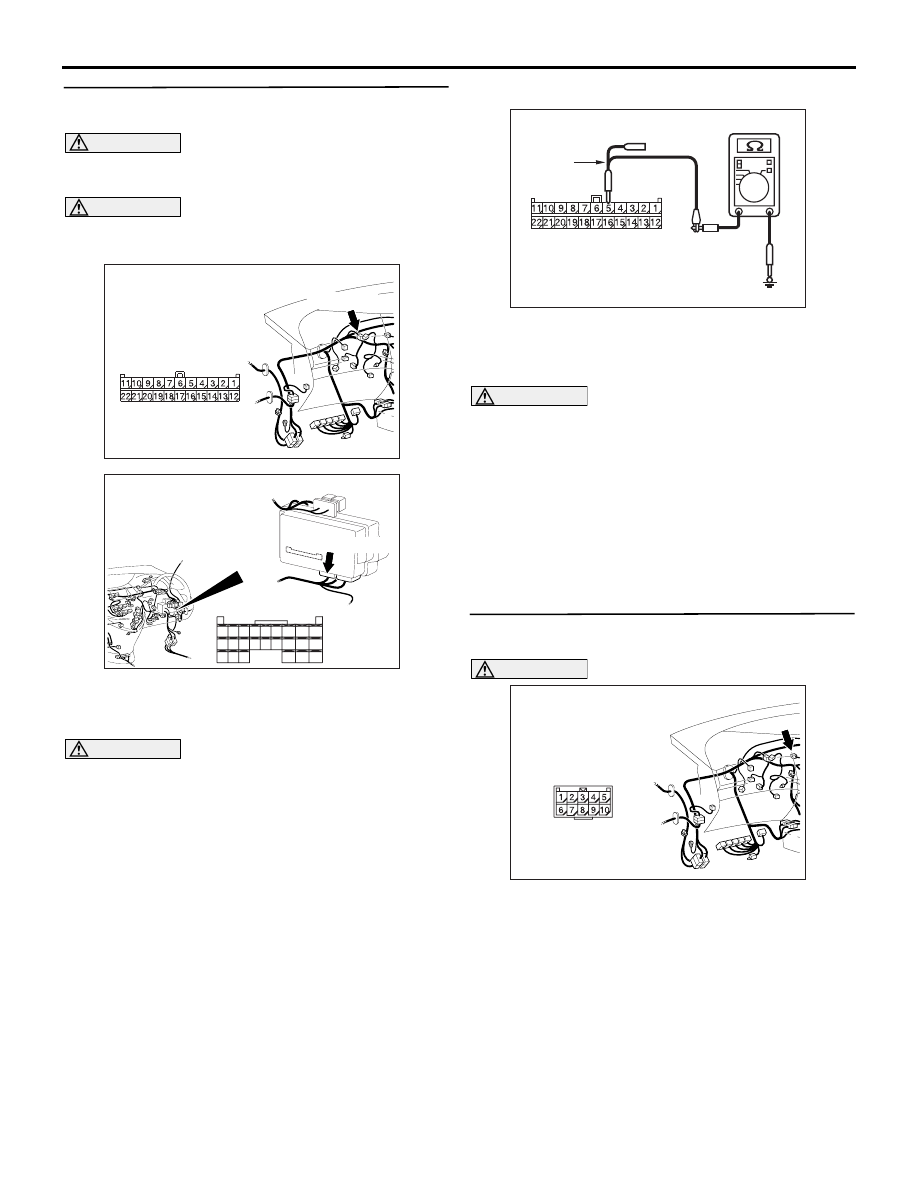

STEP 38. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

ETACS-ECU connector, and measure at the
wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.5 and body earth

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 20,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-526

.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
ETACS-ECU connector.

STEP 39. Connector check: C-37 jumper
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Check that the wiring harness of the jumper
connector is not damaged.

Q: Is the check result normal?

YES :

Go to Step 40 .

NO :

Repair the defective connector.

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC209364LU

Harness side: C-09

Test
harness

AC310628AZ

Connector: C-37 <RHD>
