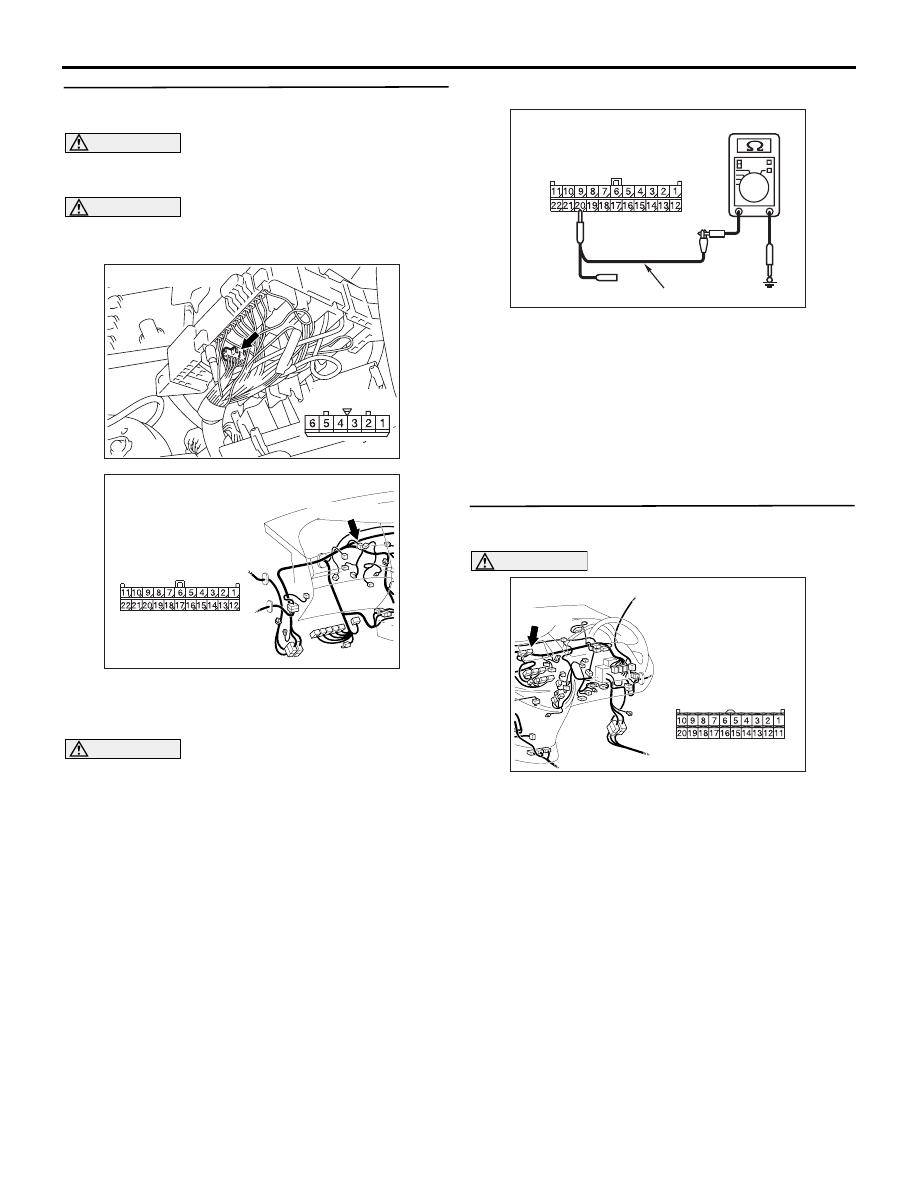

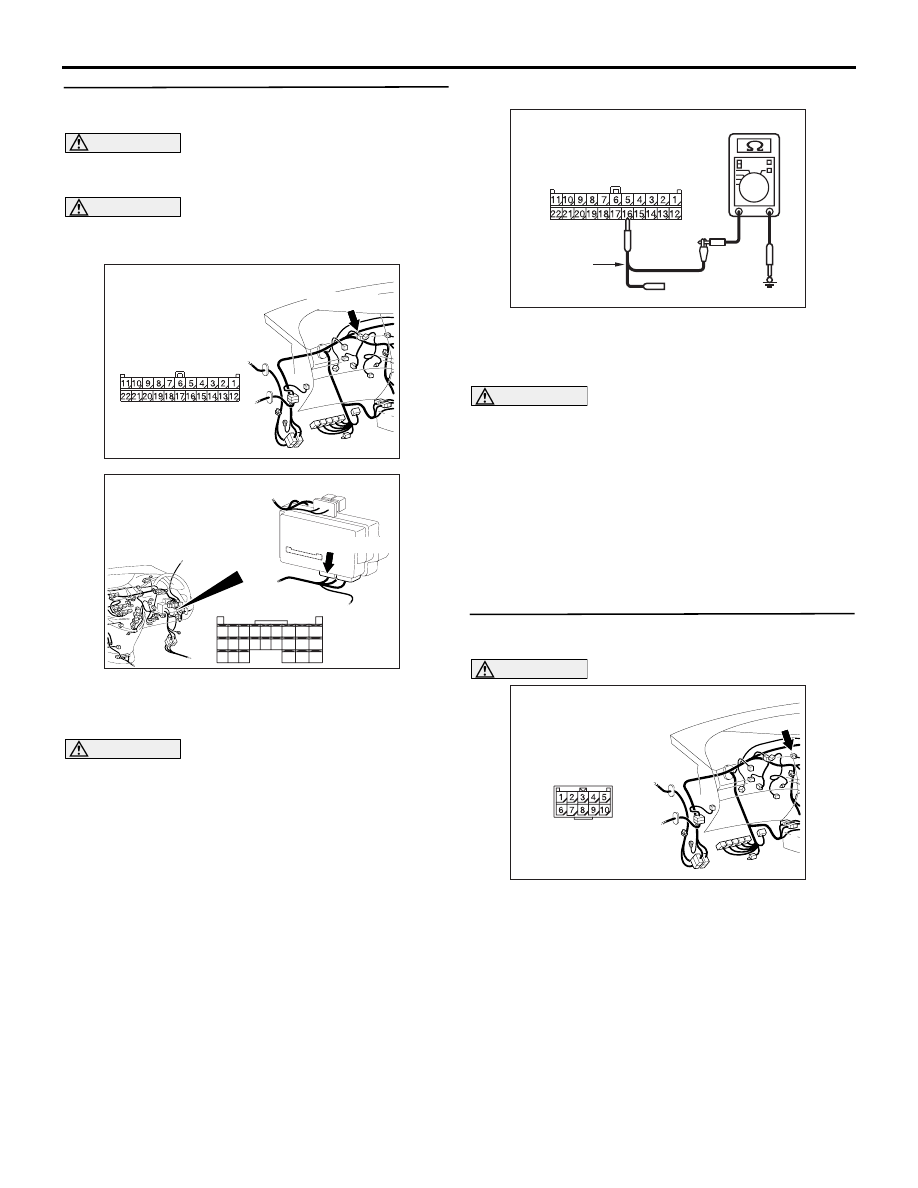

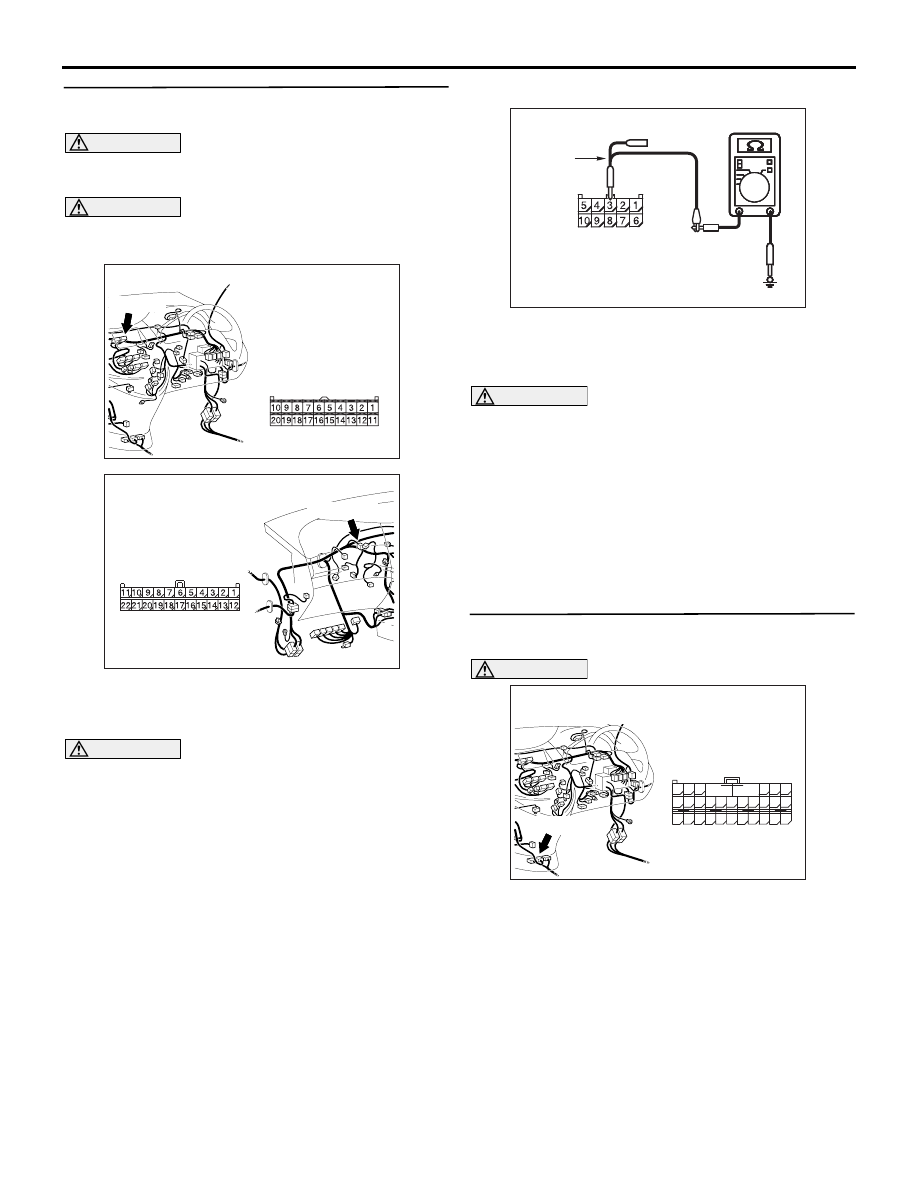

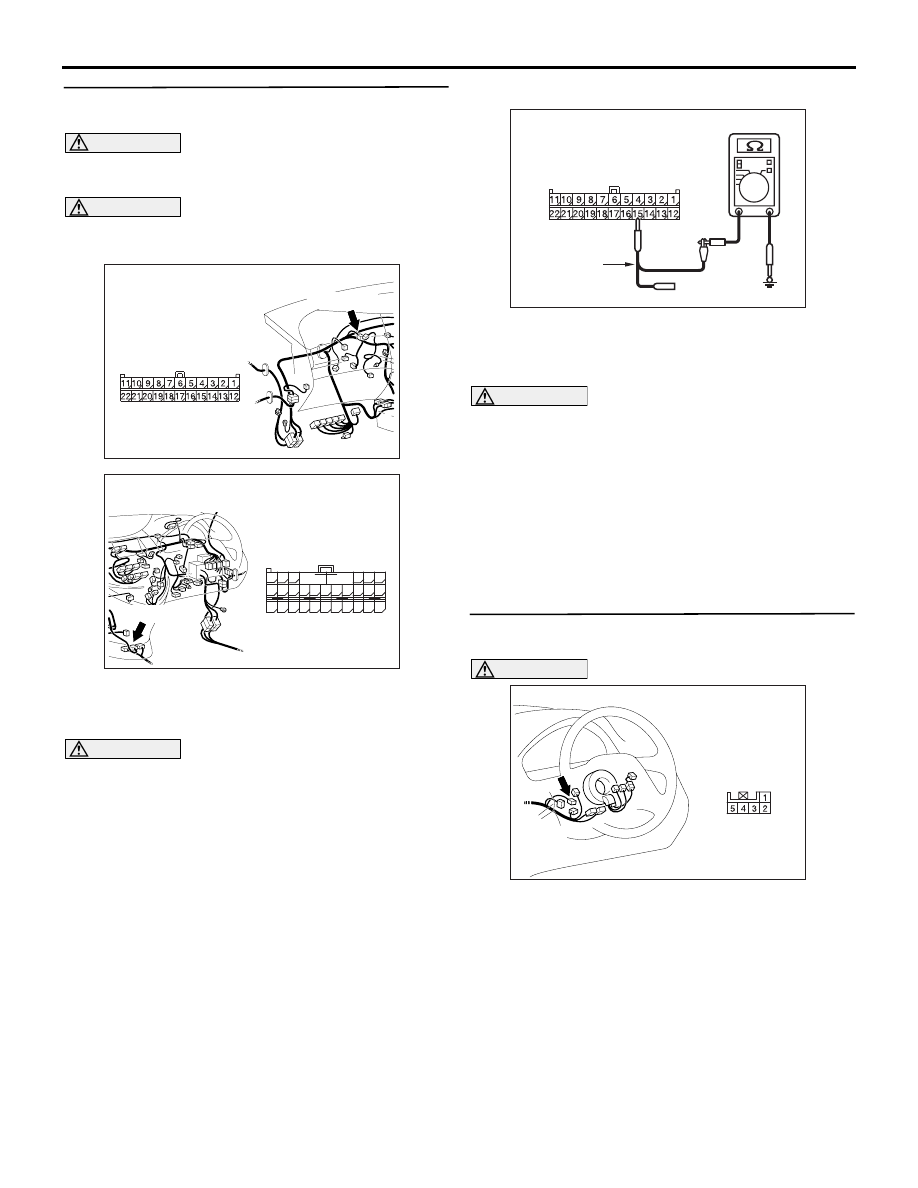

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-278

STEP 11. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

ETACS-ECU connector, and measure at the
wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.16 and body earth

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 20,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-526

.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
ETACS-ECU connector.

STEP 12. Connector check: C-37 jumper
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Check that the wiring harness of the jumper
connector is not damaged.

Q: Is the check result normal?

YES :

Go to Step 13 .

NO :

Repair the defective connector.

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC209364MF

Harness side: C-09

Test
harness

AC310628AZ

Connector: C-37 <RHD>

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-279

STEP 13. Resistance measurement at the C-09
joint connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

jumper connector, and measure at the wiring
harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.20 and body earth

OK: 1 k

Ω or more

Q: Is the check result normal?

YES :

<1 k

Ω or more> Go to Step 14.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
jumper connector.

STEP 14. Connector check: C-07 centre display
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 15 .

NO :

Repair the defective connector.

AC302572AD

Connector: A-07

Harness side

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC209364MG

Harness side: C-09

Test harness

AC310631AY

Connector: C-07 <RHD>

Harness side

C-07 (B)

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-280

STEP 15. Resistance measurement at the C-37
jumper connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the centre display connector and the

jumper connector, and measure at the jumper
connector (at the centre display side).

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-37 jumper connector

terminal No.3 and body earth

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 20,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-526

.

NO :

<less than 1

Ω> Repair the wiring harness

between the jumper connector and the
centre display connector.

STEP 16. Connector check: C-119 SRS-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair the defective connector.

AC310631AY

Connector: C-07 <RHD>

Harness side

C-07 (B)

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

A

AC312552 AB

Harness side: C-37

Test
harness

AC310631AZ

Connector: C-119 <RHD>

Harness side

C-119 (Y)

48

37

26

42

31

45

34

47

36

46

35

44

33

43

32

25 24

39

28

41

30

40

29

38

27

23

21

22

A

B

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-281

STEP 17. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

SRS-ECU connector, and measure at the wiring
harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.15 and body earth

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 20,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-526

.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
SRS-ECU connector.

STEP 18. Connector check: C-306 steering wheel
angle sensor connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 19.

NO :

Repair the defective connector.

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC310631AZ

Connector: C-119 <RHD>

Harness side

C-119 (Y)

48

37

26

42

31

45

34

47

36

46

35

44

33

43

32

25 24

39

28

41

30

40

29

38

27

23

21

22

A

B

AC209364LM

Harness side: C-09

Test
harness

AC310183

AF

Connector: C-306 <RHD>

Harness side
