Mitsubishi Grandis. Manual - part 529

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-214

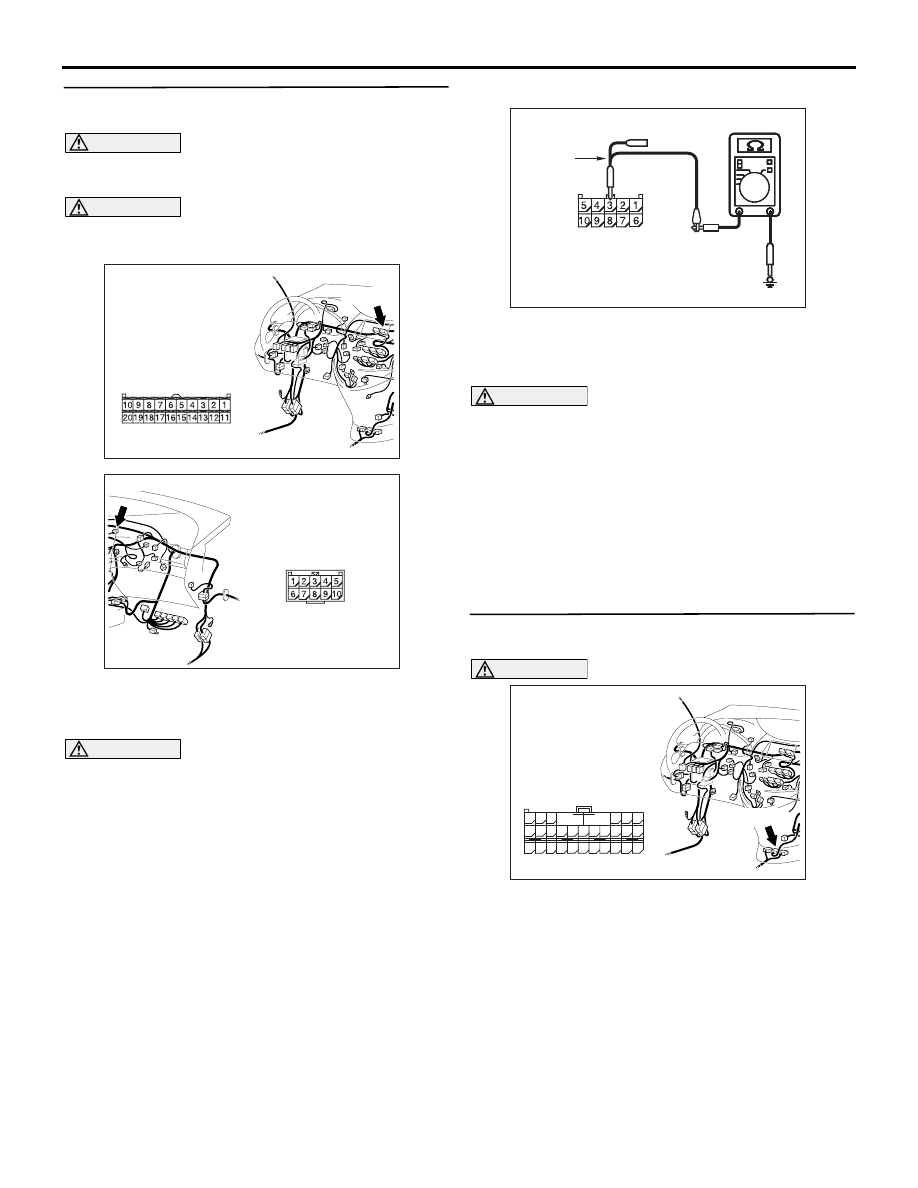

STEP 13. Resistance measurement at the C-09
joint connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

jumper connector, and measure at the wiring
harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.16 and body earth

OK: 1 k

Ω or more

Q: Is the check result normal?

YES :

<1 k

Ω or more> Go to Step 14.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
jumper connector.

STEP 14. Connector check: C-07 centre display
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 15 .

NO :

Repair the defective connector.

AC302572AD

Connector: A-07

Harness side

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC209364LH

Harness side: C-09

Test
harness

AC310613

BC

Connector: C-07 <LHD>

Harness side

C-07 (B)

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-215

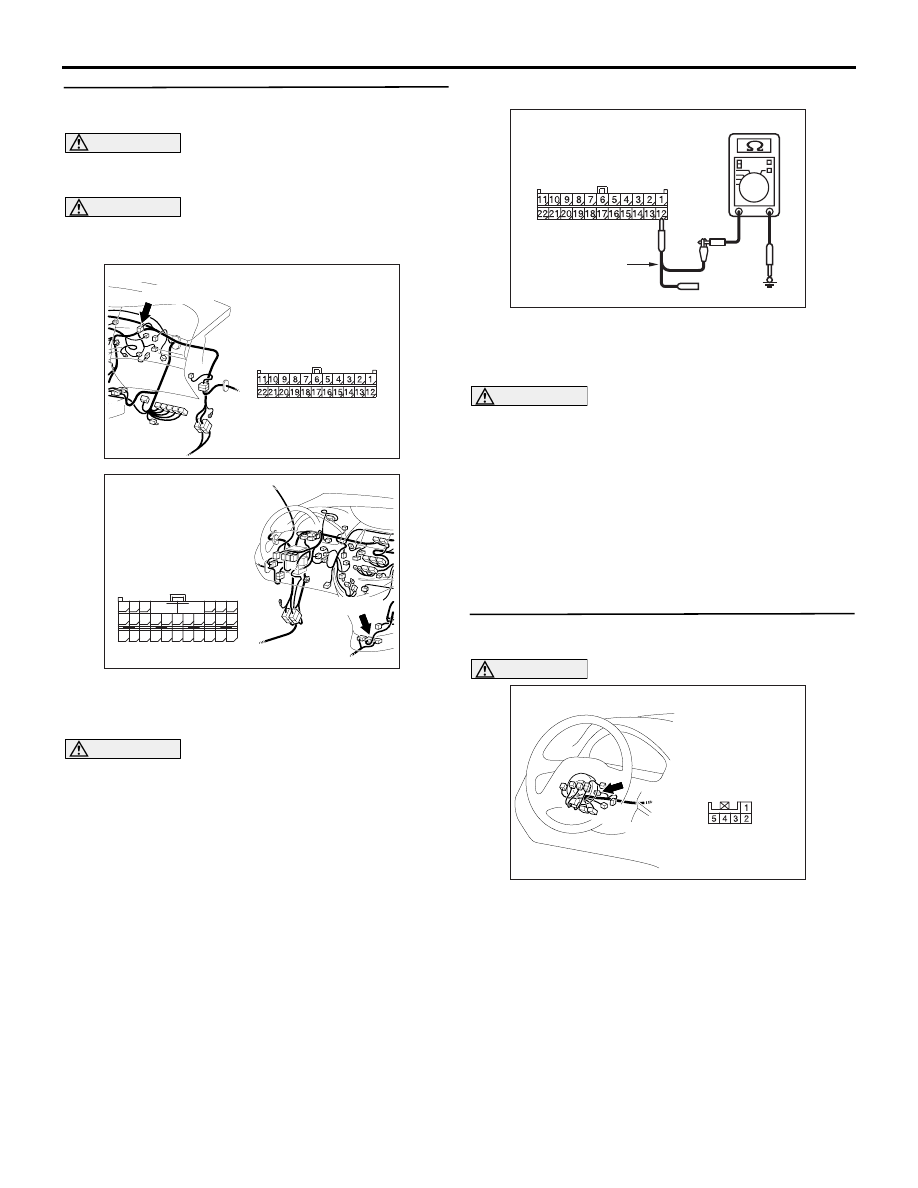

STEP 15. Resistance measurement at the C-37
jumper connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the centre display connector and the

jumper connector, and measure at the jumper
connector (at the centre display side).

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-37 jumper connector

terminal No.3 and body earth

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 18,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-476

.

NO :

<less than 1

Ω> Repair the wiring harness

between the jumper connector and the
centre display connector.

STEP 16. Connector check: C-119 SRS-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 15 .

NO :

Repair the defective connector.

AC310613

BC

Connector: C-07 <LHD>

Harness side

C-07 (B)

AC310615

AV

Connector: C-37 <LHD>

A

AC312552 AB

Harness side: C-37

Test
harness

AC310613

BD

Connector: C-119
<LHD>

Harness side

C-119 (Y)

48

37

26

42

31

45

34

47

36

46

35

44

33

43

32

25 24

39

28

41

30

40

29

38

27

23

21

22

A

B

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-216

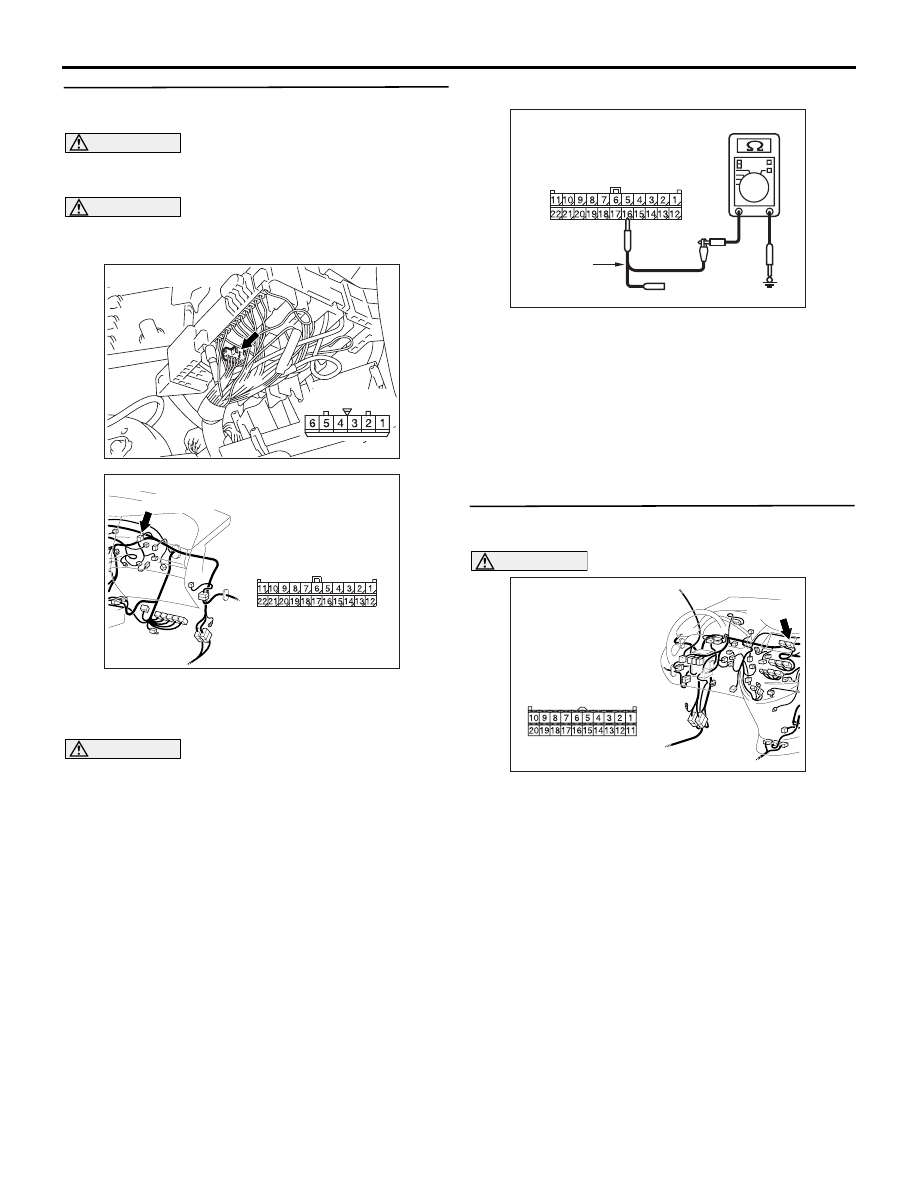

STEP 17. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

SRS-ECU connector, and measure at the wiring
harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.12 and body earth

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 18,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-476

.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
SRS-ECU connector.

STEP 18. Connector check: C-306 steering wheel
angle sensor connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 17 .

NO :

Repair the defective connector.

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC310613

BD

Connector: C-119
<LHD>

Harness side

C-119 (Y)

48

37

26

42

31

45

34

47

36

46

35

44

33

43

32

25 24

39

28

41

30

40

29

38

27

23

21

22

A

B

AC209364LL

Harness side: C-09

Test
harness

AC310153AF

Connector: C-306 <LHD>

Harness side

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-217

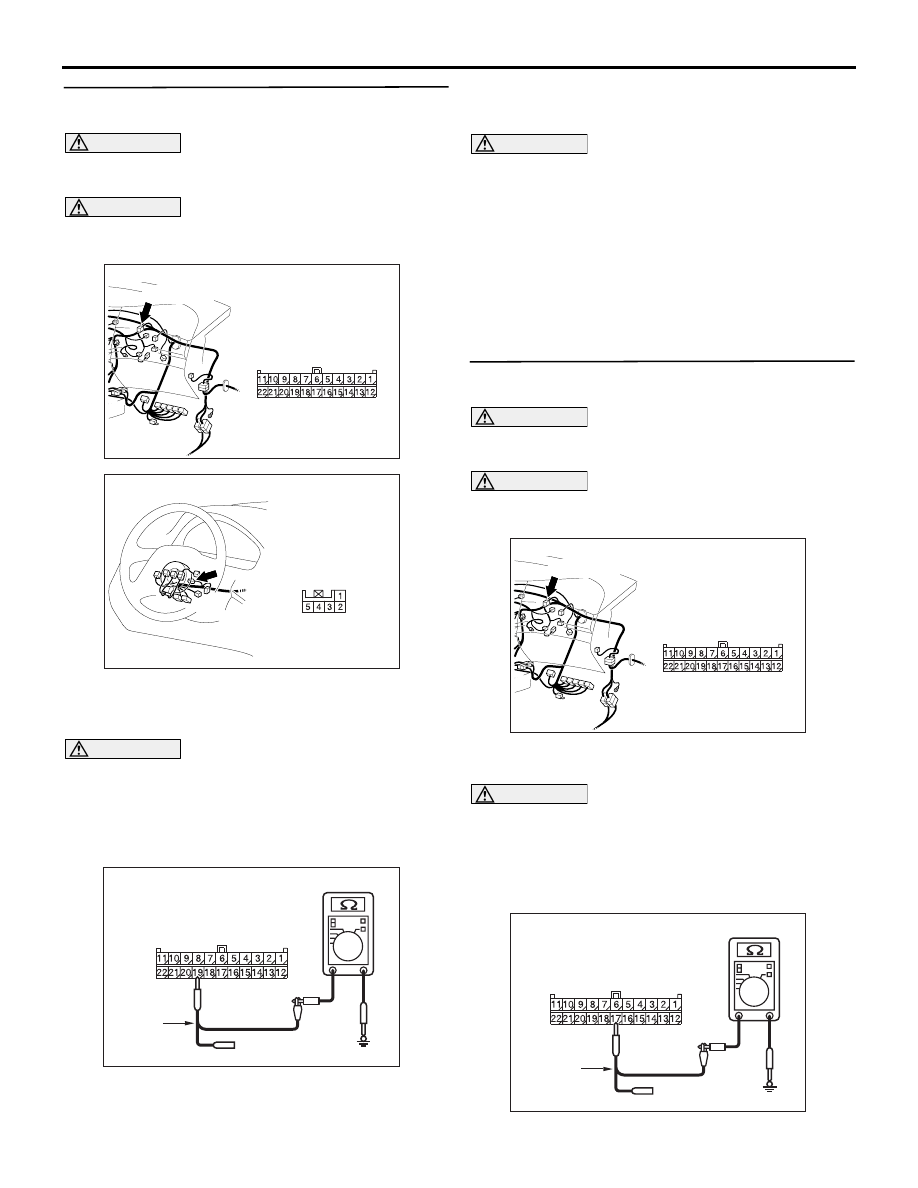

STEP 19. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

steering wheel angle sensor connector, and
measure at the wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.19 and body earth

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 18,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-476

.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
steering angle sensor connector.

STEP 20. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the connector, and measure at the

wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC310153AF

Connector: C-306 <LHD>

Harness side

AC209364MD

Harness side: C-09

Test
harness

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC209364LI

Harness side: C-09

Test
harness
