Mitsubishi Grandis. Manual - part 511

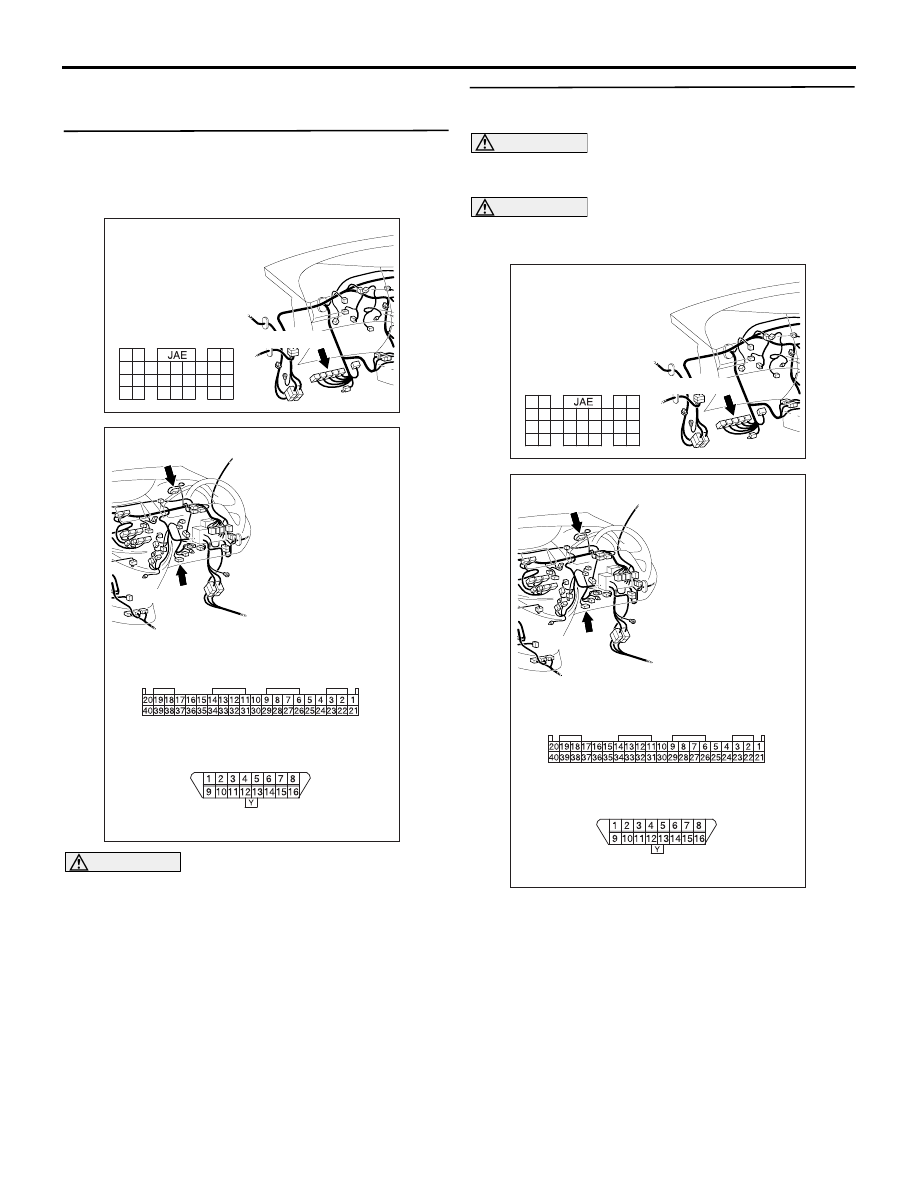

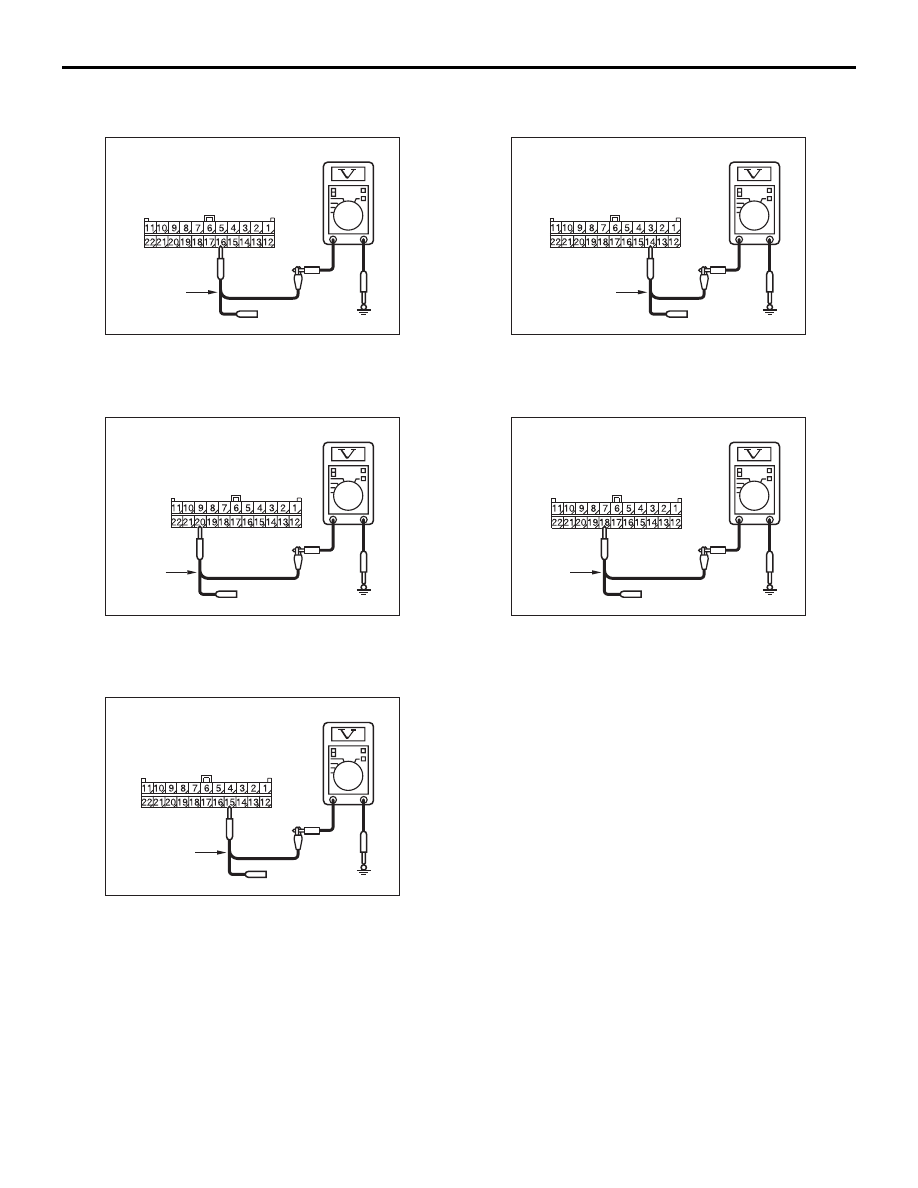

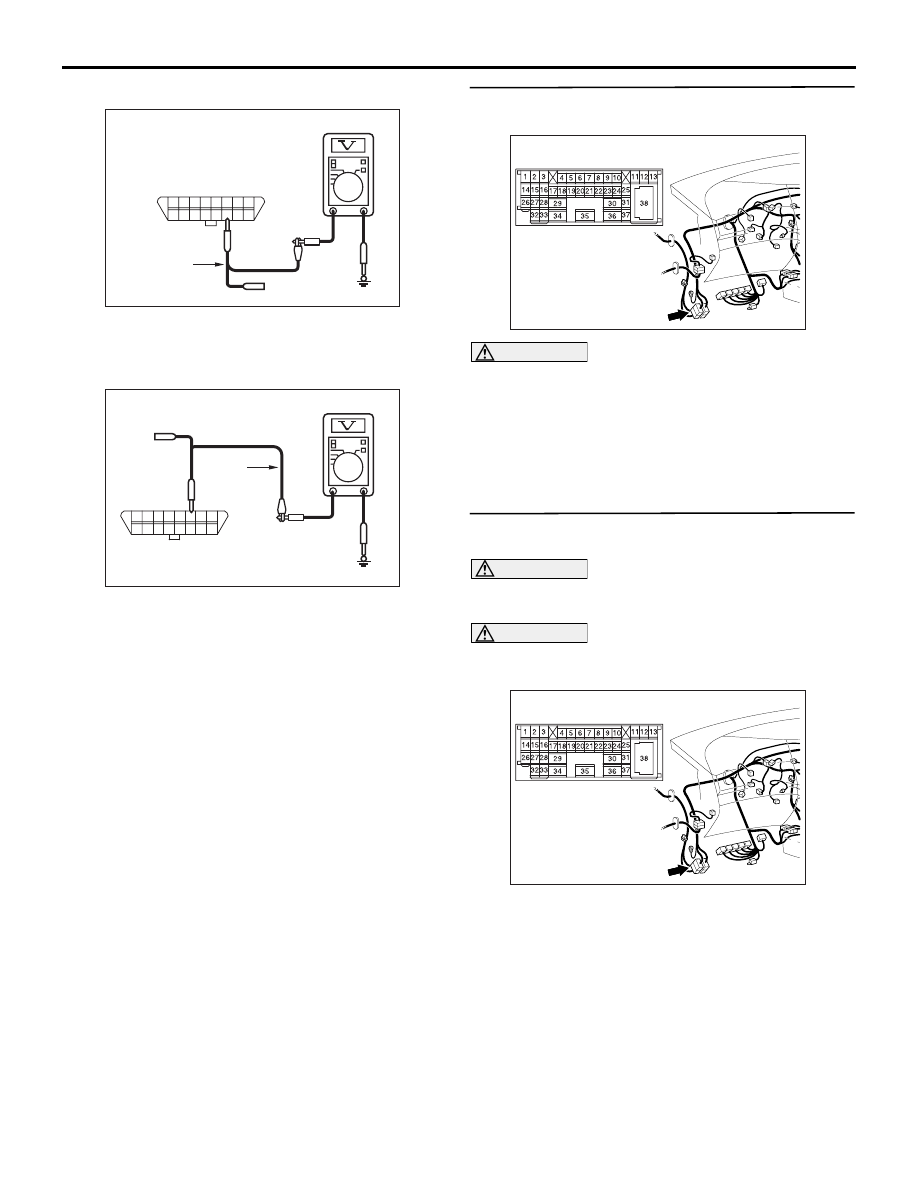

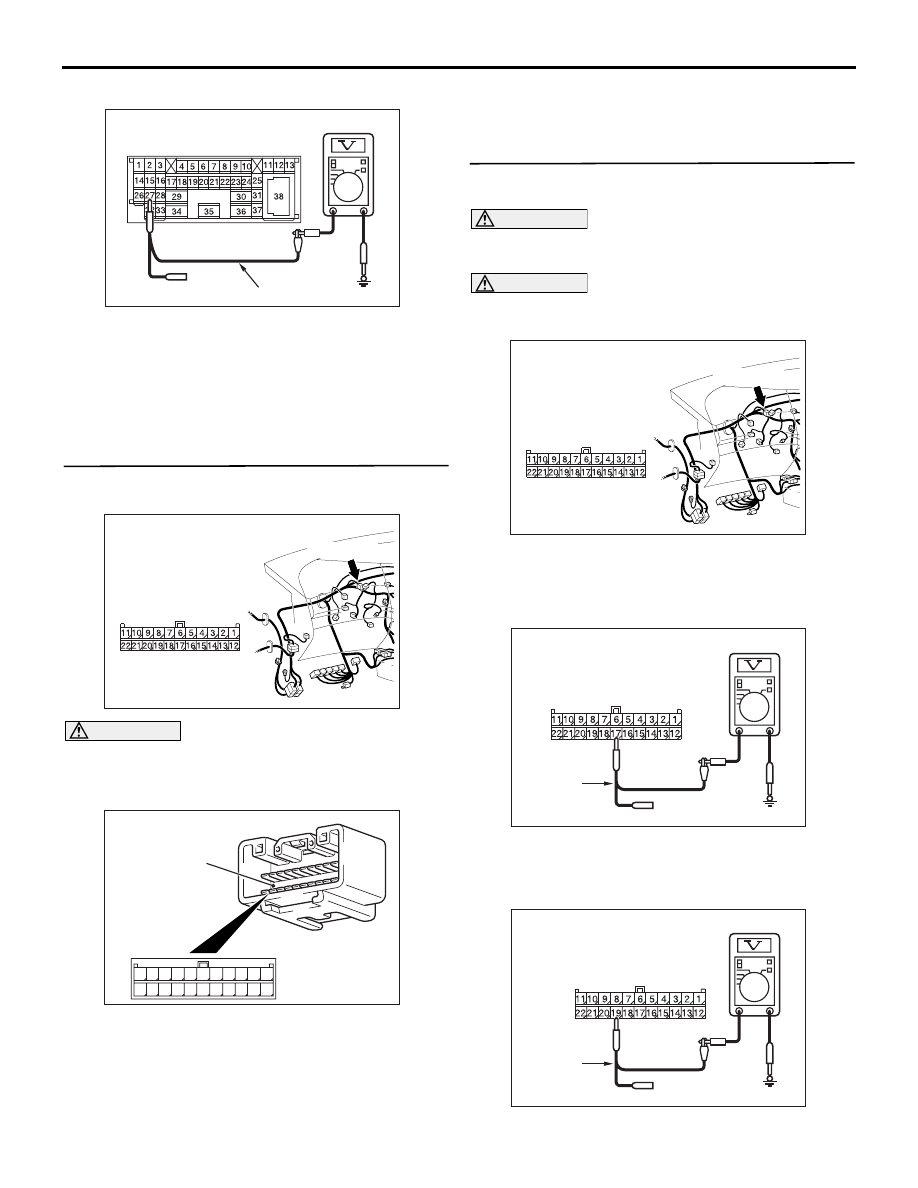

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-142

DIAGNOSTIC PROCEDURE

STEP 1. Connector check: C-112 engine-ECU
<M/T> or engine-A/T-ECU <A/T> connector, C-02
combination meter connector and C-126
diagnosis connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Are the check result normal?

YES :

Go to Step 2 .

NO :

Repair the defective connector.

STEP 2. Voltage measurement at the C-126
diagnosis connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the engine-ECU <M/T> or

engine-A/T-ECU <A/T> connector and the
combination meter connector, and measure at
the wiring harness side.

(2) Connect the negative battery terminal, and turn

AC310628AW

Harness side

Connector: C-112 <RHD>

C-112 (GR)

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

AC310632BC

Connectors: C-02, C-126 <RHD>

C-02

C-126 (B)

C-126 Harness side

C-02 Harness side

AC310628AW

Harness side

Connector: C-112 <RHD>

C-112 (GR)

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

AC310632BC

Connectors: C-02, C-126 <RHD>

C-02

C-126 (B)

C-126 Harness side

C-02 Harness side

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-143

the ignition switch to the ON position.

(3) Voltage between C-126 diagnosis connector

terminal No.14 and body earth

OK: 4.0 V or less

(4) Voltage between C-126 diagnosis connector

terminal No.6 and body earth

OK: 4.0 V or less

(5) Disconnect the negative battery terminal.

Q: Are the check result normal?

YES <all of the measurement results show 4.0 V or
less> :

Follow diagnostic item 20, Diagnose CAN

bus lines thoroughly. Refer to

P.54D-526

.

NO <The voltage between terminal No.14 and body
earth is more than 4.0 V> :

Go to Step 3 .

NO <The voltage between terminal No.6 and body
earth is more than 4.0 V> :

Go to Step 30 .

STEP 3. Connector check: C-125 intermediate
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Repair the defective connector.

STEP 4. Voltage measurement at the C-125
intermediate connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the connector, and measure at its

male-side intermediate connector (at the front
wiring harness side).

(2) Connect the negative battery terminal, and turn

AC209365JP

8

16

15

7

5

13 14

6

12

4

2

10 11

3

9

1

Harness side: C-126
(Front side)

Test
Harness

AC209365

Harness side: C-126
(Front side)

Test
harness

JO

Y

8

16

15

7

5

1314

6

12

4

2

1011

3

9

1

AC310628AB

Connector: C-125 <RHD>

AC310628AB

Connector: C-125 <RHD>

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-144

the ignition switch to the ON position.

(3) Voltage between C-125 intermediate connector

terminal No.27 and body earth

OK: 4.0 V or less

Q: Is the check result normal?

YES :

<4.0 V or less> Go to Step 5.

NO :

<more than 4.0 V> Go to Step 22.

STEP 5. Connector check: C-09 joint connector
(CAN2)

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

When checking the joint connector, ensure that its
wiring harness side and its short pins are not
damaged.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair a defective connector or replace the
joint connector.

STEP 6. Voltage measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-09 joint connector (CAN2)

terminal No.17 and body earth

OK: 4.0 V or less

(4) Voltage between C-09 joint connector (CAN2)

AC209365JQ

Male side: C-125

Test harness

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AB

Short pin

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC209365JV

Harness side: C-09

Test
harness

AC209365KQ

Harness side: C-09

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-145

terminal No.19 and body earth

OK: 4.0 V or less

(5) Voltage between C-09 joint connector (CAN2)

terminal No.16 and body earth

OK: 4.0 V or less

(6) Voltage between C-09 joint connector (CAN2)

terminal No.20 and body earth

OK: 4.0 V or less

(7) Voltage between C-09 joint connector (CAN2)

terminal No.15 and body earth

OK: 4.0 V or less

(8) Voltage between C-09 joint connector (CAN2)

terminal No.14 and body earth

OK: 4.0 V or less

(9) Voltage between C-09 joint connector (CAN2)

terminal No.18 and body earth

OK: 4.0 V or less

(10)Disconnect the negative battery terminal.

Q: Are the check result normal?

YES <all of the measurement results show 4.0 V or
less> :

Go to Step 21 .

NO <The voltage between terminal No.17 and body
earth is more than 4.0 V> :

Go to Step 7 .

NO <The voltage between terminal No.19 and body
earth is more than 4.0 V> :

Go to Step 8 .

NO <The voltage between terminal No.16 and body
earth is more than 4.0 V> :

Go to Step 10 .

NO <The voltage between terminal No.20 and body
earth is more than 4.0 V> :

Go to Step 12 .

NO <The voltage between terminal No.15 and body
earth is more than 4.0 V> :

Go to Step 16 .

NO <The voltage between terminal No.14 and body
earth is more than 4.0 V> :

Go to Step 18 .

NO <The voltage between terminal No.18 and body
earth is more than 4.0 V> :

Go to Step 20 .

AC209365JT

Harness side: C-09

Test
harness

AC209365KS

Harness side: C-09

Test
harness

AC209365JX

Harness side: C-09

Test
harness

AC209365JS

Harness side: C-09

Test
harness

AC209365JR

Harness side: C-09

Test
harness
