DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-130

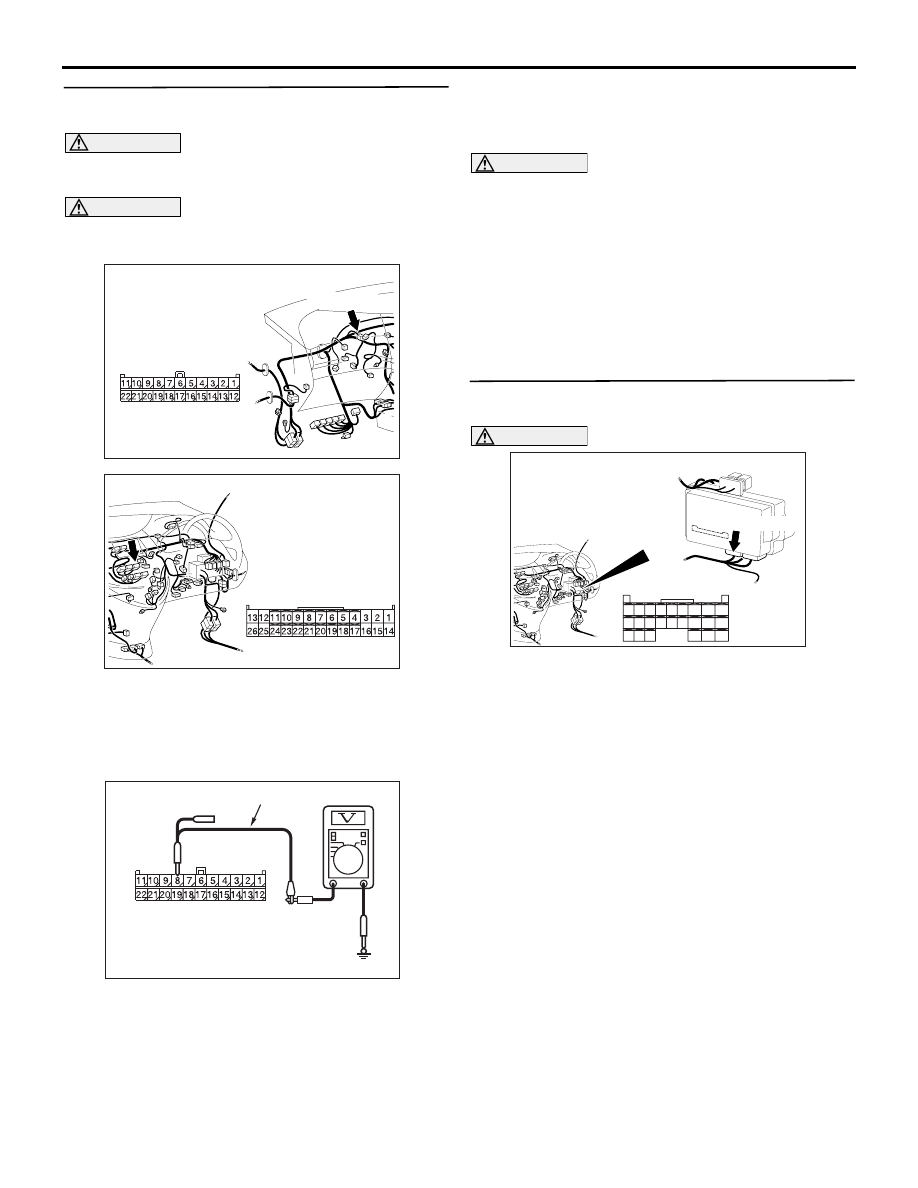

STEP 34. Voltage measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

A/C-ECU connector, and measure at the wiring
harness side.

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-09 joint connector (CAN2)

terminal No.8 and body earth

OK: Less than 1.0 V

(4) Disconnect the negative battery terminal.

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<less than 1.0 V> Follow diagnostic item 19

"Diagnose CAN bus lines thoroughly." Refer
to

P.54D-502

.

NO :

<1.0 V or more> Repair the wiring harness
between the joint connector (CAN2) and the
A/C-ECU connector.

STEP 35. Connector check: C-221 ETACS-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 36 .

NO :

Repair the defective connector.

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC310631AB

Connectors: C-106 <RHD>

Harness side

AC209365KR

Harness side: C-09

Test harness

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-131

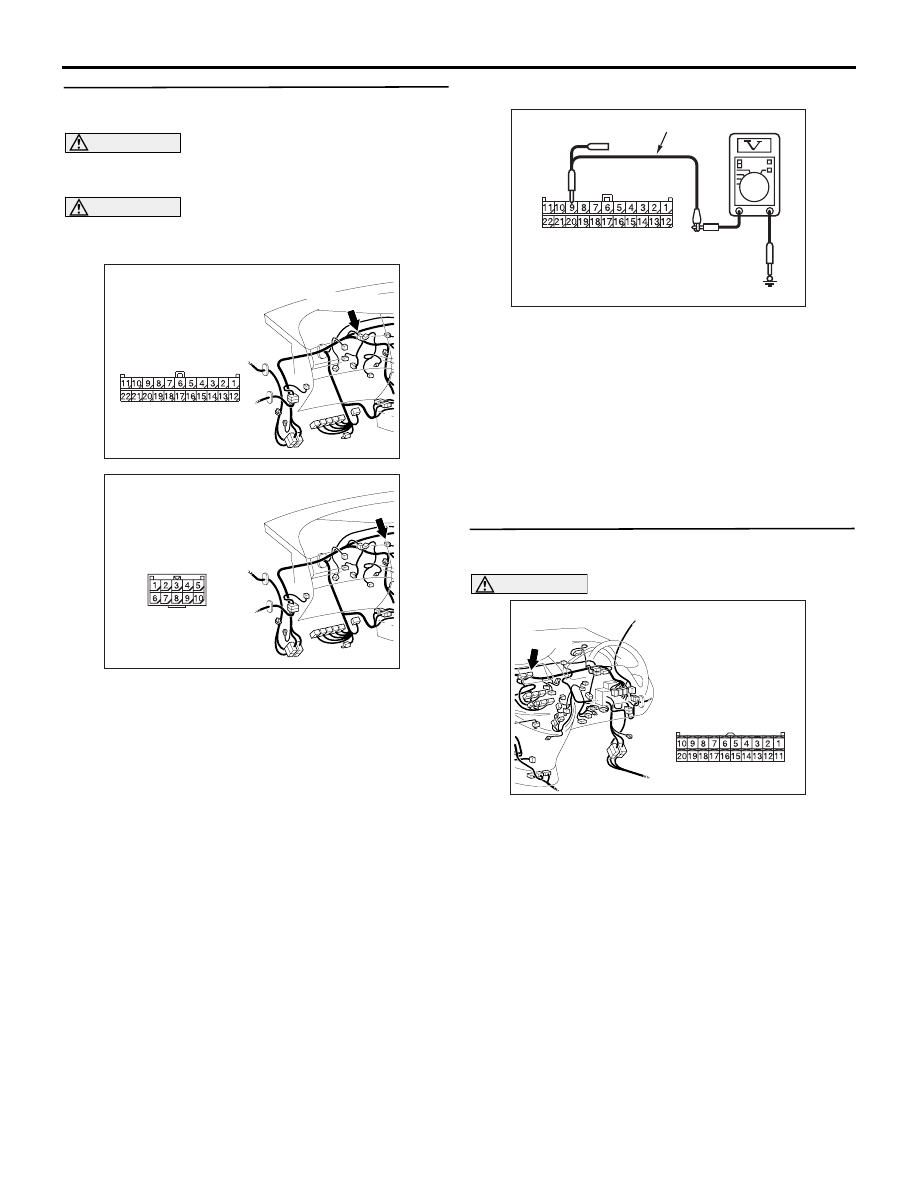

STEP 36. Voltage measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

ETACS-ECU connector, and measure at the
wiring harness side.

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-09 joint connector (CAN2)

terminal No.5 and body earth

OK: Less than 1.0 V

(4) Disconnect the negative battery terminal.

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<less than 1.0 V> Follow diagnostic item 19

"Diagnose CAN bus lines thoroughly." Refer
to

P.54D-502

.

NO :

<1.0 V or more> Repair the wiring harness
between the joint connector (CAN2) and the
ETACS-ECU connector.

STEP 37. Connector check: C-37 jumper
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Check that the wiring harness of the jumper
connector is not damaged.

Q: Is the check result normal?

YES :

Go to Step 38 .

NO :

Repair the defective connector.

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC209365KJ

Harness side: C-09

Test harness

AC310628AZ

Connector: C-37 <RHD>

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-132

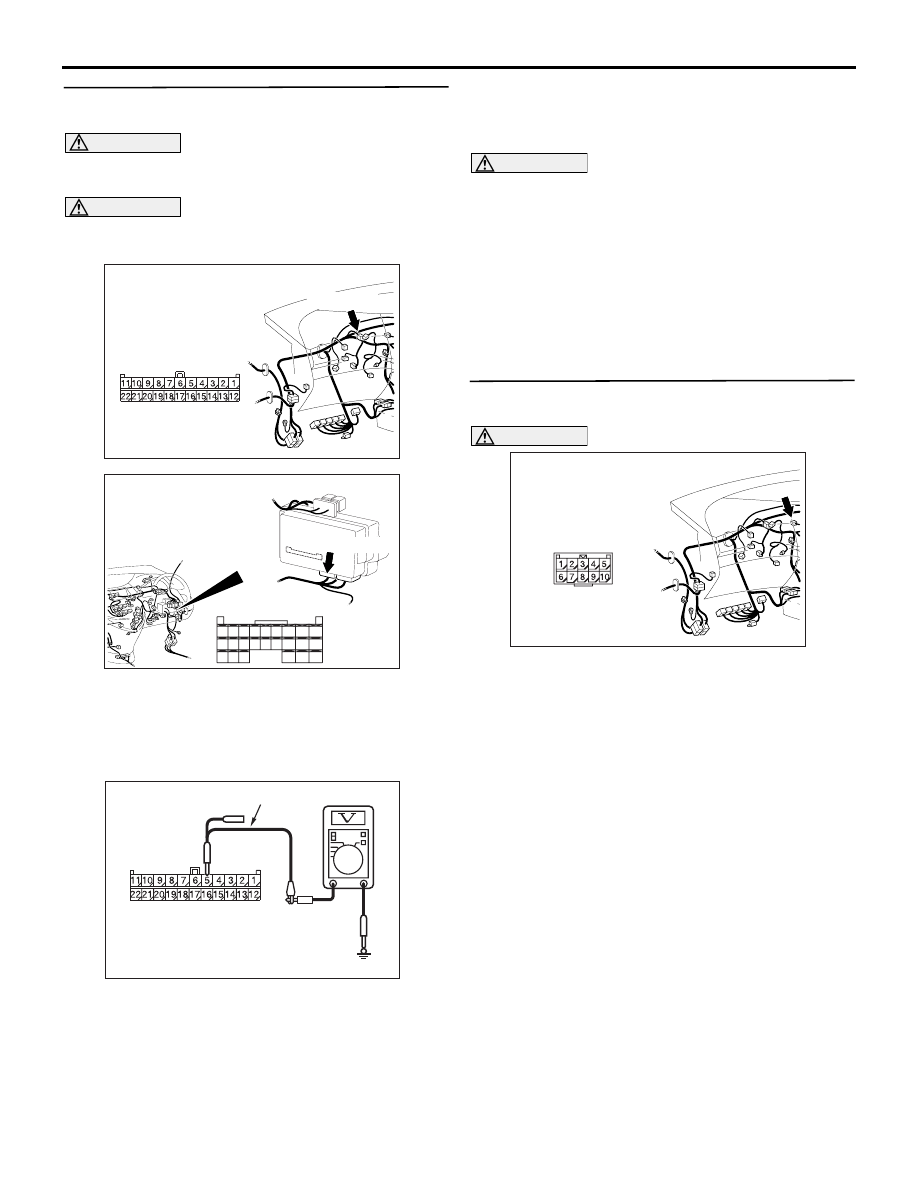

STEP 38. Voltage measurement at the C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

jumper connector, and measure at the wiring
harness side.

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-09 joint connector (CAN2)

terminal No.9 and body earth

OK: Less than 1.0 V

(4) Disconnect the negative battery terminal.

Q: Is the check result normal?

YES :

<1.0 V or less> Go to Step 39.

NO :

<more than 1.0 V> Repair the wiring
harness between the joint connector
(CAN2) and the jumper connector.

STEP 39. Connector check: C-07 centre display
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 40 .

NO :

Repair the defective connector.

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC310628AZ

Connector: C-37 <RHD>

AC209365KU

Harness side: C-09

Test harness

AC310631AY

Connector: C-07 <RHD>

Harness side

C-07 (B)

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-133

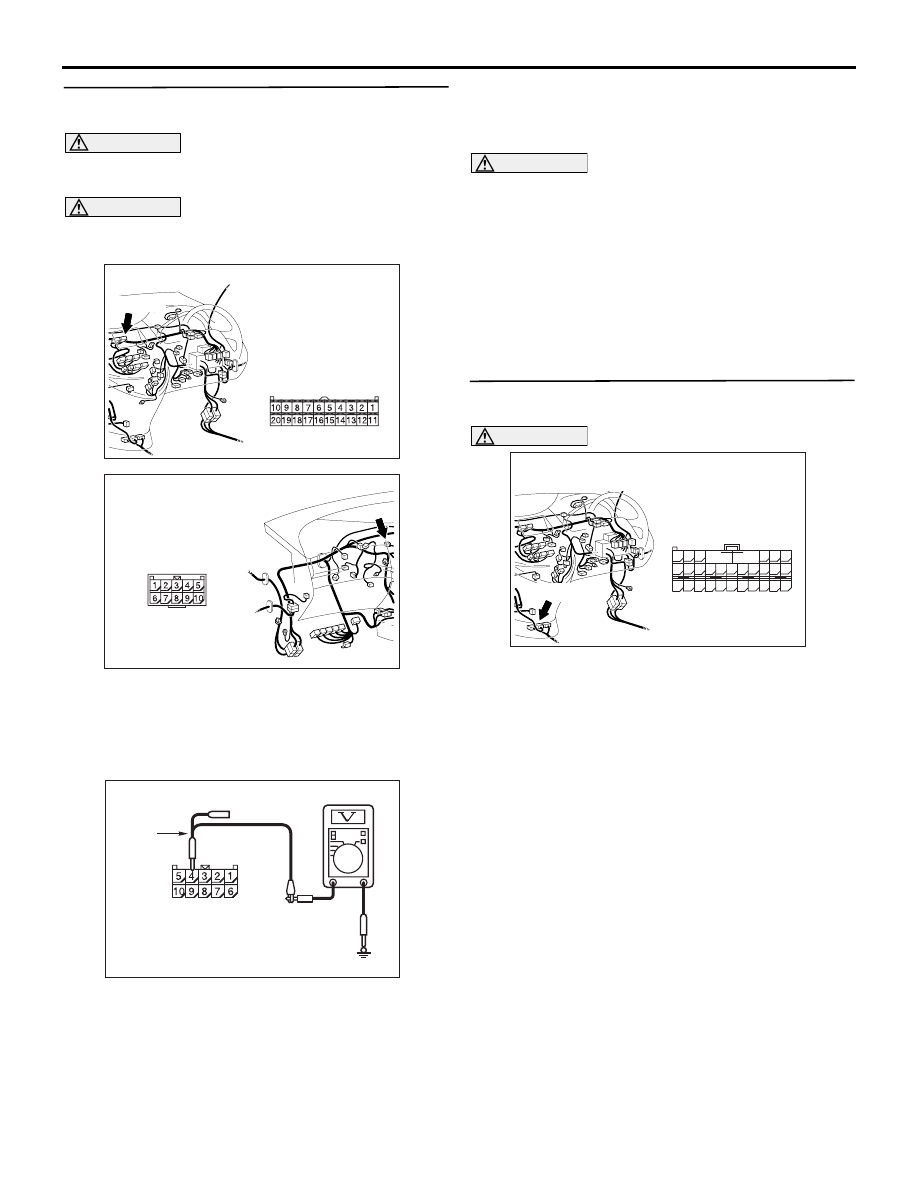

STEP 40. Voltage measurement at the C-37
