DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-82

terminal No.13 and body earth

OK: 4.0 V or less

(5) Voltage between C-09 joint connector (CAN2)

terminal No.14 and body earth

OK: 4.0 V or less

(6) Voltage between C-09 joint connector (CAN2)

terminal No.16 and body earth

OK: 4.0 V or less

(7) Voltage between C-09 joint connector (CAN2)

terminal No.12 and body earth

OK: 4.0 V or less

(8) Voltage between C-09 joint connector (CAN2)

terminal No.19 and body earth

OK: 4.0 V or less

(9) Voltage between C-09 joint connector (CAN2)

terminal No.17 and body earth

OK: 4.0 V or less

(10)Disconnect the negative battery terminal.

Q: Are the check result normal?

YES <all of the measurement results show 4.0 V or
less> :

Go to Step 21 .

NO <The voltage between terminal No.18 and body
earth is more than 4.0 V> :

Go to Step 7 .

NO <The voltage between terminal No.13 and body
earth is more than 4.0 V> :

Go to Step 8 .

NO <The voltage between terminal No.14 and body
earth is more than 4.0 V> :

Go to Step 10 .

NO <The voltage between terminal No.16 and body
earth is more than 4.0 V> :

Go to Step 12 .

NO <The voltage between terminal No.12 and body
earth is more than 4.0 V> :

Go to Step 16 .

NO <The voltage between terminal No.19 and body
earth is more than 4.0 V> :

Go to Step 18 .

NO <The voltage between terminal No.17 and body
earth is more than 4.0 V> :

Go to Step 20 .

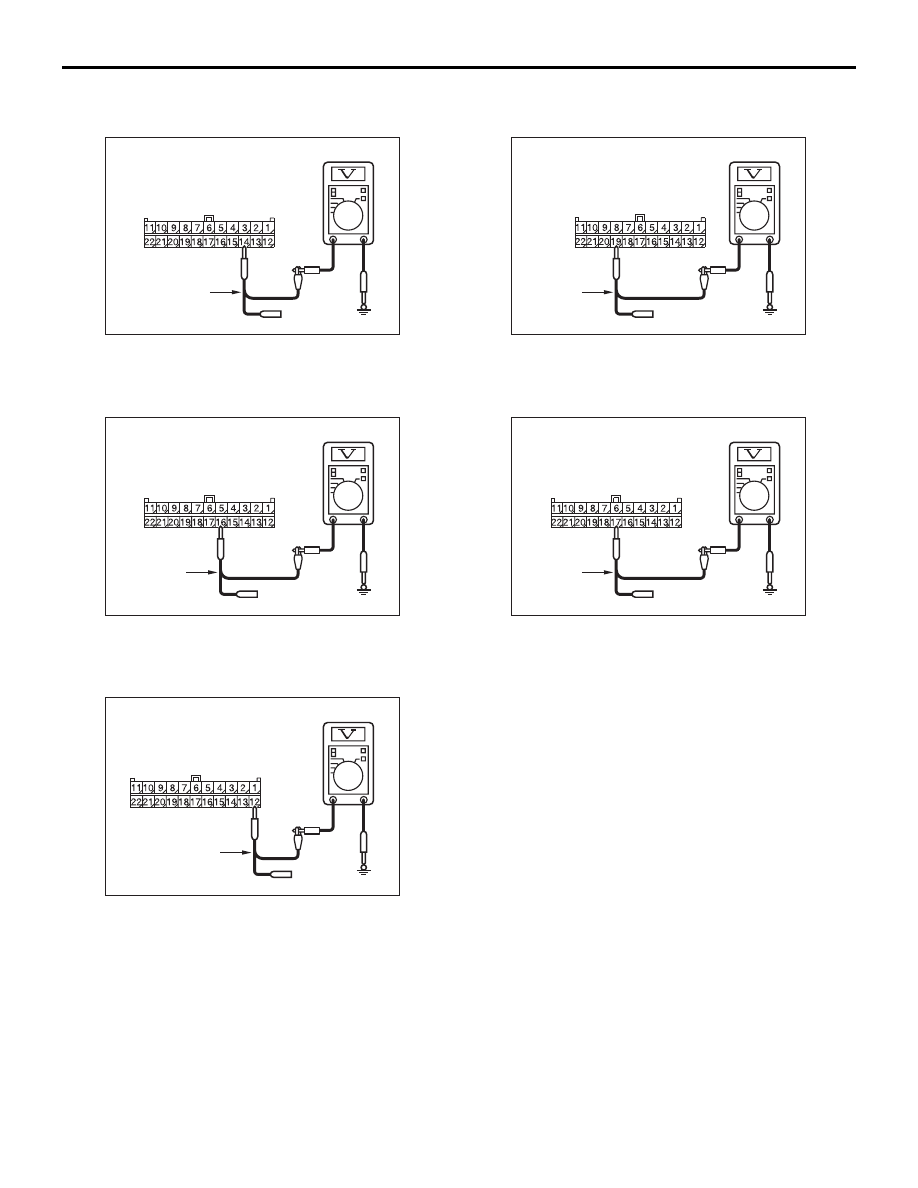

AC209365JS

Harness side: C-09

Test
harness

AC209365JT

Harness side: C-09

Test
harness

AC209365JU

Harness side: C-09

Test
harness

AC209365KQ

Harness side: C-09

Test
harness

AC209365JV

Harness side: C-09

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-83

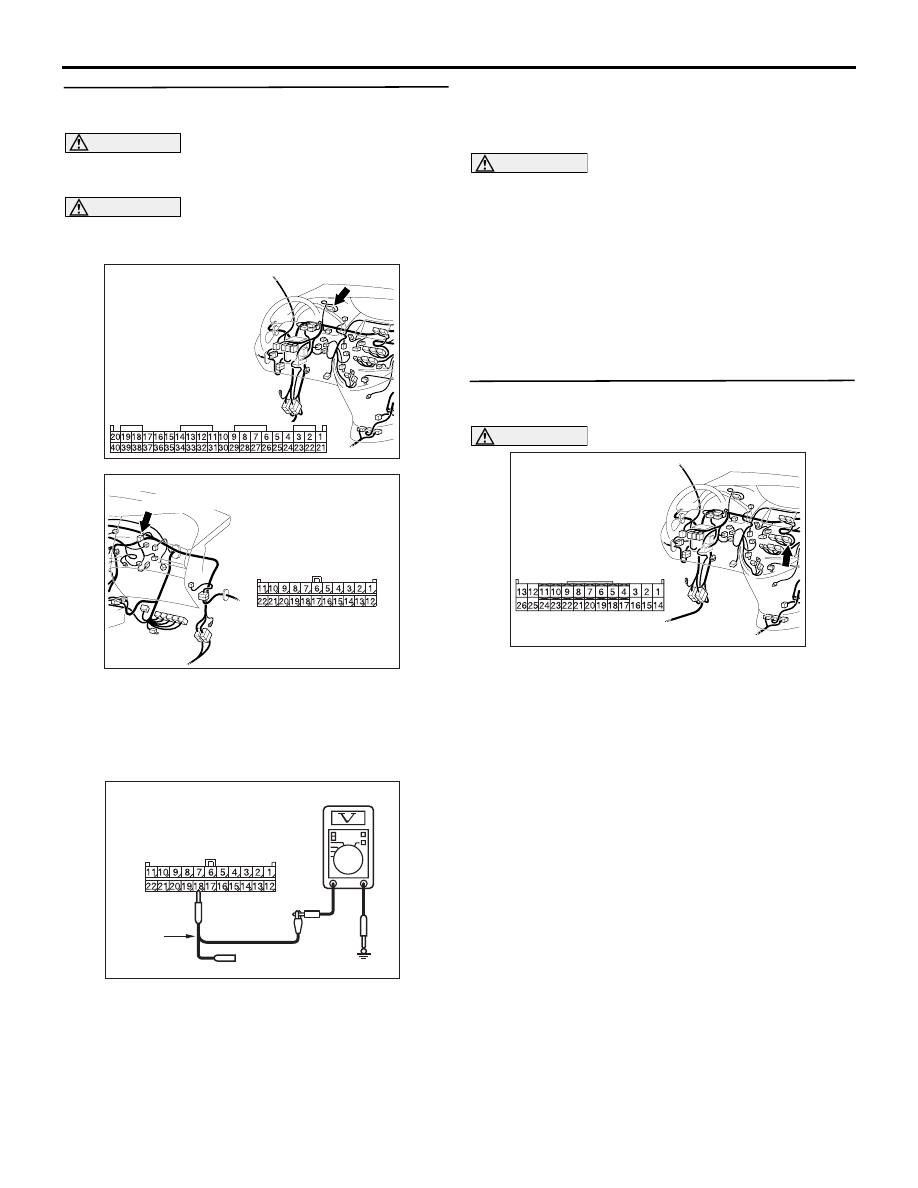

STEP 7. Voltage measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

combination meter connector, and measure at
the wiring harness side.

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-09 joint connector (CAN2)

terminal No.18 and body earth

OK: Less than 1.0 V

(4) Disconnect the negative battery terminal.

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<less than 1.0 V> Follow diagnostic item 18

"Diagnose CAN bus lines thoroughly." Refer
to

P.54D-476

.

NO :

<1.0 V or more> Repair the wiring harness
between joint connector (CAN2) and the
combination meter connector.

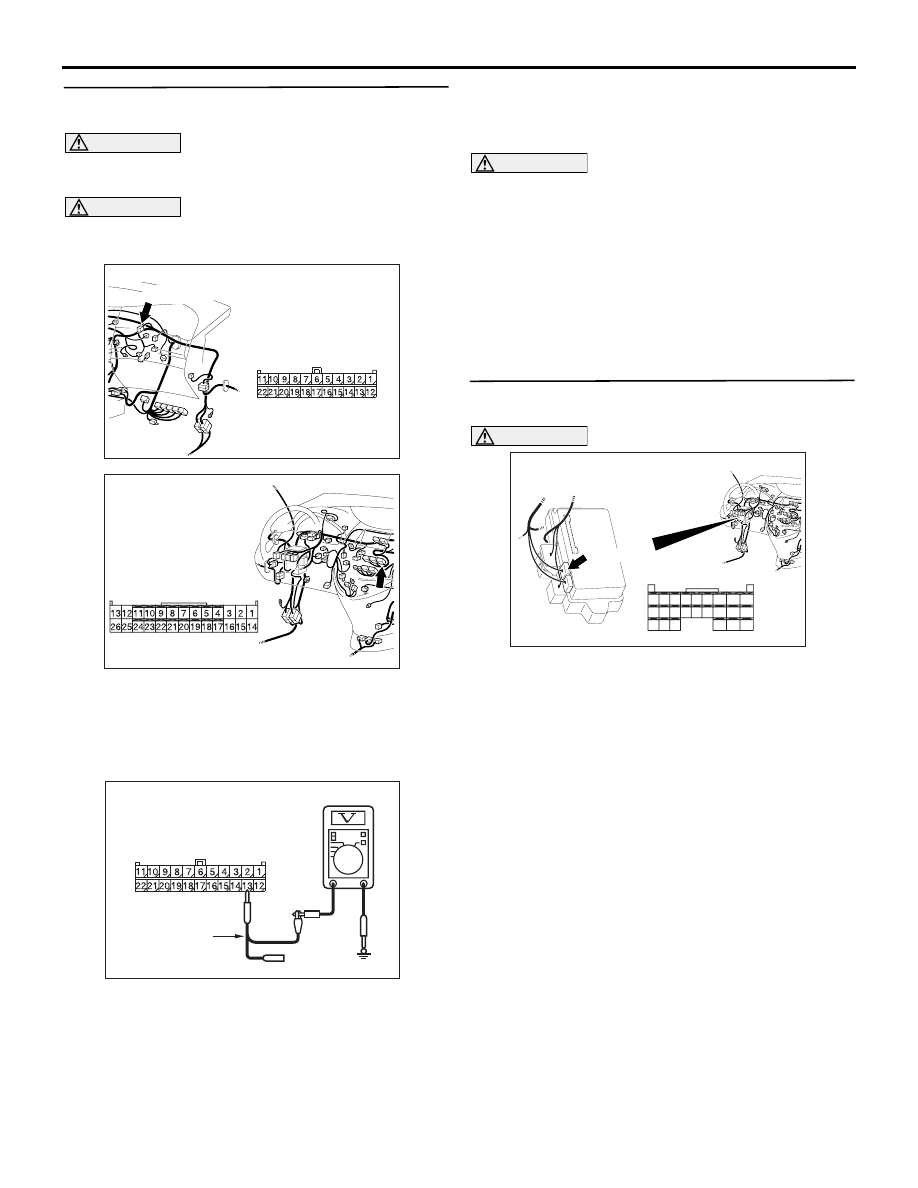

STEP 8. Connector check: C-106 A/C-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Repair the defective connector.

AC310613

BB

Connector: C-02 <LHD>

Harness side

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC209365JR

Harness side: C-09

Test
harness

AC310613

AB

Connector: C-106 <LHD>

Harness side

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-84

STEP 9. Voltage measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

A/C-ECU connector, and measure at the wiring
harness side.

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-09 joint connector (CAN2)

terminal No.13 and body earth

OK: Less than 1.0 V

(4) Disconnect the negative battery terminal.

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<less than 1.0 V> Follow diagnostic item 18

"Diagnose CAN bus lines thoroughly." Refer
to

P.54D-476

.

NO :

<1.0 V or more> Repair the wiring harness
between the joint connector (CAN2) and the
A/C-ECU connector.

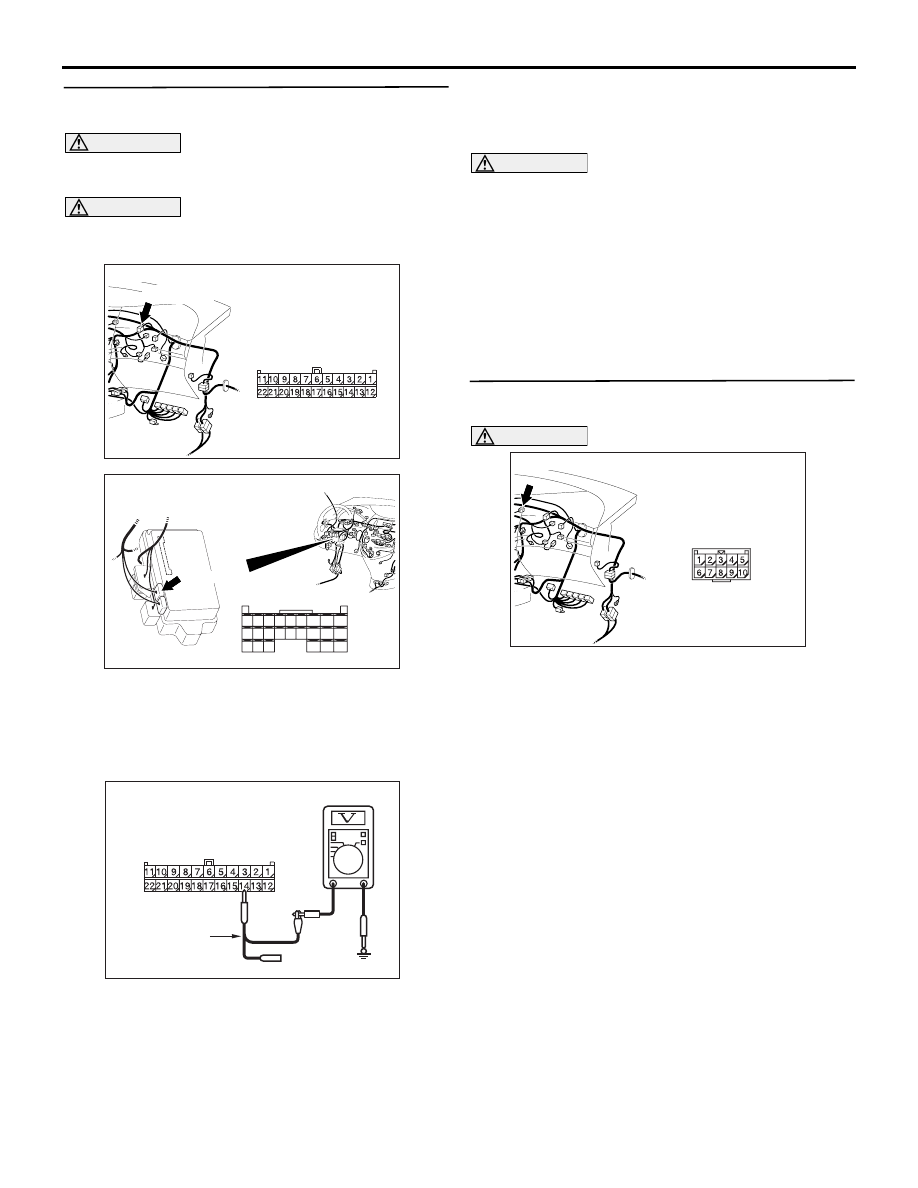

STEP 10. Connector check: C-221 ETACS-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Repair the defective connector.

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC310613

AB

Connector: C-106 <LHD>

Harness side

AC209365JW

Harness side: C-09

Test
harness

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-85

STEP 11. Voltage measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

ETACS-ECU connector, and measure at the
wiring harness side.

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-09 joint connector (CAN2)

terminal No.14 and body earth

OK: Less than 1.0 V

(4) Disconnect the negative battery terminal.

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<less than 1.0 V> Follow diagnostic item 18

"Diagnose CAN bus lines thoroughly." Refer
to

P.54D-476

.

NO :

<1.0 V or more> Repair the wiring harness
between the joint connector (CAN2) and the
ETACS-ECU connector.

STEP 12. Connector check: C-37 jumper
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Check that the wiring harness of the jumper
connector is not damaged.

Q: Is the check result normal?

YES :

Go to Step 13 .

NO :

Repair the defective connector.

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC209365JS

Harness side: C-09

Test
harness

AC310615

AV

Connector: C-37 <LHD>
