DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-66

combination meter connector, and measure at
the wiring harness side.

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-09 joint connector (CAN2)

terminal No.7 and body earth

OK: Less than 1.0 V

(4) Disconnect the negative battery terminal.

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<less than 1.0 V> Follow diagnostic item 17

"Diagnose CAN bus lines thoroughly." Refer
to

P.54D-452

.

NO :

<1.0 V or more> Repair the wiring harness
between joint connector (CAN2) and the
combination meter connector.

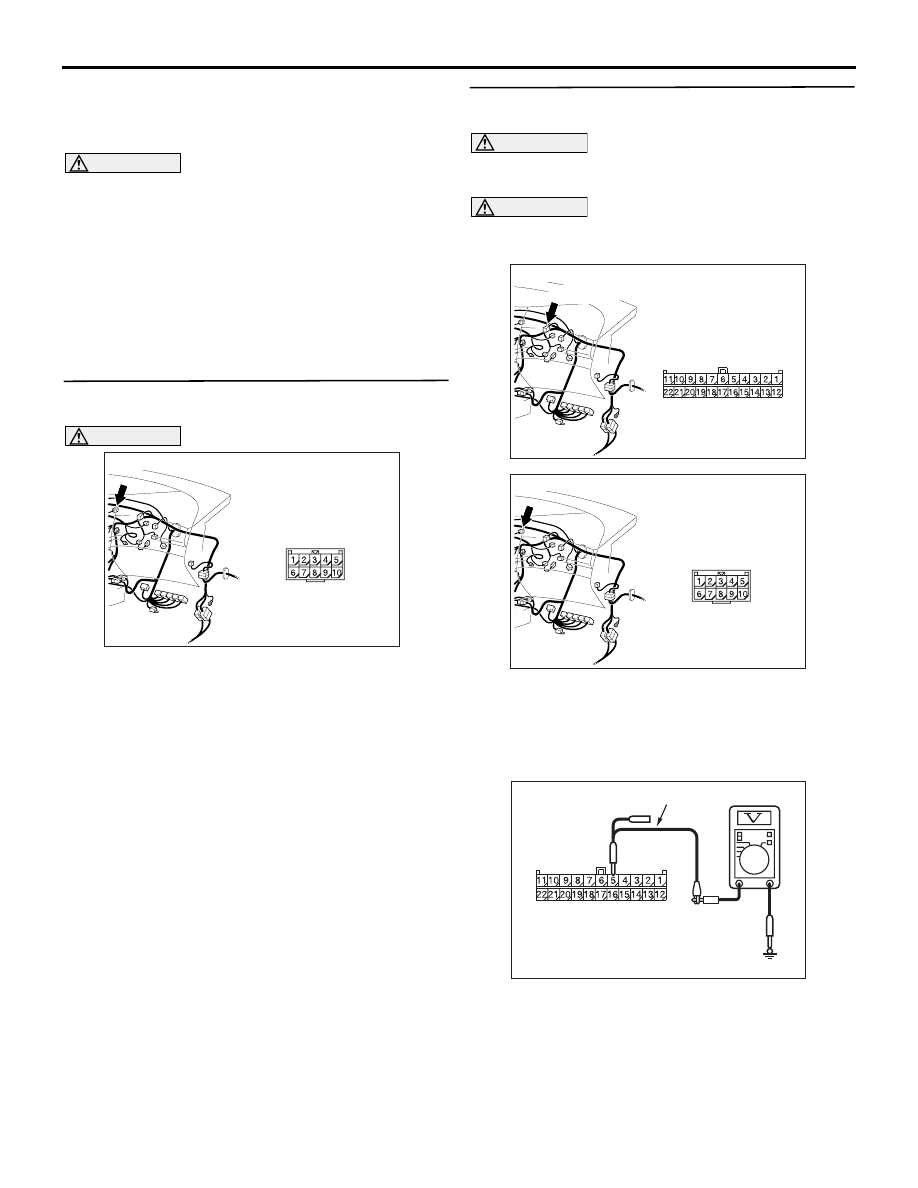

STEP 33. Connector check: C-106 A/C-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 34 .

NO :

Repair the defective connector.

STEP 34. Voltage measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

A/C-ECU connector, and measure at the wiring
harness side.

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-09 joint connector (CAN2)

AC209365KF

Harness side: C-09

Test harness

AC310613

AB

Connector: C-106 <LHD>

Harness side

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC310613

AB

Connector: C-106 <LHD>

Harness side

AC209365KH

Harness side: C-09

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-67

terminal No.2 and body earth

OK: Less than 1.0 V

(4) Disconnect the negative battery terminal.

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<less than 1.0 V> Follow diagnostic item 17

"Diagnose CAN bus lines thoroughly." Refer
to

P.54D-452

.

NO :

<1.0 V or more> Repair the wiring harness
between the joint connector (CAN2) and the
A/C-ECU connector.

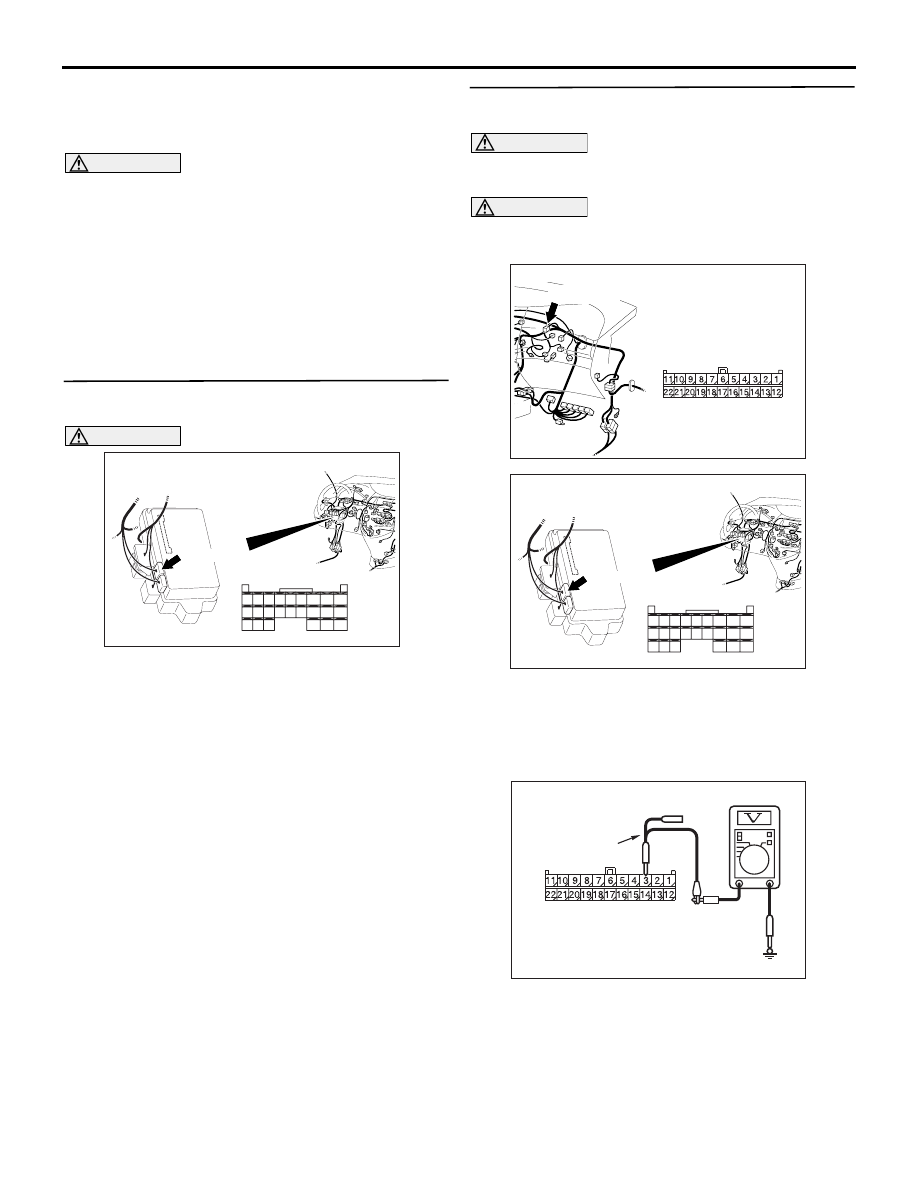

STEP 35. Connector check: C-221 ETACS-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 36 .

NO :

Repair the defective connector.

STEP 36. Voltage measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

ETACS-ECU connector, and measure at the
wiring harness side.

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-09 joint connector (CAN2)

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC209365KI

Harness side: C-09

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-68

terminal No.3 and body earth

OK: Less than 1.0 V

(4) Disconnect the negative battery terminal.

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<less than 1.0 V> Follow diagnostic item 17

"Diagnose CAN bus lines thoroughly." Refer
to

P.54D-452

.

NO :

<1.0 V or more> Repair the wiring harness
between the joint connector (CAN2) and the
ETACS-ECU connector.

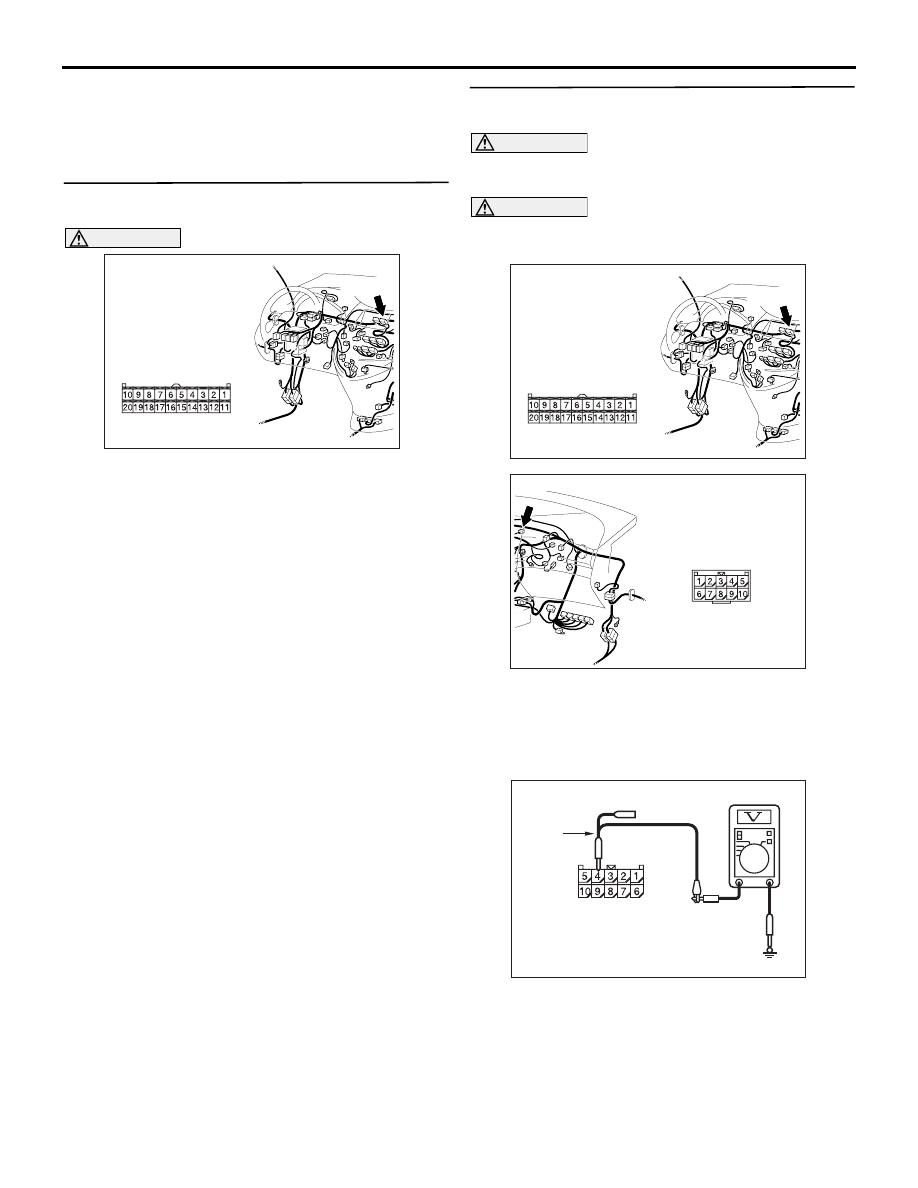

STEP 37. Connector check: C-37 jumper
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Check that the wiring harness of the jumper
connector is not damaged.

Q: Is the check result normal?

YES :

Go to Step 38.

NO :

Repair the defective connector.

STEP 38. Voltage measurement at the C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

jumper connector, and measure at the wiring
harness side.

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-09 joint connector (CAN2)

terminal No.5 and body earth

OK: Less than 1.0 V

(4) Disconnect the negative battery terminal.

Q: Is the check result normal?

AC310615

AV

Connector: C-37 <LHD>

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC310615

AV

Connector: C-37 <LHD>

AC209365KJ

Harness side: C-09

Test harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-69

YES :

<1.0 V or less> Go to Step 39.

NO :

<more than 1.0 V> Repair the wiring
harness between the joint connector
(CAN2) and the jumper connector.

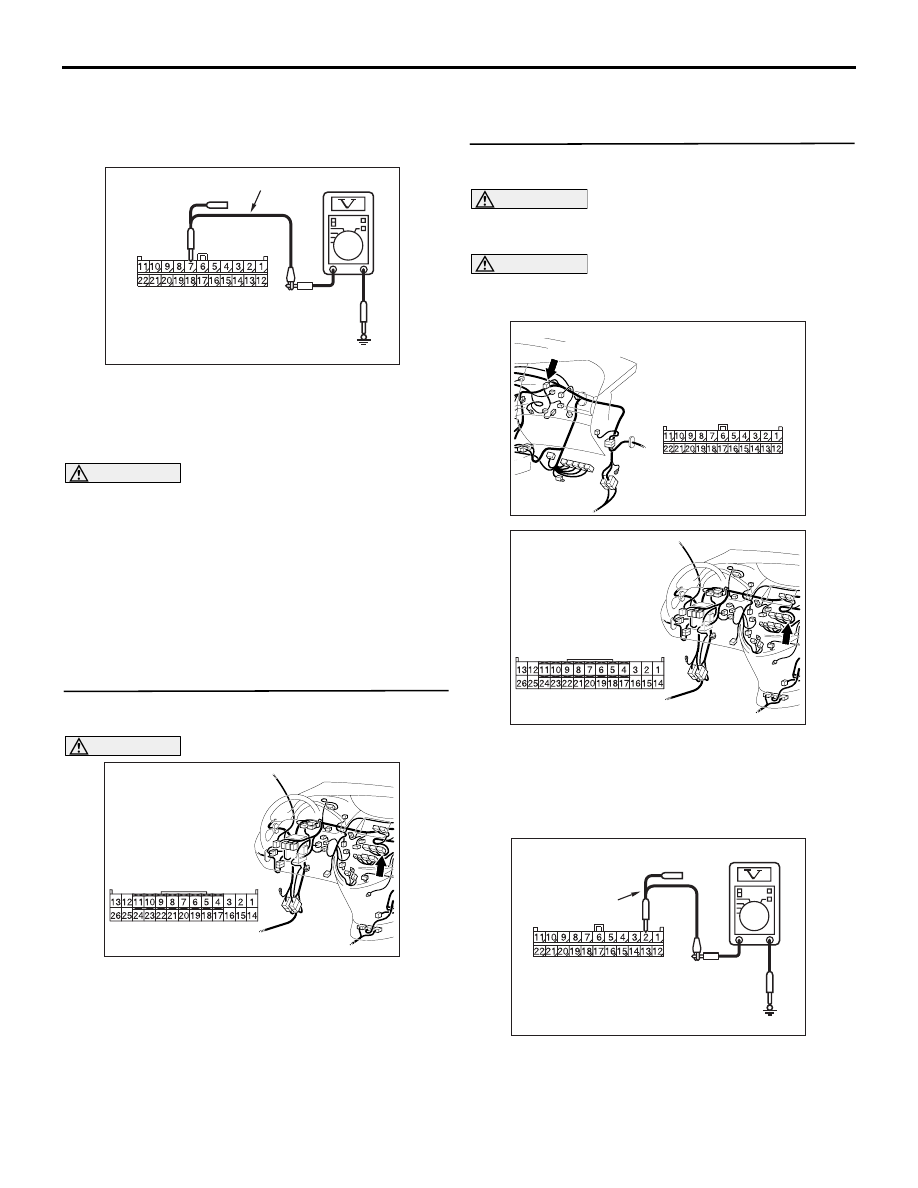

STEP 39. Connector check: C-07 centre display
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 40.

NO :

Repair the defective connector.

STEP 40. Voltage measurement at the C-37
jumper connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the centre display connector and the

jumper connector, and measure at the jumper
connector (at the centre display side).

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-37 jumper connector terminal

AC310613

BC

Connector: C-07 <LHD>

Harness side

C-07 (B)

AC310613

BC

Connector: C-07 <LHD>

Harness side

C-07 (B)

AC310615

AV

Connector: C-37 <LHD>

AC312551 AC

Harness side: C-37

Test
harness
