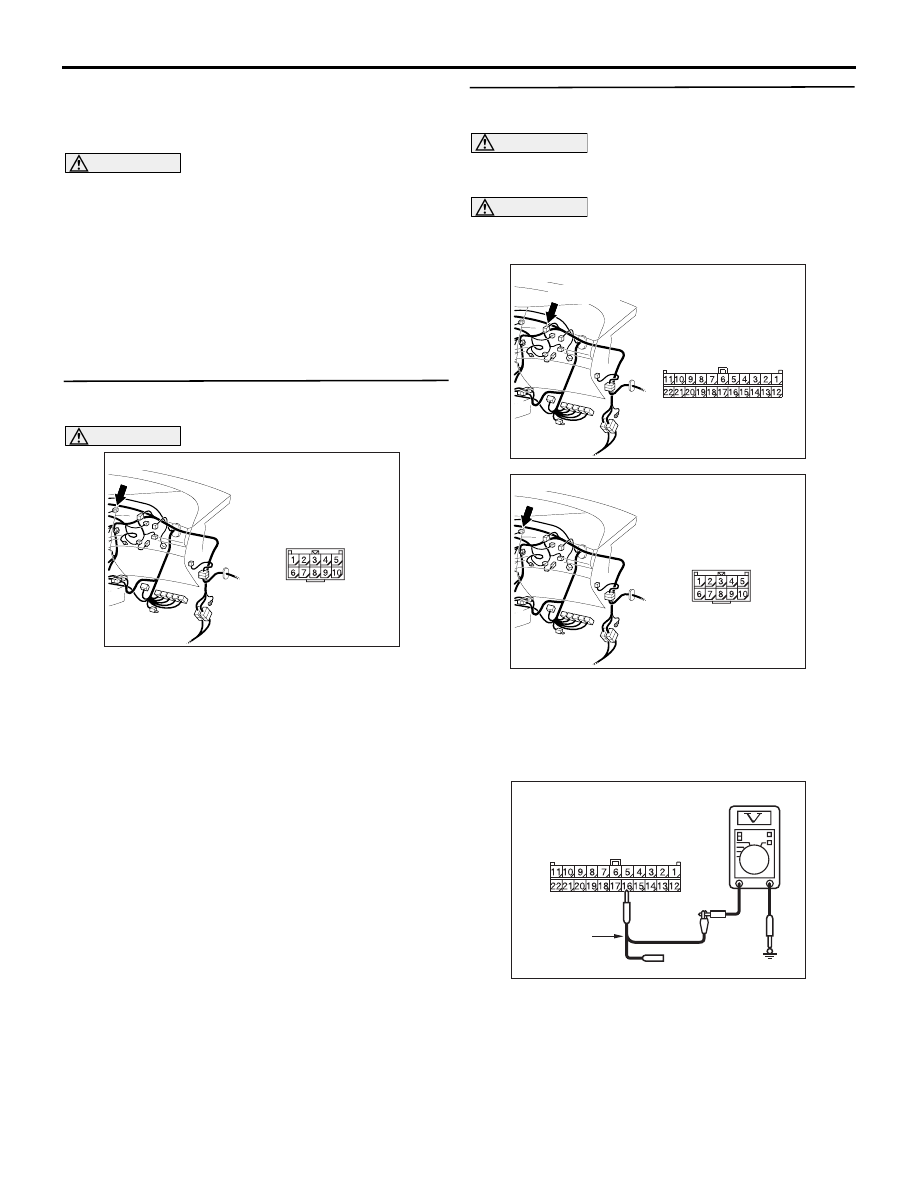

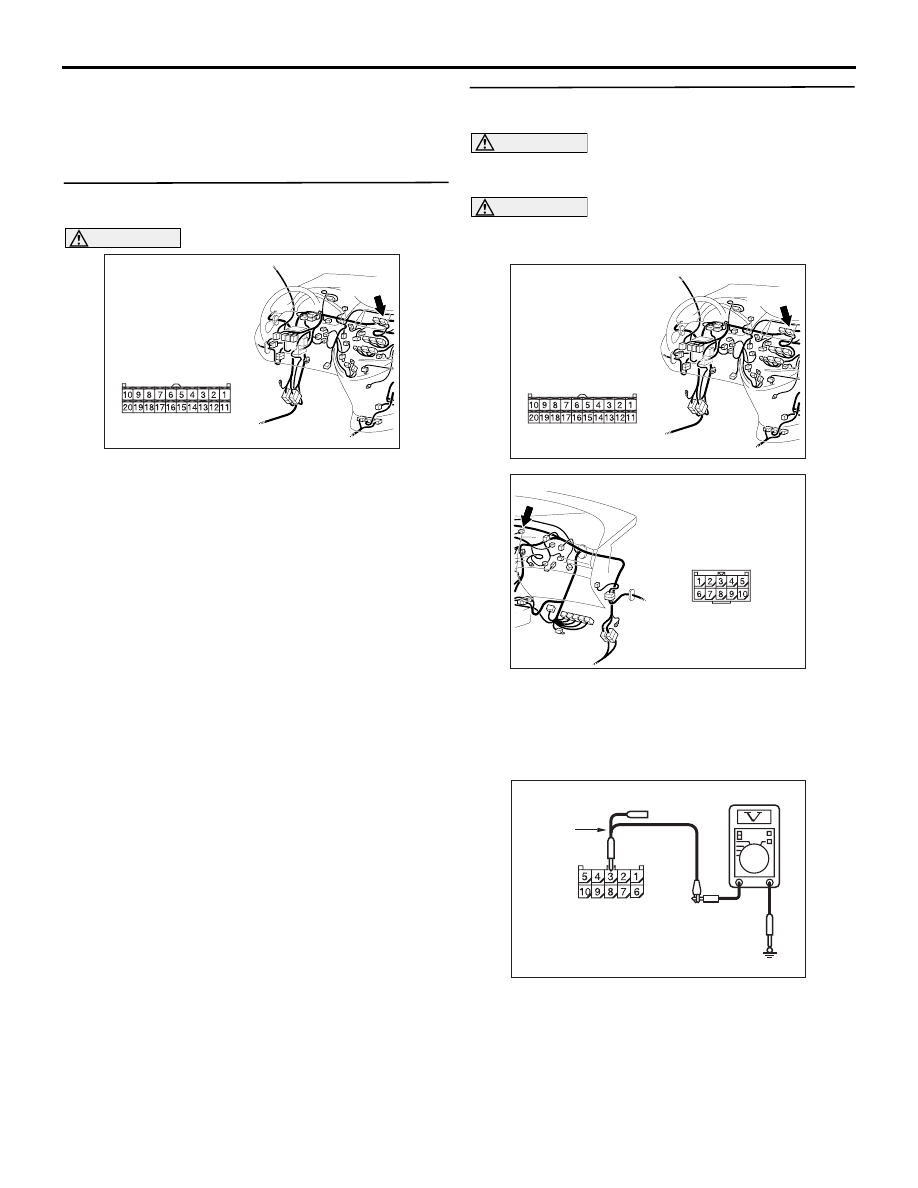

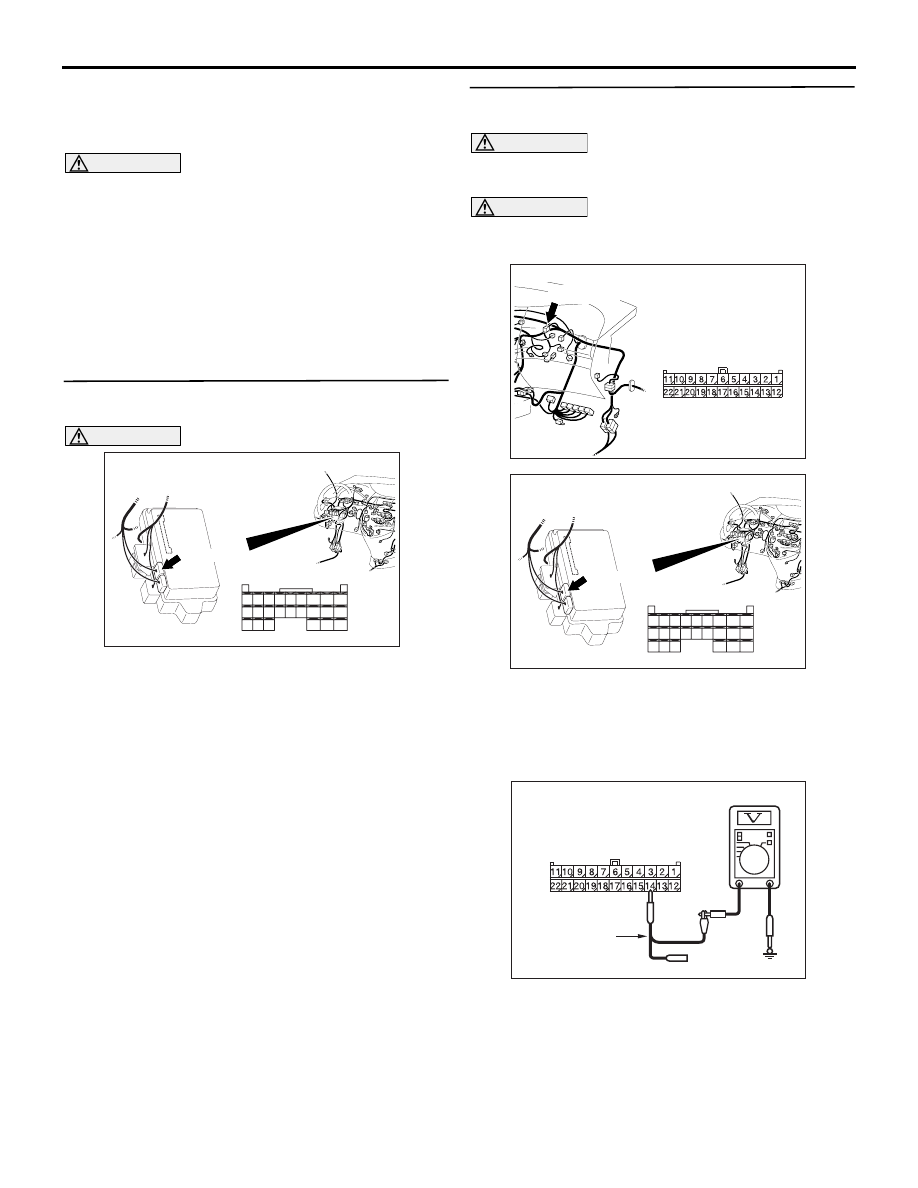

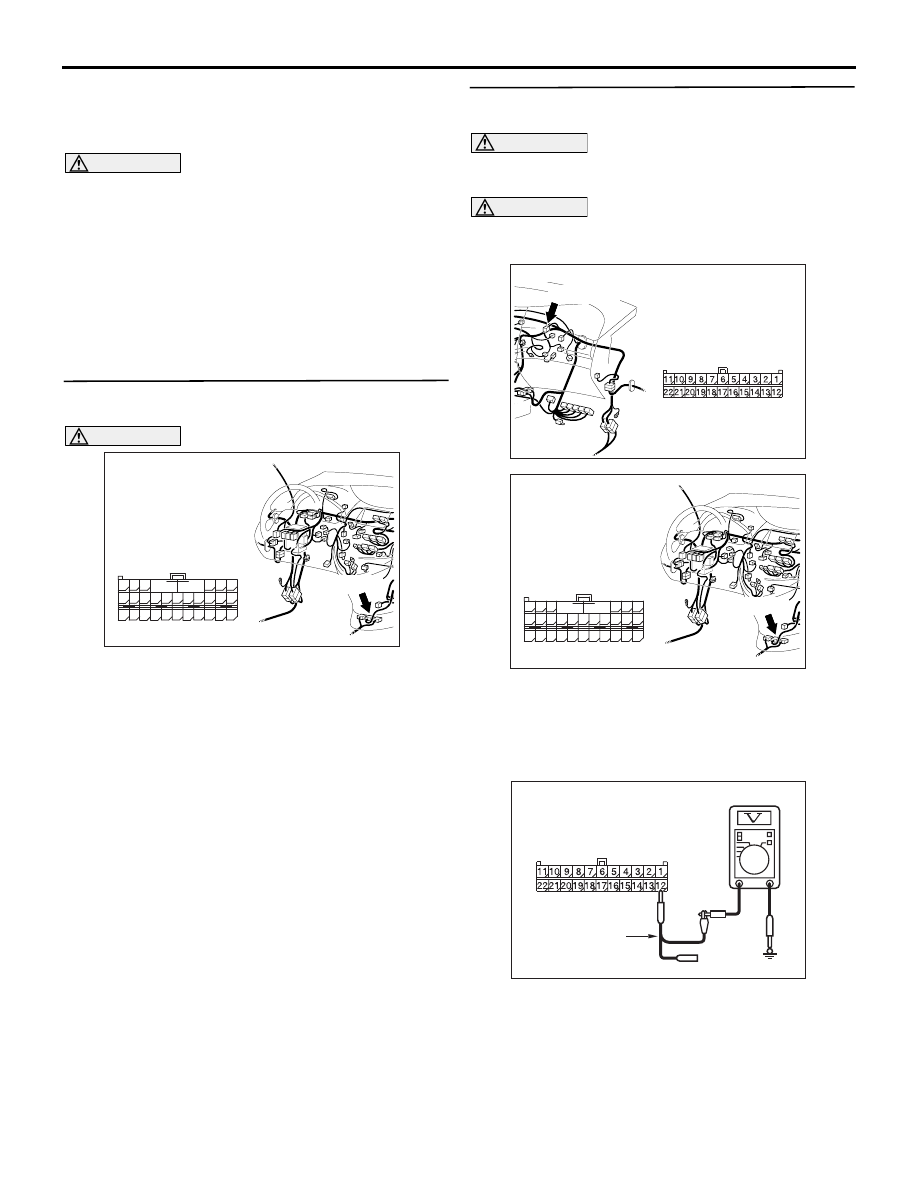

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-54

terminal No.13 and body earth

OK: Less than 1.0 V

(4) Disconnect the negative battery terminal.

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<less than 1.0 V> Follow diagnostic item 17

"Diagnose CAN bus lines thoroughly." Refer
to

P.54D-452

.

NO :

<1.0 V or more> Repair the wiring harness
between the joint connector (CAN2) and the
A/C-ECU connector.

STEP 10. Connector check: C-221 ETACS-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Repair the defective connector.

STEP 11. Voltage measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

ETACS-ECU connector, and measure at the
wiring harness side.

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-09 joint connector (CAN2)

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC209365JS

Harness side: C-09

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-55

terminal No.14 and body earth

OK: Less than 1.0 V

(4) Disconnect the negative battery terminal.

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<less than 1.0 V> Follow diagnostic item 17

"Diagnose CAN bus lines thoroughly." Refer
to

P.54D-452

.

NO :

<1.0 V or more> Repair the wiring harness
between the joint connector (CAN2) and the
ETACS-ECU connector.

STEP 12. Connector check: C-37 jumper
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Check that the wiring harness of the jumper
connector is not damaged.

Q: Is the check result normal?

YES :

Go to Step 13 .

NO :

Repair the defective connector.

STEP 13. Voltage measurement at the C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

jumper connector, and measure at the wiring
harness side.

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-09 joint connector (CAN2)

terminal No.16 and body earth

OK: Less than 1.0 V

(4) Disconnect the negative battery terminal.

Q: Is the check result normal?

AC310615

AV

Connector: C-37 <LHD>

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC310615

AV

Connector: C-37 <LHD>

AC209365JT

Harness side: C-09

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-56

YES :

<1.0 V or less> Go to Step 14.

NO :

<more than 1.0 V> Repair the wiring
harness between the joint connector
(CAN2) and the jumper connector.

STEP 14. Connector check: C-07 centre display
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 15 .

NO :

Repair the defective connector.

STEP 15. Voltage measurement at the C-37
jumper connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the centre display connector and the

jumper connector, and measure at the jumper
connector (at the centre display side).

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-37 jumper connector terminal

AC310613

BC

Connector: C-07 <LHD>

Harness side

C-07 (B)

AC310613

BC

Connector: C-07 <LHD>

Harness side

C-07 (B)

AC310615

AV

Connector: C-37 <LHD>

AC312551 AB

Harness side: C-37

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-57

No.3 and body earth

OK: Less than 1.0 V

(4) Disconnect the negative battery terminal.

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<less than 1.0 V> Follow diagnostic item 17

"Diagnose CAN bus lines thoroughly." Refer
to

P.54D-452

.

NO :

<1.0 V or more> Repair the wiring harness
between the jumper connector and the
centre display connector.

STEP 16. Connector check: C-119 SRS-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 17 .

NO :

Repair the defective connector.

STEP 17. Voltage measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

SRS-ECU connector, and measure at the wiring
harness side.

(2) Connect the negative battery terminal, and turn

the ignition switch to the ON position.

(3) Voltage between C-09 joint connector (CAN2)

AC310613

BD

Connector: C-119
<LHD>

Harness side

C-119 (Y)

48

37

26

42

31

45

34

47

36

46

35

44

33

43

32

25 24

39

28

41

30

40

29

38

27

23

21

22

A

B

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC310613

BD

Connector: C-119
<LHD>

Harness side

C-119 (Y)

48

37

26

42

31

45

34

47

36

46

35

44

33

43

32

25 24

39

28

41

30

40

29

38

27

23

21

22

A

B

AC209365JU

Harness side: C-09

Test
harness
