Mitsubishi Grandis. Manual - part 470
SUNROOF <LHD>

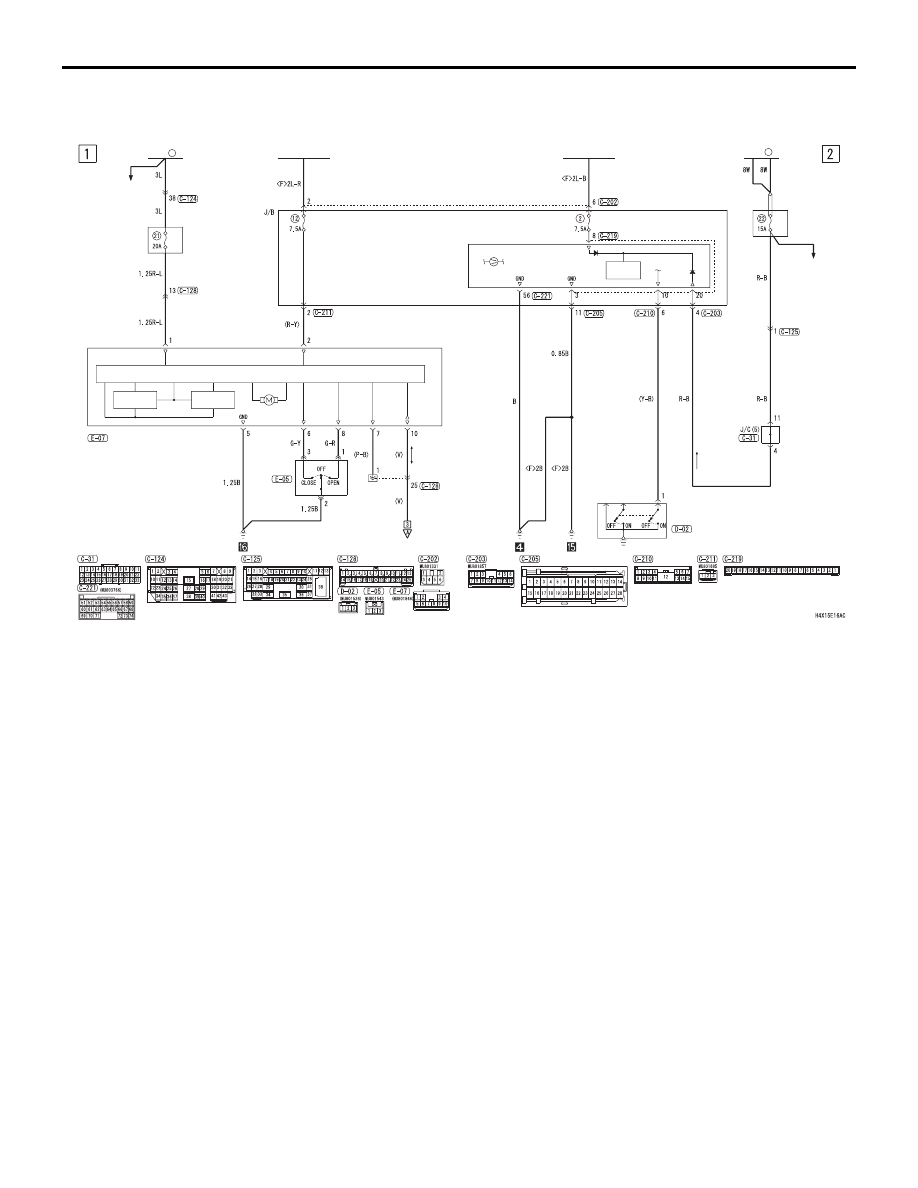

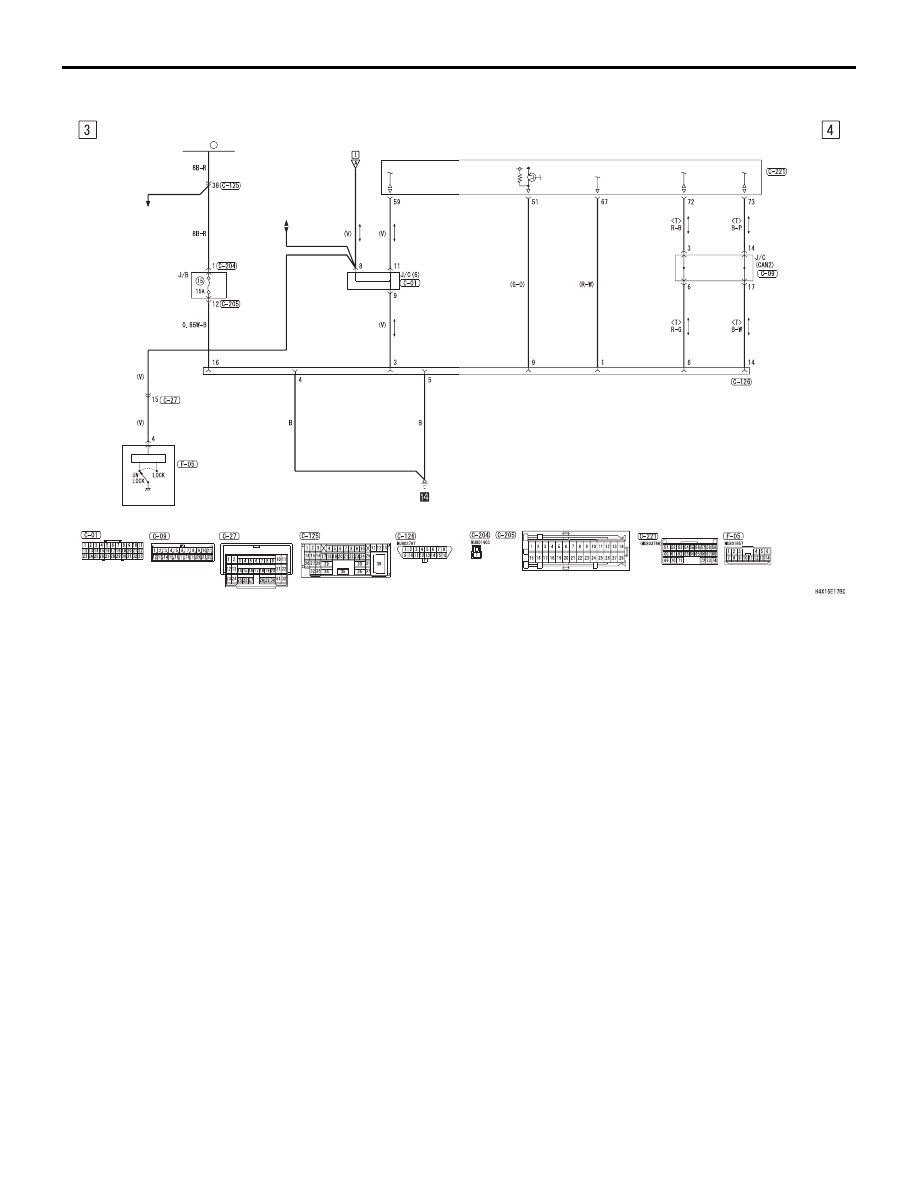

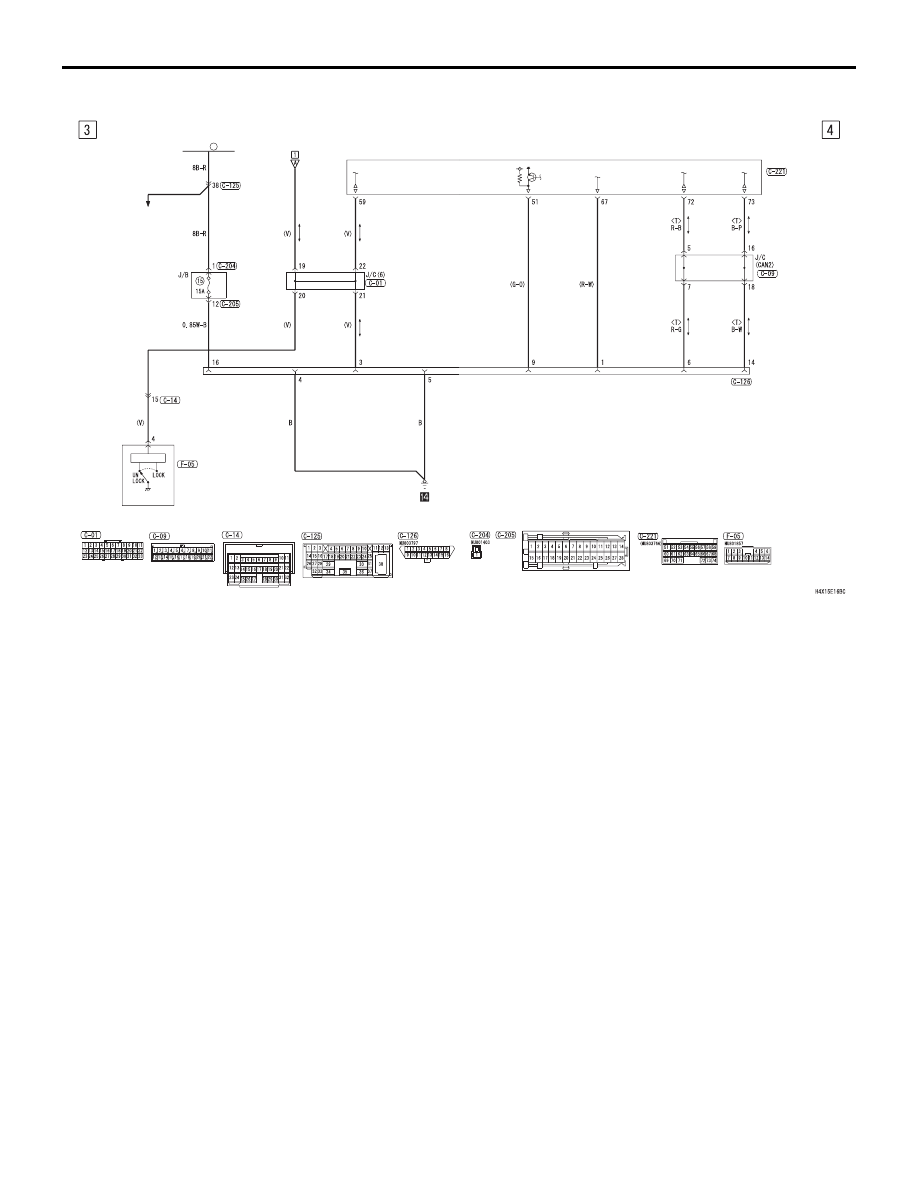

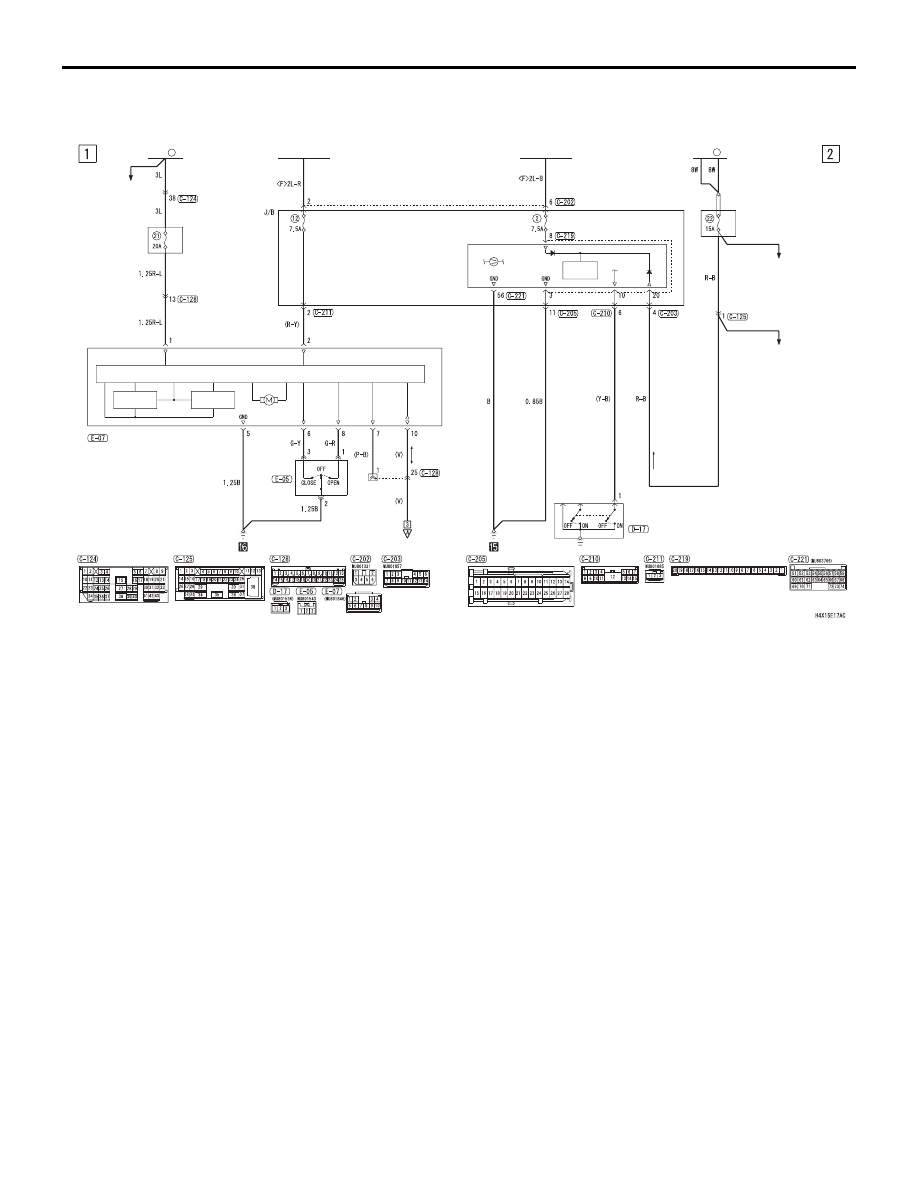

CIRCUIT DIAGRAMS
90-201
SUNROOF <LHD>
M1901009900699
BUZZER
ETACS-ECU
FUSIBLE
LINK
5
FUSE
BOX
IGNITION
SWITCH (IG2)
CPU
HOLE IC
HOLE IC
SUNROOF
SWITCH
SUNROOF MOTOR ASSEMBLY
·HEADLAMP
WASHER
·SUNROOF
FUSIBLE
LINK
26
IGNITION
SWITCH (IG1)
RELAY
BOX
POWER
SOURCE
DOOR
SWITCH
(FRONT: LH)
J/B SIDE
Wire colour code
B : Black LG : Light green G : Green L : Blue
W : White Y : Yellow SB : Sky blue BR : Brown
O : Orange GR : Gray R : Red P : Pink V : Violet
·FRONT FOG LAMP
·HEADLAMP
·HEADLAMP WASHER
·REAR FOG LAMP
·TAIL LAMP, POSITION
LAMP, LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·WINDSHIELD
WIPER AND WASHER
·AUDIO SYSTEM
·CAN
·CENTER DISPLAY
·DOOR AJAR WARNING BUZZER
·DUAL AUTOMATIC AIR
CONDITIONER
·FRONT FOG LAMP
·FUEL WARNING LAMP,
BRAKE WARNING LAMP,
OIL PRESSURE WARNING
LAMP AND ENGINE OIL
LEVEL WARNING LAMP
·HEADLAMP
·HEADLAMP WASHER
·METER AND GAUGE
·REAR FOG LAMP
·REAR WIPER AND WASHER
·ROOM LAMP, REAR PERSONAL
LAMP AND IGNITION KEY
CYLINDER ILLUMINATION LAMP
·SINGLE AUTOMATIC AIR
CONDITIONER
·SPARE CONNECTOR
(FOR NAVIGATION SYSTEM)
·SRS
·TAIL LAMP, POSITION LAMP,
LICENCE PLATE LAMP AND
LIGHTING MONITOR BUZZER
·TURN-SIGNAL LAMP AND
HAZARD WARNING LAMP
·VANITY MIRROR LAMP
·WINDSHIELD WIPER
AND WASHER
