PTC HEATER <RHD>

CIRCUIT DIAGRAMS

90-125

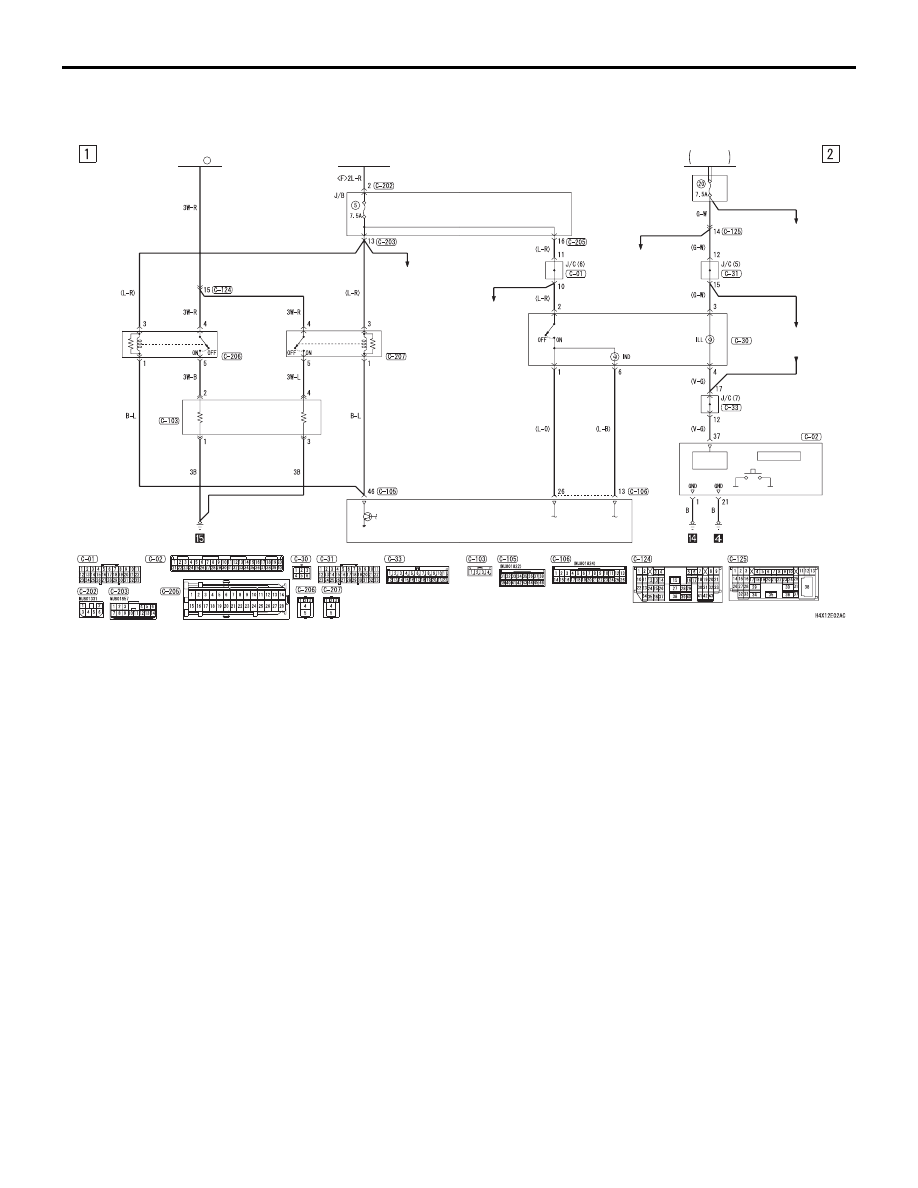

PTC HEATER <RHD>

M1901020600024

CPU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

PTC
HEATER
SWITCH

TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER

·DUAL AUTOMATIC
 AIR CONDITIONER
·SINGLE AUTOMATIC
 AIR CONDITIONER

·DUAL AUTOMATIC
 AIR CONDITIONER
·SINGLE AUTOMATIC
 AIR CONDITIONER

RELAY
BOX

TAIL LAMP
RELAY

FRONT-ECU

COMBINATION
METER

CIGARETTE
LIGHTER AND
ASHTRAY
ILLUMINATION LAMP

FET FOR
DIPPER

DAYTIME
DIPPER
BUTTON

FUSIBLE
LINK

28

IGNITION
SWITCH (IG2)

PTC
HEATER
RELAY 1

A/C-ECU

PTC
HEATER
RELAY 2

PTC
HEATER

·FRONT FOG LAMP

·WINDSHIELD
 WIPER AND WASHER

·HEADLAMP
·HEADLAMP WASHER
·REAR FOG LAMP
·TAIL LAMP, POSITION
 LAMP, LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER

PTC HEATER <RHD>

CIRCUIT DIAGRAMS

90-126

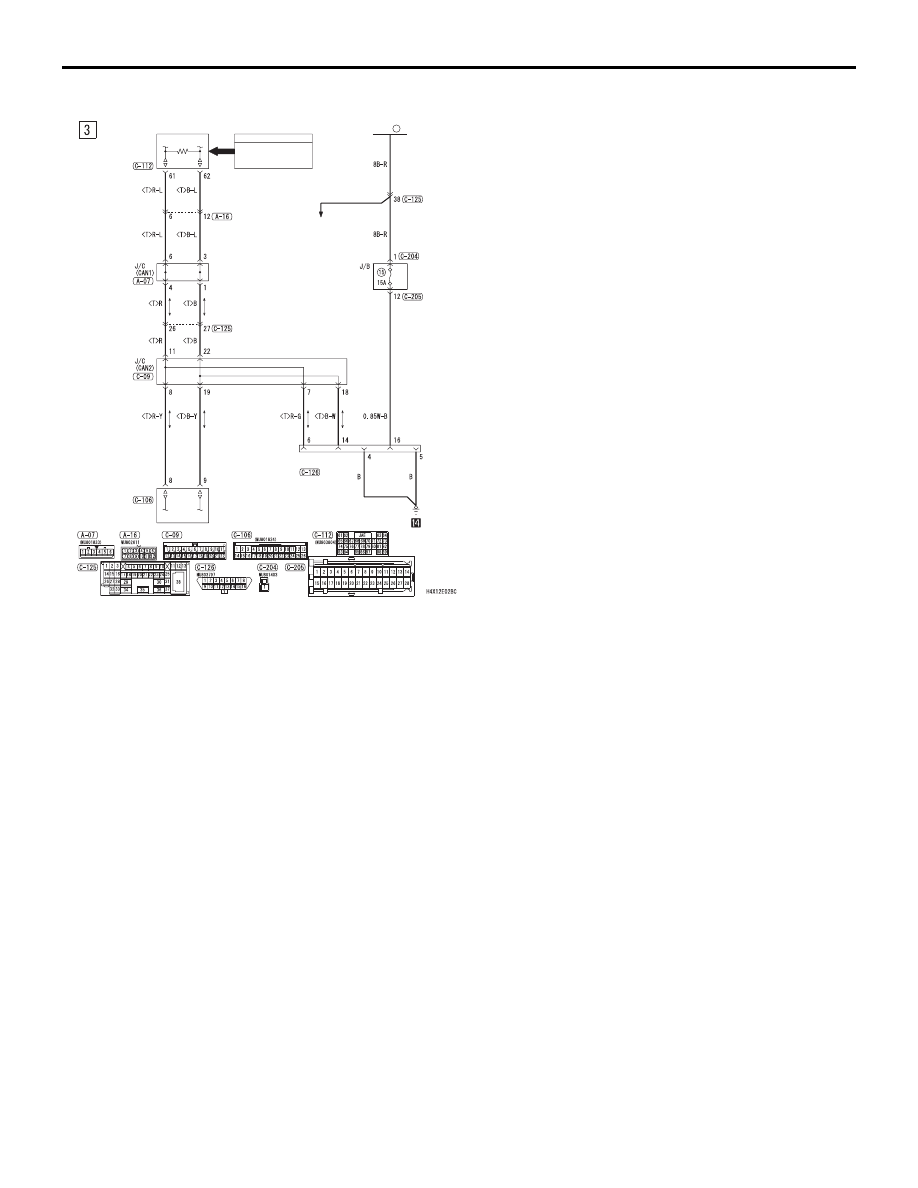

PTC HEATER <RHD> (CONTINUED)

ENGINE-ECU
<M/T> OR
ENGINE-A/T-
ECU <A/T>

INPUT SIGNAL

ENGINE COOLANT
TEMPERATURE
SENSOR

A/C-ECU

DIAGNOSIS
CONNECTOR

30

FUSIBLE
LINK

·DUAL AUTOMATIC
 AIR CONDITIONER
·SINGLE AUTOMATIC
 AIR CONDITIONER

FRONT
SIDE

SINGLE AUTOMATIC AIR CONDITIONER <LHD>

CIRCUIT DIAGRAMS

90-127

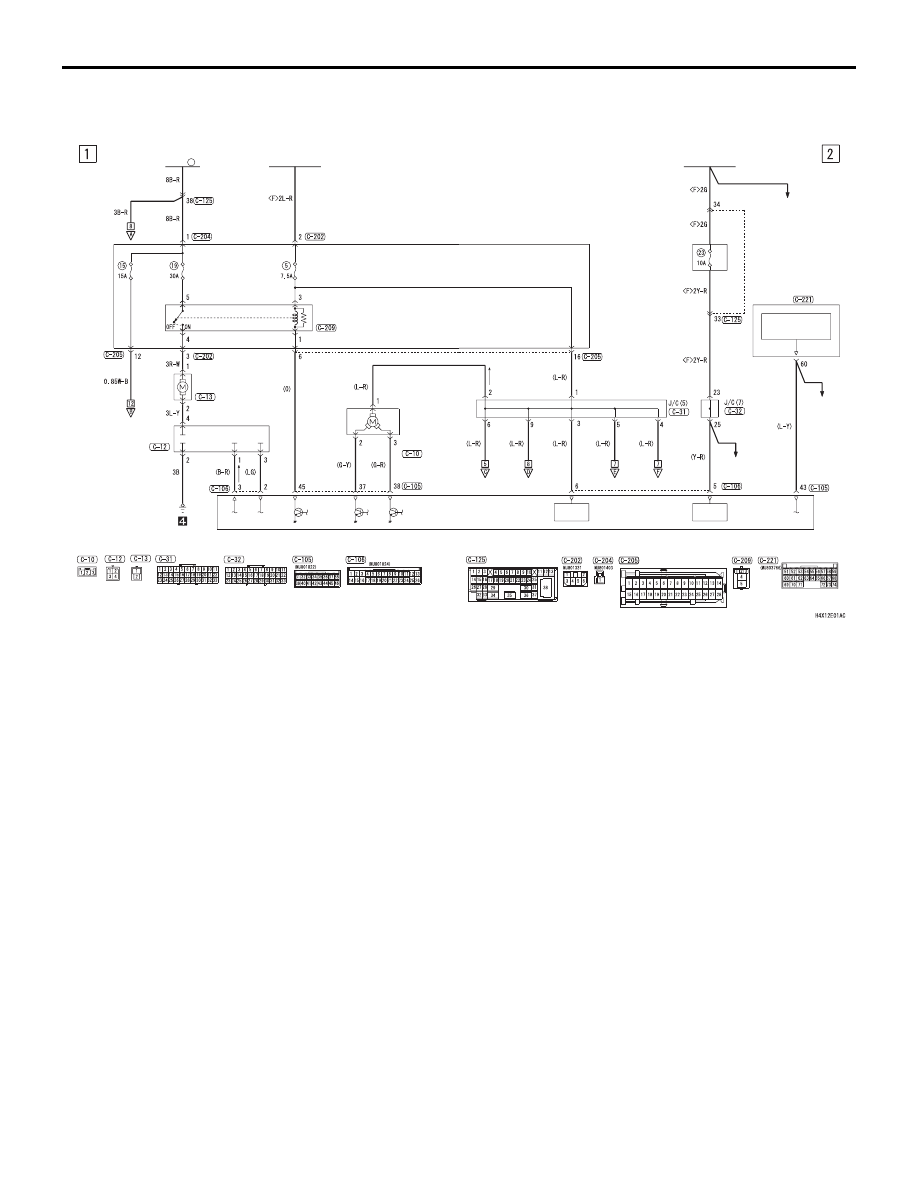

SINGLE AUTOMATIC AIR CONDITIONER <LHD>

M1901020700010

IGNITION
SWITCH (ACC)

RELAY
BOX

A/C-ECU

POWER
SOURCE

POWER
SOURCE

·CAN
·CENTER
 DISPLAY

REFER TO
POWER
DISTRIBUTION
SYSTEM

FRONT
BLOWER
RELAY

IGNITION
SWITCH (IG2)

FRONT
BLOWER
MOTOR

OUTSIDE/
INSIDE AIR
SELECTION
DAMPER
CONTROL
MOTOR

FRONT POWER
TRANSISTOR

FUSIBLE
LINK

30

J/B

AUDIO
SYSTEM

ETACS-ECU

ILLUMINATION
POWER SOURCE

SINGLE AUTOMATIC AIR CONDITIONER <LHD>

CIRCUIT DIAGRAMS

90-128

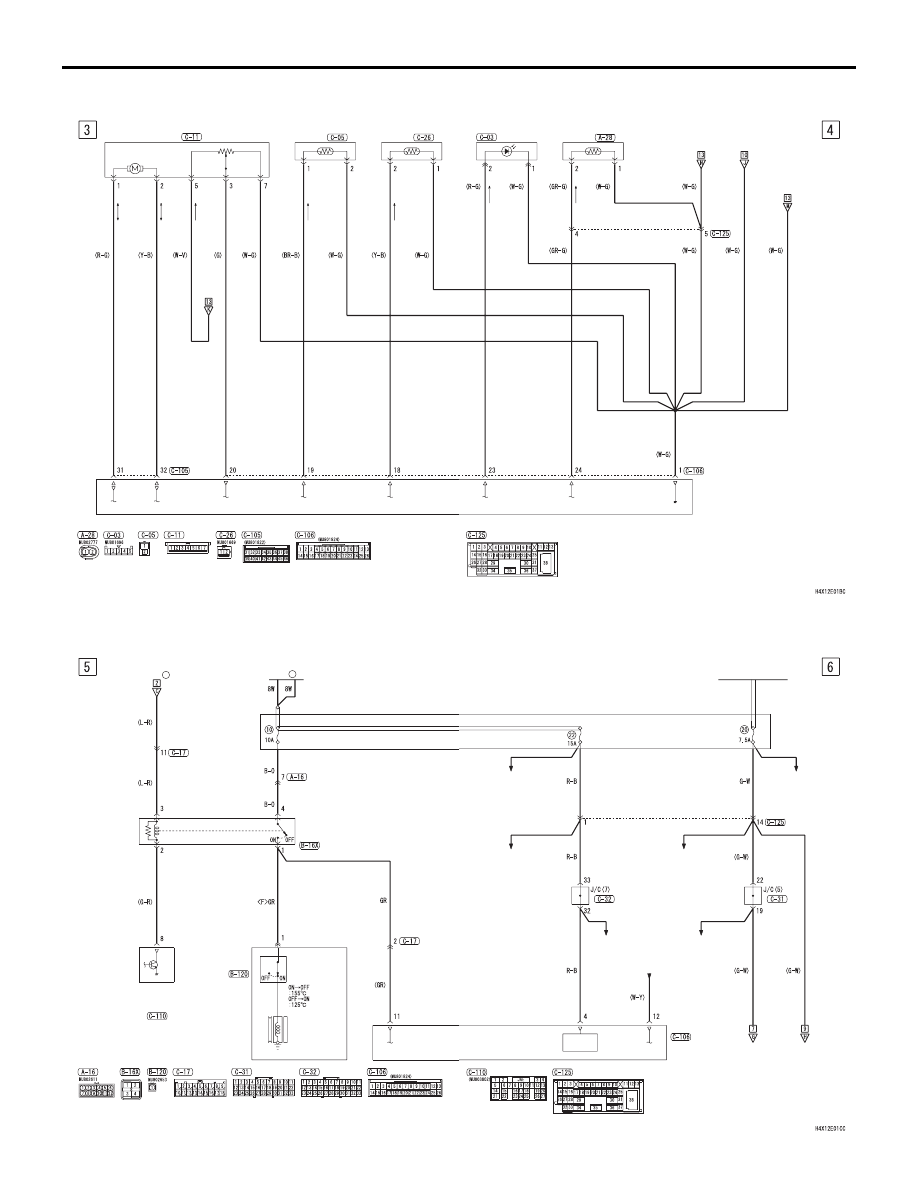

SINGLE AUTOMATIC AIR CONDITIONER <LHD> (CONTINUED)

SINGLE AUTOMATIC AIR CONDITIONER <LHD> (CONTINUED)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue
W : White     Y : Yellow     SB : Sky blue     BR : Brown
O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

AMBIENT
TEMPERATURE
SENSOR

PHOTO SENSOR

REAR
HEATER
CONTROLLER

A/C
PRESSURE
SENSOR

MODE SELECTION
DAMPER CONTROL
MOTOR AND
POTENTIOMETER

INTERIOR
TEMPERATURE
SENSOR

AIR THERMO
SENSOR

FRONT AIR MIXING DAMPER CONTROL MOTOR
AND POTENTIOMETER

J/C(6)

A/C-
ECU

·FRONT FOG LAMP
·HEADLAMP
·HEADLAMP WASHER
·REAR FOG LAMP
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP AND
 LIGHTING MONITOR BUZZER
·WINDSHIELD WIPER
 AND WASHER

·CAN
·CENTRE DISPLAY
·CENTRAL DOOR LOCKING SYSTEM
 <WITH KEYLESS ENTRY SYSTEM>
·DOOR AJAR
 WARNING BUZZER
·DOOR LAMP AND
 LUGGAGE COMPARTMENT LAMP
·ELECTRIC RETRACTABLE
 REMOTE CONTROLLED
 MIRROR
·FRONT FOG LAMP
·HEADLAMP
·HEADLAMP WASHER
·METER AND GAUGE
·POWER WINDOWS
·REAR FOG LAMP
·REAR WIPER AND WASHER
·ROOM LAMP, REAR PERSONAL
 LAMP AND IGNITION KEY
 CYLINDER ILLUMINATION LAMP
·SUNROOF
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP AND
 LIGHTING MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·VANITY MIRROR LAMP
·WINDSHIELD WIPER
 AND WASHER

BATTERY
BACK-UP

·CENTRE DISPLAY
·CIGARETTE LIGHTER AND
 ASHTRAY ILLUMINATION LAMP
·HEATED SEAT
·SPARE CONNECTOR
 (FOR NAVIGATION SYSTEM)
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP AND
 LIGHTING MONITOR BUZZER

TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER

·CAN
·CENTRE
 DISPLAY

CIGARETTE
LIGHTER AND
ASHTRAY
ILLUMINATION
LAMP

FRONT-ECU

(TAIL LAMP RELAY)

A/C-ECU

·HEATED
 DOOR
 MIRROR
·REAR
 WINDOW
 DEFOGGER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

26

FUSIBLE
LINK

J/C (5)

(FUSE     )

5

A/C
COMPRESSOR
RELAY

A/C
REFRIGERANT
TEMPERATURE
SWITCH

MAGNETIC
CLUTCH

A/C
COMPRESSOR
ASSEMBLY

ENGINE-ECU
<M/T> OR
ENGINE-A/T-ECU
<A/T>

RELAY

BOX
