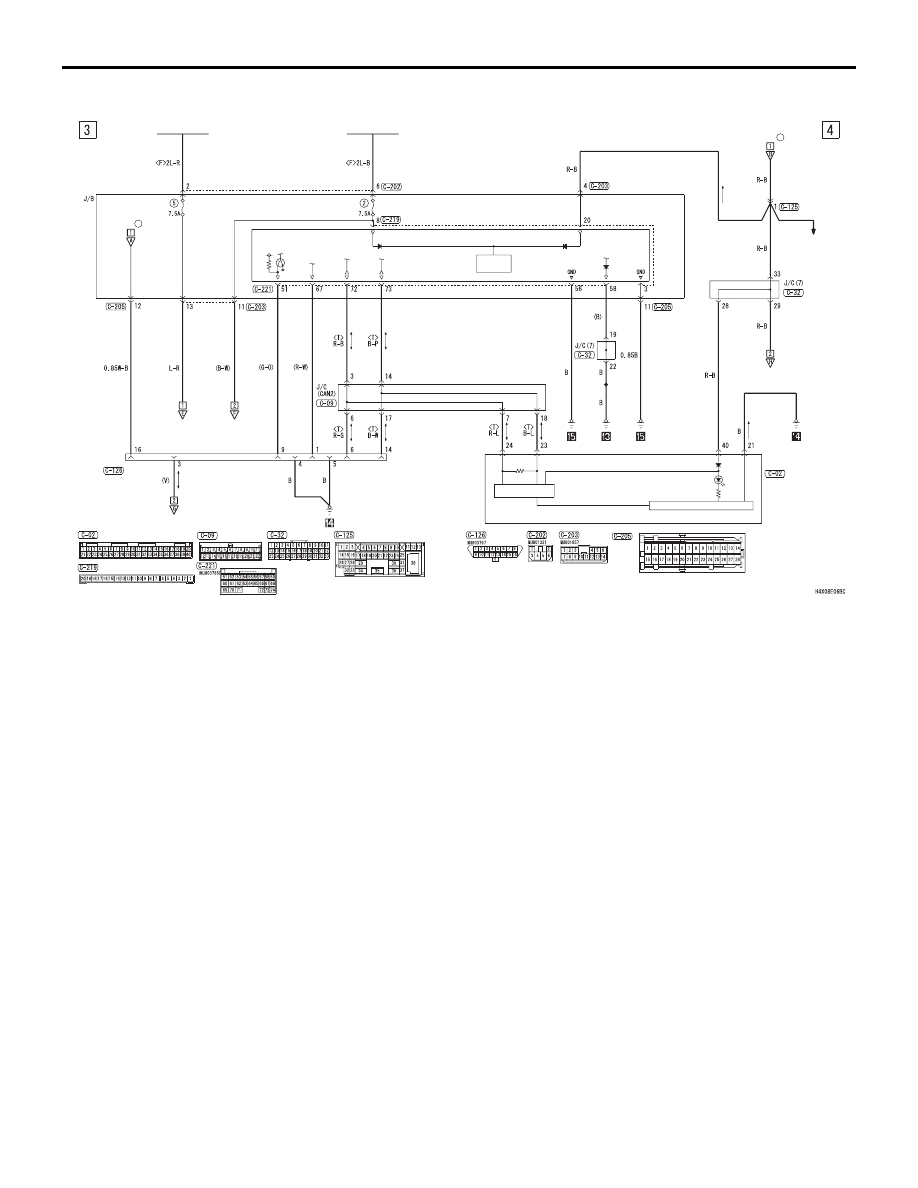

FRONT FOG LAMP <RHD>

CIRCUIT DIAGRAMS

90-57

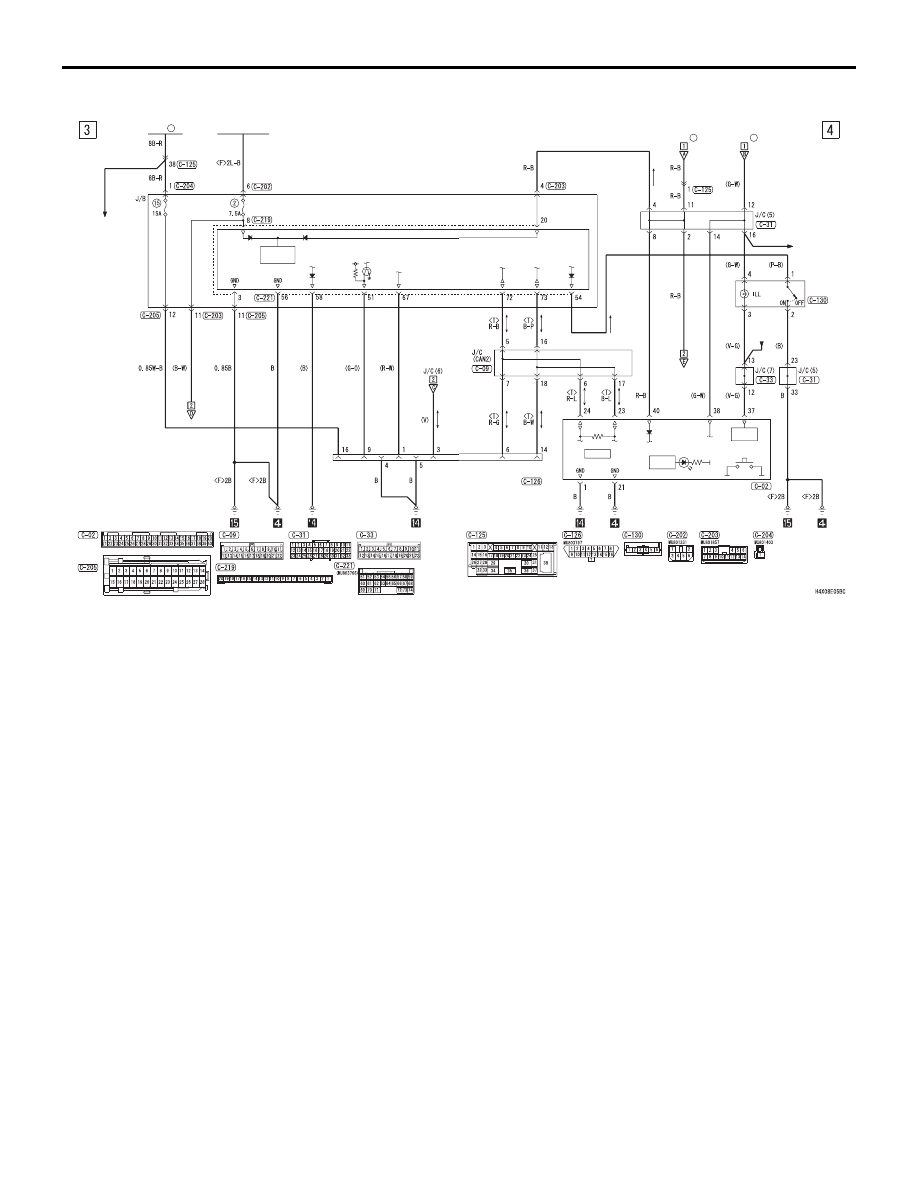

FRONT FOG LAMP <RHD> (CONTINUED)

FUSIBLE
LINK

30

·DUAL AUTOMATIC
 AIR CONDITIONER
·SINGLE AUTOMATIC
 AIR CONDITIONER

IGNITION
SWITCH (IG1)

J/B SIDE

ETACS-ECU

POWER
SOURCE

COMBINATION METER

FRONT
SIDE

RELAY BOX

(FUSE      )

22

RELAY BOX

(FUSE      )

20

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue
W : White     Y : Yellow     SB : Sky blue     BR : Brown
O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

DIAGNOSIS
CONNECTOR

FOG LAMP
SWITCH

CPU

FRONT FOG

·EBD, ABS
 AND ASC
·HEADLAMP
 LEVELING
 SYSTEM

·EBD, ABS AND
 ASC
·SPARE
 CONNECTOR
 (FOR NAVIGATION
 SYSTEM)
·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE
 LAMP AND
 LIGHTING
 MONITOR BUZZER

FET FOR
DIPPER

DAYTIME
DIPPER BUTTON

DIPPER
CIRCUIT

REAR FOG LAMP <LHD>

CIRCUIT DIAGRAMS

90-58

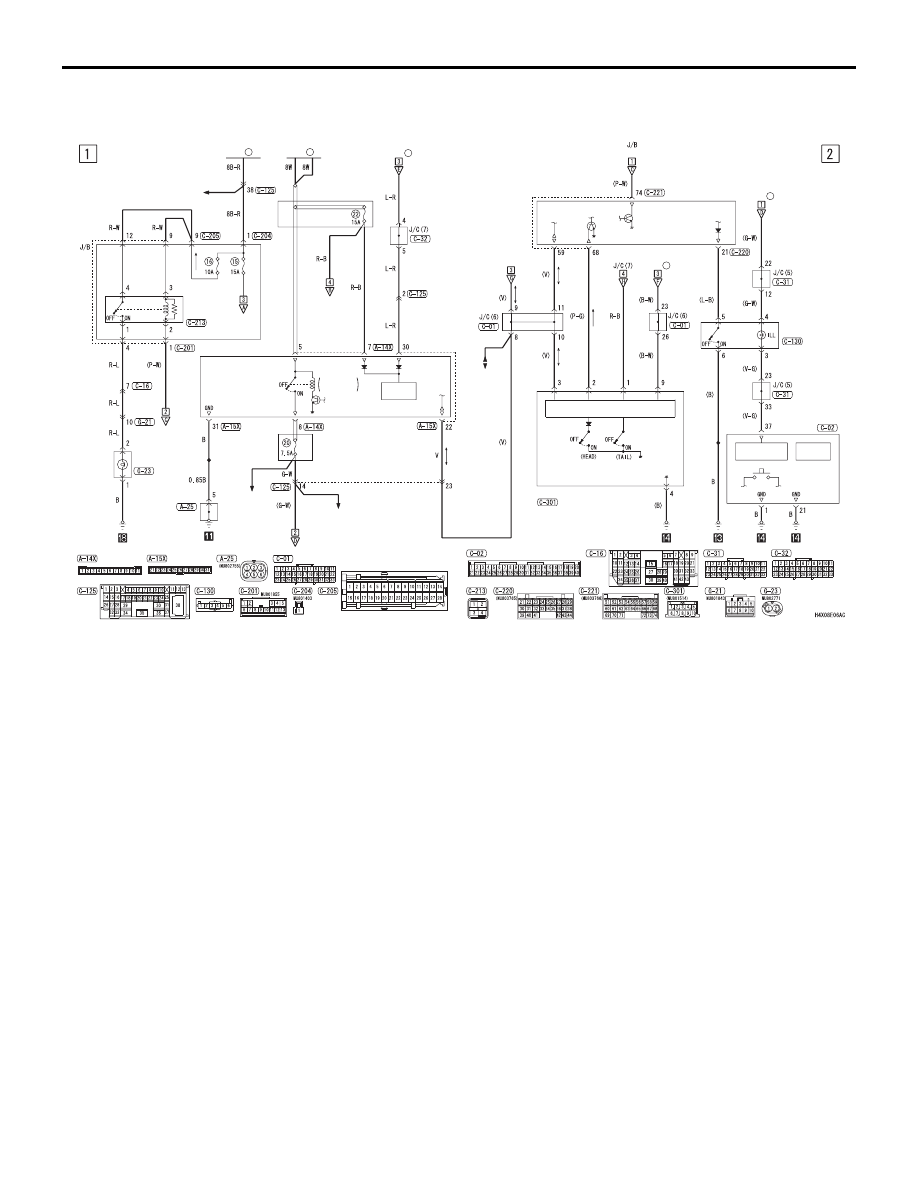

REAR FOG LAMP <LHD>

M1901012000072

(REAR FOG LAMP RELAY)

FUSIBLE
LINK

RELAY
BOX

RELAY
BOX

26

FUSIBLE
LINK

30

FRONT-
ECU

POWER
SOURCE

TAIL LAMP
RELAY

J/B

(FUSE     )

5

REAR
FOG LAMP
RELAY

REAR
FOG LAMP

TAIL LAMP,
POSITION LAMP,
LICENCE
PLATE LAMP
AND LIGHTING
MONITOR
BUZZER

·HEATED SEAT

·SINGLE AUTOMATIC
 AIR CONDITIONER

·DUAL AUTOMATIC
 AIR CONDITIONER

·SPARE CONNECTOR (FOR NAVIGATION SYSTEM)

·CENTRE DISPLAY

·TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND
 LIGHTING MONITOR BUZZER

·CIGARETTE LIGHTER AND ASHTRAY
 ILLUMINATION LAMP

·SINGLE AUTOMATIC AIR CONDITIONER

·DUAL AUTOMATIC AIR CONDITIONER

RELAY
BOX

DIAGNOSIS
CONNECTOR

(FUSE     )

2

(FUSE     )

20

J/B

FOG LAMP
SWITCH

COMBINATION
METER

ETACS-ECU

COLUMN-ECU

COLUMN SWITCH

LIGHTING
SWITCH

CPU

FET FOR
DIPPER

DAYTIME
DIPPER
BUTTON

·POWER
 WINDOWS
·SUNROOF

REAR FOG LAMP <LHD>

CIRCUIT DIAGRAMS

90-59

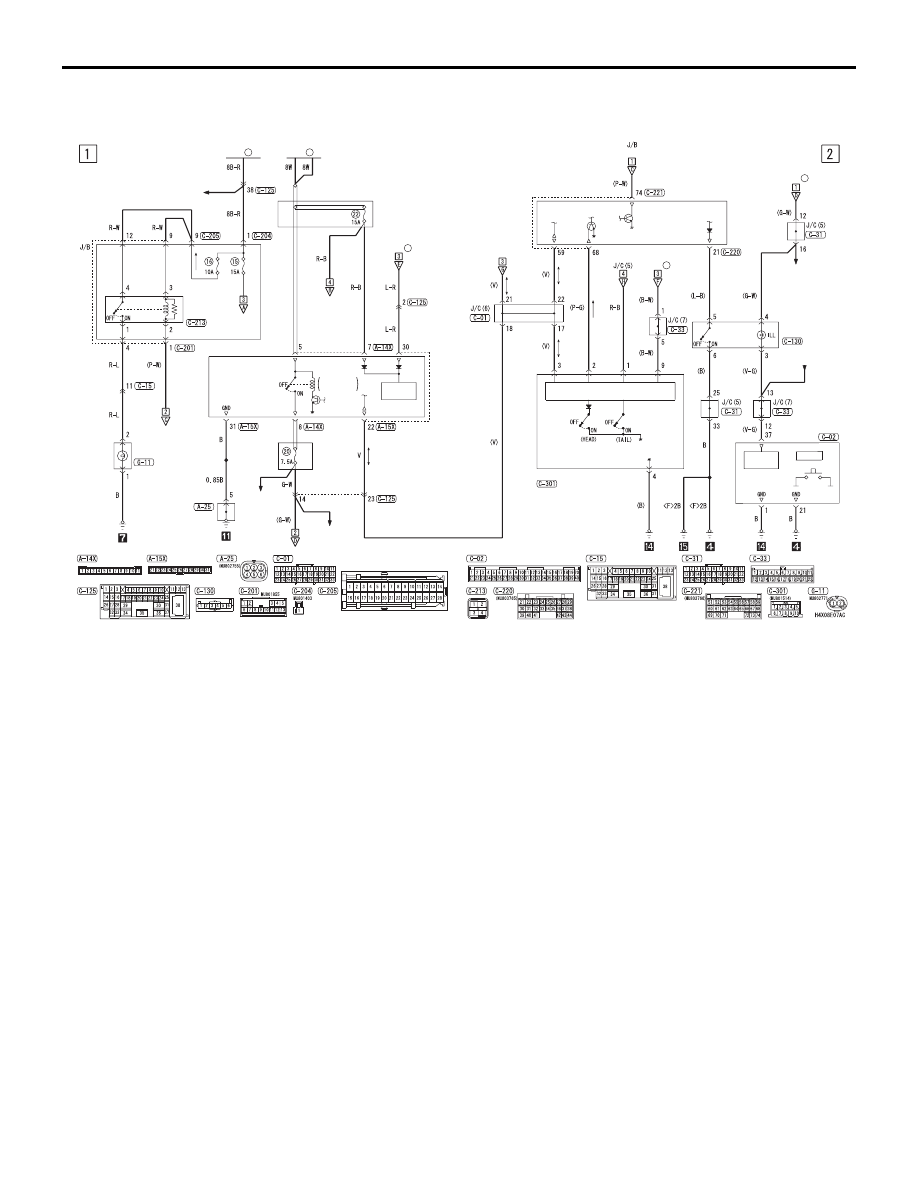

REAR FOG LAMP <LHD> (CONTINUED)

DIAGNOSIS
CONNECTOR

J/B

(FUSE       )

15

IGNITION
SWITCH (IG2)

IGNITION
SWITCH (IG1)

J/B SIDE

COMBINATION
METER

CPU

LED DRIVER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

FRONT SIDE

POWER
SOURCE

ETACS-
ECU

RELAY BOX

(FUSE      )

22

REAR FOG

VANITY
MIRROR
LAMP

REAR FOG LAMP <RHD>

CIRCUIT DIAGRAMS

90-60

REAR FOG LAMP <RHD>

M1901012000083

FUSIBLE
LINK

RELAY
BOX

RELAY
BOX

26

FUSIBLE
LINK

30

FRONT-
ECU

POWER
SOURCE

TAIL LAMP
RELAY

J/B

(FUSE     )

5

REAR
FOG LAMP
RELAY

REAR
FOG LAMP

·DUAL AUTOMATIC
 AIR CONDITIONER
·SINGLE AUTOMATIC
 AIR CONDITIONER

·DUAL AUTOMATIC
 AIR CONDITIONER
·SINGLE AUTOMATIC
 AIR CONDITIONER

TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND
LIGHTING
MONITOR
BUZZER

DIAGNOSIS
CONNECTOR

(FUSE     )

2

J/B

FOG LAMP
SWITCH

COMBINATION
METER

ETACS-ECU

COLUMN-ECU

COLUMN SWITCH

LIGHTING
SWITCH

CPU

·HEADLAMP LEVELING
 SYSTEM

·EBD, ABS AND ASC

·EBD, ABS AND ASC

·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER

·SPARE CONNECTOR
 (FOR NAVIGATION SYSTEM)

FET FOR
DIPPER

DAYTIME
DIPPER
BUTTON

RELAY
BOX

(FUSE     )

20

(REAR FOG LAMP RELAY)
