EARTH CABLE

COMPONENT LOCATIONS

70-16

EARTH CABLE

M1701001000375

AC310821

AB

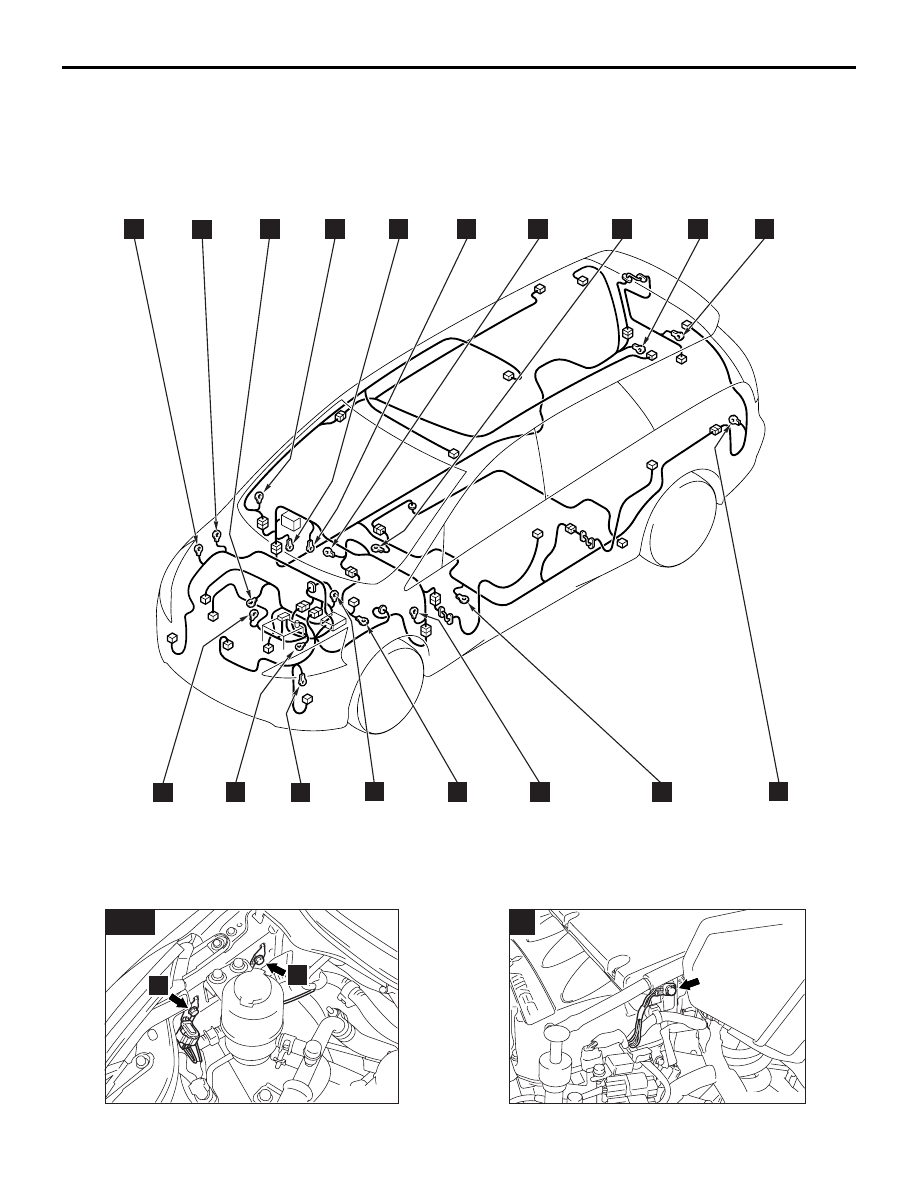

EARTH

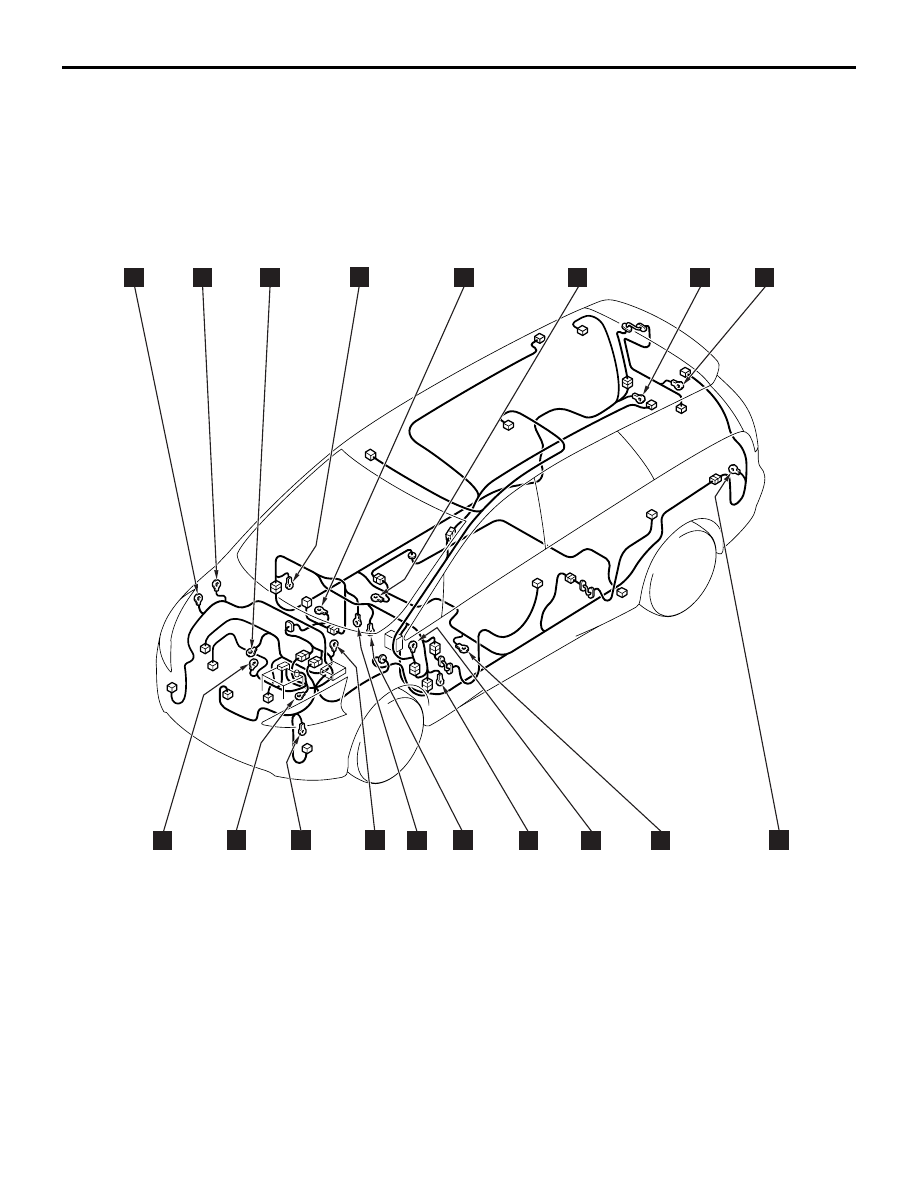

COMPONENT LOCATIONS

70-17

EARTH

M1701000300447

LHD

AC310351AC

5

7

8

9

10

3

12

13

14

17

11

6

4

1

2

15

16

18

EARTH

COMPONENT LOCATIONS

70-18

RHD

NOTE: Same earth numbers are used in the circuit diagram.

AC310352

AC

5

7

8

9

10

12

17

6

4

1

2

15

18

3

16

14

13

11

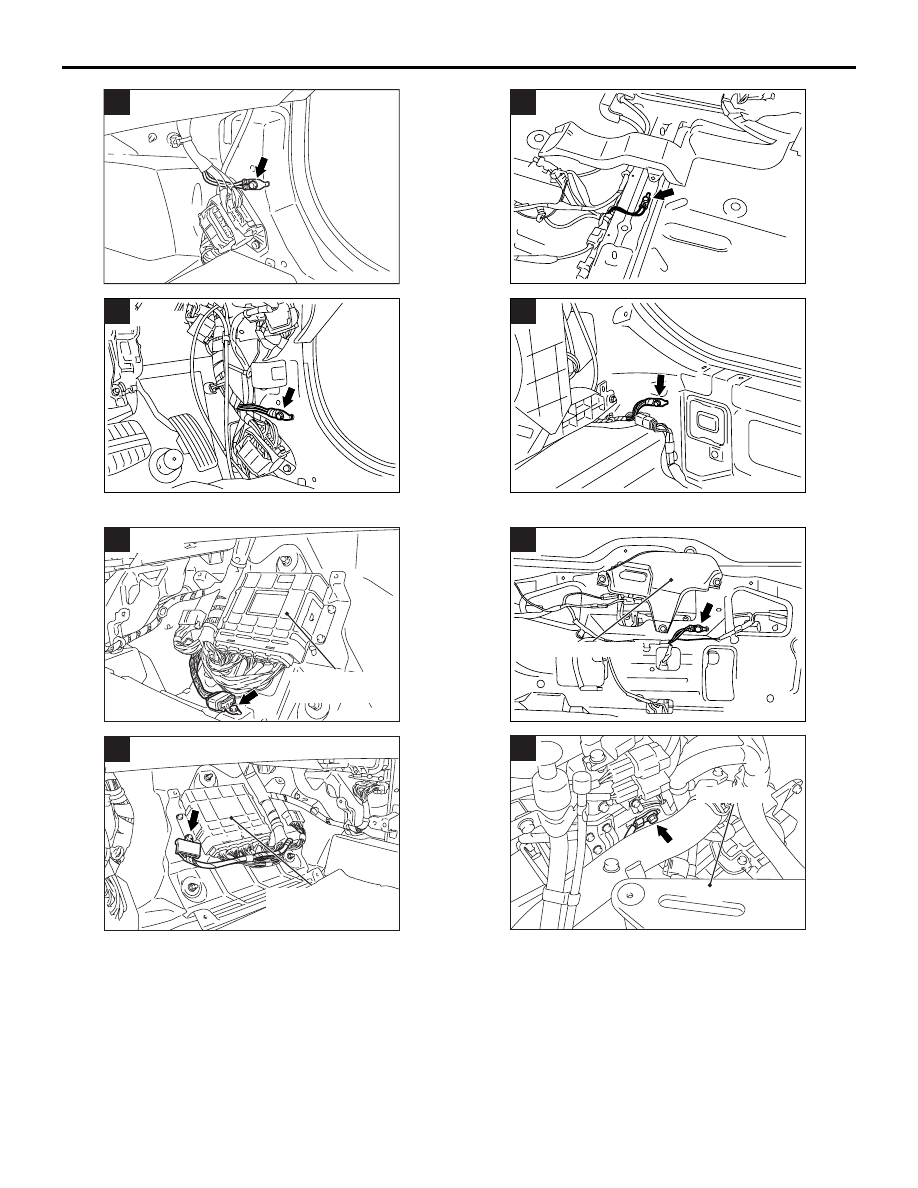

AC302145

AC310680AB

1, 2

2

1

AC310681AB

3

EARTH

COMPONENT LOCATIONS

70-19

AC310688AB

4

<LHD>

AC302155

AD

4

<RHD>

AC310677AB

5

<LHD>

Engine-ECU or
Engine-A/T-ECU

AC302162AD

5

<RHD>

Engine-ECU or
Engine-A/T-ECU

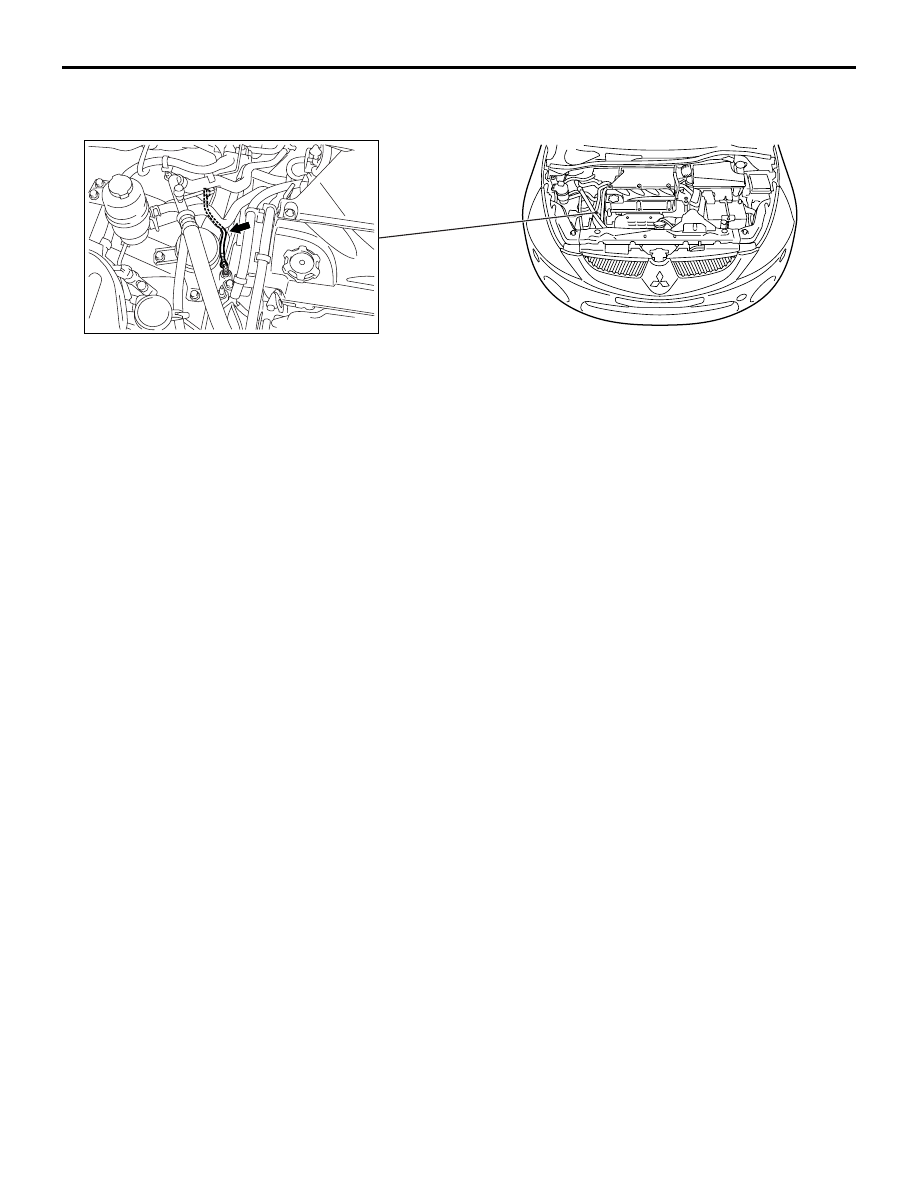

AC310687

6

AB

AC302157

7

AC

AC302154

AC

8

Rear wiper motor

AC302444AC

9

Battery tray
