INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-558

Step 5. Connector check: C-221 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

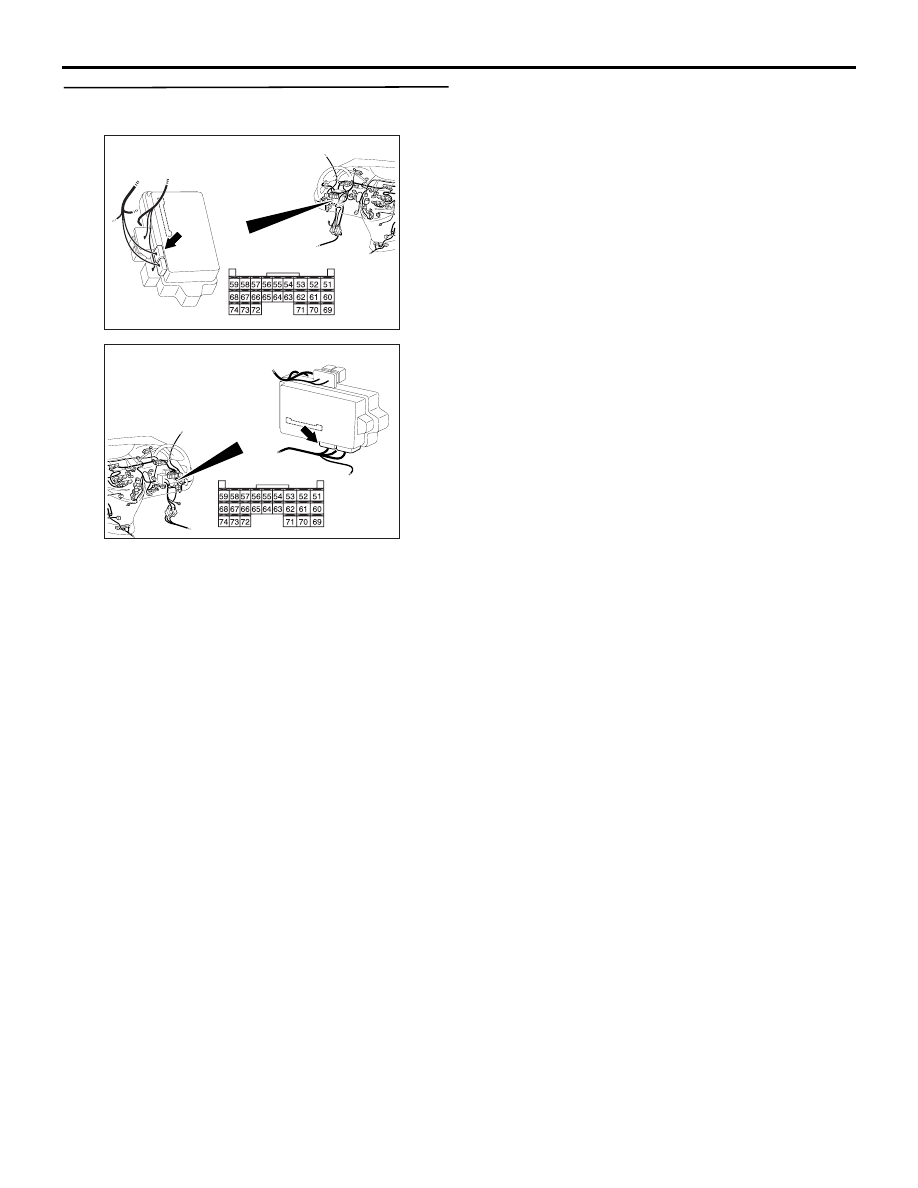

AC312037

Connector: C-221  <LHD>

Junction block (Rear view)

AD

Harness side

AC312047

Connector: C-221  <RHD>

Junction block (Rear view)

AD

Harness side

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-559

Step 6. Check the wiring harness from E-02
interior lamp connector terminal Nos.6 and 7 to
C-221 ETACS-ECU connector terminal Nos.53
and 63.

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-560

AC312037

Connector: C-221  <LHD>

Junction block (Rear view)

AD

Harness side

AC312047

Connector: C-221  <RHD>

Junction block (Rear view)

AD

Harness side

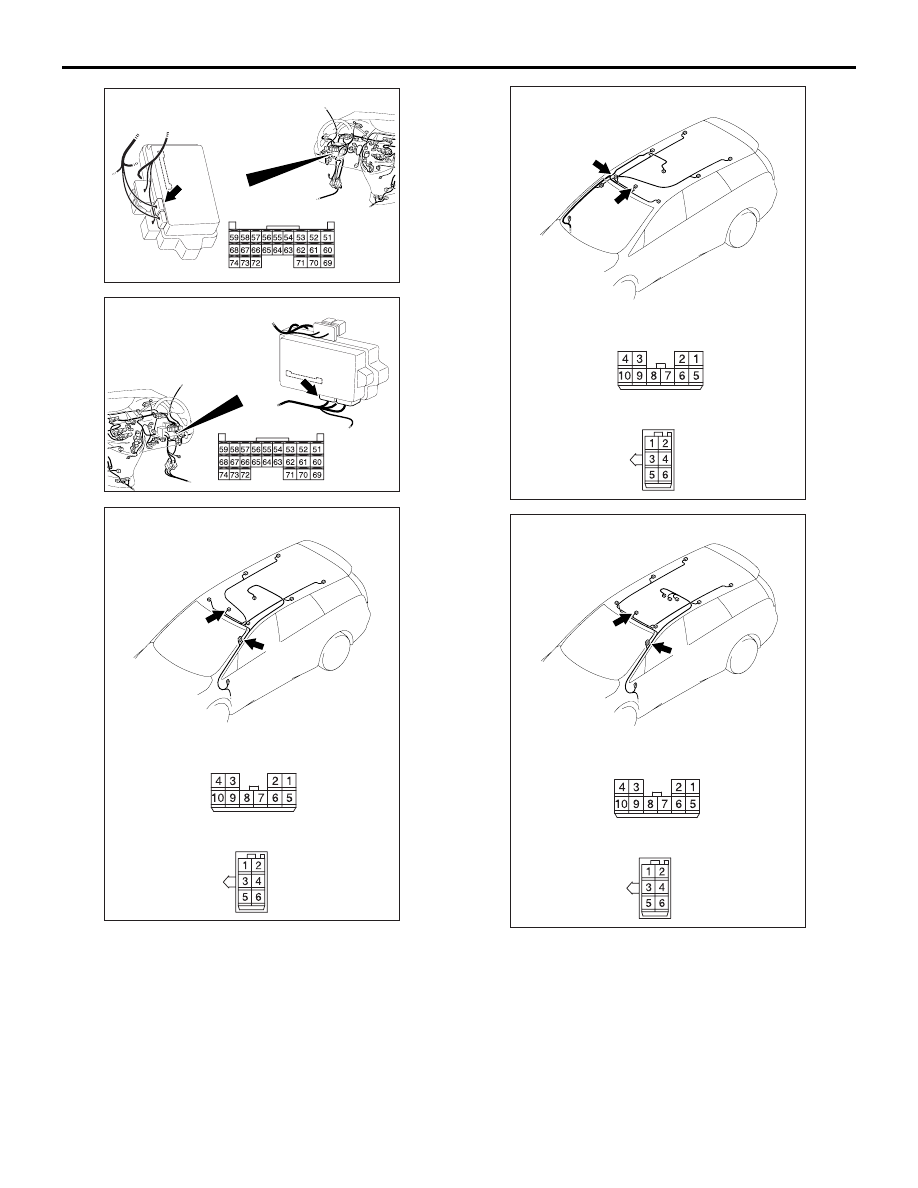

AC310650

AB

Connectors: E-02, E-11

Harness side

E-02

E-11

E-02

E-11

<Vehicles without
sunroof-LHD>

AC310654

AB

Connectors: E-02, E-11

Harness side

E-02

E-11

E-02

E-11

<Vehicles without
sunroof-RHD>

AC310652

AB

Connectors: E-02, E-11

Harness side

E-02

E-11

E-02

E-11

<Vehicles with
sunroof-LHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-561

NOTE:

Prior to the wiring harness inspection, check
intermediate connector E-11 and C-128, and repair if
necessary.

• Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. ETACS switch data by using the SWS
monitor

Check the input signal from the interior lamp switch.

• Interior lamp switch: from ON to OFF

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

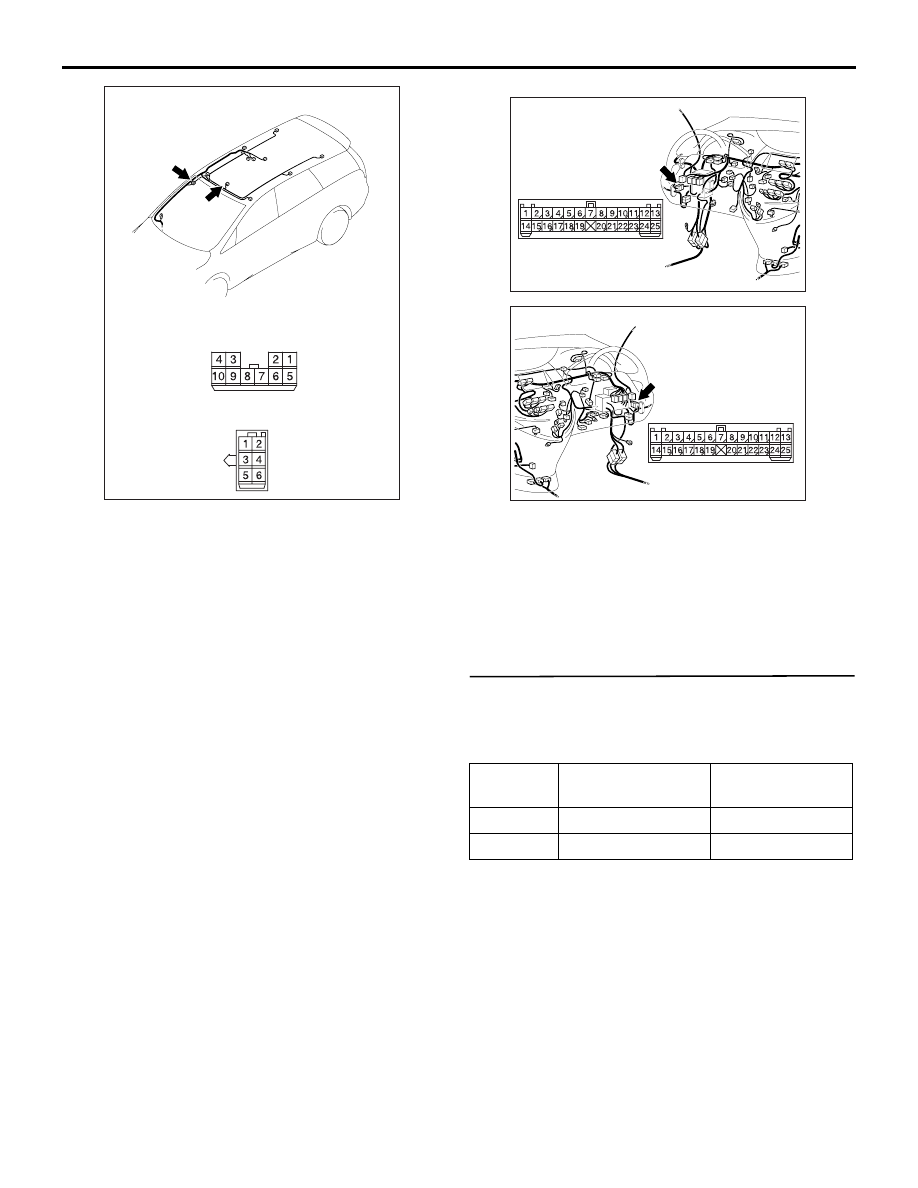

AC310656

AB

Connectors: E-02, E-11

Harness side

E-02

E-11

E-02

E-11

<Vehicles with
sunroof-RHD>

Item No.

Item name

Normal
conditions

Item 31

RM LMP ON SW

from ON to OFF

Item 32

RM LMP OFF SW

from OFF to ON

AC312031

AL

Connector: C-128 <LHD>

AC312043AL

Connector: C-128 <RHD>
