SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-426

Inspection Procedure P-4: The luggage compartment lamp does not illuminate normally. <Vehicles
with keyless entry system>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the luggage compartment lamp does not illuminate
or extinguish normally, wiring harness connector(s)
or the bulb may be defective.

POSSIBLE CAUSES

• Malfunction of the luggage compartment lamp

bulbs

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. SWS monitor data list
<Selected item> ETACS ECU

• Driver's door is open

OK: Normal condition is displayed.

Q: Is the check result normal?

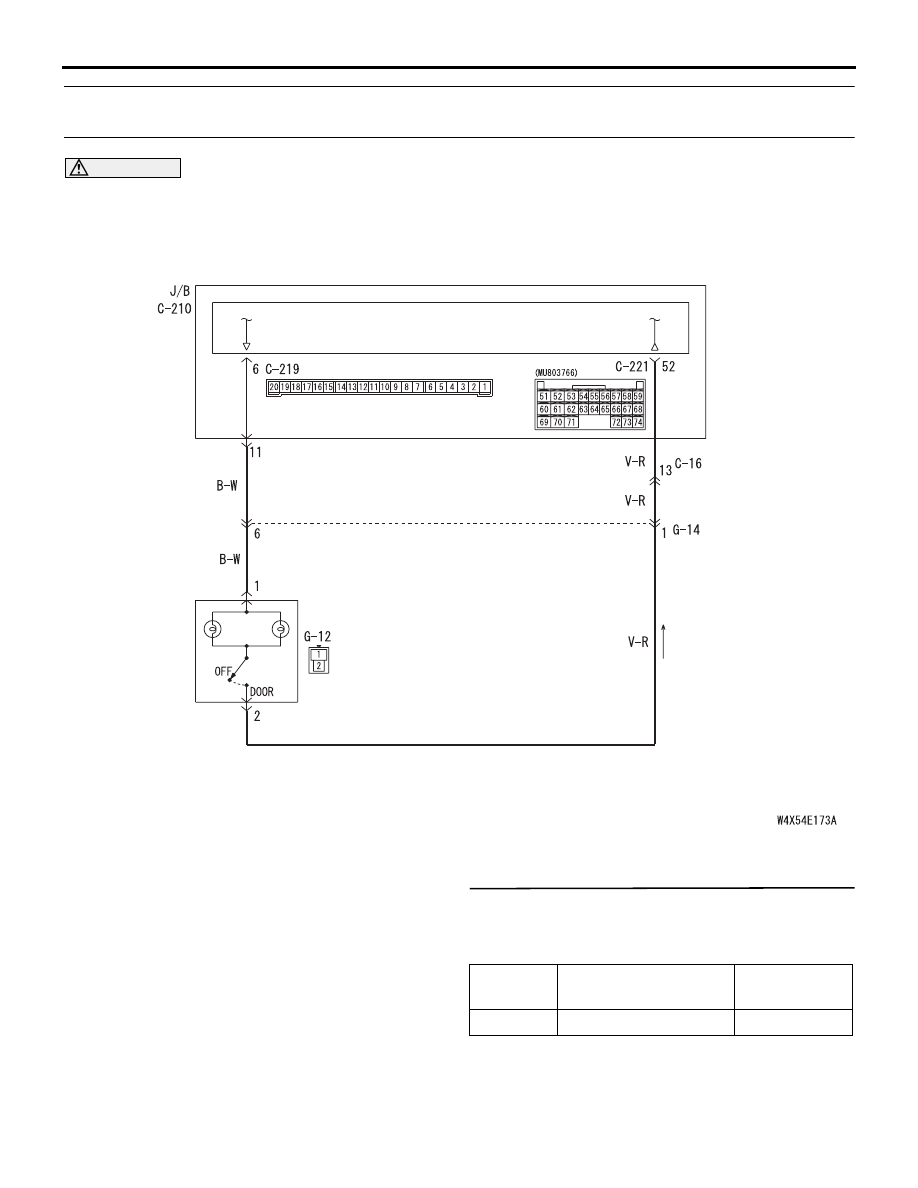

Luggage Room Lamp Circuit

ETACS-ECU

LUGGAGE COMPARTMENT
LAMP

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

J/B SIDE

Item No.

Item name

Normal
condition

Item 32

DR DOOR SW

ON

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-427

YES :

Go to Step 2.

NO :

Refer to inspection procedure Q-5 "The
driver's door switch signal is not received
<LH drive vehicles>

P.54C-474

 or <RH drive

vehicles>

P.54C-476

."

Step 2. ETACS switch data by using the SWS
monitor

Check the ETACS-ECU signal related to the rear
personal lamp illumination.

• Ignition switch: OFF (key inserted)

• Passenger’s door: Close → Open

• Tailgate: Close → Open

• Rear door (RH): Close → Open

• Rear door (LH): Close → Open

• Driver’s door: Unlock → Lock

• Room lamp on switch: ON

• Room lamp off switch: ON

OK: Normal conditions displayed for all the
items.

Q: Is the check result normal?

Item No.

Item name

Normal
condition

Item 03

KEY REMINSW

OFF

Item No.

Item name

Normal
condition

Item 05

PASS DOOR SW

from OFF
to ON

Item No.

Item name

Normal
condition

Item 07

TRK LID LA SW

from OFF
to ON

Item No.

Item name

Normal
condition

Item 41

R.DOOR(RH) SW

from OFF
to ON

Item No.

Item name

Normal
condition

Item 42

R.DOOR(LH) SW

from OFF
to ON

Item No.

Item name

Normal
condition

Item 21

DR DOR LOK SW

from OFF
to ON

Item 22

DR DOR ULOK SW

from ON
to OFF

Item No.

Item name

Normal
condition

Item 31

RM LMP ON SW

ON

Item No.

Item name

Normal
condition

Item 31

RM LMP OFF SW

ON

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-428

Normal conditions are displayed for all the items. :

Go to Step 3.

Normal condition is not displayed for item No.03 :

Refer to inspection procedure Q-11 "The
key reminder switch signal is not received

P.54C-493

."

Normal condition is not displayed for item No.05,
07,41or 42 :

Refer to inspection procedure Q-14

"All the door switch signals are not received

P.54C-505

."

Normal condition is not displayed for item No.21
and 32 :

Refer to inspection procedure Q-15 "The

driver's door lock actuator switch signal is
not received <LH drive vehicles>

P.54C-514



or <RH drive vehicles>

P.54C-518

."

Normal condition is not displayed for item No.31or
42 :

Refer to inspection procedure Q-22 "The
interior lamp "all on" or "all off" switch signal
is not sent to the ETACS-ECU

P.54C-553

."

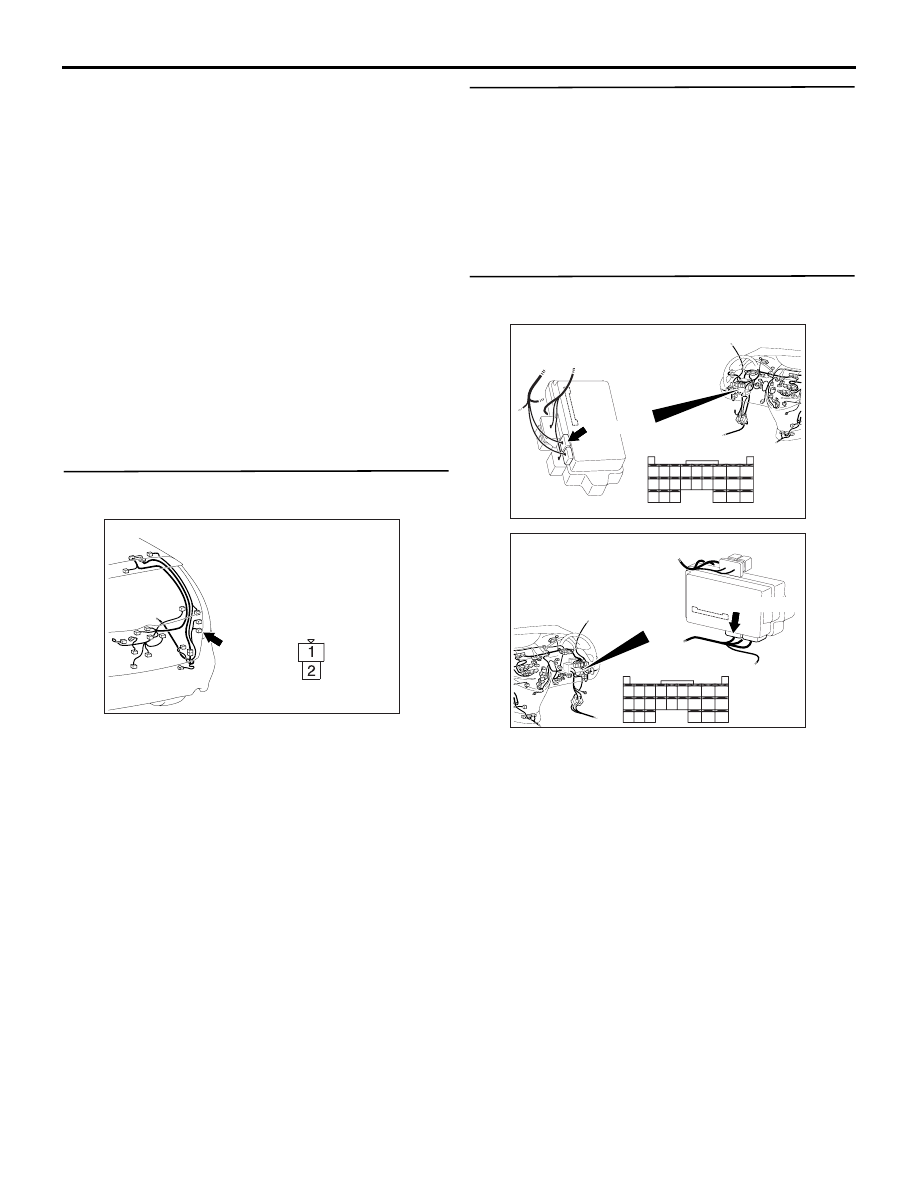

Step 3. Connector check: G-12 luggage
compartment lamp connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

Step 4. Check the bulbs of the luggage
compartment lamp.

Check that the luggage compartment lamp bulbs are
not burned out.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the luggage compartment lamp
bulb.

Step 5. Connector check: C-221 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC310222

Connector: G-12

AI

G-12

Harness side

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-429

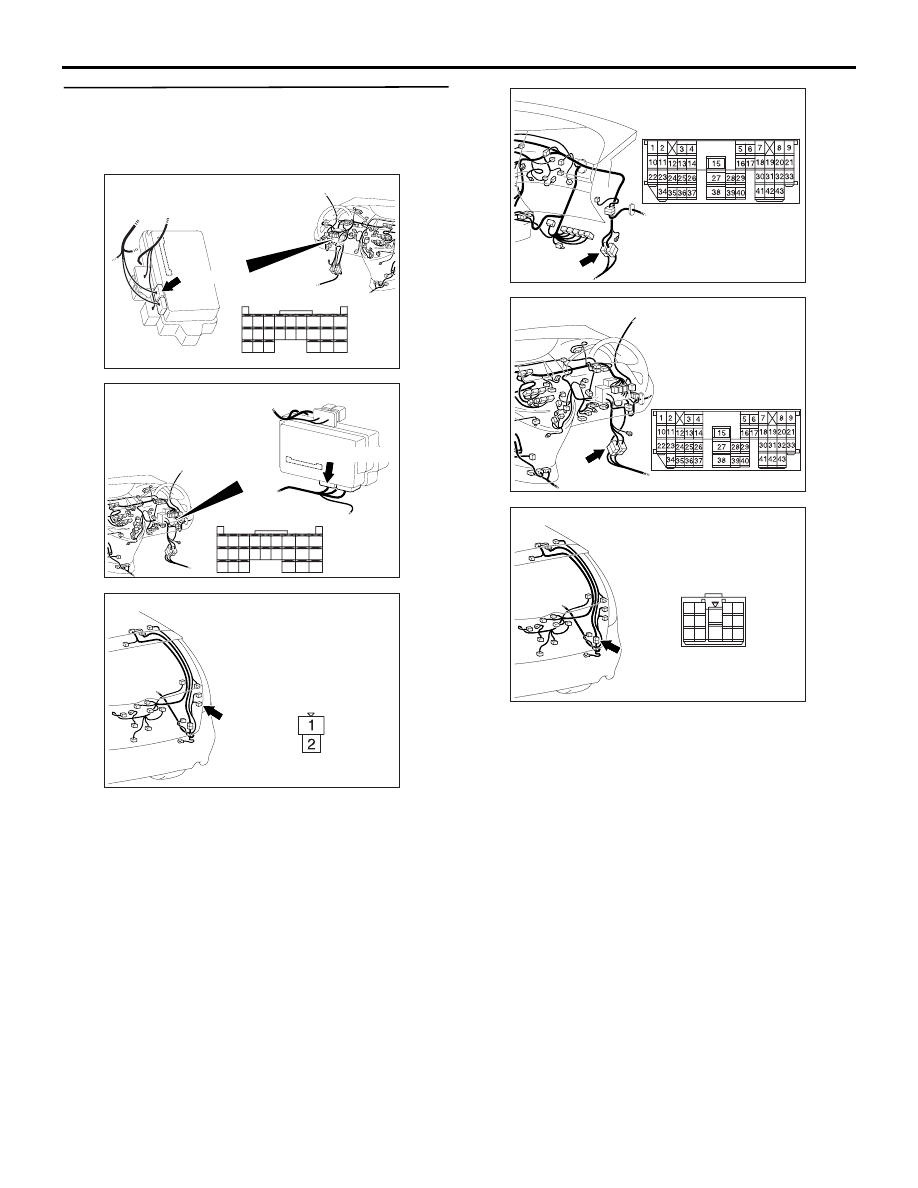

Step 6. Check the wiring harness from C-221
ETACS-ECU connector terminal No.52 to G-12
luggage compartment lamp connector terminal
No.2.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-16, G-14, and repair if
necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

AC

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

Harness side

C-221(GR)

AC310222

Connector: G-12

AI

G-12

Harness side

AC310615

AE

Connector: C-16 <LHD>

AC310631 AD

Connector: C-16 <RHD>

AC310222

AC310222

Connector: G-14

AK

2

1

4

3

13

8

11

10

5

7

12

6

14

9
