SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-334

Step 9. Connector check: F-13 door mirror
assembly (RH) or F-07 door mirror assembly (LH)
connector.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the defective connector.

Step 10. Resistance measurement at the F-13
door mirror assembly (RH) or F-07 door mirror
assembly (LH) connector.

(1) Disconnect the connector, and measure at the

AC311150

AD

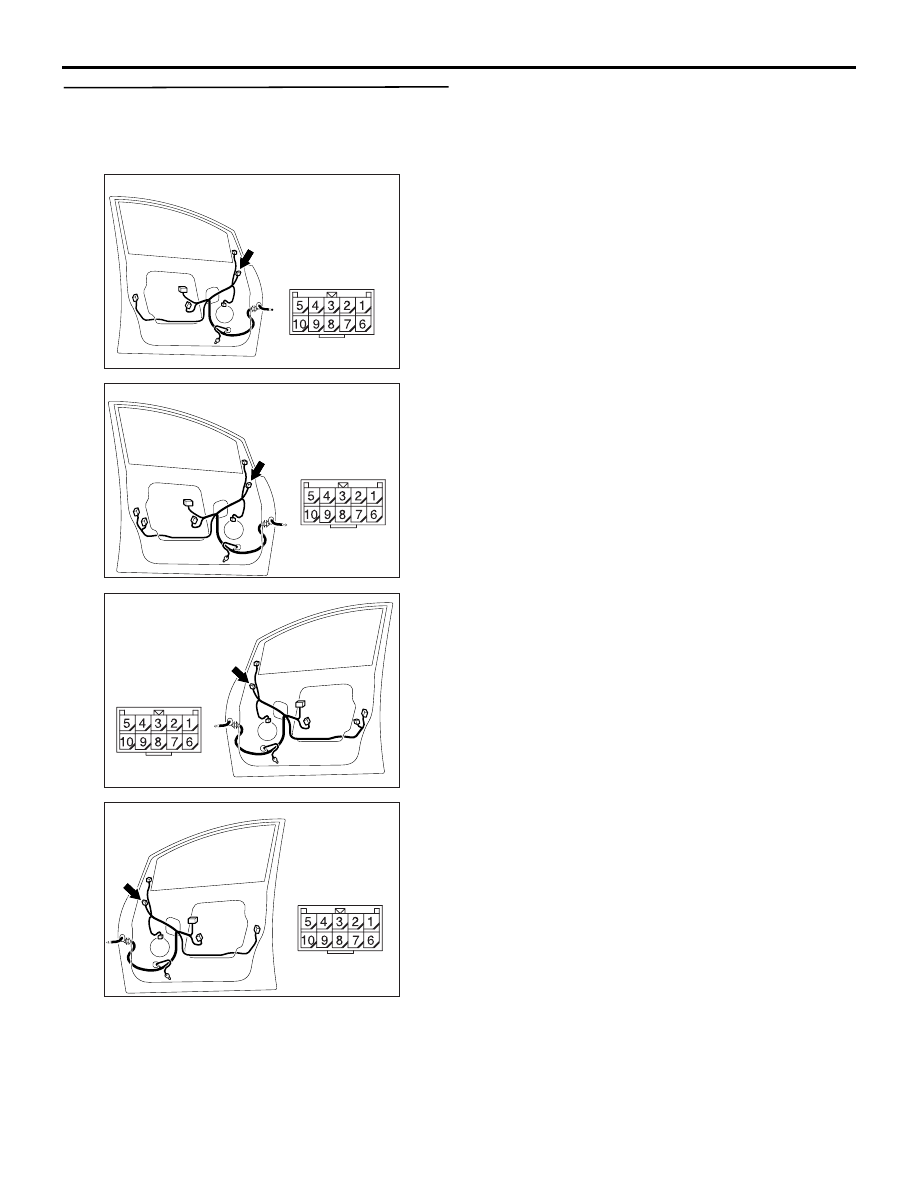

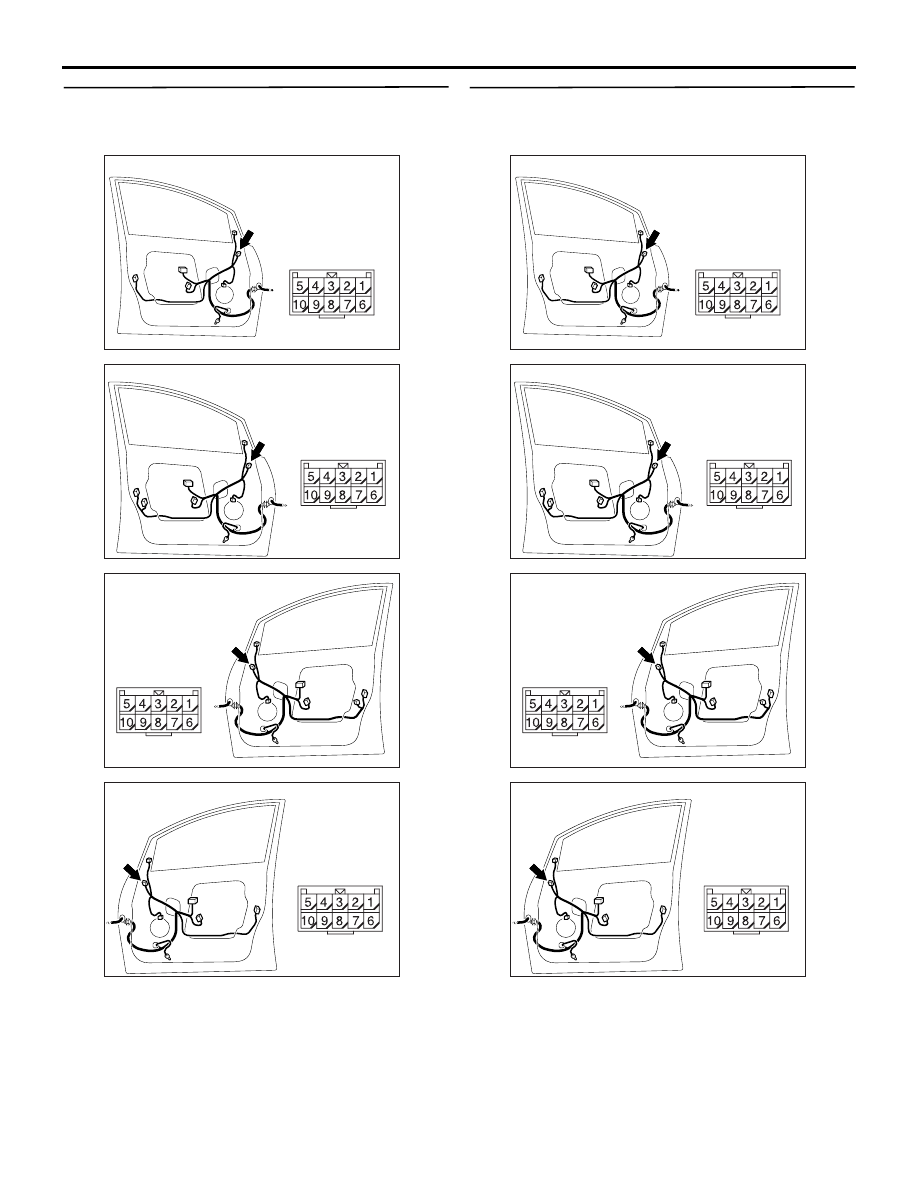

Connector: F-07

Harness side

<LHD>

AC310211

AF

Connector: F-07 <RHD>

Harness side

AC311147

AF

Connector: F-13 <LHD>

Harness side

AC310213

AE

Connector: F-13 <RHD>

Harness side

AC311150

AD

Connector: F-07

Harness side

<LHD>

AC310211

AF

Connector: F-07 <RHD>

Harness side

AC311147

AF

Connector: F-13 <LHD>

Harness side

AC310213

AE

Connector: F-13 <RHD>

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-335

wiring harness side.

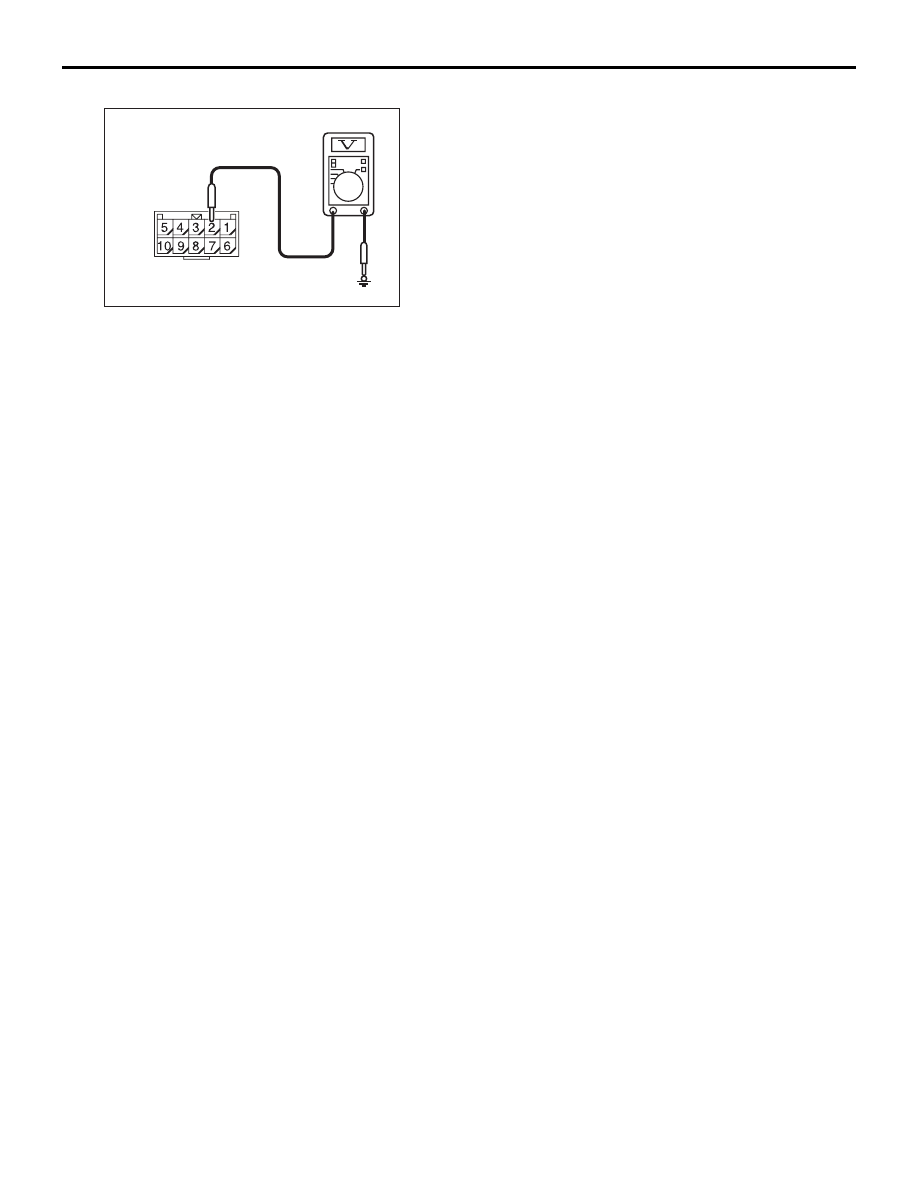

(2) Resistance measurement between the defective

lamp connector terminal and body earth.

• Resistance between F-13 door mirror

assembly (RH) connector terminal No.2 and
body earth

• Resistance between F-07 door mirror

assembly (LH) connector terminal No.2 and
body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Repair the wiring harness in the door mirror

assembly.

NO :

Go to Step 11.

AC310507CA

Connectors F-07, F-13
(Harness side)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-336

Step 11. Check the wiring harness from F-13 door
mirror assembly (RH) or F-07 door mirror
assembly (LH) connector terminal No.2 and body
earth.

NOTE:

AC311150

AD

Connector: F-07

Harness side

<LHD>

AC310211

AF

Connector: F-07 <RHD>

Harness side

AC311147

AF

Connector: F-13 <LHD>

Harness side

AC310213

AE

Connector: F-13 <RHD>

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-337

Prior to the wiring harness inspection, check
intermediate connector C-14 <side turn-signal lamp
(RH)>, C-27 <side turn-signal lamp (LH)> and
junction block connector C-205, and repair if
necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 12. Connector check: G-09 rear turn-signal
lamp (RH) or G-25 rear turn-signal lamp (LH)
connector.

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the defective connector.

AC310615

AB

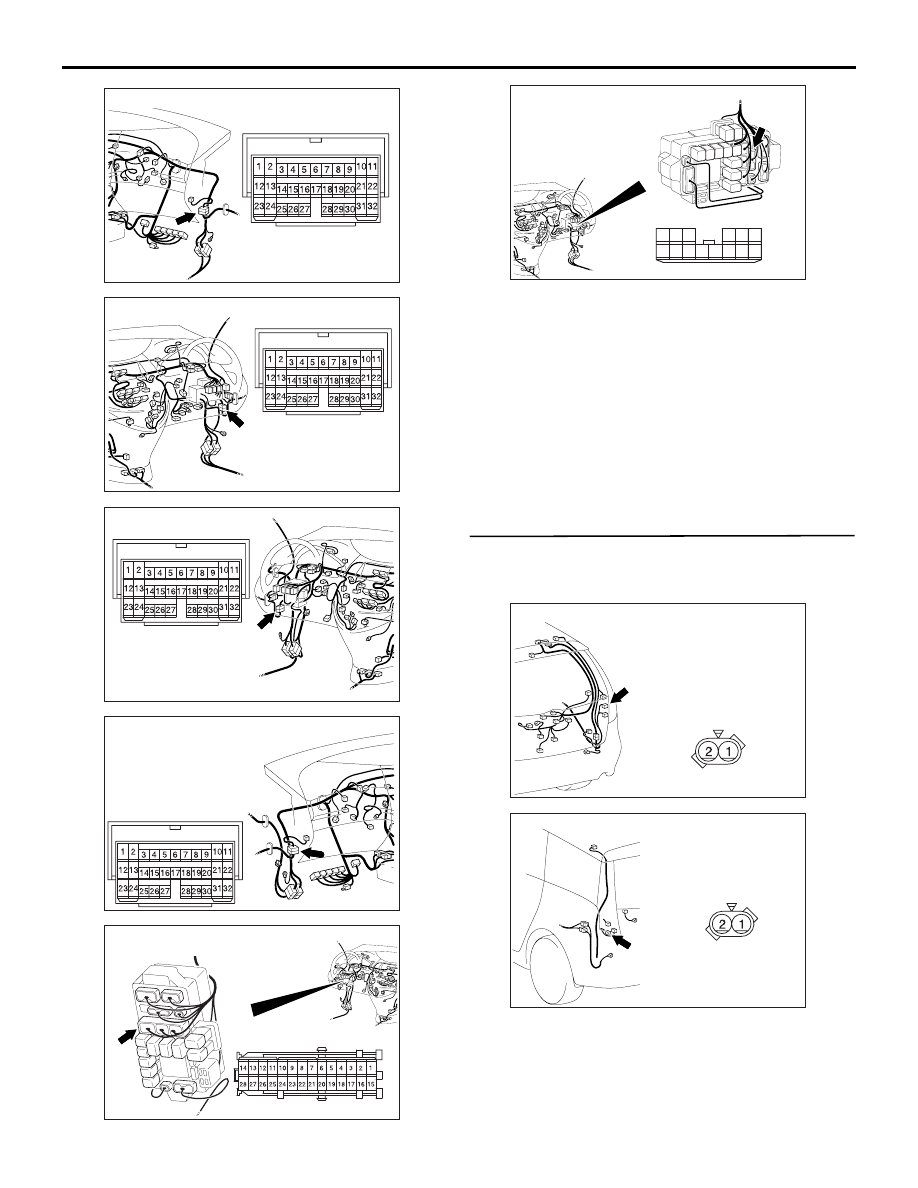

Connector: C-14 <LHD>

AC310631

Connector: C-14 <RHD>

AG

AC310613

Connector: C-27 <LHD>

AJ

AC310628AN

Connector: C-27 <RHD>

AC310623

Connector: C-205 <LHD>

AM

Harness side

Junction block (Front view)

AC310618

Connectors: C-203 <RHD>

AK

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Junction block (Front view)

AC310222

Connector: G-09

AG

Harness side

G-09 (B)

AC310220

Connector: G-25

AF

G-25 (B)

Harness side
