Mitsubishi Grandis. Manual - part 214





SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-318

junction block side.

(2) Voltage between C-219 ETACS-ECU connector

terminal No.11 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Go to Step 5.

AC310507 BZ

Connector C-219
(Junction block side)

2019

7

13

17

18

1615 14

10

11

12

9 8

2

6 5

3

4

1

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-319

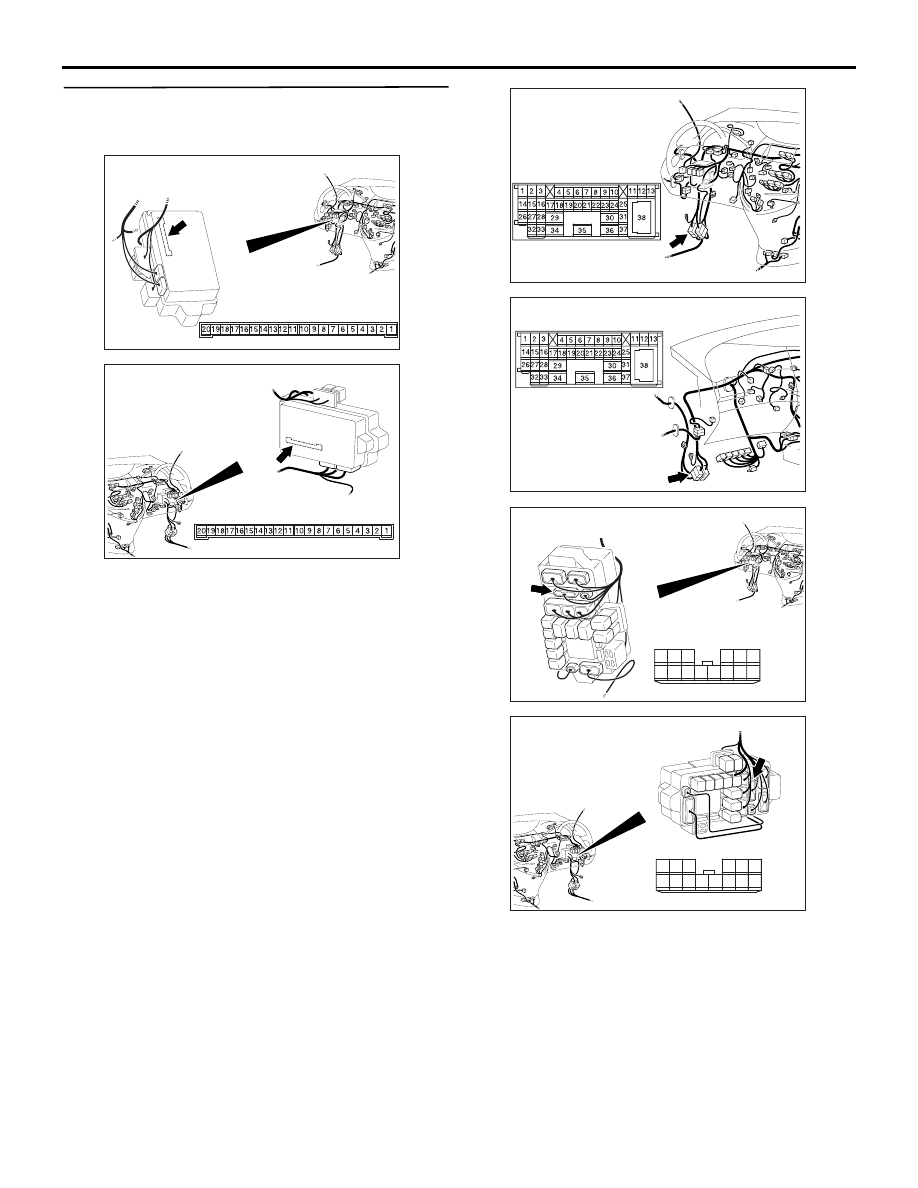

Step 5. Check the wiring harness between C-219
ETACS-ECU connector terminal No.11 and the
fusible link (26).

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-125 and junction block
connector C-203, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the wiring harness.

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC310613

AD

Connector: C-125 <LHD>

AC310628AB

Connector: C-125 <RHD>

AC310623

Connectors: C-203 <LHD>

AL

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Junction block (Front view)

AC310618

Connectors: C-203 <RHD>

AK

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Junction block (Front view)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-320

Step 6. Function diagnosis by using the SWS
monitor.

Check the SWS communication signal, which are
related to the right turn-signal lamps.

<Selected item> TURN SIGNAL - TURN-SIG. RH

• Turn-signal lamp switch: RH

• Ignition switch: ON

OK: Normal conditions are displayed for all
the items

Q: Is the check result normal?

Normal conditions are displayed for all the items. :

Go to Step 7.

Normal condition is not displayed for item 10 or 11.

Refer to inspection procedure Q-6 "The
column switch (lighting and turn-signal lamp
switch) signal is not received

P.54C-478

."

Normal condition is not displayed for item No.30. :

Refer to inspection procedure Q-2 "The
ignition switch (IG1) signal is not received

P.54C-460

."

Step 7. SWS monitor data list.

Check the SWS communication signal, which are
related to the left turn-signal lamps.

<Selected item> TURN SIGNAL - TURN-SIG. LH

• Turn-signal lamp switch: LH

• Ignition switch: ON

OK: Normal conditions are displayed for all
the items.

Q: Is the check result normal?

Normal conditions are displayed for all the items. :

Go to Step 8.

Normal condition is not displayed for item 10 or 11.

Refer to inspection procedure Q-6 "The
column switch (lighting and turn-signal lamp
switch) signal is not received

P.54C-478

."

Step 8. Retest the system.

Check that the turn-signal lamps illuminate.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

Item No.

Item name

Normal
condition

Item 10

TURN SIG.RH

ON

Item 11

TURN SIG.LH

OFF

Item 30

IG SW(IG1)

ON

Item No.

Item name

Normal
condition

Item 10

TURN SIG.RH

OFF

Item 11

TURN SIG.LH

ON

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-321

Inspection Procedure N-2: The hazard warning lamps do not illuminate.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the hazard warning lamps do not illuminate, the
hazard warning lamp input signal circuit or the
ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the hazard warning lamp switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check that the turn-signal lamps operate.

Check that the turn-signal lamps illuminate normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure N-1 "The-turn
signal lamps do not illuminate

P.54C-316

."

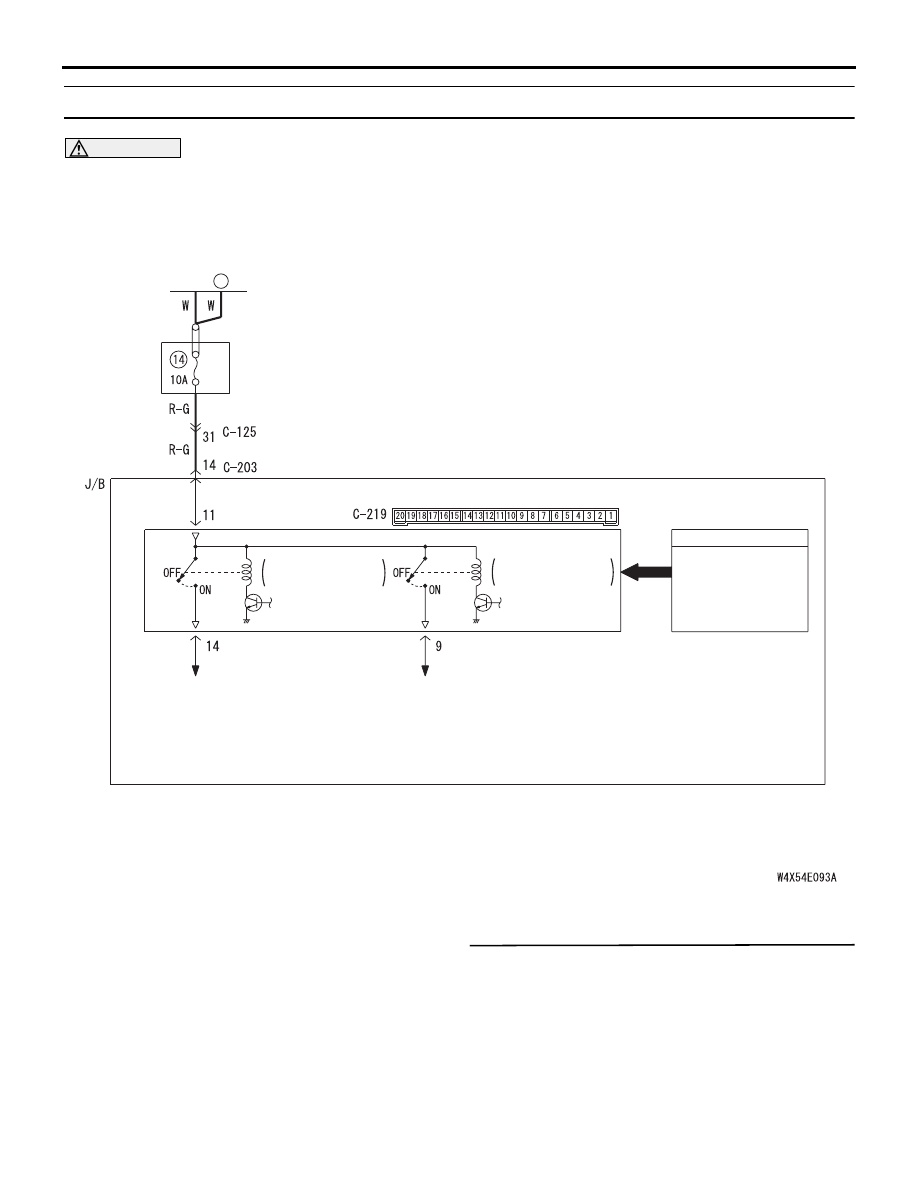

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

ETACS-ECU

HAZARD
WARNING
LAMP SWITCH

RELAY
BOX

TURN-SIGNAL
LAMP RELAY: LH

TURN-SIGNAL
LAMP RELAY: RH

INPUT SIGNAL

· FRONT TURN-SIGNAL
  LAMP (LH)

· SIDE TURN-SIGNAL
  LAMP (LH)

· REAR TURN-SIGNAL
  LAMP (LH)

· FRONT TURN-SIGNAL
  LAMP (RH)

· SIDE TURN-SIGNAL
  LAMP (RH)

· REAR TURN-SIGNAL
  LAMP (RH)

J/B SIDE

FUSIBLE
LINK

26

Hazard Warning Lamp Circuit
