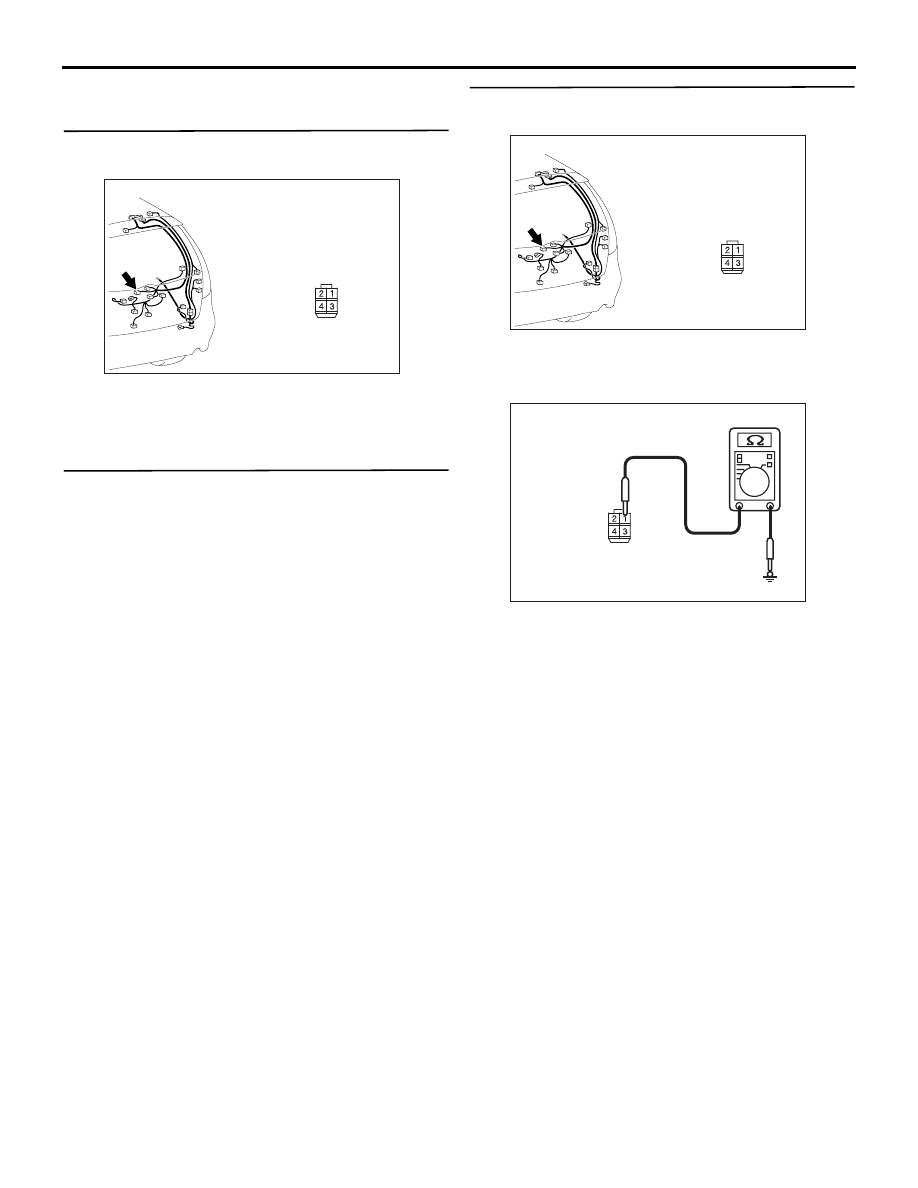

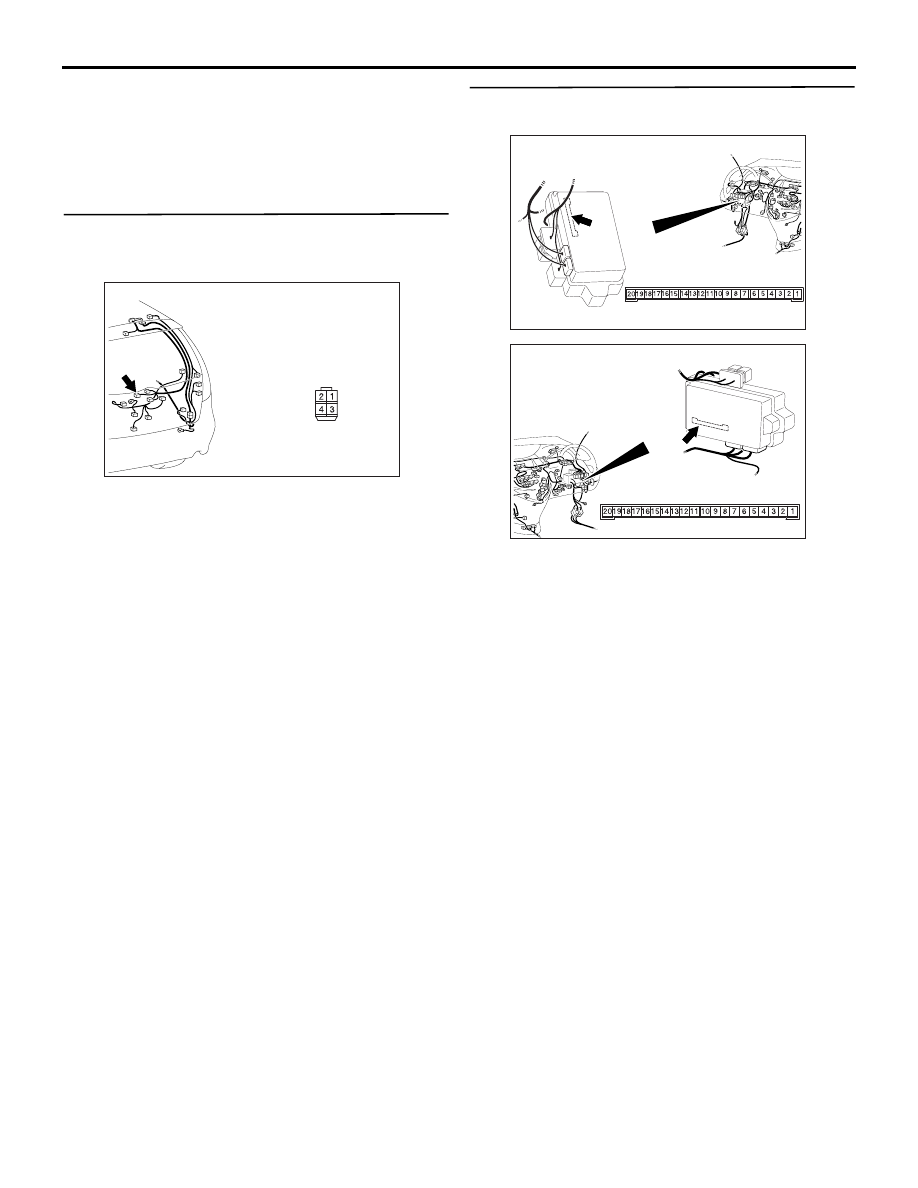

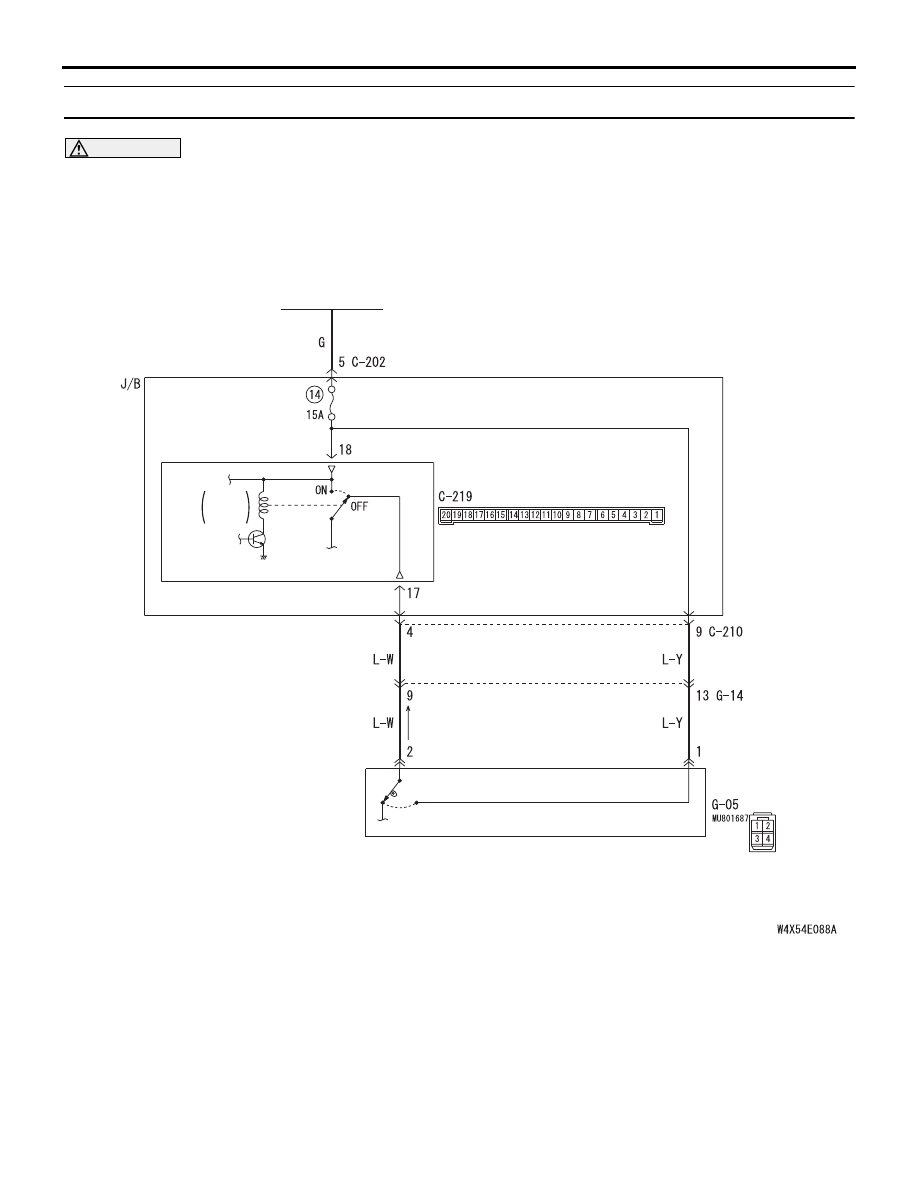

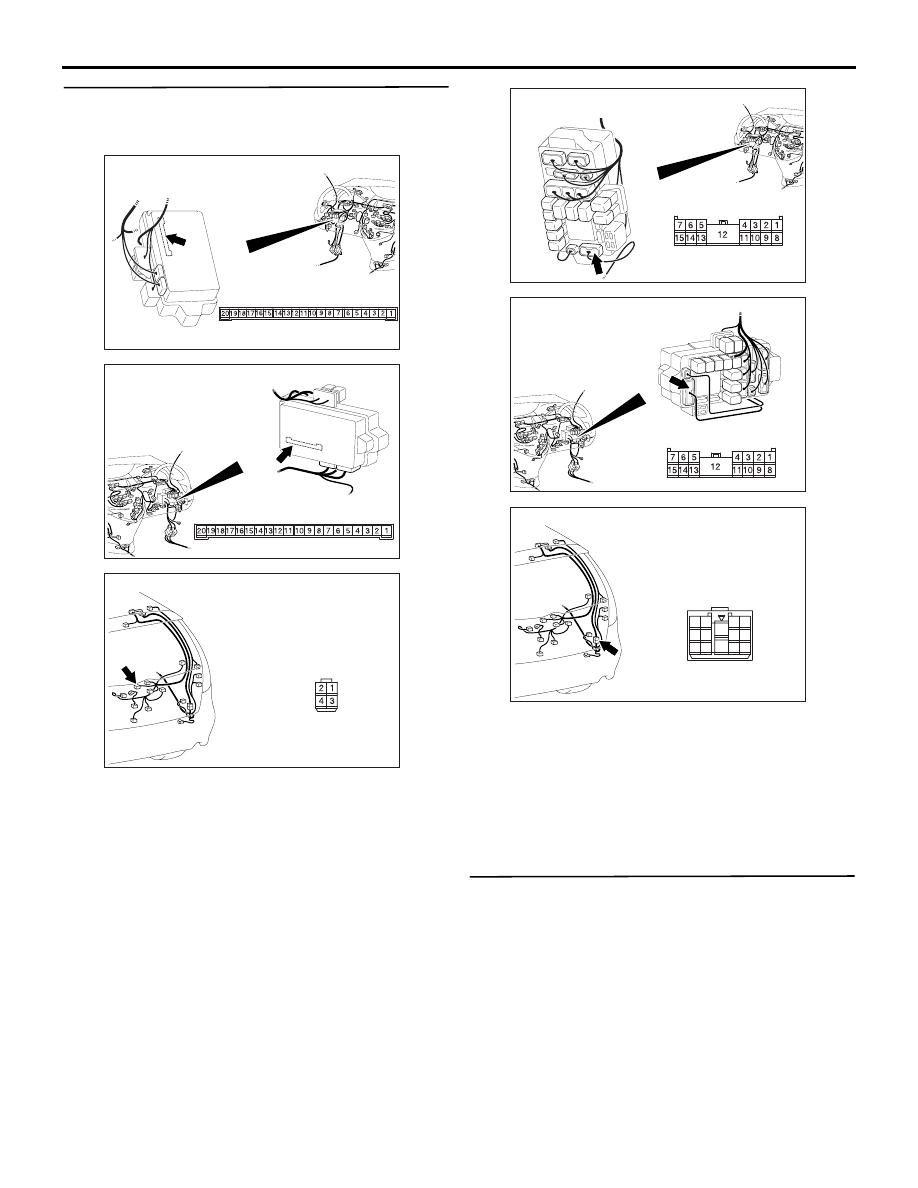

SYMPTOM PROCEDURES SMART WIRING SYSTEM (SWS) USING SWS MONITOR 54C-230 connector terminal No.4 and body earth OK: 2 Ω or less Q: Is the check result normal? YES : Go to Step 7. NO : Go to Step 6. Step 6. Check the wiring harness between G-05 • Check the earth line for open or short circuit. Q: Is the check result normal? YES : The trouble can be an intermittent malfunction (Refer to GROUP 00 − How to Cope with Intermittent Malfunction NO : Repair the wiring harness. Step 7. Connector check: C-219 ETACS-ECU Q: Is the check result normal? YES : Go to Step 8. NO : Repair the connector. AC310222 Connector: G-05 AH Harness side AC310626AD Connector: C-219 <LHD> Junction block side AC310620 Connector: C-219 Junction block <RHD> AB Junction block side |
