SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-110

DIAGNOSIS PROCEDURE

Step 1. ETACS switch data by using the SWS
monitor

Check the ETACS-ECU signal, which is related to
the driver's door lock operation.

• Driver’s door: Unlock → Lock

OK: Normal condition are displayed for all
the items.

Q: Are the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure Q-15 "The
driver's door lock actuator switch signal is
not received <LH drive vehicles>

P.54C-514



or <RH drive vehicles>

P.54C-518

."

Step 2. Retest the system.

Check that the central door locking system works
normally by the driver's door lock operation.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

Inspection Procedure C-3: The central door locking system does not function by using the
passenger's door key cylinder.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

Item No.

Item name

Normal
condition

Item 21

DR DOR LCK SW

from OFF
to ON

Item 22

DR DOR ULK SW

from ON
to OFF

ETACS-ECU

FUSIBLE
LINK

ALL DOOR LOCK ACTUATOR

INPUT SIGNAL

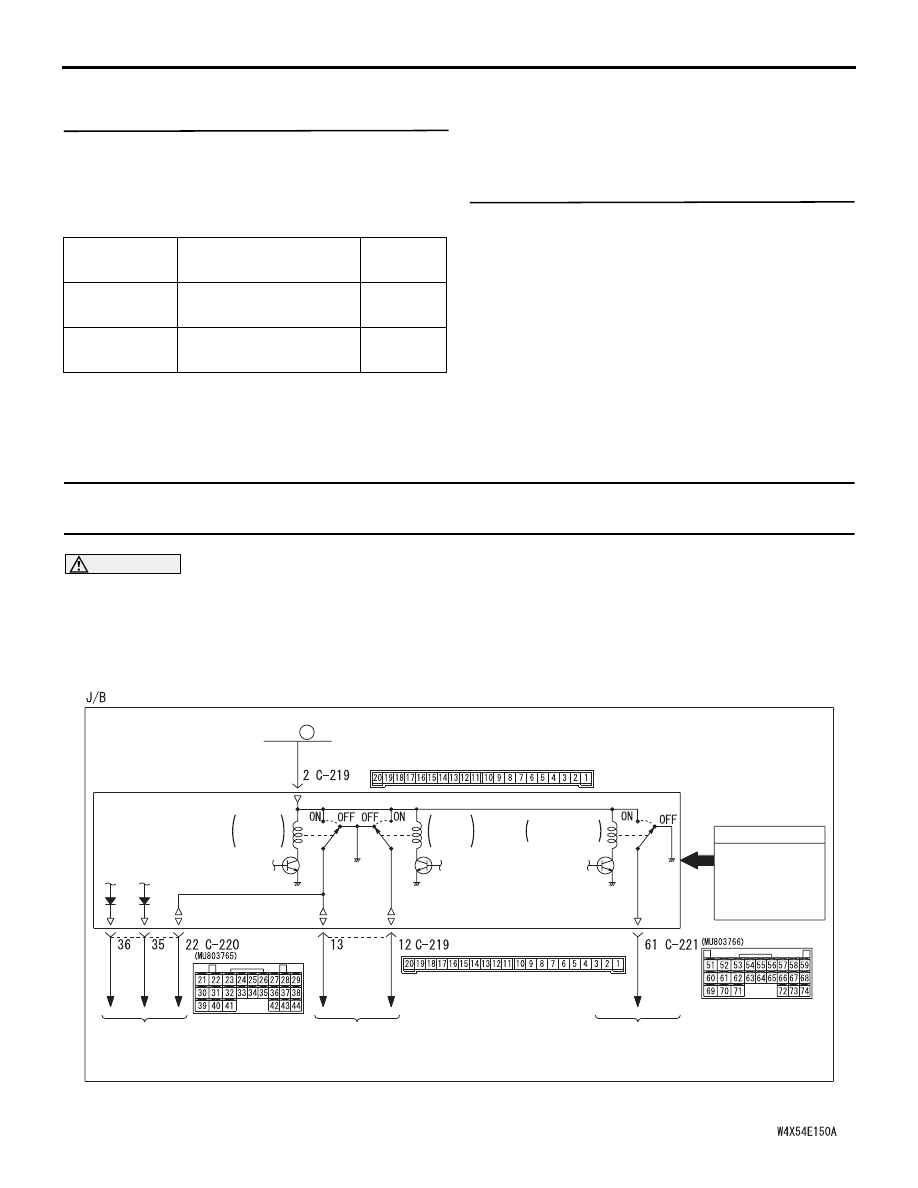

Central Door Lock (Door Key Switch) Circuit

FRONT
PASSENGER'S
DOOR  KEY
SWITCH

30

· DOOR LOCK ACTUATOR
  (FRONT: LH) <LHD>
· DOOR LOCK ACTUATOR
  (FRONT: RH) <RHD>

DOOR
UNLOCK
RELAY

DOOR
LOCK
RELAY

TAILGATE
OPEN RELAY

TAILGATE
LOCK ACTUATOR

J/B SIDE

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-111

COMMENT ON TROUBLE SYMPTOM

If the central door locking system does not work
normally only when the front passenger's key
cylinder is operated, the front passenger's door key
switch or the ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the front passenger’s door key

switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. ETACS switch data by using the SWS
monitor

Check the ETACS-ECU signal, which is related to
the front passenger's key cylinder operation.

• passenger’s door lock key cylinder: Neutral to

lock

OK: Normal conditions are displayed for all
the items.

Q: Are the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure Q-16 "The
passenger's door lock key switch signal is
not received <LH drive vehicles>

P.54C-521



or <RH drive vehicles>

P.54C-525

."

Step 2. Retest the system.

Check that the central door locking system works
normally by the front passenger's key cylinder
operation.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

Item No. Item name

Normal condition

Item 26

CNTR DOOR LCK

ON (only when
operated to lock)

Item 27

CNTR DOOR ULK

OFF

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-112

Inspection Procedure C-4: The central door locking system does not function by using the tailgate
key cylinder.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENT ON TROUBLE SYMPTOM

If the central door locking system does not work
normally only when the tailgate key cylinder is
operated, the tailgate key switch or the ETACS-ECU
may be defective.

POSSIBLE CAUSES

• Malfunction of the tailgate key switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. ETACS switch data by using the SWS
monitor

Check the ETACS-ECU signal, which is related to
the tailgate key cylinder operation.

• Tailgate key switch: Neutral to lock

OK: Normal conditions are displayed for all
the items.

Q: Are the check result normal?

ETACS-ECU

· DOOR LOCK ACTUATOR
  (FRONT: LH) <LHD>
· DOOR LOCK ACTUATOR
  (FRONT: RH) <RHD>

DOOR
UNLOCK
RELAY

DOOR
LOCK
RELAY

TAILGATE
OPEN RELAY

TAILGATE
KEY SWITCH

INPUT SIGNAL

ALL DOOR LOCK ACTUATOR

TAILGATE
LOCK ACTUATOR

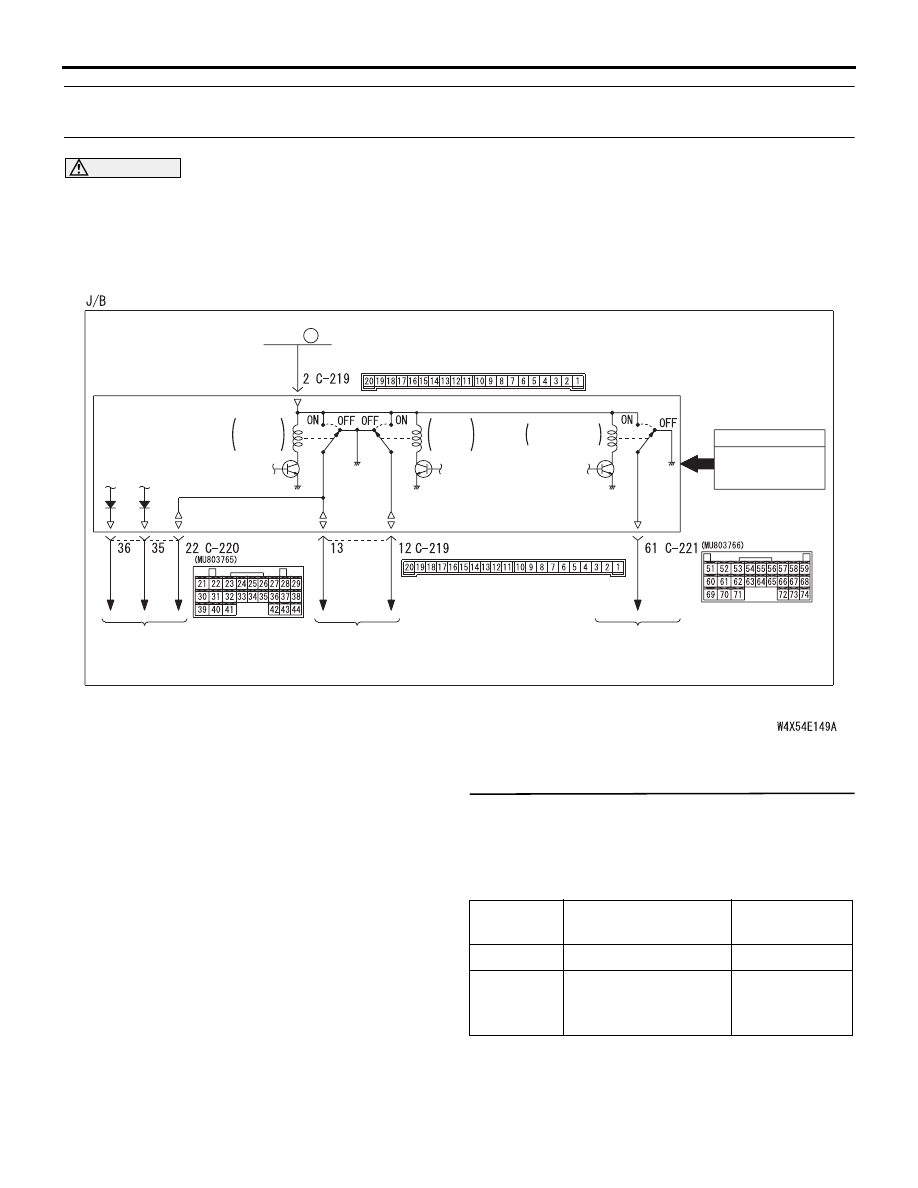

Central Door Lock (Tailgate Key Switch) Circuit

J/B SIDE

FUSIBLE
LINK

30

Item No.

Item name

Normal
conditions

Item 18

TRK UNLOCK SW

OFF

Item 19

GATE LOCK SW

ON (only when
operated to
lock)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-113

YES :

Go to Step 2.

NO :

Refer to inspection procedure Q-17 "The
tailgate key switch signal is not received

P.54C-528

."

Step 2. Retest the system.

Check that the central door locking system works
normally by the tailgate key cylinder operation.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.
