Mitsubishi Grandis. Manual - part 124





INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

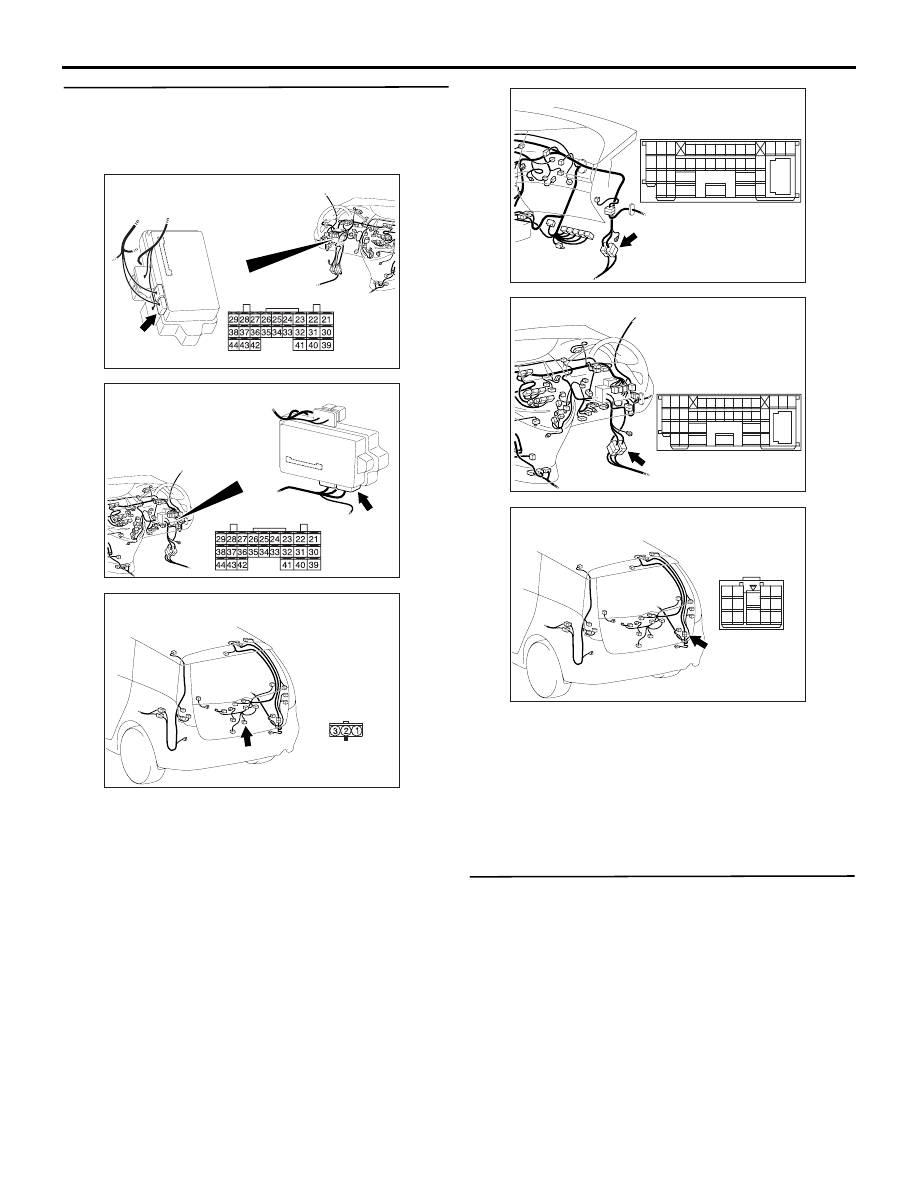

54B-493

Step 6. Check the wiring harness from G-16
tailgate key switch connector terminal Nos.1 and
3 to C-220 ETACS-ECU connector terminal
Nos.33 and 34.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-15 and G-14, and repair if
necessary.

• Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.
Check that the tailgate key switch signal is received
normally.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

AC312037

Connector: C-220

Junction block (Rear view)

AC

<LHD>

Harness side

AC312047

Connector: C-220

Junction block (Rear view)

AC

<RHD>

Harness side

AC312078

Connector: G-16

Harness side

AD

AC312033

Connector: C-15 <LHD>

AF

38

1213

11

26

14

1

20

6

232425

37

31

36

30

10

9

2122

35

8

7

34

17

29

1819

5

4

1516

33

28

32

27

3

2

AC312043

Connector: C-15 <RHD>

AJ

38

1213

11

26

14

1

20

6

232425

37

31

36

30

10

9

2122

35

8

7

34

17

29

1819

5

4

1516

33

28

32

27

3

2

AC312078

Connector: G-14

AC

2

1

4

3

13

8

11

10

5

7

12

6

14

9

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

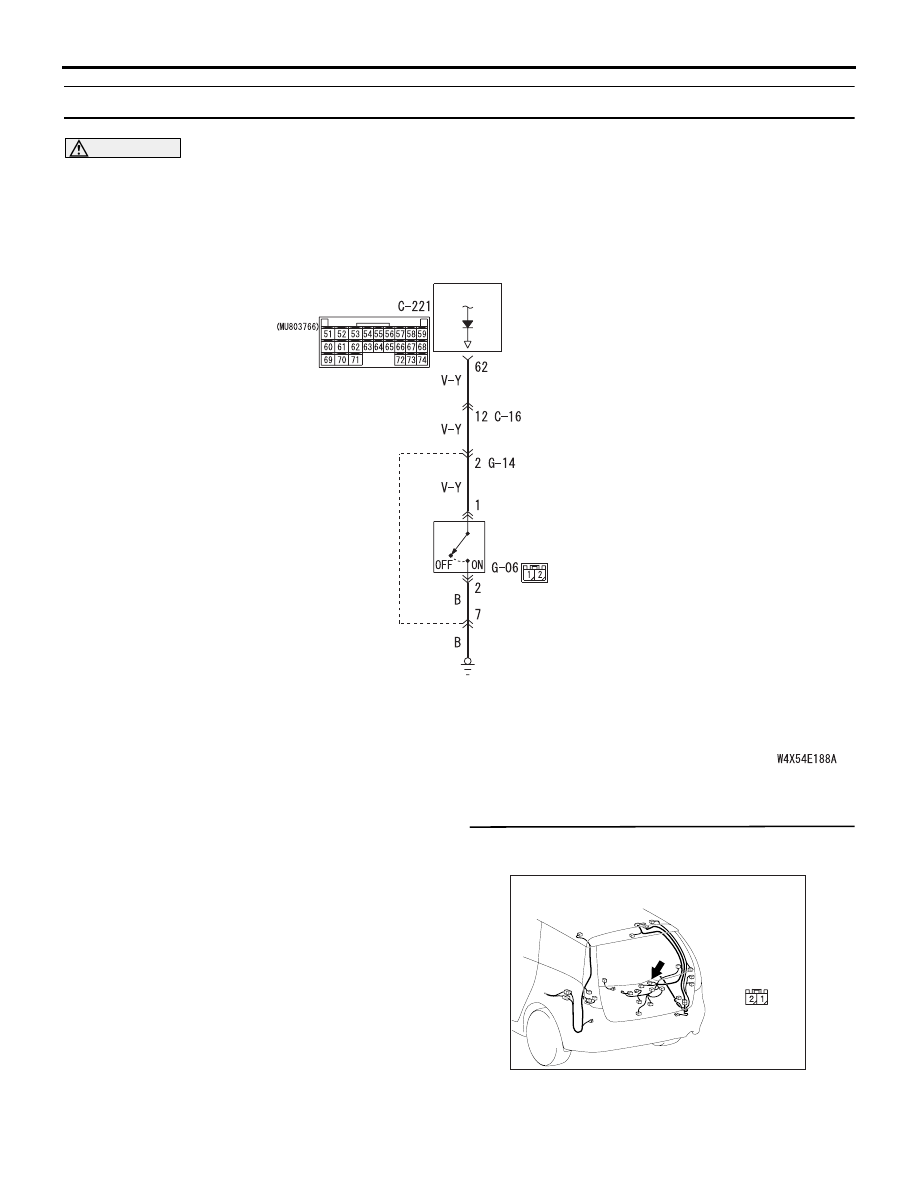

54B-494

Inspection Procedure Q-18: The tailgate lock release handle signal is not received.

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM

Input signal from the tailgate lock release handle is
used to operate the central door locking function. If
the signal is abnormal, the central door locking
function will not work normally.

POSSIBLE CAUSES

• Malfunction of the tailgate lock release handle

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Connector check: G-06 tailgate lock
release handle connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

TLAILGATE
LOCK RELEASE
HANDLE

ETACS-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

Tailgate Lock Release Handle Input Circuit

AC312078

Connector: G-06

AE

Harness side

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

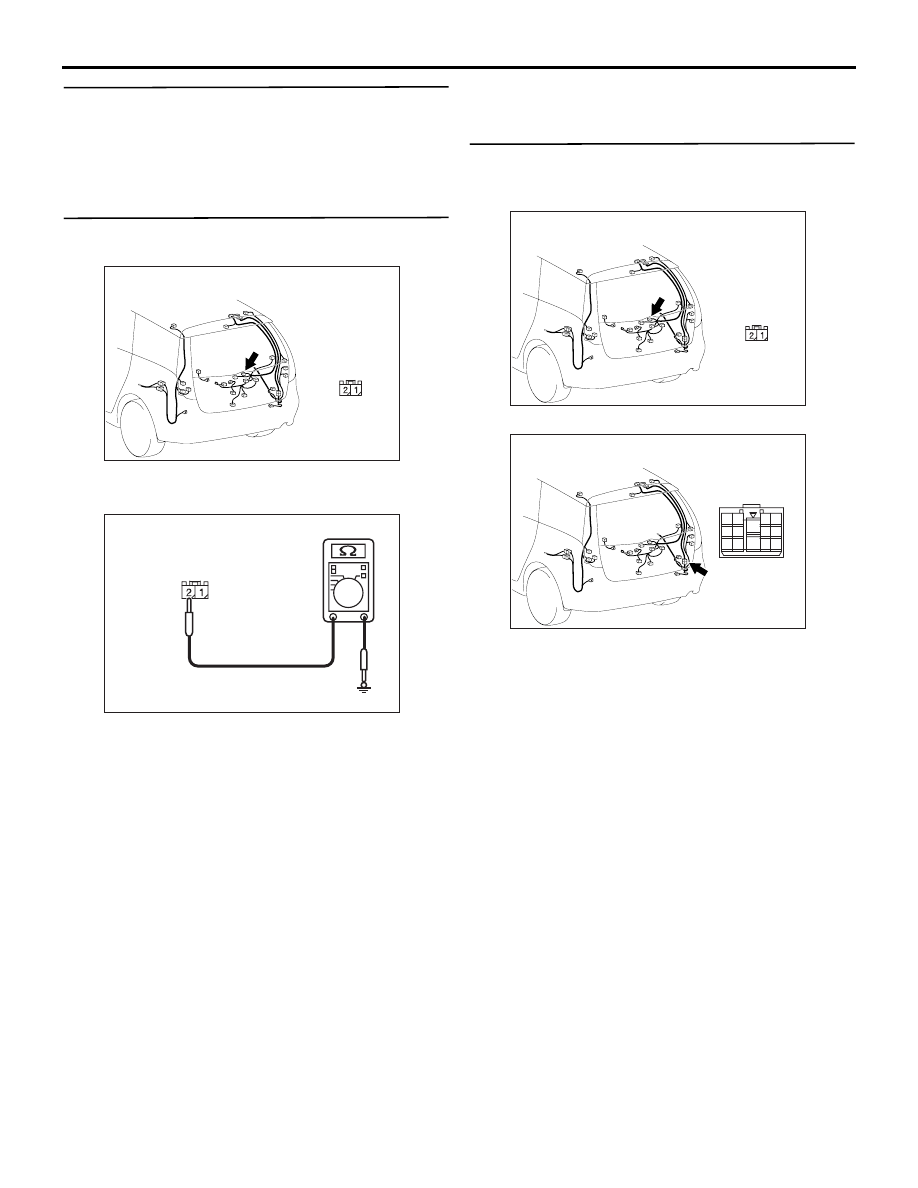

54B-495

Step 2. Check the tailgate lock release handle.
Refer to GROUP 42

− Tailgate

P.42-51

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the tailgate lock release handle.

Step 3. Measure the resistance at tailgate lock
release handle connector G-06.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between tailgate lock release handle

connector G-06 terminal No.2 and body earth

OK: 2

 or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness between
tailgate lock release handle connector G-06
terminal No.2 and body earth.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector G-14, and repair if
necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC312078

Connector: G-06

AE

Harness side

AC312730

Harness side

AL

AC312078

Connector: G-06

AE

Harness side

AC312078

Connector: G-14

AC

2

1

4

3

13

8

11

10

5

7

12

6

14

9

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

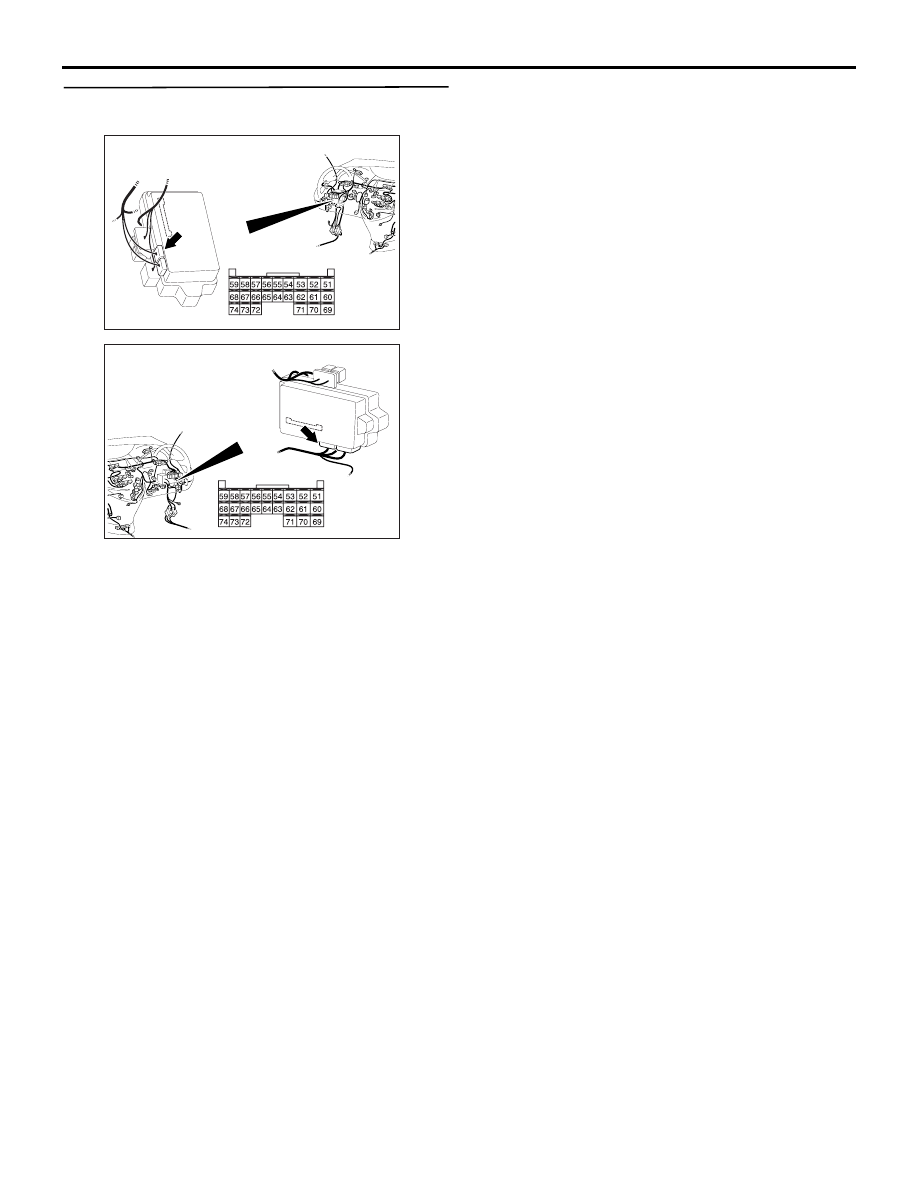

54B-496

Step 5. Connector check: C-221 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC312037

Connector: C-221  <LHD>

Junction block (Rear view)

AD

Harness side

AC312047

Connector: C-221  <RHD>

Junction block (Rear view)

AD

Harness side
