INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-473

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

Step 3. Check the installation condition.

Check that the door switch is installed on the body
correctly.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Correct the installation condition.

Step 4. Check the door switch.

Refer to GROUP 42

− Door

P.42-32

.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the door switch.

AC312078

Connector: G-18

AB

Harness side

AC312038

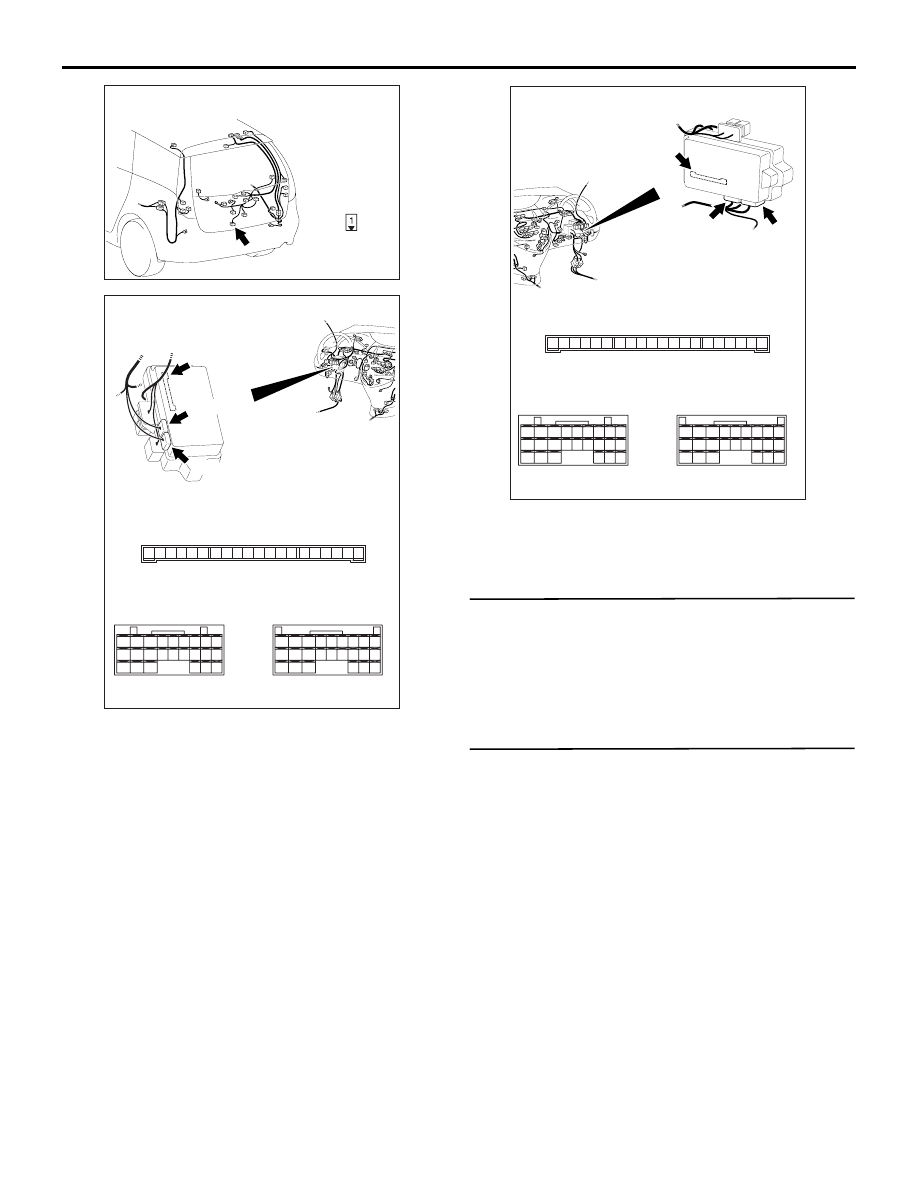

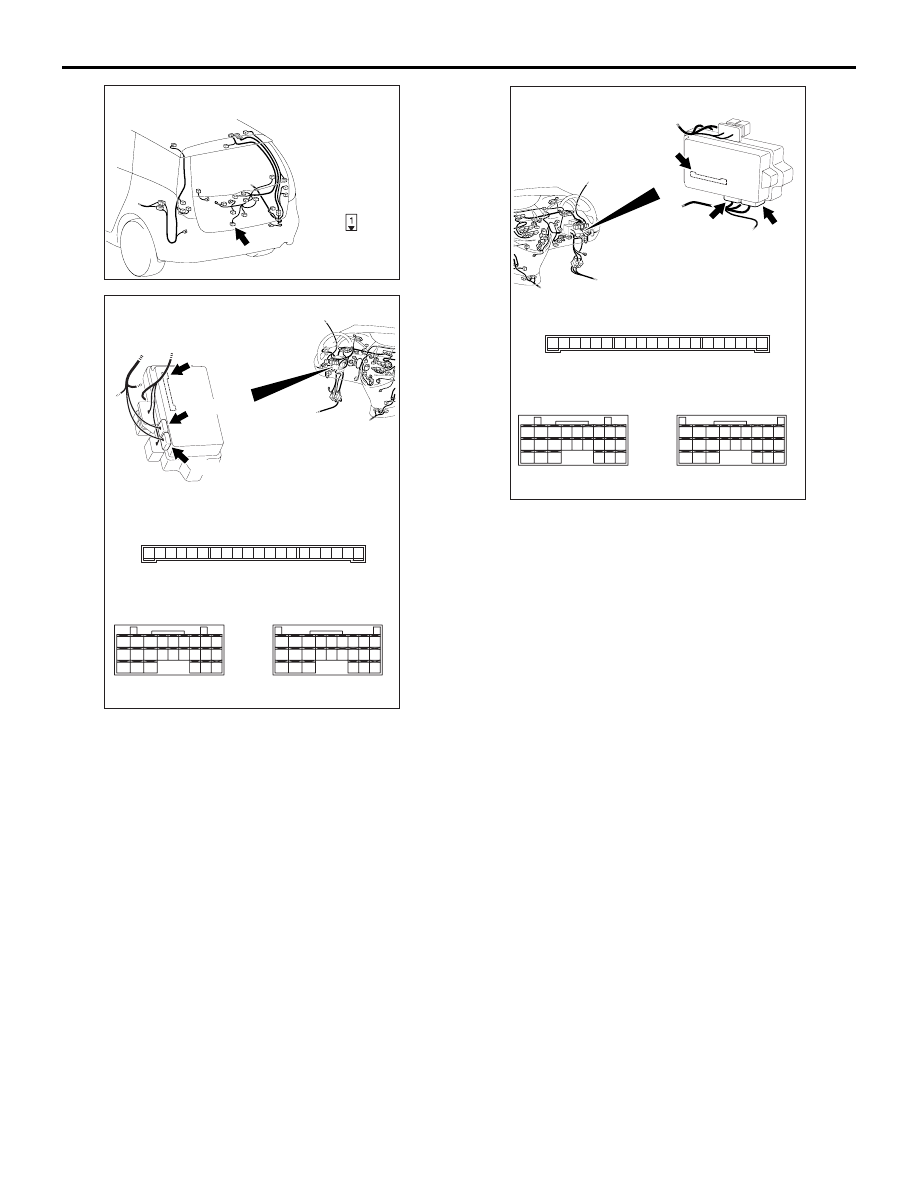

Connectors: C-219, C-220, C-221

C-220

AB

C-221

C-219

Junction block side

28

37

43

29

44

38

23

32

41

2425 26 27

34

42

36

35

33

21 22

30

39 40

31

Junction block side

Junction block side

68

74

63

66

7273

67

65

64

61

70 71

62

69

60

5758 59

56

55

52

54

53

51

C-220

C-219

C-221

1

2

3

4

5

6

7

8

9

10

11

12

13

14

17

18

19

20

15

16

<LHD>

AC312048

Connectors: C-219, C-220, C-221

C-220

AB

C-221

C-219

Junction block side

28

37

43

29

44

38

23

32

41

2425 26 27

34

42

36

35

33

21 22

30

39 40

31

Junction block side

Junction block side

68

74

63

66

7273

67

65

64

61

70 71

62

69

60

5758 59

56

55

52

54

53

51

C-220

C-219

C-221

1

2

3

4

5

6

7

8

9

10

11

12

13

14

17

18

19

20

15

16

<RHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-474

Step 5. Check the wiring harness from terminal
No.1 of the D-17 (front: LH), D-02 (front: RH), D-08
(rear: RH) or D-13 (rear: LH) door switch
connector or terminal No.1 of the G-18 tailgate
switch connector to terminal No.65 (front: LH and
RH), No.70 (rear: RH), No.7 (rear: LH) or No.37
(tailgate) of the C-219, C-220 and C-221
ETACS-ECU connector.

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-475

AC312054

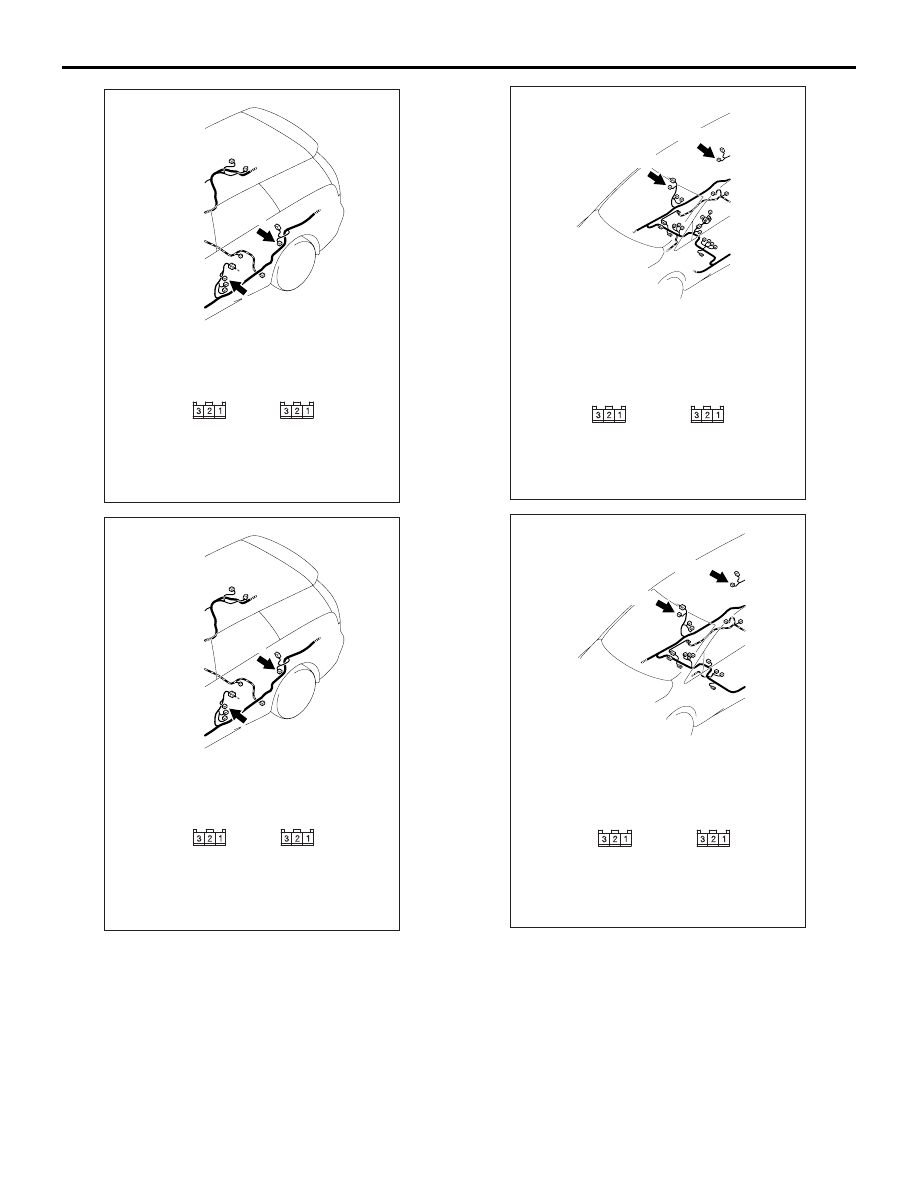

Connectors: D-13, D-17

D-13

AB

D-17

Harness side

D-17

D-13

<LHD>

AC312054

Connectors: D-13, D-17

D-13

AC

D-17

Harness side

D-17

D-13

<RHD>

AC312052

Connectors: D-02, D-08

D-02

AB

D-08

<LHD>

D-02

D-08

Harness side

AC312059

Connectors: D-02, D-08

D-02

AB

D-02

D-08

D-08

Harness side

<RHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-476

AC312078

Connector: G-18

AB

Harness side

AC312038

Connectors: C-219, C-220, C-221
