Mitsubishi Grandis. Manual - part 96

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-381

Inspection Procedure P-3: The rear personal lamp does not illuminate normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-382

COMMENTS ON TROUBLE SYMPTOM

If the rear personal lamps do not illuminate or
extinguish normally, wiring harness connector(s) or
the bulb may be defective.

POSSIBLE CAUSES

• Malfunction of the interior lamp switches

• Malfunction of the room lamp bulbs

• Malfunction of the rear personal lamp bulbs

• Damaged harness wires and connectors

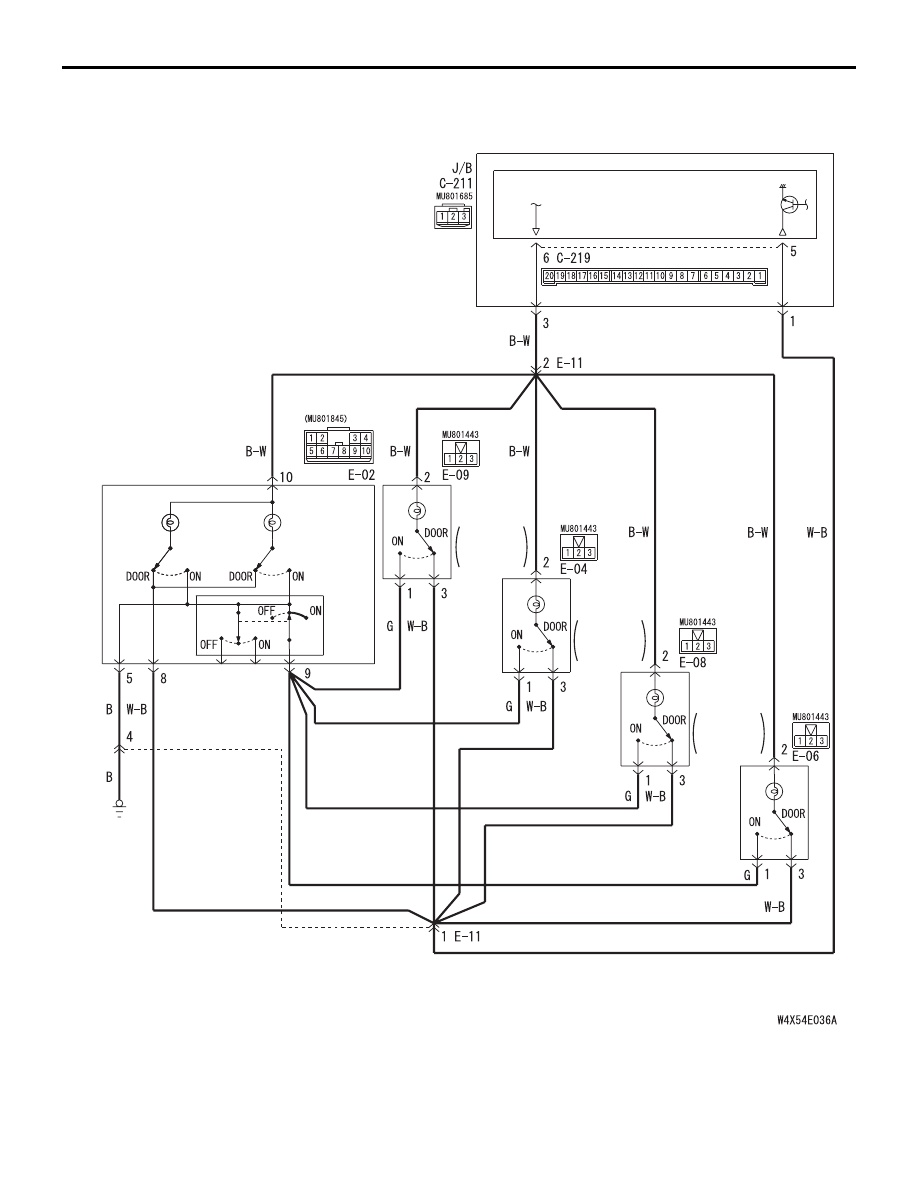

ETACS-ECU

J/B SIDE

ROOM LAMP

INTERIOR
LAMP
SWITCH

REAR
PERSONAL
LAMP

FOR
SECOND
SEAT: LH

REAR
PERSONAL
LAMP

FOR
SECOND
SEAT: RH

REAR
PERSONAL
LAMP

FOR
THIRD
SEAT: LH

REAR PERSONAL LAMP
(FOR THIRD SEAT: RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

Room Lamp and Rear Personal Lamp Circuit

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-383

DIAGNOSTIC PROCEDURE

Step 1. Pulse check
Check the input signals below, which are related to
the room lamp.

OK: The MUT-III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

All the signals are received normally. :

Go to Step

2.

All the door switch signals are not received. :

Refer to inspection procedure Q-14 "All the
door switch signals are not received

P.54B-469

."

The driver's door lock actuator switch signal is not
received. :

Refer to inspection procedure Q-15

"The driver's door lock actuator switch
signal is not received <LH drive
vehicles>

P.54B-478

 or <RH drive

vehicles>

P.54B-481

."

The interior lamp switch signal is not received. :

Refer to inspection procedure Q-22 "The
interior lamp "all on" or "all off" switch signal
is not sent to the ETACS-ECU

P.54B-514

."

Step 2. Retest the system.
Check which lamp does not illuminate when the lamp
switches are operated.

Q: Which lamp does not illuminate?

No lamps illuminate :

Go to Step 3.

One of the second seat lamps (RH or LH) or the
third seat lamps (RH or LH) does not illuminate. :

Go to Step 7.

Step 3. Check the rear personal lamp switches.
Check which position (ON or DOOR) of the rear
personal lamp switch does not activate the relevant
lamp.

Q: Which switch position does not activate the lamp?

The lamp illuminates at neither the ON nor DOOR
position.  :

Go to Step 4.

The lamp does not illuminate at the DOOR position.
:

Go to Step 6.

The lamp does not illuminate at the ON position. :

Replace the rear personal lamp.

System switch

Check condition

Driver's door switch

Driver's door is opened
while all the other doors
are closed.

Passenger’s door switch Passenger's door is

opened while all the
other doors are closed.

Rear door (RH) switch

Rear door (RH) is
opened while all the
other doors are closed

Rear door (LH) switch

Rear door (LH) door is
opened while all the
other doors are closed

Tailgate switch

TAilgate is opened while
all the other doors are
closed

Driver's door lock
actuator switch

When the driver's door is
unlocked or locked

Interior lamp ON switch

When turned from OFF
to ON

Interior lamp OFF switch When turned from ON to

OFF

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-384

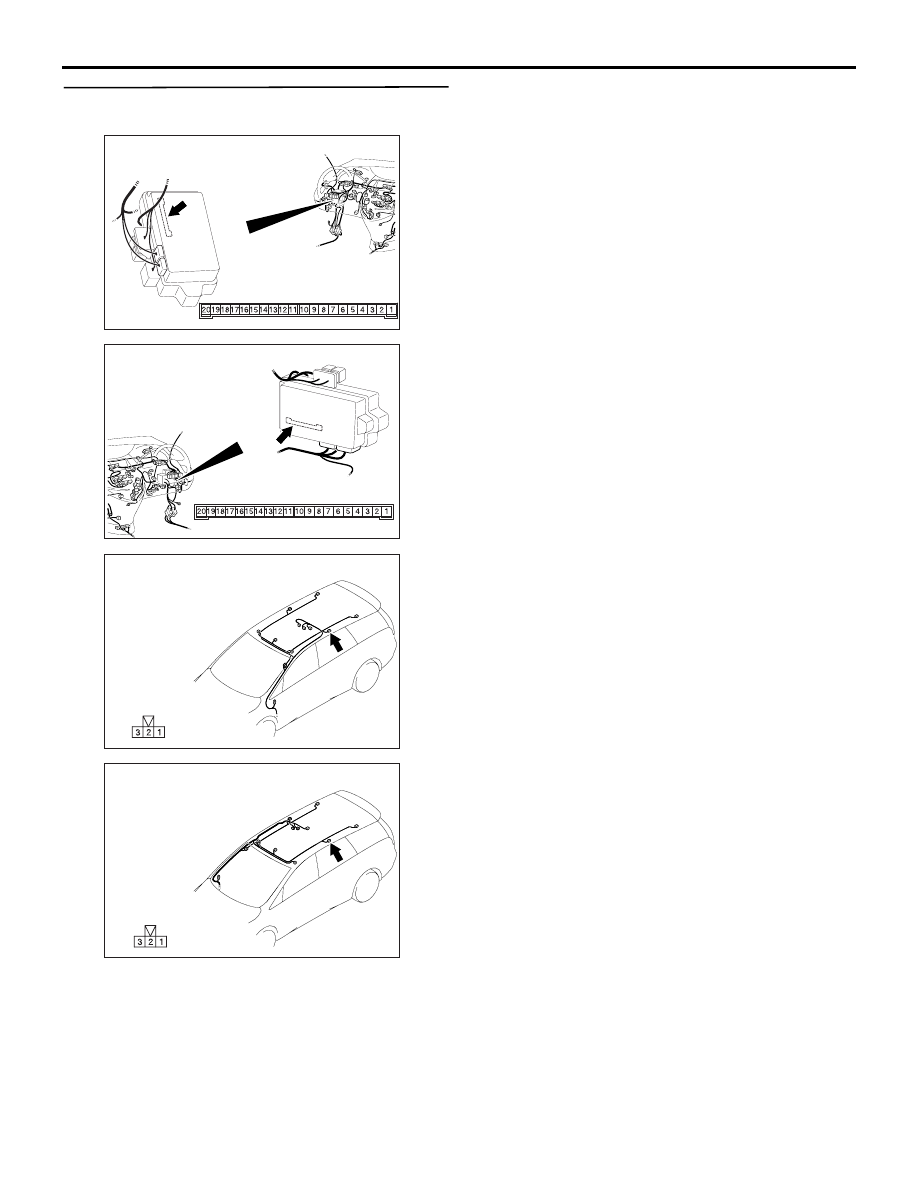

Step 4. Connector check: C-219 ETACS-ECU
connector, E-09 rear personal lamp connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC310651

AC310651

AG

Connector: E-09 <LHD>

Harness side

AC310655

AC310655

AH

Connector: E-09 <RHD>

Harness side
