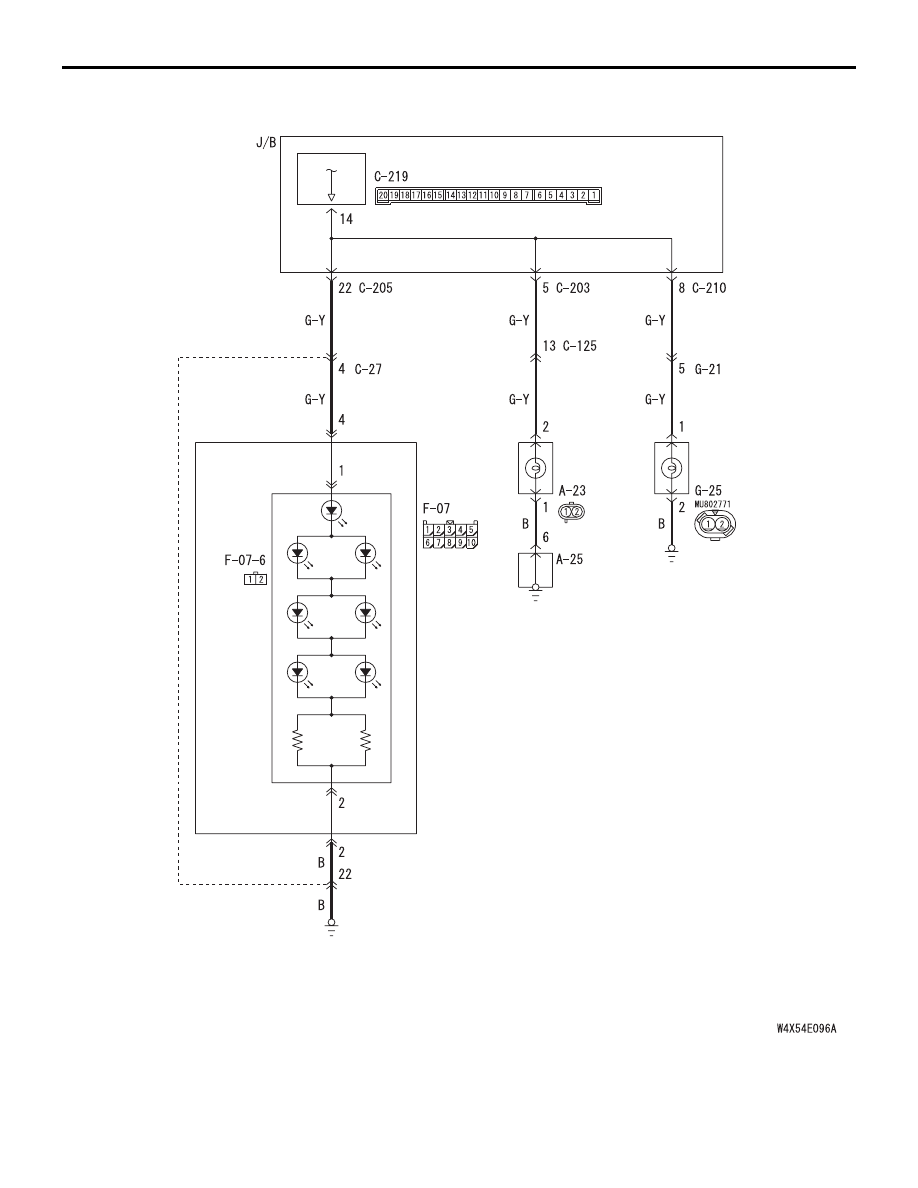

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-317

FRONT
TURN-SIGNAL
LAMP (LH)

REAR
TURN-SIGNAL
LAMP (LH)

ETACS-ECU

J/B SIDE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

DOOR
MIRROR
ASSEMBLY
(LH)

SIDE
TURN-
SIGNAL
LAMP

Left Turn-Signal Lamps Circuit <LHD>

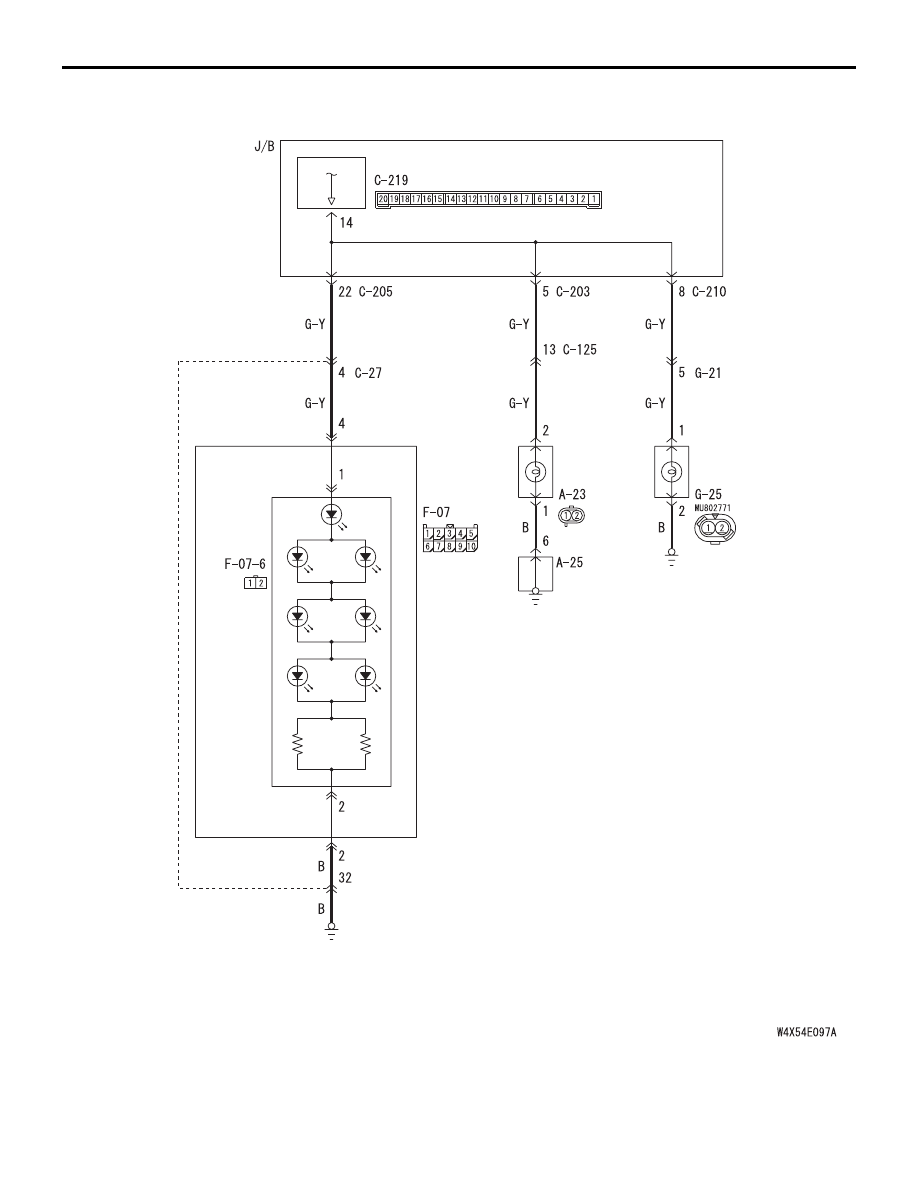

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-318

FRONT
TURN-SIGNAL
LAMP (LH)

REAR
TURN-SIGNAL
LAMP (LH)

ETACS-ECU

J/B SIDE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

DOOR
MIRROR
ASSEMBLY
(LH)

SIDE
TURN-
SIGNAL
LAMP

Left Turn-Signal Lamps Circuit <RHD>

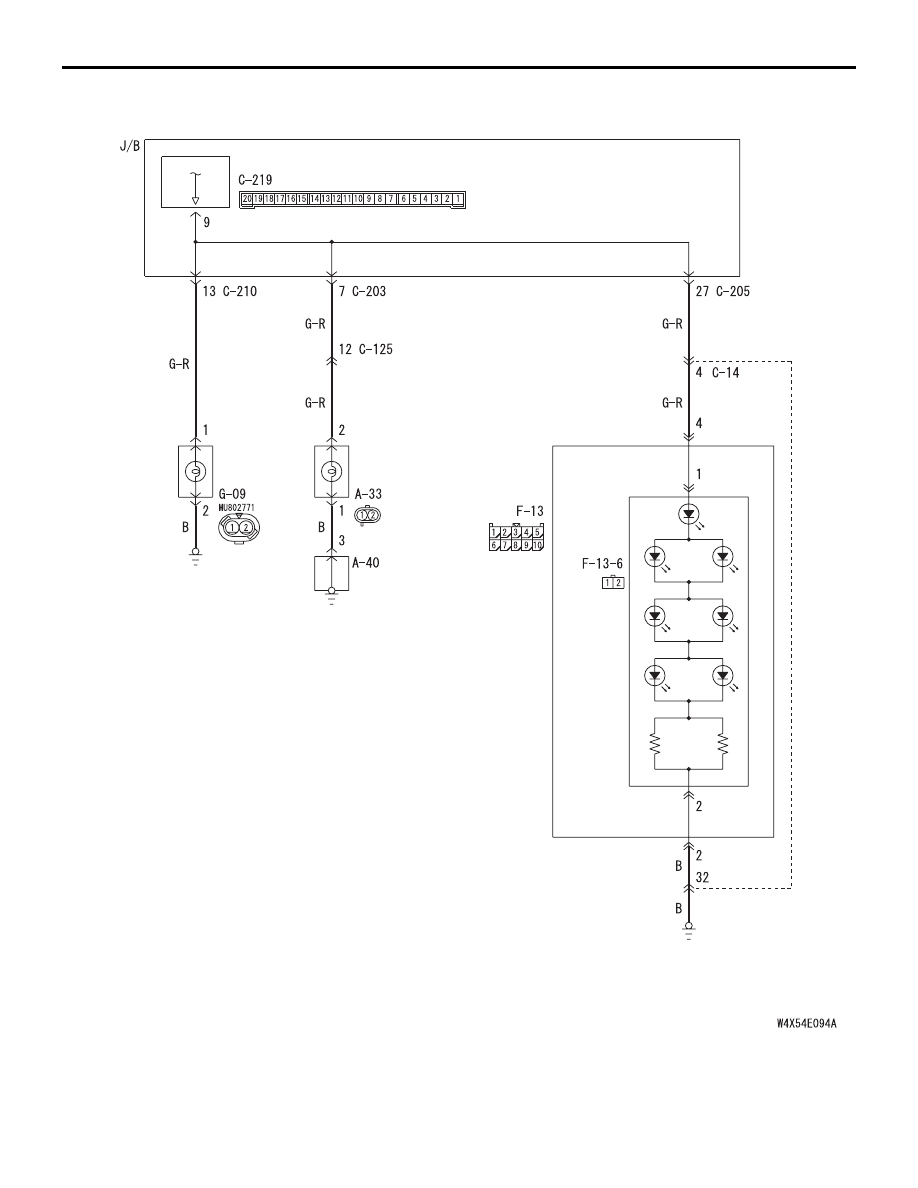

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-319

ETACS-ECU

J/B SIDE

REAR
TURN-SIGNAL
LAMP (RH)

FRONT
TURN-SIGNAL
LAMP (RH)

SIDE
TURN-
SIGNAL
LAMP

DOOR
MIRROR
ASSEMBLY
(RH)

Right Turn-Signal Lamps Circuit <LHD>

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

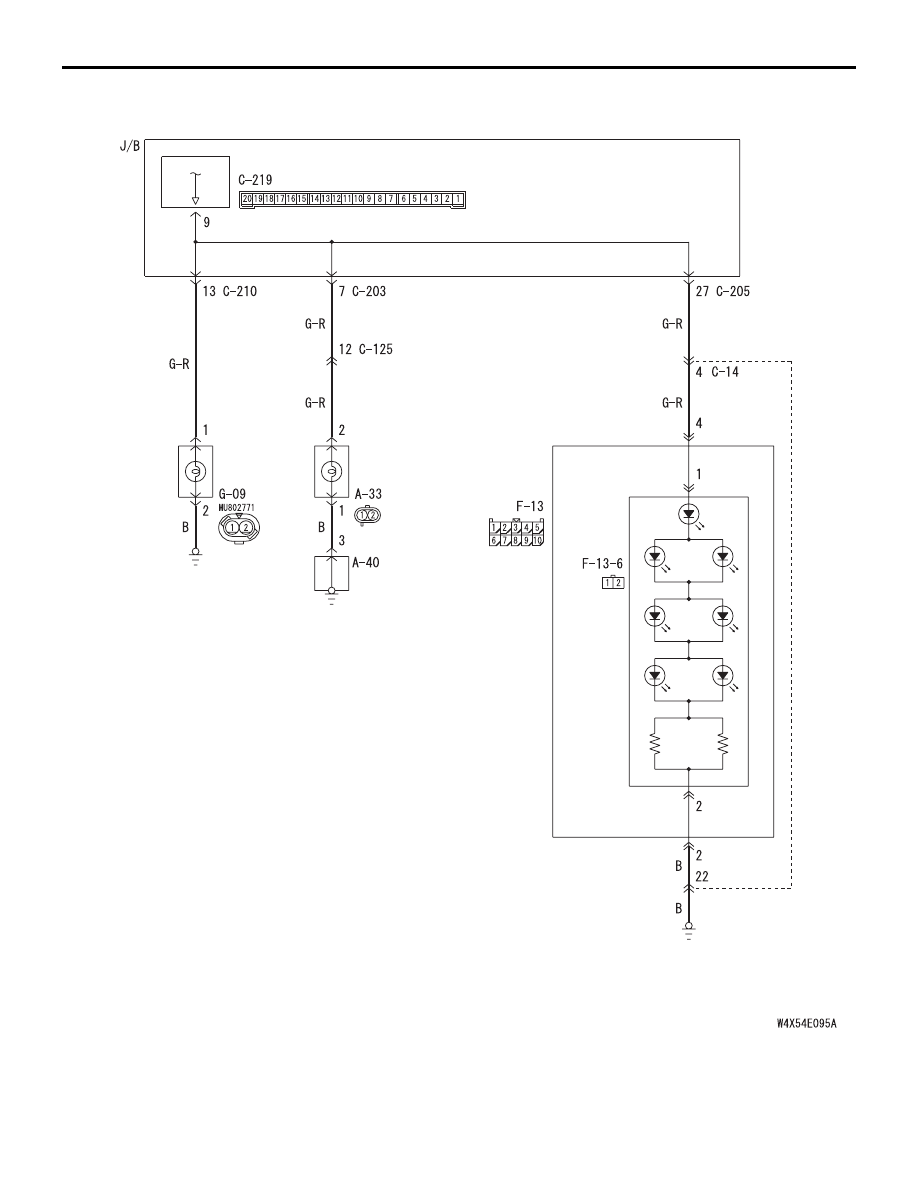

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-320

COMMENTS ON TROUBLE SYMPTOM

If any of the turn-signal lamp does not illuminate
normally, wiring harness connector(s) or the bulb
may be defective.

POSSIBLE CAUSES

• Defective turn-signal lamp bulb

• Damaged harness wires and connectors

ETACS-ECU

J/B SIDE

REAR
TURN-SIGNAL
LAMP (RH)

FRONT
TURN-SIGNAL
LAMP (RH)

SIDE
TURN-
SIGNAL
LAMP

DOOR
MIRROR
ASSEMBLY
(RH)

Right Turn-Signal Lamps Circuit <RHD>

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet
