SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-189

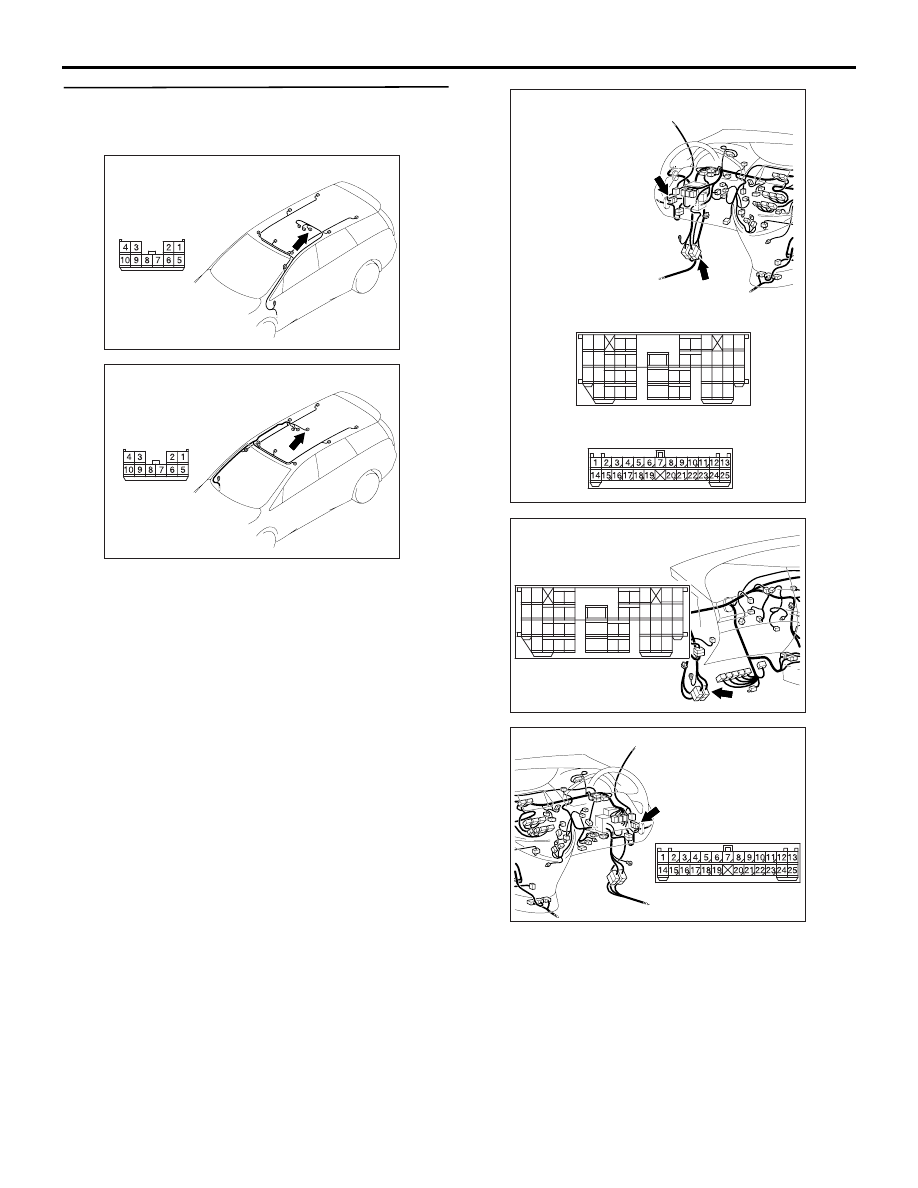

Step 6. Check the wiring harness between E-07
sunroof motor assembly connector terminal No.1
and the fusible link (5).

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-124 and C-128, and repair
if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC310651

Connector: E-07 <LHD>

AE

Harness side

AC310655

Connector: E-07 <RHD>

AF

Harness side

AC310614

Connectors: C-124, C-128

AY

C-128

C-124

C-124

C-128

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

<LHD>

AC310628

Connector: C-124<RHD>

AP

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

AC310631

Connector: C-128 <RHD>

AR

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-190

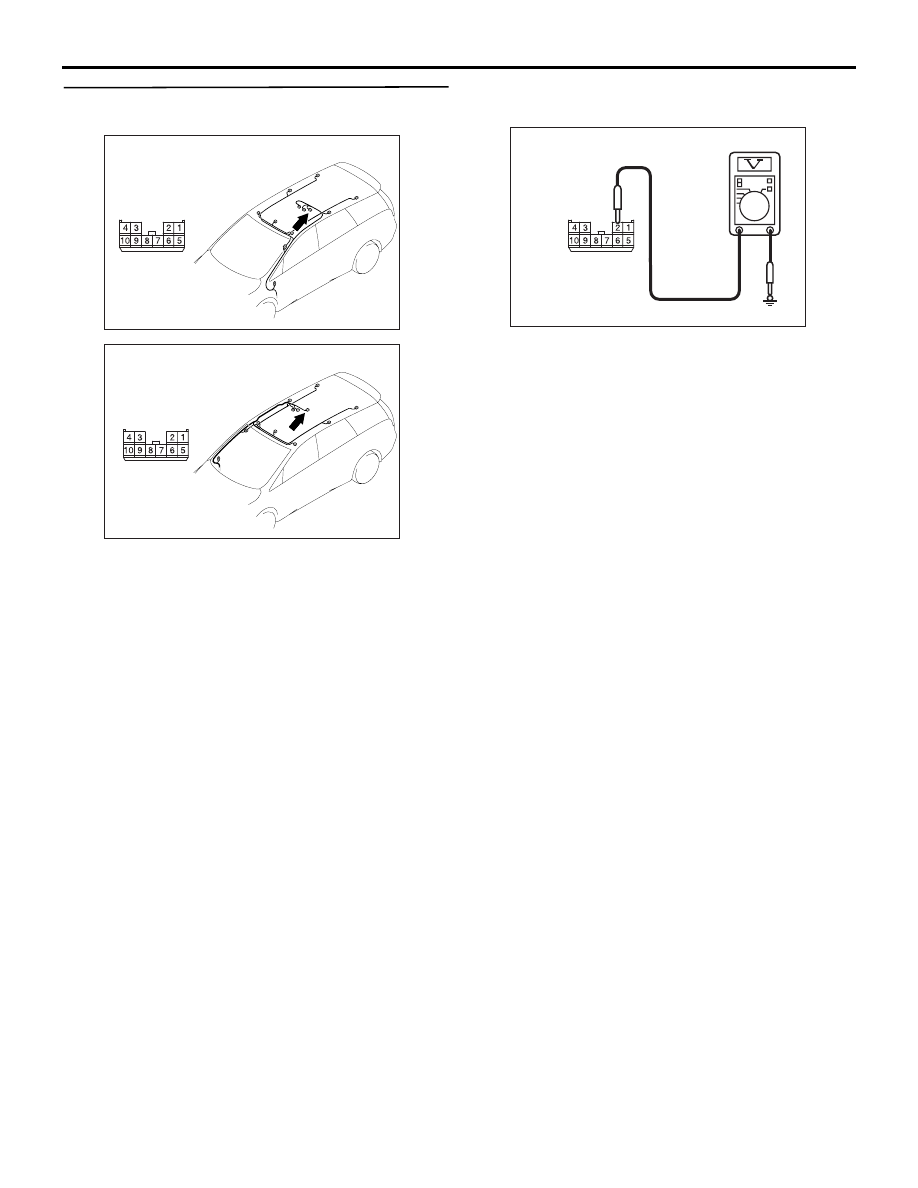

Step 7. Voltage measurement at the E-07 sunroof
motor assembly connector.

(1) Disconnect the sunroof motor assembly

connector, and measure at the harness side.

(2) Ignition switch: ON

(3) Check the voltage between the E-07 sunroof

motor assembly connector terminal No.2 and
body earth.

OK: Battery positive voltage

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Go to Step 8.

AC310651

Connector: E-07 <LHD>

AE

Harness side

AC310655

Connector: E-07 <RHD>

AF

Harness side

AC310507 CI

Connector E-07
(harness side)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-191

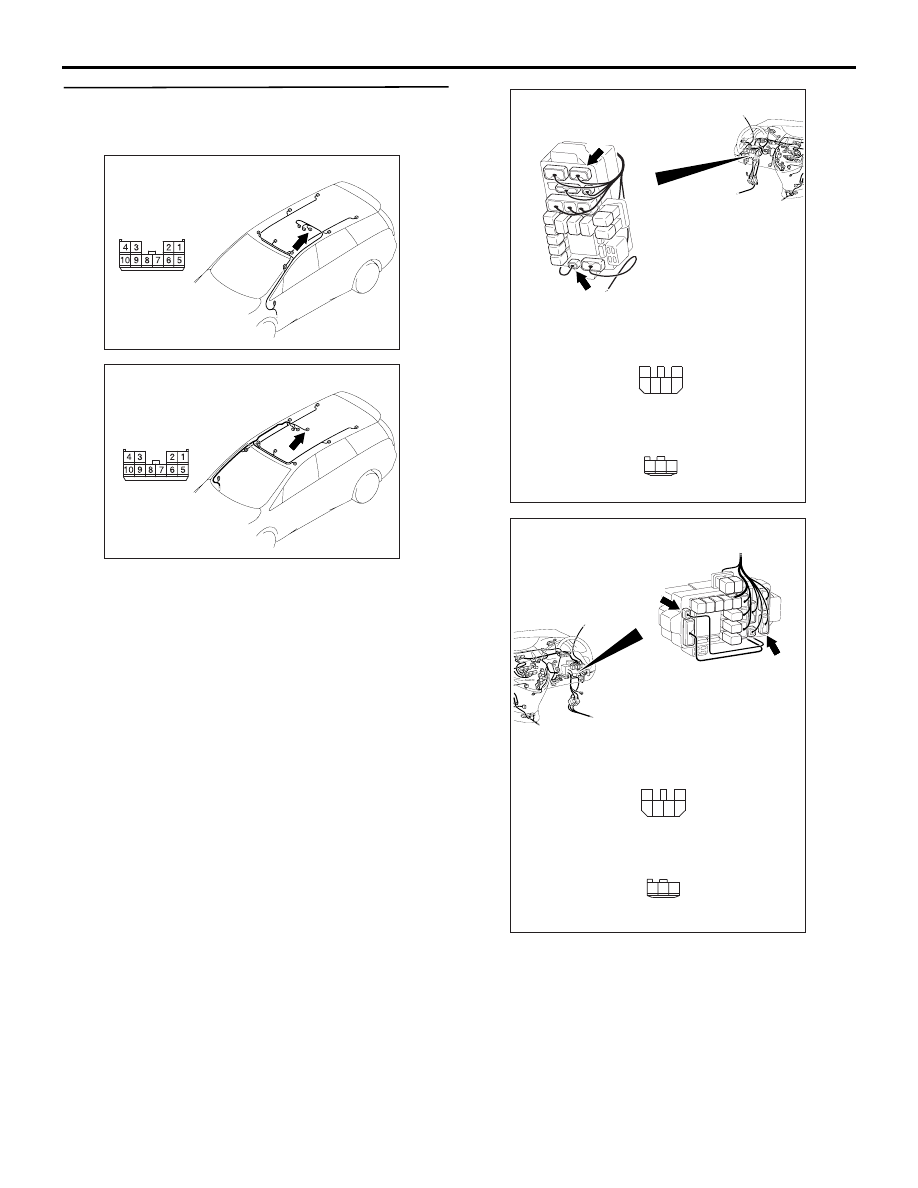

Step 8. Check the wiring harness between E-07
sunroof motor assembly connector terminal No.2
and the ignition switch (IG2).

NOTE:

Prior to the wiring harness inspection, check junction
block connectors C-211 and C-202, and repair if
necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC310651

Connector: E-07 <LHD>

AE

Harness side

AC310655

Connector: E-07 <RHD>

AF

Harness side

AC310624

Connectors: C-202, C-211

AV

<LHD>

Junction block (Front view)

C-211

C-202

C-202

C-211

Harness side

Harness side

4

6 5

3

2

1

3

1

2

AC310619

Connectors: C-202, C-211

AV

<RHD>

Junction block (Front view)

C-211

C-202

C-202

C-211

Harness side

Harness side

4

6 5

3

2

1

3

1

2

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-192

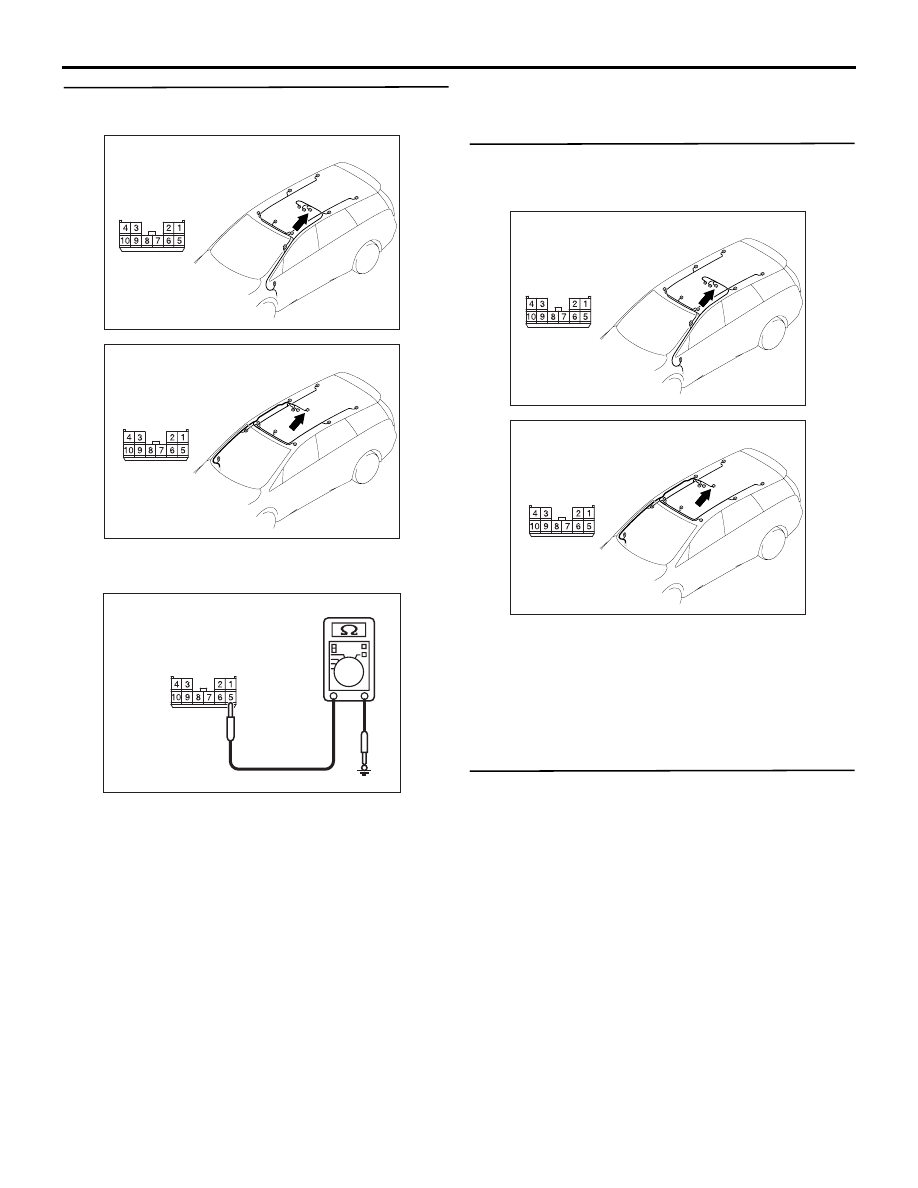

Step 9. Resistance measurement at the E-07
sunroof motor assembly connector.

(1) Disconnect the sunroof motor assembly

connector, and measure at the harness side.

(2) Check the resistance between E-07 sunroof

motor assembly connector terminal No.5 and
body earth.

OK: 2

 or less

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Go to Step 10.

Step 10. Check the wiring harness between E-07
sunroof motor assembly connector terminal No.5
and body earth.

• Check body earth line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 11. Retest the system.
The sunroof assembly should now work normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the sunroof motor assembly.

AC310651

Connector: E-07 <LHD>

AE

Harness side

AC310655

Connector: E-07 <RHD>

AF

Harness side

AC301541HW

Connector E-07
(Harness side)

AC310651

Connector: E-07 <LHD>

AE

Harness side

AC310655

Connector: E-07 <RHD>

AF

Harness side
