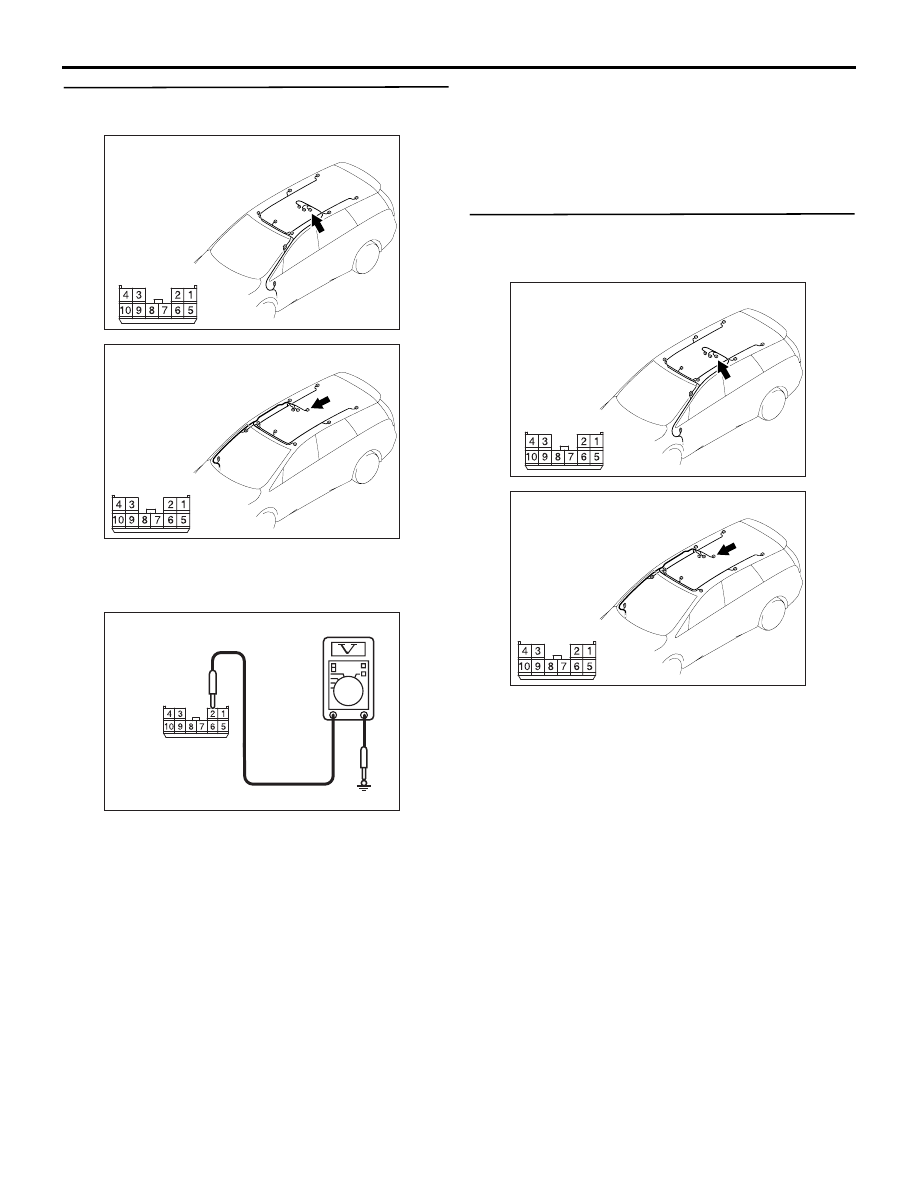

DIAGNOSTIC TROUBLE CODE PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-49

(2) Voltage between E-07 sunroof motor assembly

connector terminal No.1 and body earth

OK: Battery positive voltage

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

AC209365

AC209365LK

CONNECTOR E-07
(HARNESS SIDE)

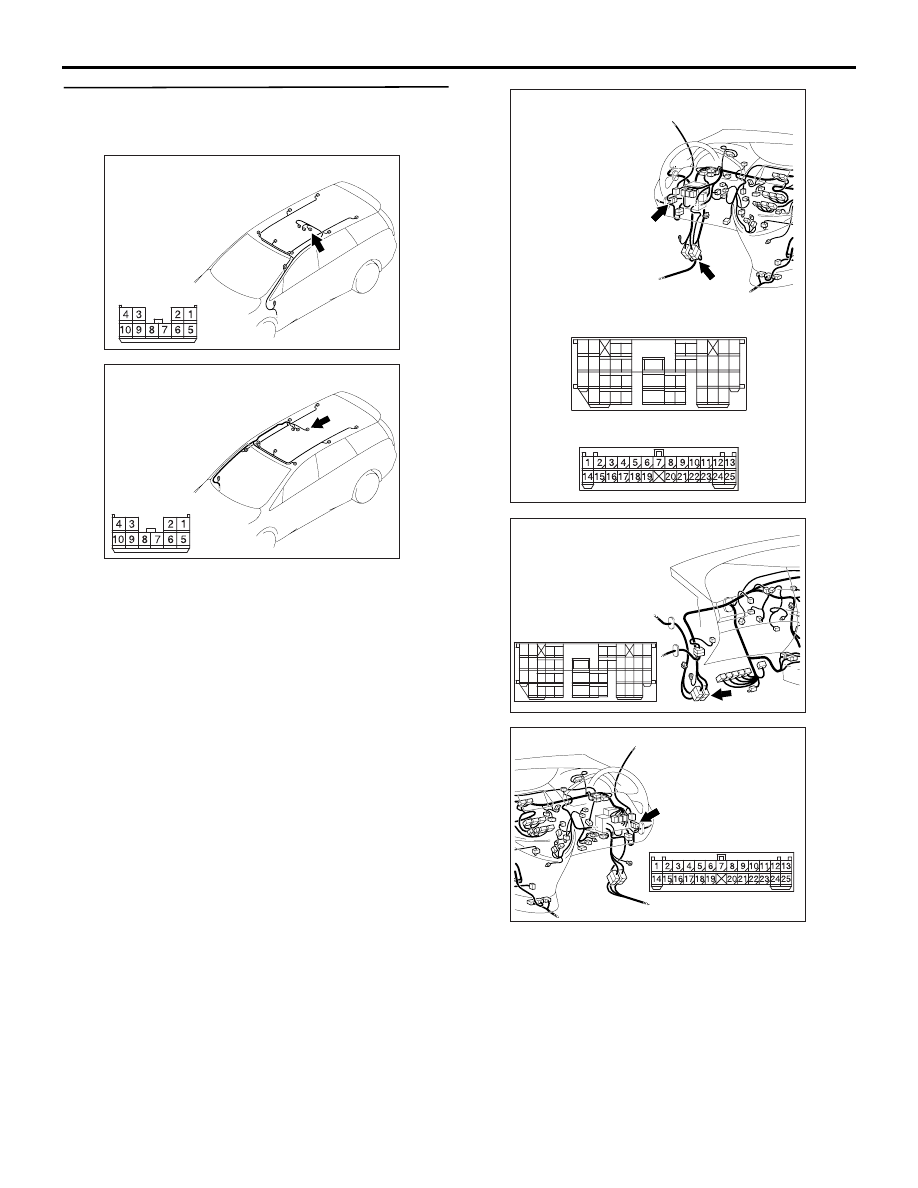

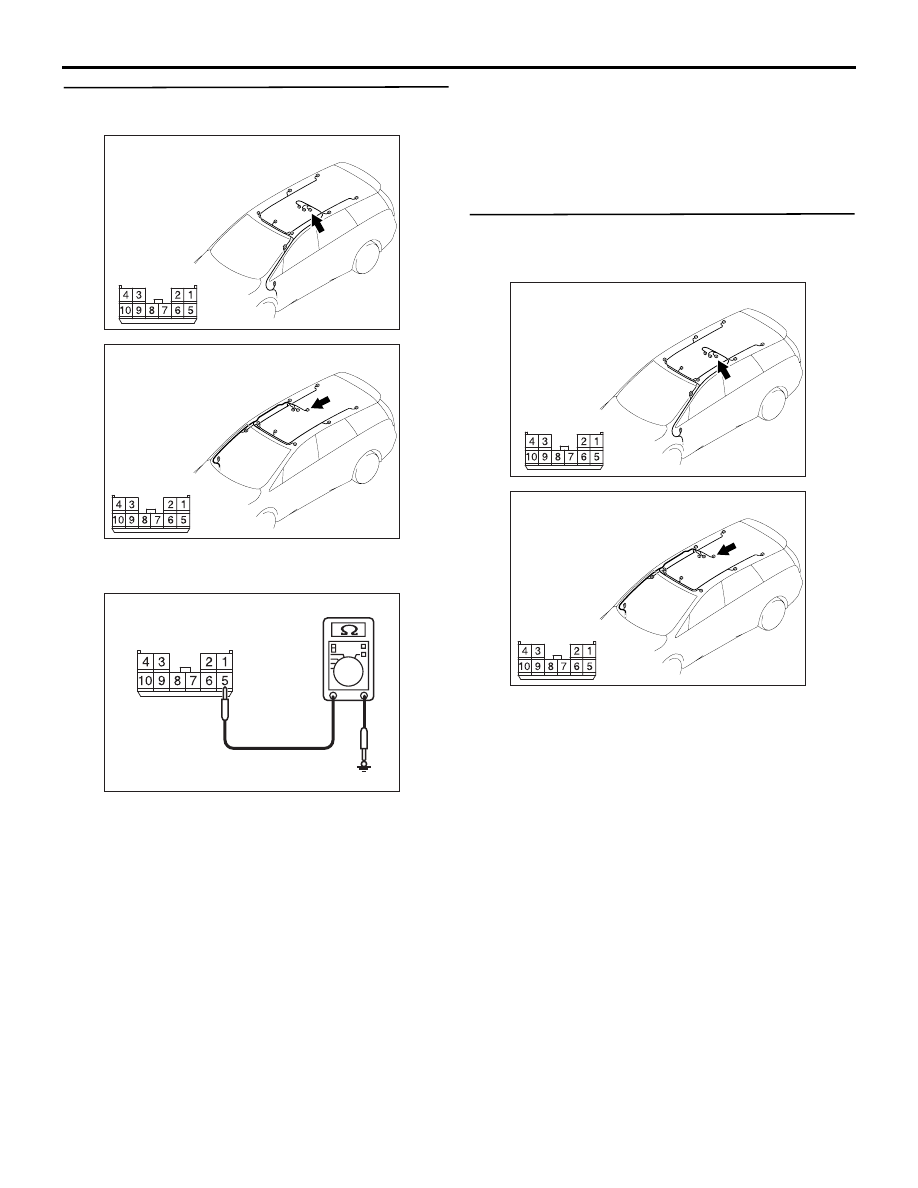

DIAGNOSTIC TROUBLE CODE PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-50

Step 5. Check the wiring harness between E-07
sunroof motor assembly connector terminal No.1
and fusible link (5).

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-124, C-128, and repair if
necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC310651

AB

Connector: E-07 <LHD>

Harness side

AC310655

AC

Connector: E-07 <RHD>

Harness side

AC310614

AV

Connectors: C-124, C-128 <LHD>

C-124

C-128

C-124

C-128

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

AC310628AK

Connector: C-124 <RHD>

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

AC310631AM

Connector: C-128 <RHD>

DIAGNOSTIC TROUBLE CODE PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-51

Step 6. Voltage measurement at E-07 sunroof
motor assembly connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch to the ON position.

(3) Voltage between E-07 sunroof motor assembly

connector terminal No.2 and body earth

OK: Battery positive voltage

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Go to Step 7.

Step 7. Check the wiring harness between E-07
sunroof motor assembly connector terminal No.2
and ignition switch (IG2).

• Check the power supply line to the ignition switch

(IG2) for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP

− 00, How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC310651

AB

Connector: E-07 <LHD>

Harness side

AC310655

AC

Connector: E-07 <RHD>

Harness side

AC310507 CH

Connector E-07
(harness side)

AC310651

AB

Connector: E-07 <LHD>

Harness side

AC310655

AC

Connector: E-07 <RHD>

Harness side

DIAGNOSTIC TROUBLE CODE PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-52

Step 8. Resistance measurement at E-07 sunroof
motor assembly connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Continuity between E-07 sunroof motor assembly

connector terminal No.5 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Go to Step 9.

Step 9. Check the wiring harness between E-07
sunroof motor assembly connector terminal No.5
and body earth.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP

− 00, How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC310651

AB

Connector: E-07 <LHD>

Harness side

AC310655

AC

Connector: E-07 <RHD>

Harness side

AC310506

Connector E-07
(Harness side)

BH

AC310651

AB

Connector: E-07 <LHD>

Harness side

AC310655

AC

Connector: E-07 <RHD>

Harness side
