Mitsubishi Grandis. Manual - part 2

GENERAL INFORMATION

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-5

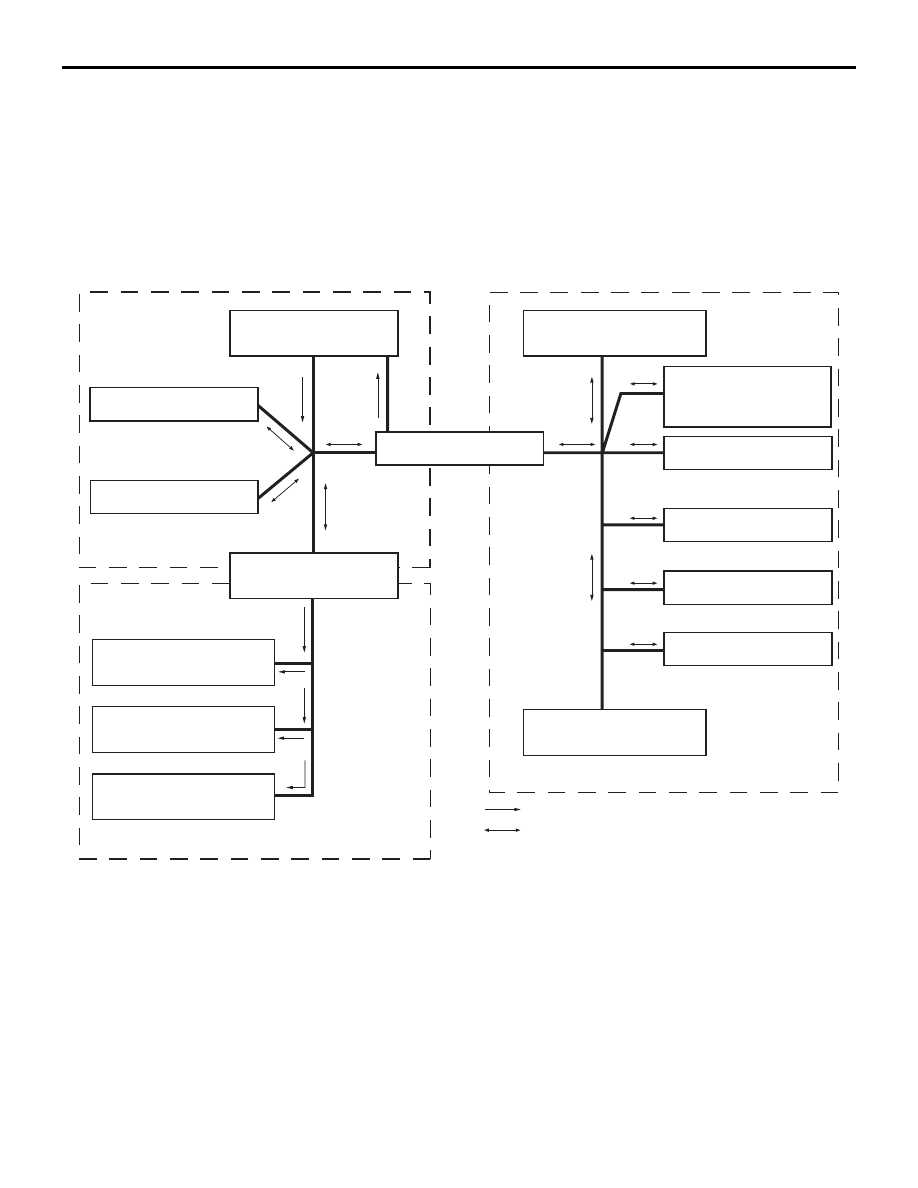

GENERAL INFORMATION

M1549000100522

The exclusive signal lines for transmitting the
multi-distribution data are connected as follows
between the ETACS-ECU, column switch
(incorporated inside the column-ECU), front-ECU,
power window main switch (incorporated inside the
power window-ECU), power window sub switches
(incorporated inside the power window-ECU), and
sunroof motor assembly for internal communication.

AC311854

ETACS-ECU

A/C-ECU

SRS-ECU

Combination meter

ABS-ECU <without ASC>

ASC-ECU <with ASC>

Centre display

Steering wheel sensor

Engine-A/T-ECU <A/T>

Engine-ECU <M/T>

Sunroof motor assembly

Power window main switch

Power window sub switch
(Front)

Power window sub switch
(Rear LH)

Power window sub switch
(Rear RH)

Column switch

Front-ECU

AB

: Bidirectional communication

: Unidirectional communication

CAN communication

SWS communication

Communication

between doors

or

or

GENERAL INFORMATION

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-6

BUZZER
LAMP REMINDER BUZZER FUNCTION

When the ignition key is removed and then the
driver's door is opened with turning ON the tail lamp
or the headlamp, the buzzer sounds continuously to
alert the driver that the lamp is still ON.
However, if the tail lamp or the headlamp is turned off
by the headlamp automatic-shutdown off function,
the buzzer does not sound.

AC208400

ON

OFF

ON (Open)

OFF (Closed)

ON (Buzzer
sounds)

OFF (Buzzer
does not sound)

Tail lamp or
headlamp

Driver's
door
switch

Buzzer
output

AC

GENERAL INFORMATION

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-7

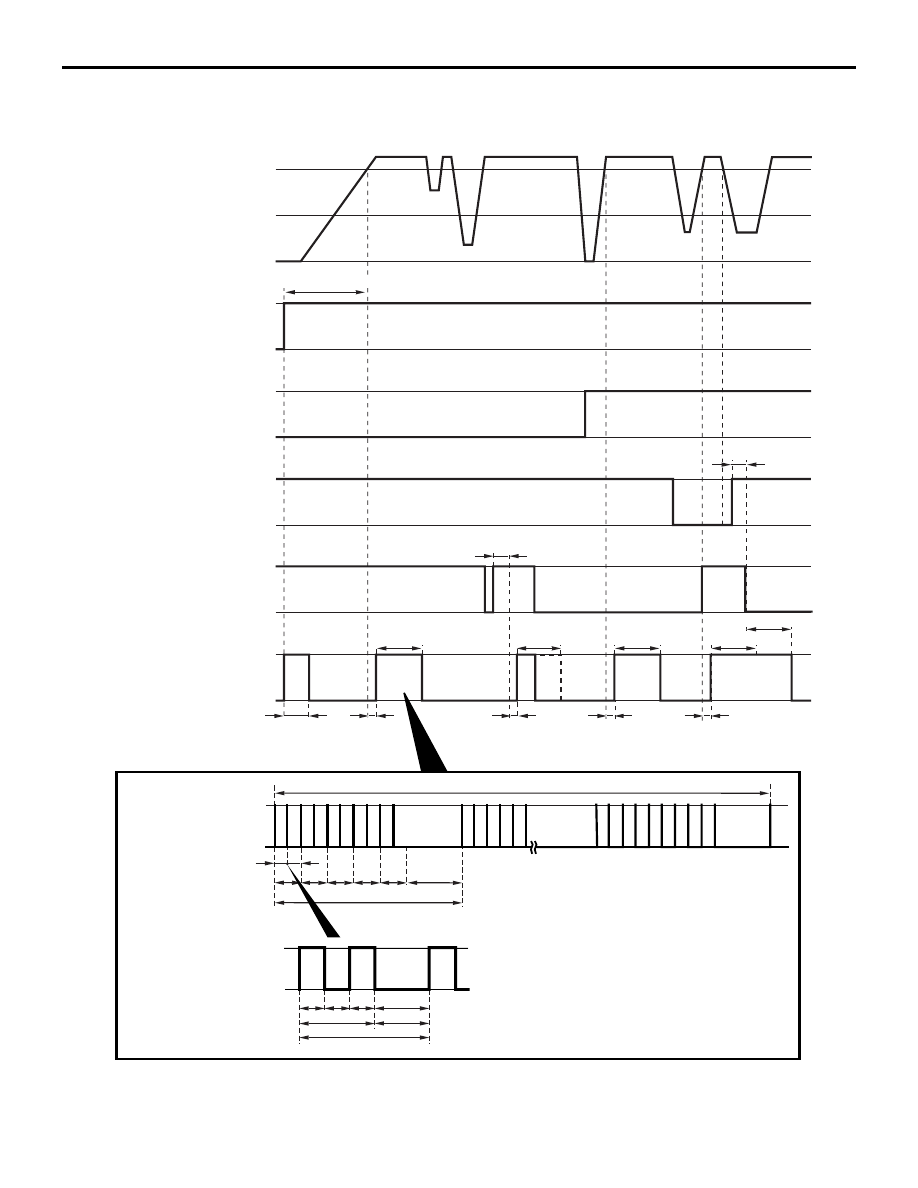

SEAT BELT WARNING BUZZER
FUNCTION

AC309952

ON

OFF

ON (Unfastened)

OFF (Fastened)

Ignition switch (IG1)

Seatbelt switch
(Driver's side)

ON (Unfastened)

OFF (Fastened)

Seatbelt switch
(Passenger's side)

8 km/h

0 km/h

Vehicle speed

3 km/h

ON

OFF

b: approximately 0.5 second

b: approximately 0.5 second

d: 1 second

AB

b

b

b

b

b

b

c

c

a

b

b

d

d

d

d

d

d

e

12 cycles

1 cycle

ON (Buzzer

sounds)

OFF (Buzzer

does not

sound )

Seatbelt buzzer
output

Seatbelt buzzer
output

Seatbelt buzzer
output

ON

OFF

t1

t2: approximately 0.5 second

t1: approximately 0.2 second

t1

t1

t2

Seat occupancy
sensor

ON (Seat
 occupied)

OFF (Seat not
occupied)

60 seconds  or more

e: approximately 3 seconds

a: 6 seconds

c: 10 seconds

12 cycles

12 cycles

12 cycles

12 cycles

12 cycles

GENERAL INFORMATION

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-8

When the ignition switch is turned ON with the
driver’s seat belt unbuckled, the ETACS-ECU
triggers a warning buzzer (repetition of a short beep
sound) for 6 seconds to notify the driver that the seat
belt is not fastened.
When the ETACS-ECU detects that the vehicle
speed signal sent from the combination meter
through CAN communication exceeds 8 km/h and
the driver’s seat belt buckle is not engaged, it will
trigger a warning buzzer (repetition of 5-second ON
and 2.8-second OFF for 12 cycles). The
ETACS-ECU stops the buzzer when the driver’s seat
belt buckle is engaged while the warning cycle is ON.

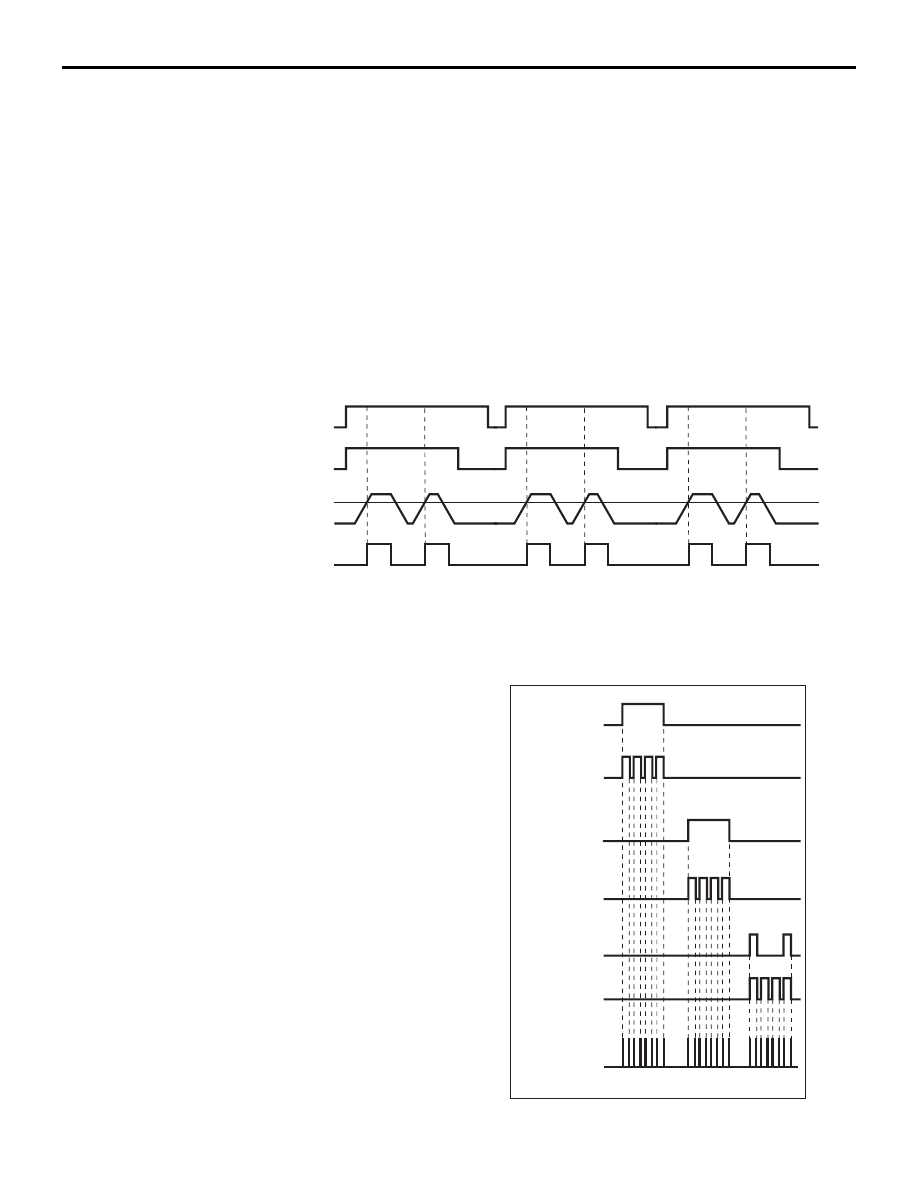

DOOR AJAR WARNING BUZZER
FUNCTION <THE INITIAL CONDITION:
WITH FUNCTION>

If the vehicle speed exceeds 8 km/h with the
door-ajar, the buzzer sounds (pings eight times) to
alert the driver that the door is not properly closed.
NOTE: Availability of the door-ajar alarm function
can be selected by the customize function.

Turn-signal lamp buzzer function <the
initial condition: Without function>

ETACS-ECU buzzer sounds simultaneously with the
blinks of the turn signal lamp and the hazard lamp.

AC309677

ON

(Any one open) ON

OFF

(All closed) OFF

8 km/h

0km/h

Ignition switch

Door switch

Speed vehicle

Buzzer output

(Buzzer sounds)ON

(Buzzer does not sound) OFF

AB

AC309772

Turn signal
  lamp switch



             (RH) OFF

ON

Turn signal
  lamp

 (RH) OFF

ON

OFF

ON

Turn signal

lamp (LH)

Turn signal

   lamp switch

(LH)

OFF

ON

Hazard lamp

switch

OFF

ON

Hazard lamp

OFF

ON

AB

ON (Buzzer

sounds)

OFF (Buzzer

does not sound)

Buzzer
output
