REAR WINDOW DEFOGGER AND HEATED DOOR MIRROR

CIRCUIT DIAGRAMS

90-133

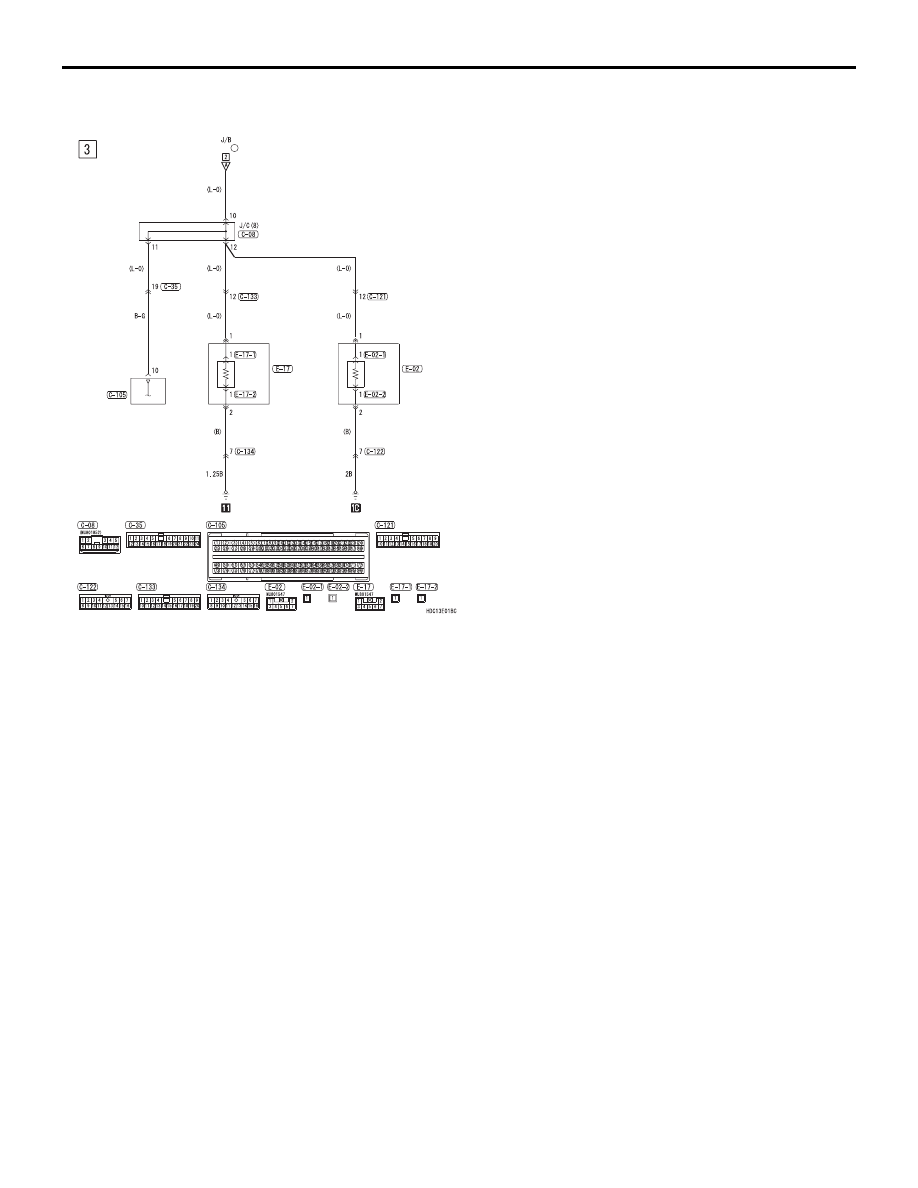

REAR WINDOW DEFOGGER AND HEATED DOOR MIRROR <VEHICLES WITHOUT REAR PANEL
POWER WINDOW (RHD)> (CONTINUED)

MIRROR
HEATER

ENGINE-
ECU

REMOTE
CONTROLLED
MIRROR (LH)

MIRROR
HEATER

REMOTE
CONTROLLED
MIRROR (RH)

(FUSE     )

19

REAR WINDOW DEFOGGER AND HEATED DOOR MIRROR

CIRCUIT DIAGRAMS

90-134

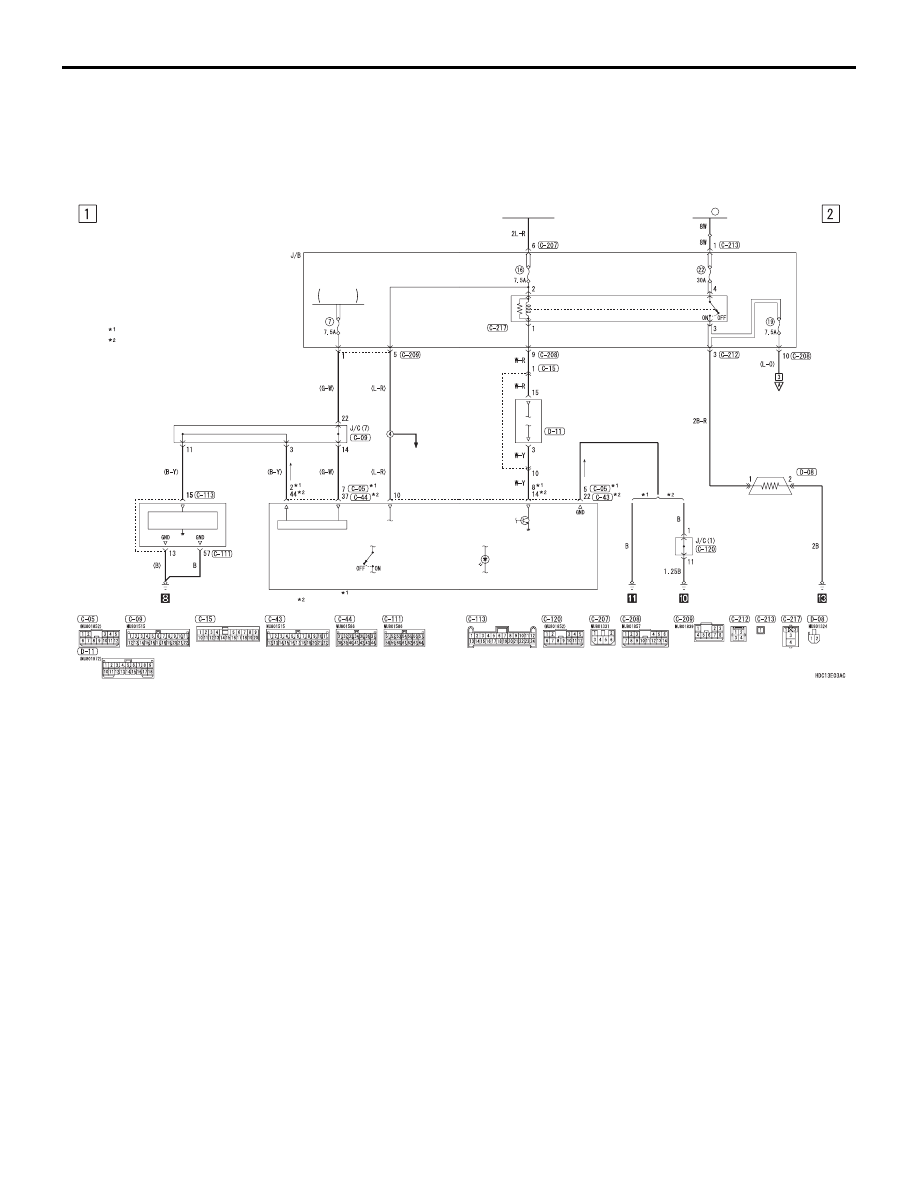

REAR WINDOW DEFOGGER AND
HEATED DOOR MIRROR <VEHICLES
WITH REAR PANEL POWER WINDOW
(LHD)>

M1901027800364

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

FUSIBLE
LINK

20

IGNITION
SWITCH (IG2)

ETACS-ECU

TAIL LAMP
RELAY

REAR WINDOW
DEFOGGER

COMBINATION
METER

ILLUMINATION
CONTROL CIRCUIT

AUTOMATIC
AIR CONDITIONER

ILL

REAR
PANEL
POWER
WINDOW-ECU

REAR
WINDOW
DEFOGGER
IND

REAR
WINDOW
DEFOGGER
SWITCH

REAR
WINDOW
DEFOGGER
RELAY

NOTE

:

:

VEHICLES WITHOUT AUTOMATIC
AIR CONDITIONER
VEHICLES WITH AUTOMATIC
AIR CONDITIONER

A/C SWITCH MODULE
A/C-ECU

REAR WINDOW DEFOGGER AND HEATED DOOR MIRROR

CIRCUIT DIAGRAMS

90-135

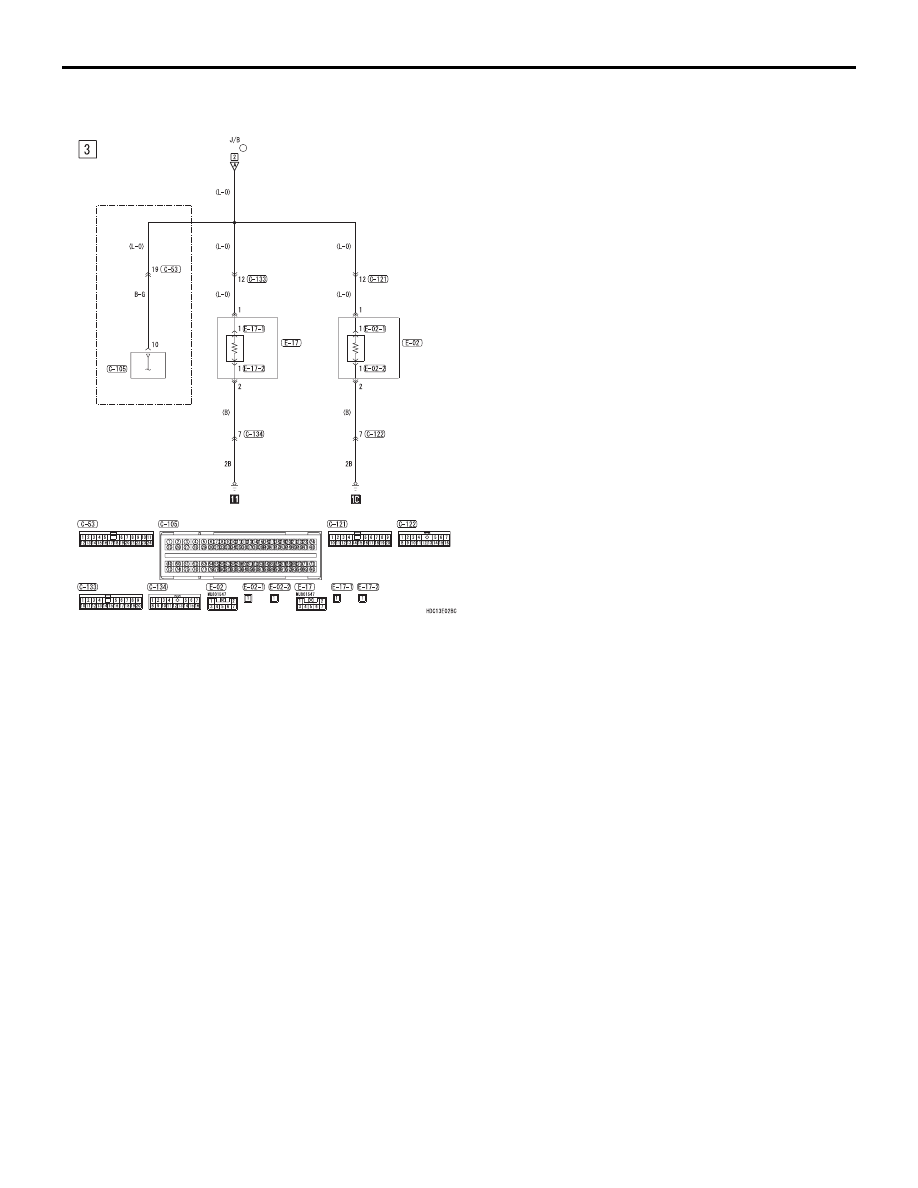

REAR WINDOW DEFOGGER AND HEATED DOOR MIRROR <VEHICLES WITH REAR PANEL POWER
WINDOW (LHD)> (CONTINUED)

MIRROR
HEATER

ENGINE-
ECU

<EURO5>

REMOTE
CONTROLLED
MIRROR (LH)

MIRROR
HEATER

REMOTE
CONTROLLED
MIRROR (RH)

(FUSE     )

19

REAR WINDOW DEFOGGER AND HEATED DOOR MIRROR

CIRCUIT DIAGRAMS

90-136

REAR WINDOW DEFOGGER AND
HEATED DOOR MIRROR <VEHICLES
WITH REAR PANEL POWER WINDOW
(RHD)>

M1901027800375

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

FUSIBLE
LINK

20

IGNITION
SWITCH (IG2)

ETACS-ECU

TAIL LAMP
RELAY

REAR WINDOW
DEFOGGER

COMBINATION
METER

ILLUMINATION
CONTROL CIRCUIT

AUTOMATIC
AIR CONDITIONER

ILL

REAR
PANEL
POWER
WINDOW-ECU

REAR
WINDOW
DEFOGGER
IND

REAR
WINDOW
DEFOGGER
SWITCH

REAR
WINDOW
DEFOGGER
RELAY

NOTE

:

:

VEHICLES WITHOUT AUTOMATIC
AIR CONDITIONER
VEHICLES WITH AUTOMATIC
AIR CONDITIONER

A/C SWITCH MODULE
A/C-ECU
