HEADLAMP MANUAL LEVELLING SYSTEM

CIRCUIT DIAGRAMS

90-49

HEADLAMP MANUAL LEVELLING SYSTEM

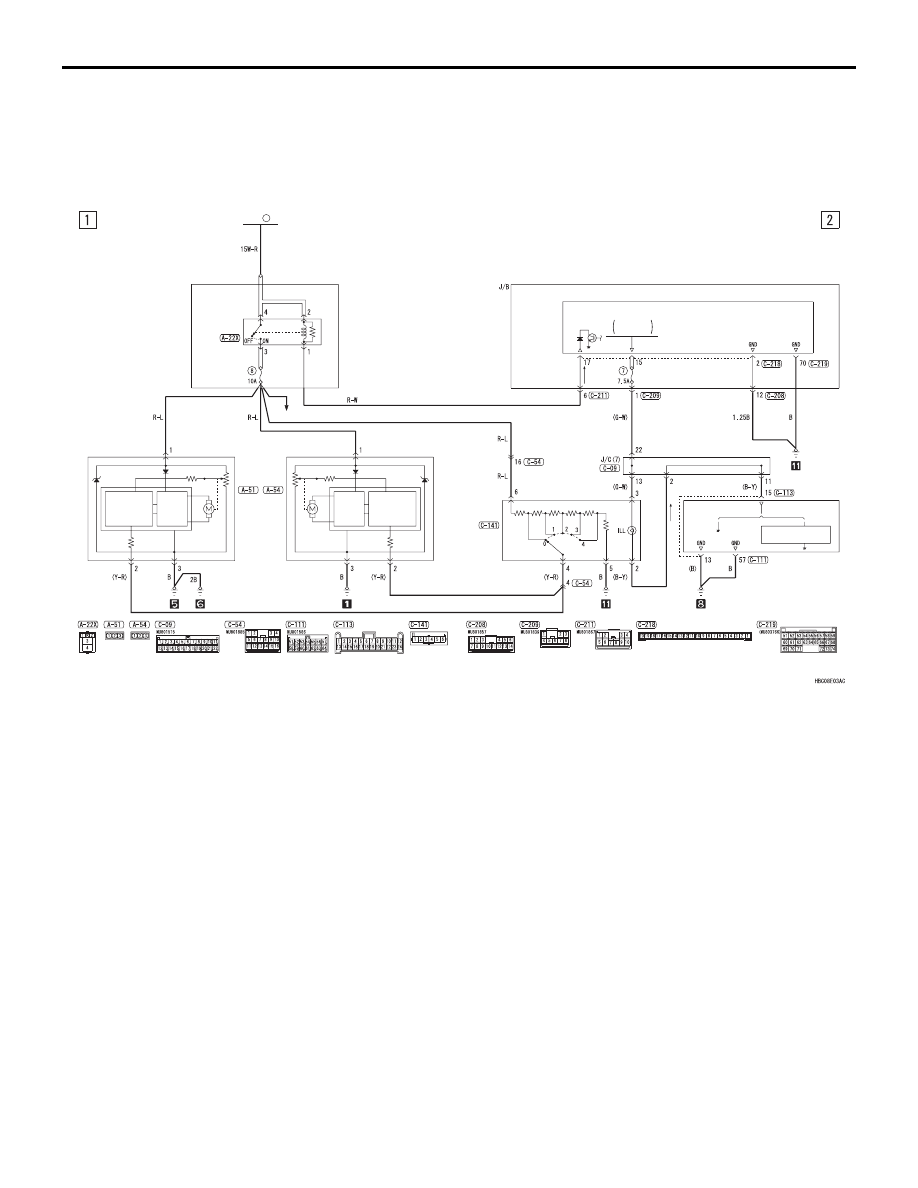

HEADLAMP MANUAL LEVELLING
SYSTEM <LHD (VEHICLES WITHOUT
DAYTIME RUNNING LIGHT)>

M1901025301225

VOLTAGE
COMPARISON
CIRCUIT

MOTOR
DRIVE
CIRCUIT

MOTOR
DRIVE
CIRCUIT

VOLTAGE
COMPARISON
CIRCUIT

HEADLAMP
LEVELLING
UNIT

(LH)

(RH)

FUSIBLE
LINK

23

HEADLAMP
RELAY (LO)

RELAY
BOX

COMBINATION
METER

HEADLAMP
LEVELLING
SWITCH

ETACS-
ECU

TAIL LAMP
RELAY

J/B SIDE

HEADLAMP

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

ILLUMINATION
CONTROL CIRCUIT

VEHICLES WITHOUT
RHEOSTAT

VEHICLES WITH
RHEOSTAT

CPU

CPU

HEADLAMP MANUAL LEVELLING SYSTEM

CIRCUIT DIAGRAMS

90-50

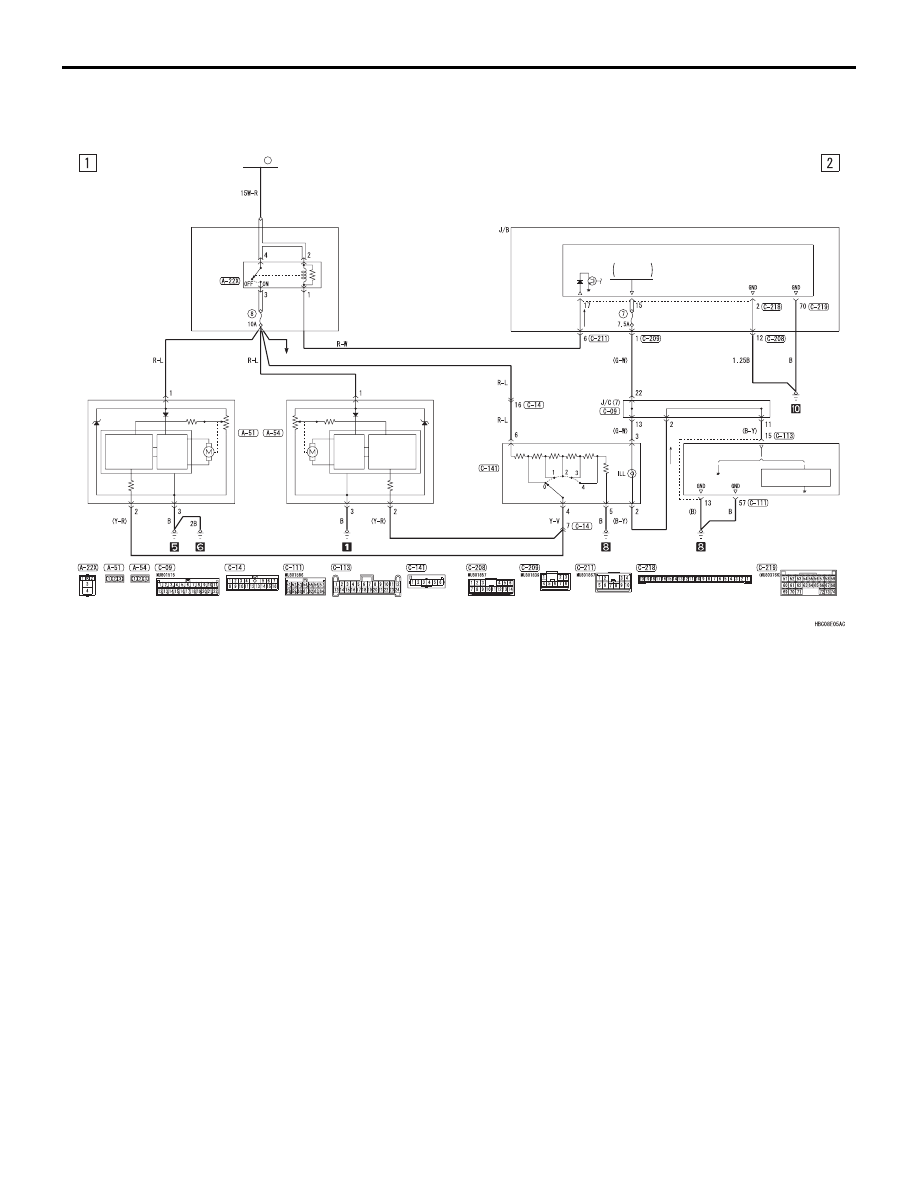

HEADLAMP MANUAL LEVELLING
SYSTEM <LHD (VEHICLES WITH
DAYTIME RUNNING LIGHT)>

M1901025301236

VOLTAGE
COMPARISON
CIRCUIT

MOTOR
DRIVE
CIRCUIT

MOTOR
DRIVE
CIRCUIT

VOLTAGE
COMPARISON
CIRCUIT

HEADLAMP
LEVELLING
UNIT

(LH)

(RH)

FUSIBLE
LINK

23

HEADLAMP
RELAY (LO)

RELAY
BOX

COMBINATION
METER

HEADLAMP
LEVELLING
SWITCH

ETACS-
ECU

TAIL LAMP
RELAY

J/B SIDE

HEADLAMP

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

ILLUMINATION
CONTROL CIRCUIT

VEHICLES WITHOUT
RHEOSTAT

VEHICLES WITH
RHEOSTAT

CPU

CPU

FIELD EFFECT
TRANSISTOR

HEADLAMP MANUAL LEVELLING SYSTEM

CIRCUIT DIAGRAMS

90-51

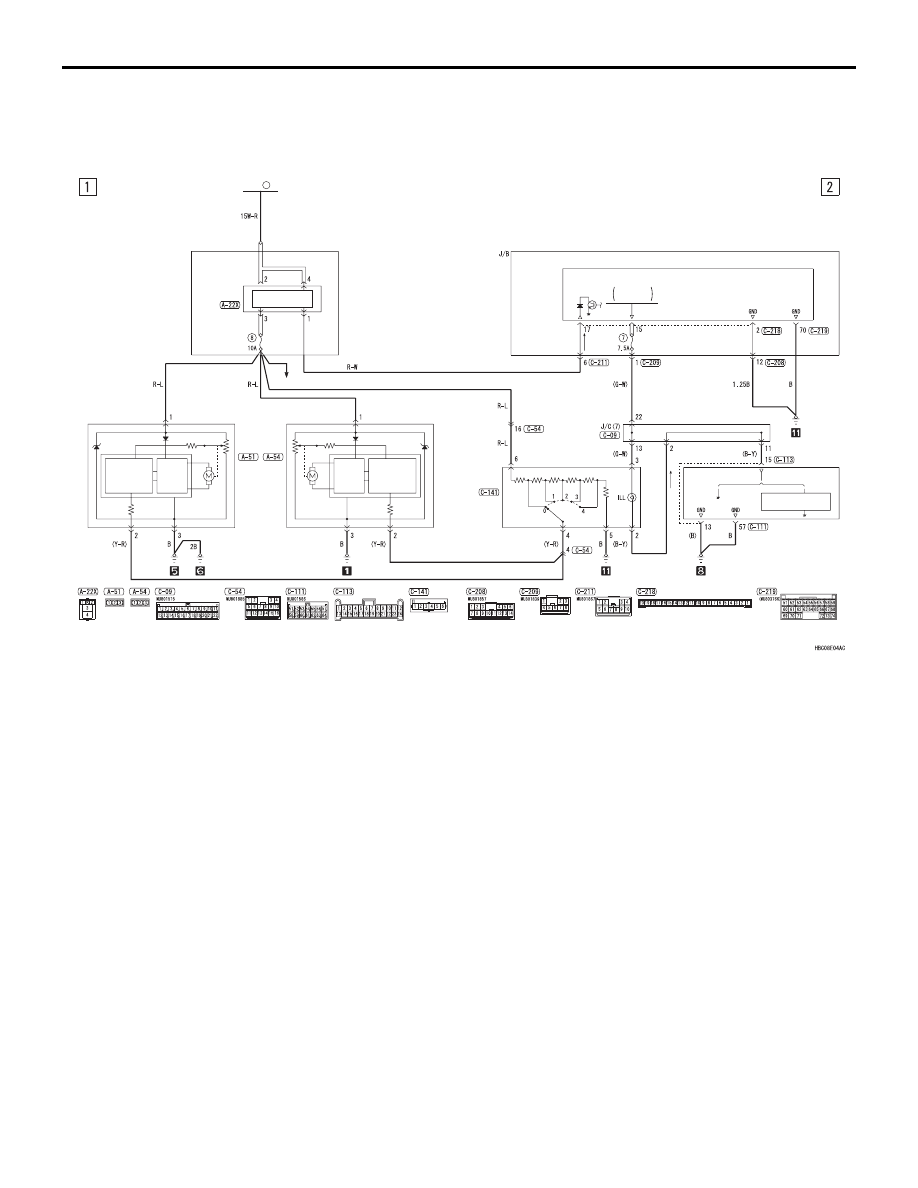

HEADLAMP MANUAL LEVELLING
SYSTEM <RHD>

M1901025301247

VOLTAGE
COMPARISON
CIRCUIT

MOTOR
DRIVE
CIRCUIT

MOTOR
DRIVE
CIRCUIT

VOLTAGE
COMPARISON
CIRCUIT

HEADLAMP
LEVELLING
UNIT

(LH)

(RH)

FUSIBLE
LINK

23

HEADLAMP
RELAY (LO)

RELAY
BOX

COMBINATION
METER

HEADLAMP
LEVELLING
SWITCH

ETACS-
ECU

TAIL LAMP
RELAY

J/B SIDE

HEADLAMP

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

ILLUMINATION
CONTROL CIRCUIT

VEHICLES WITHOUT
RHEOSTAT

VEHICLES WITH
RHEOSTAT

CPU

CPU

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND LIGHTING MONITOR BUZZER

CIRCUIT DIAGRAMS

90-52

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND

LIGHTING MONITOR BUZZER

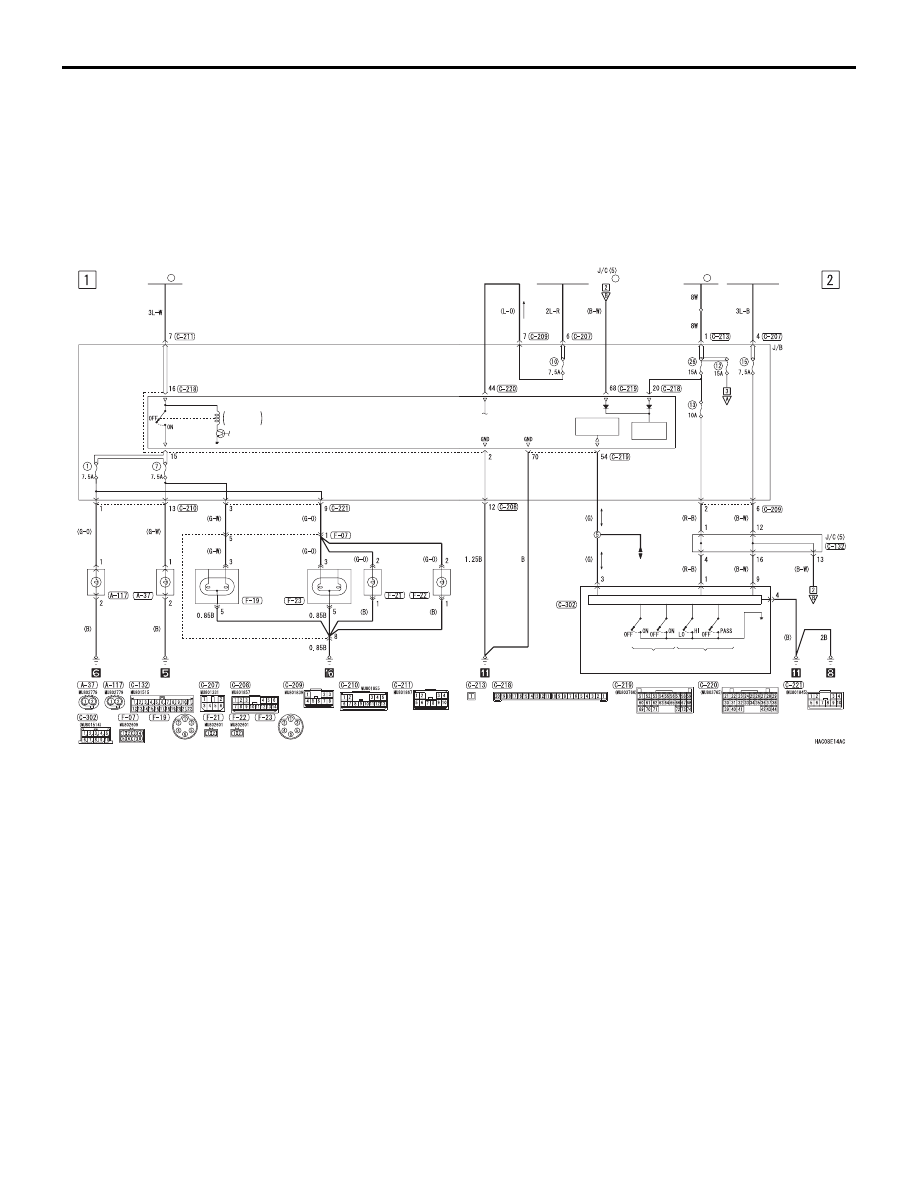

TAIL LAMP, POSITION LAMP, LICENCE
PLATE LAMP AND LIGHTING MONITOR
BUZZER <VEHICLES WITHOUT REAR
BODY (LHD)>

M1901001703281

20

FUSIBLE
LINK

(FUSE     )

15

IGNITION
SWITCH (IG1)

IGNITION
SWITCH (IG2)

LIN
INTERFACE

POWER
SOURCE

COLUMN
SWITCH

COLUMN-ECU

POWER
WINDOWS

(HEAD)

(TAIL)

(DIMMER)(PASSING)

J/B SIDE

3

FUSIBLE
LINK

POSITION
LAMP

(LH)

(RH)

REAR
COMBINATION
LAMP

(TAIL: RH) (TAIL: LH)

LICENCE
PLATE LAMP

(RH)

(LH)

ETACS-ECU

TAIL LAMP
RELAY

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

LIGHTING
SWITCH

DIMMER·PASSING
SWITCH
