CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-13

19

Battery/Alternator

Fusible
link

130

−

Circuit of fusible link No. 20/circuit of
fusible link No. 21 to 25 and fuse No.
26

20

Fusible link No. 19/
Alternator

100

−

Circuit of fuse Nos. 4 and 5 in engine
compartment, circuit of fuse Nos.5, 6,
11, 12, 17, 18, 22, 23 and 26 in
passenger compartment and circuit of
fusible link No.24 in passenger
compartment

21

Battery/Fusible link
No. 19

30

−

ABS-ECU and ASTC-ECU

22

50

−

ABS-ECU and ASTC-ECU

23

120

−

Circuit of fusible link Nos. 2 and 3 in
engine compartment, circuit of fuse
Nos. 6, 7, 8, 9, 10, 11, 12, 13, 14, 15,
17 and 18 in engine compartment and
headlamp relay

24

80

−

Glow control unit <Euro5> and glow
plugs <Except Euro5>

25

80

White

PTC heater 1 and PTC heater 2

26

Fuse

30

Green

Blow-by hose heater

AC407399

Front of
vehicle

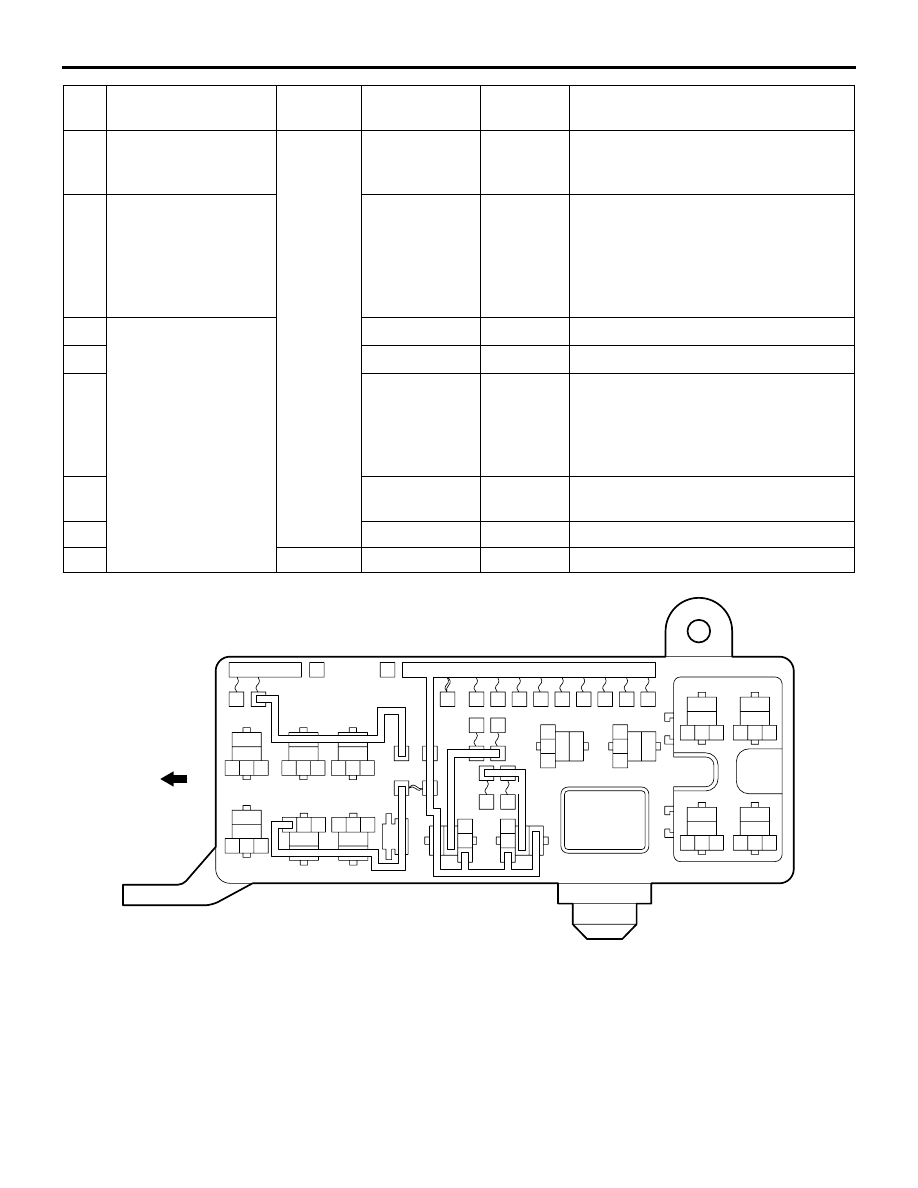

(Relay box in engine compartment)

AE

1

3

4

5

6

7

2

9

8

10 11 12 13 14 15 16 17 18

No. Power source

circuit

Name

Rated
capacity (A)

Housing
colour

Load circuit

AC207459

AE

24

19

23

22

21

20

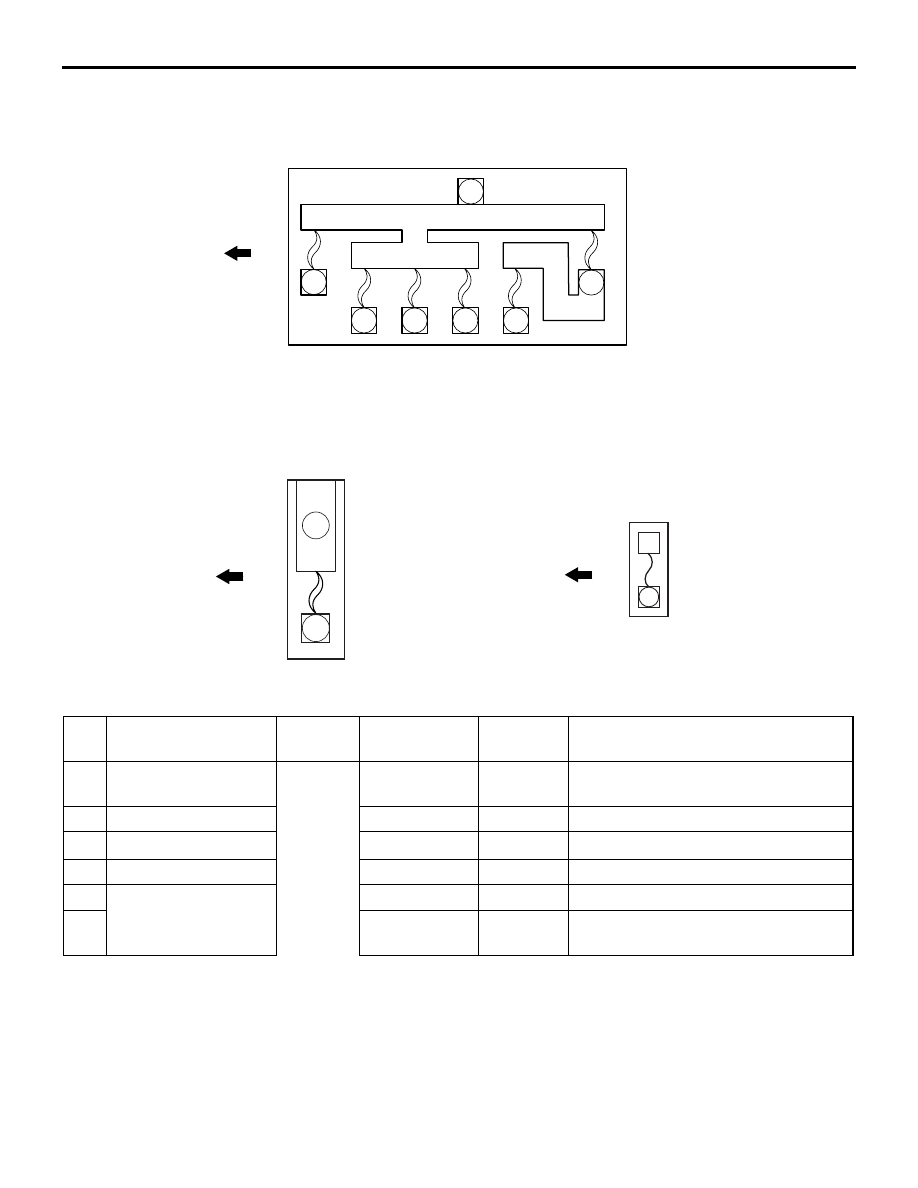

(Fusible link box connected directly to battery positive terminal)

Front of
vehicle

AC510276

AF

25

(Fusible link box connected directly to battery positive terminal)                 (Fuse box)

Front of
vehicle

Front of
vehicle

26

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-14

PASSENGER COMPARTMENT

No. Power source

circuit

Name

Rated
capacity (A)

Housing
colour

Load circuit

1

ETACS-ECU (tail
lamp relay)

Fuse

7.5

Brown

Licence plate lamp, rear combination
lamp (tail: LH) and position lamp (LH)

2

Ignition switch (ACC)

15

Blue

Cigarette lighter

3

Ignition switch (IG1)

10

Red

−

4

Ignition switch (ST)

7.5

Brown

Starter relay

5

Fusible link No.20

20

Yellow

Sunroof motor assembly

6

15

Blue

Accessory socket and spare
connector (for ACC socket)

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-15

7

ETACS-ECU (tail
lamp relay)

7.5

Brown

A/C switch module, A/C-ECU, ASC
switch, combination meter, cruise
control switch, down lamp, glove box
lamp, hazard waning switch,
headlamp levelling switch, heated
seat switch, over drive switch <4A/T>,
position lamp (RH), rear combination
lamp (tail: RH), rear differential lock
switch, rear panel power window
switch, shift switch assembly <5A/T>,
steering wheel audio remote control
switch and steering wheel voice
control switch

8

Ignition switch (ACC)

7.5

Brown

Remote controlled mirror

9

Ignition switch (IG1)

7.5

Brown

Engine-ECU

10

Ignition switch (IG2)

7.5

Brown

ETACS-ECU and Sunroof motor
assembly

11

Fusible link No.20

10

Red

Combination meter, rear fog lamp and
rear fog lamp relay

12

15

Blue

ETACS-ECU and diagnosis connector

13

10

Red

A/C-ECU, clock, column switch,
combination meter, door courtesy
lamp, front room lamp, hands free-
ECU, lighting control sensor, key
reminder switch, multivision display,
radio/CD player, rear room lamp, RV
meter, spare connector (for audio
system) and USB box

14

Ignition switch (ACC)

−

−

−

15

Ignition switch (IG1)

7.5

Brown

ABS-ECU, ASTC-ECU, column
switch, combination meter, ETACS-
ECU, g and yaw rate sensor,
passenger’s air bag cut off indicator,
rear differential lock-ECU, rear panel
power window-ECU, RV meter,
solenoid valve, spare connector (for
trailer), SRS-ECU, steering wheel
sensor and 4WD indicator-ECU

16

Ignition switch (IG2)

7.5

Brown

A/C compressor relay, A/C-ECU, A/C
switch module, blower relay, blow-by
heater relay, condenser fan relay,
heated seat relay, outside/inside air
selection damper control motor, PTC
heater relay and rear window
defogger relay

17

Fusible link No.20

20

Yellow

Heated seat and heated seat switch

18

10

Red

−

No. Power source

circuit

Name

Rated
capacity (A)

Housing
colour

Load circuit

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-16

19

Rear window
defogger relay

7.5

Brown

Remote controlled mirror

20

Ignition switch (ACC)

20

Yellow

ETACS-ECU

21

Ignition switch (IG1)

7.5

Blown

ASTC-ECU, A/T control relay, A/T-
ECU, combination meter, engine-
ECU <M/T>, input shaft speed sensor
<A/T>, multivision display, output
shaft speed sensor <A/T>, rear
combination lamp (back-up) and
SRS-ECU

22

Fusible link No.20

30

Green

Circuit of fuse No. 19 in passenger
compartment and rear window
defogger

23

30

Green

A/C temperature control resister, A/C
switch module and blower motor

24

Fusible
link

40

Green

Power seat assembly

25

Ignition switch (ACC) Fuse

10

Red

Accessory socket relay, A/C-ECU,
clock, ETACS-ECU, RV meter,
multivision display, radio/CD player
and spare connector (for audio
system)

26

Fusible link No.20

15

Blue

Circuit of fuse No. 13 in passenger
compartment and ETACS-ECU

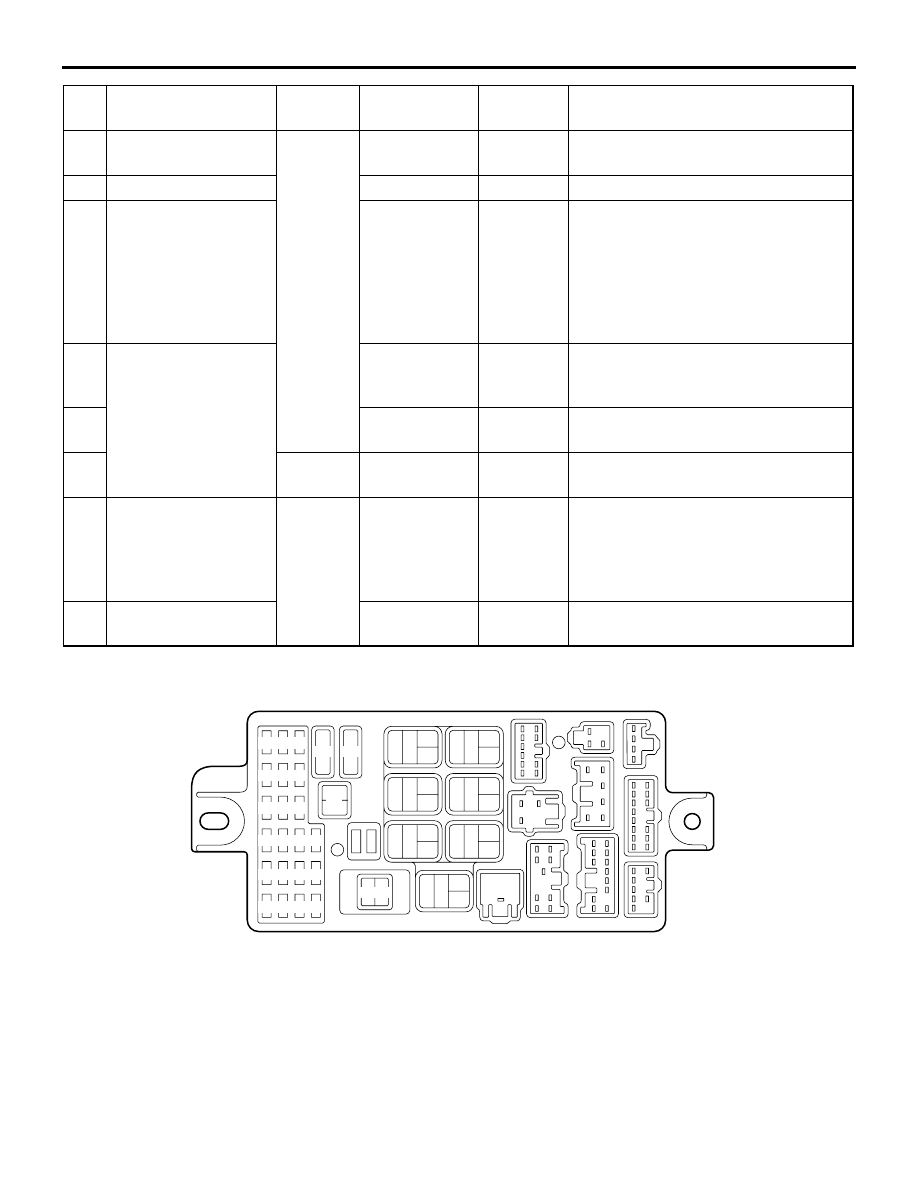

AC500721

AB

4

10

16

5

11

17

6

12

18

7

13

19

8

14

20

9

1

2

3

15

21

23

23

22

24

25

26

(in junction block)

No. Power source

circuit

Name

Rated
capacity (A)

Housing
colour

Load circuit
