TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-21

DIAGNOSIS PROCEDURE

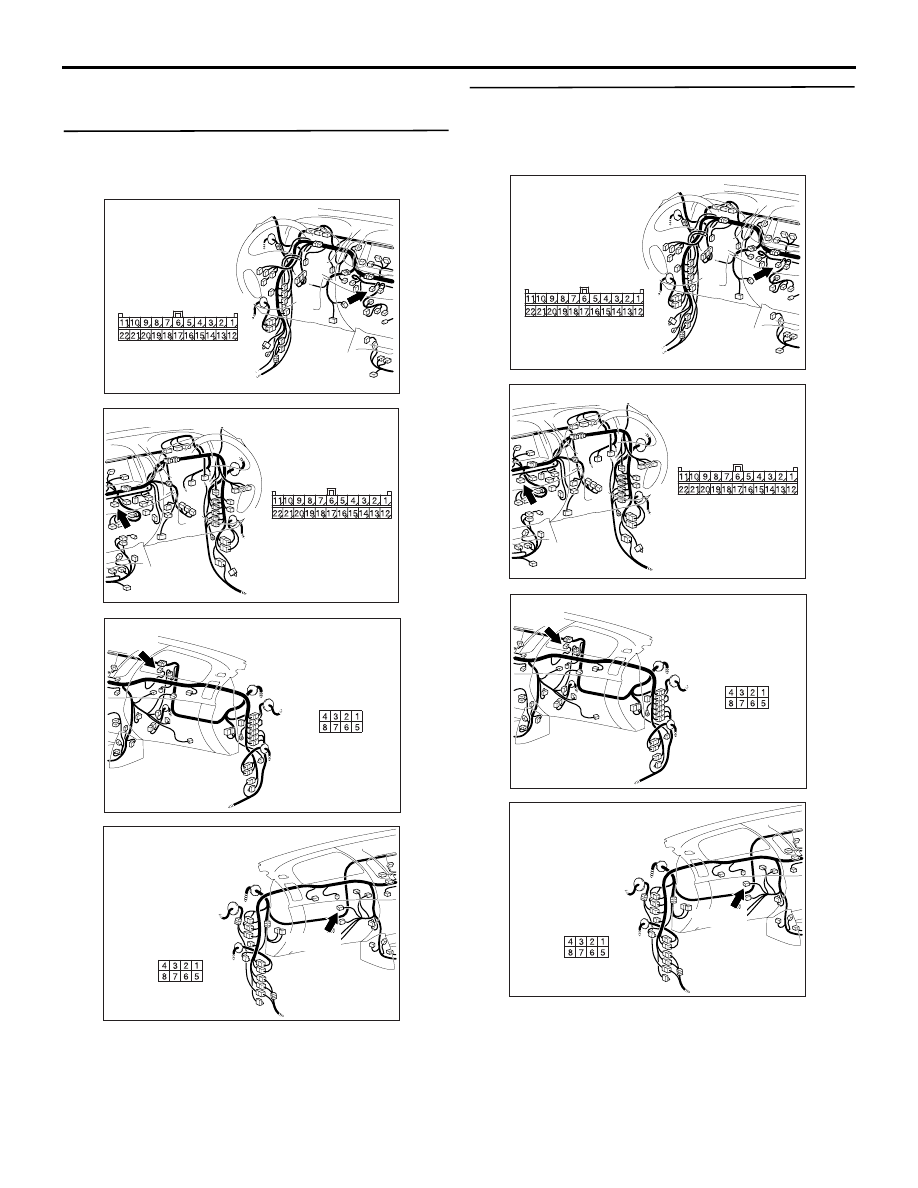

STEP 1. Connector check: C-43 A/C-ECU
connector and C-38 mode selection damper
control motor and potentiometer connector

AC509611AR

Connector: C-43 <LHD>

Harness side

AC509932AS

Harness side

Connector: C-43 <RHD>

AC509613BA

C-38 (B)

Harness side

Connector: C-38 <LHD>

AC509930 AZ

C-38 (B)

Harness side

Connector: C-38 <RHD>

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

STEP 2. Check the wiring harness between C-43
A/C-ECU connector (terminals 12 and 1) and C-38
mode selection damper control motor and
potentiometer connector (terminals 1 and 3).

AC509611AR

Connector: C-43 <LHD>

Harness side

AC509932AS

Harness side

Connector: C-43 <RHD>

AC509613BA

C-38 (B)

Harness side

Connector: C-38 <LHD>

AC509930 AZ

C-38 (B)

Harness side

Connector: C-38 <RHD>

• Check the motor activating lines for open and

short circuit.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the wiring harness.

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-22

STEP 3. Check the mode selection damper
control motor and potentiometer.
Refer to

P.55B-97

.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the mode selection damper control
motor and potentiometer.

STEP 4. M.U.T.-III diagnosis code

Q: Is the diagnosis code set?

YES :

Replace the automatic air conditioner

control panel (A/C-ECU).

NO :

The trouble can be an intermittent
malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction ).

TROUBLE SYMPTOM CHART

M1554005001875

Trouble symptom

Inspection procedure
number

Reference page

Cool air does not come

1

P.55B-23

The blower does not work

2

P.55B-32

The blower air volume cannot be changed

3

P.55B-41

The inside/outside air changeover is impossible

4

P.55B-45

The A/C compressor does not work

5

P.55B-49

The rear window defogger does not work <Vehicles
without rear panel power window>

6

P.55B-55

The rear window defogger does not work <Vehicles with
rear panel power window>

7

P.55B-65

The PTC heater does not work

8

P.55B-72

A/C ECU power supply system

9

P.55B-87

The outlet air temperature can not be changed even if
the amount of solar radiation changes

10

P.55B-87

Condenser fan does not operate

11

Refer to GROUP 55A,
trouble symptom chart

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-23

SYMPTOM PROCEDURES

Inspection Procedure 1: Cool air does not come

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

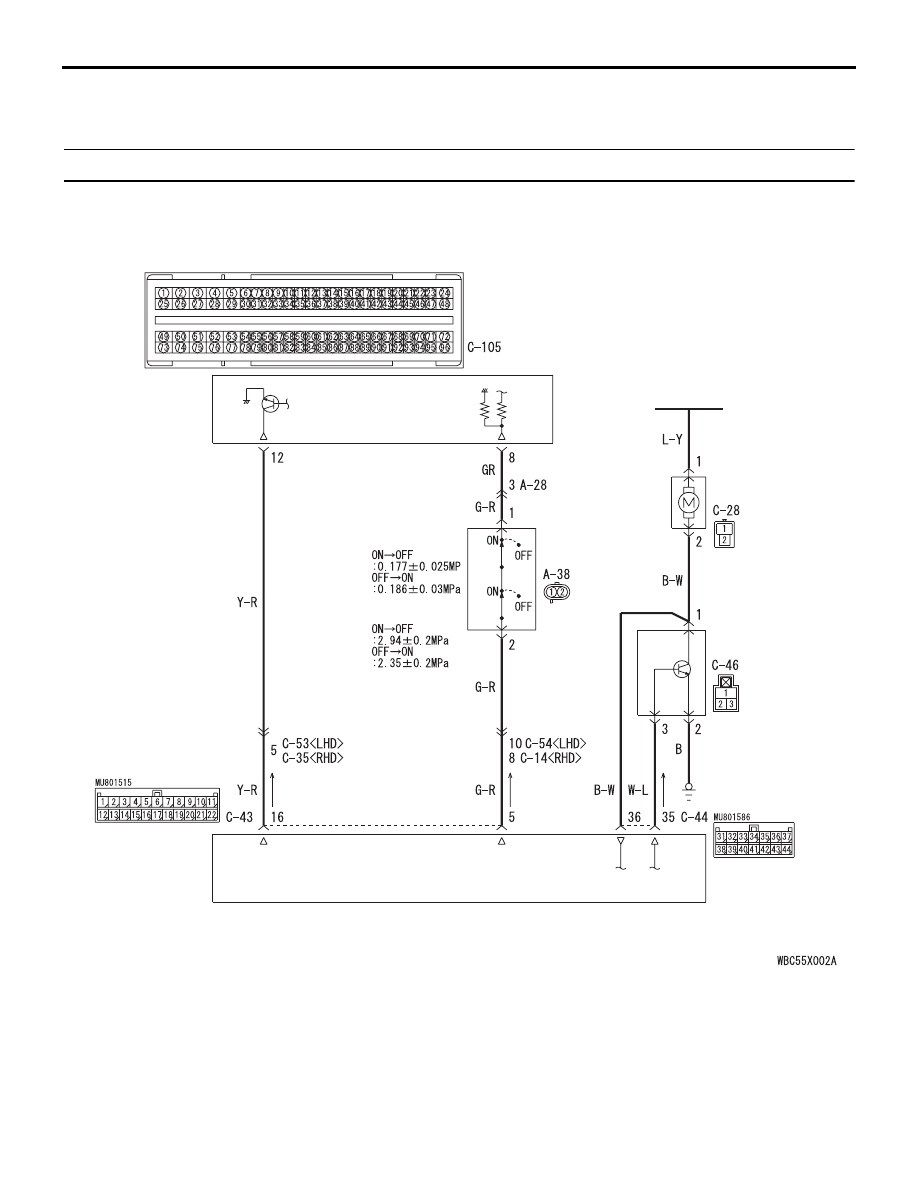

A/C-ECU System Circuit

ENGINE-ECU

A/C-ECU

DUAL
PRESSURE
SWITCH

LOW-PRESSURE
SIDE

HIGH-PRESSURE
SIDE

BLOWER
RELAY

BLOWER
MOTOR

POWER
TRANSISTOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

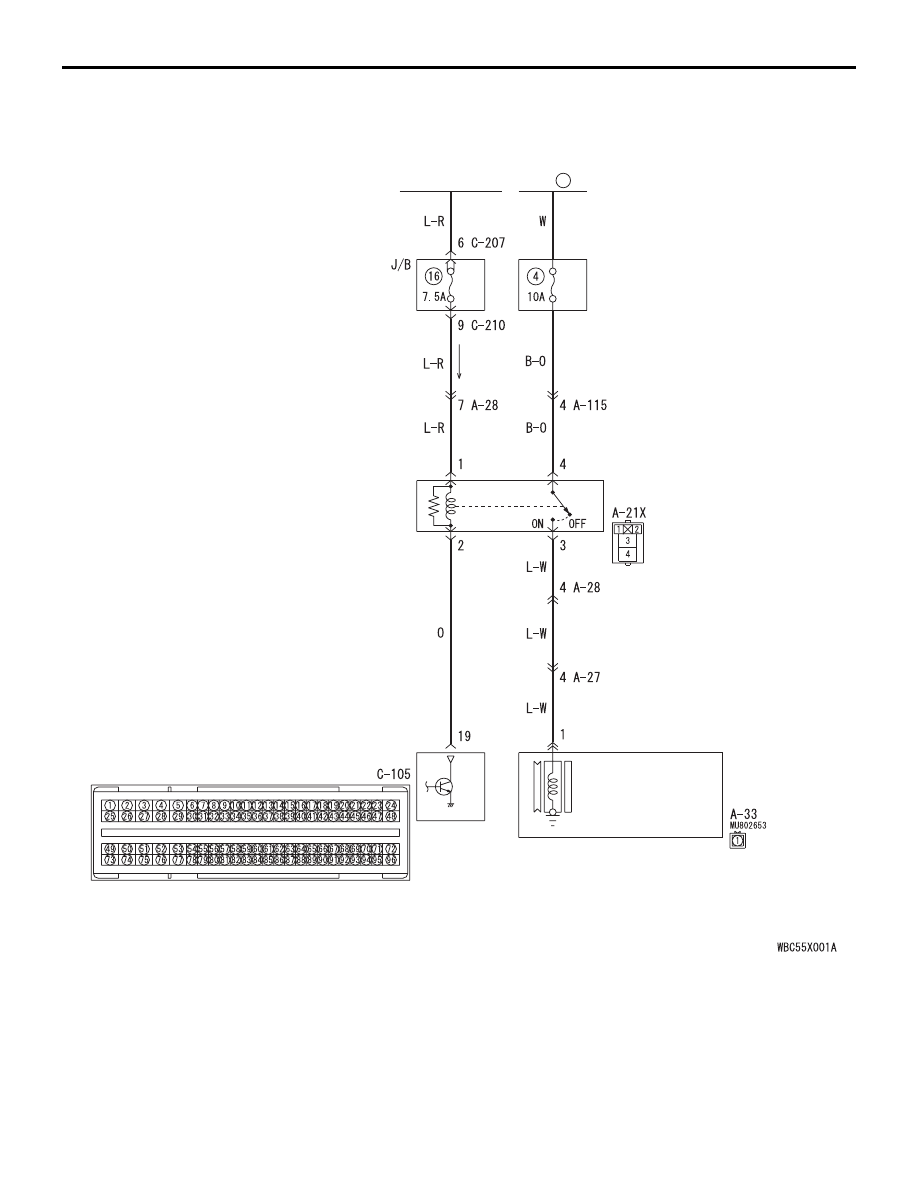

A/C Compressor and Clutch Assembly Circuit

IGNITION
SWITCH (IG2)

RELAY
BOX

A/C COMPRESSOR
RELAY

A/C
COMPRESSOR
AND CLUTCH
ASSEMBLY

ENGINE-ECU

FUSIBLE
LINK

20

A/C
COMPRESSOR
CLUTCH ASSEMBLY

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-24

COMMENTS ON TROUBLE SYMPTOM
The blower system, the compressor system or the
communication system between the engine-ECU
and the A/C-ECU may be defective if there is no cool
air coming from the spit hole.

PROBABLE CAUSES

• Malfunction of air thermo sensor

• Malfunction of dual pressure switch

• Damaged harness wires and connectors

• Malfunction of engine-ECU

• Malfunction of the automatic A/C control panel (A/

C-ECU)
