GENERAL INFORMATION

CONTROLLER AREA NETWORK (CAN)

54C-3

• Steering wheel sensor <vehicles with ASTC>

• G and yaw rate sensor <vehicles with ASTC>

• RV meter <vehicles with RV meter>

• ETACS-ECU

SPECIAL TOOL

CONTROLLER AREA NETWORK (CAN)

54C-4

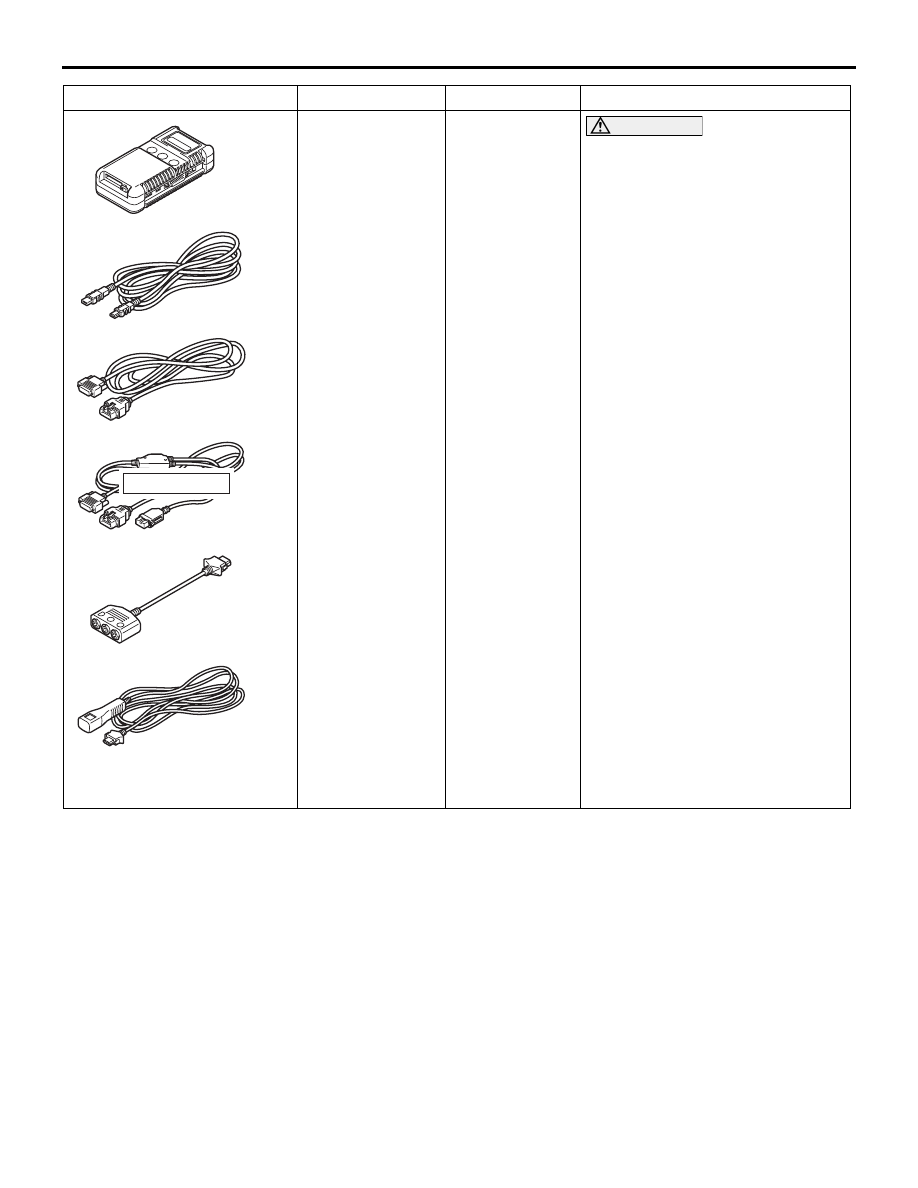

SPECIAL TOOL

M1548304200949

SPECIAL TOOL

CONTROLLER AREA NETWORK (CAN)

54C-5

Tool

Number

Name

Use

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

MB991955

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III sub-
assembly

a. Vehicle

Communicati
on Interface
(V. C. I.)

b. M.U.T.-III

USB cable

c. M.U.T.-III

main harness
A (Vehicles
with CAN
communicatio
n system)

d. M.U.T.-III

main harness
B (Vehicles
without CAN
communicatio
n system)

e. M.U.T.-III

measure
adapter

f. M.U.T.-III

trigger
harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness B
instead, the CAN communication
does not function correctly.
CAN bus diagnosis

MB991223

a

d

c

b

DO NOT USE

BA

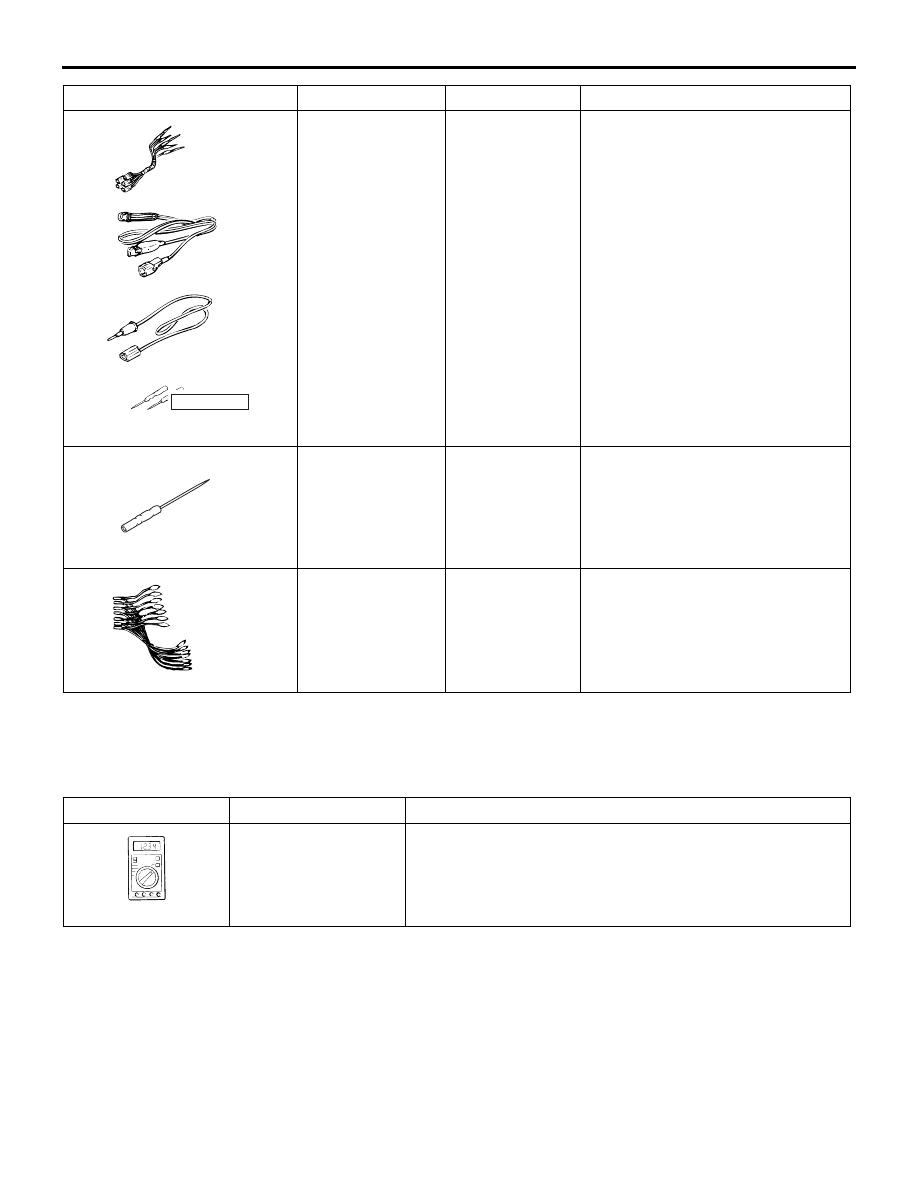

TEST EQUIPMENT

CONTROLLER AREA NETWORK (CAN)

54C-6

TEST EQUIPMENT

M1548304300195

Test equipment

Name

Use

AC000019

Digital multimeter

Checking CAN bus circuit (for resistance and voltage
measurements)

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check

harness

b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally sourced

tester

MB992006

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

MB991709

Wiring harness
set

Checking the ABS-ECU or ASTC-
ECU

Tool

Number

Name

Use
