ETACS

CHASSIS ELECTRICAL

54A-511

<FUNCTION SYSTEM>

SYMPTOM PROCEDURES

Inspection Procedure A-1: When the ignition switch is at the "LOCK" (OFF) position, the functions do
not work normally. Check the battery power supply circuit to the ETACS-ECU.

CAUTION

Whenever the ECU is replaced, ensure that the power supply circuit and the earthing circuit are nor-
mal.

COMMENTS ON TROUBLE SYMPTOM
If this circuit is defective and the ignition switch is at
the "LOCK" (OFF) position, the ETACS-ECU does

not work. In this case, the functions below will be
suspended.

• Lamp reminder function

Symptom

Inspection
procedure
number

Reference
page

Buzzer

Lamp reminder buzzer function does not
work normally.

B-1

P.54A-517

Turn-signal lamp operation sound function
does not work normally.

B-2

P.54A-518

Door ajar warning buzzer function does not
work normally.

B-3

P.54A-519

Seat belt warning buzzer function does not
work normally.

B-4

P.54A-521

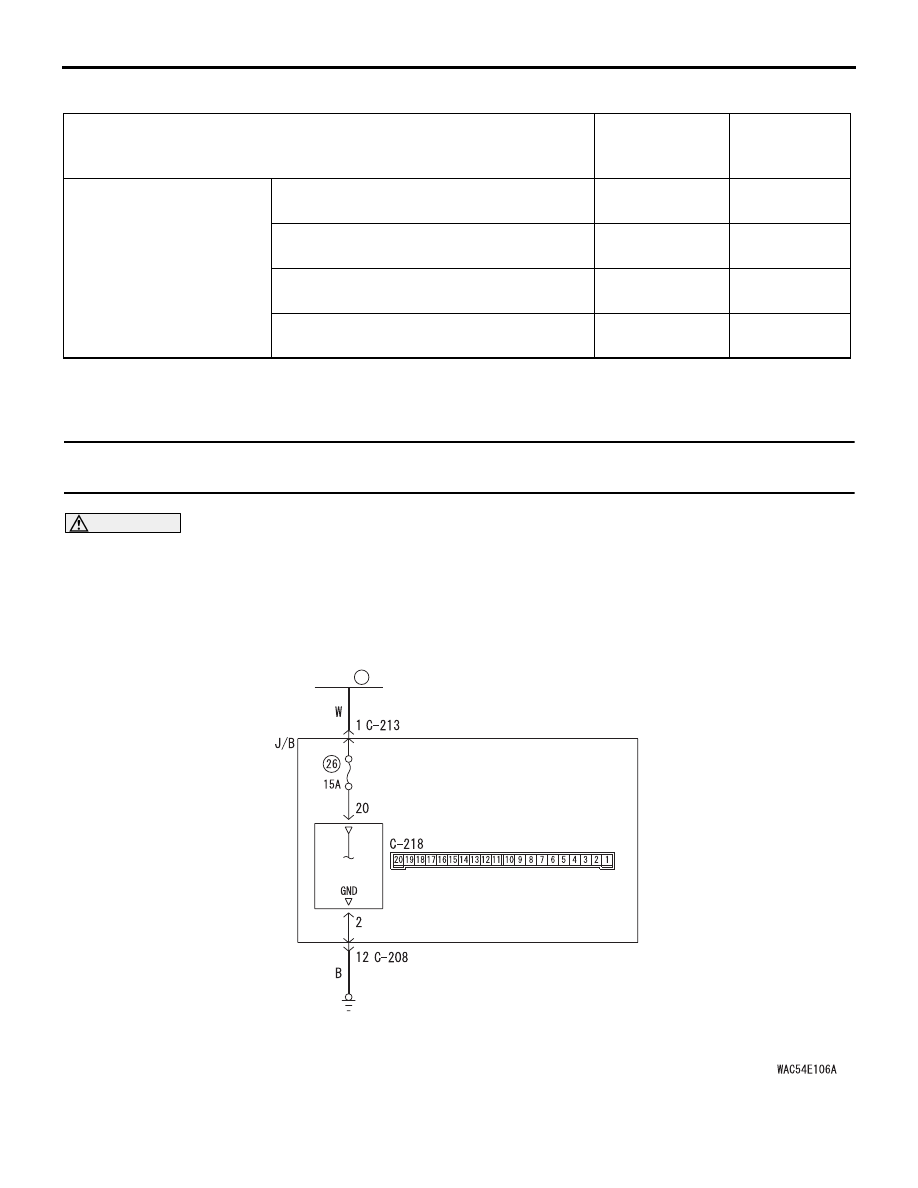

ETACS-ECU Power Source Circuit

ETACS-ECU

FUSIBLE
LINK

20

J/B SIDE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

ETACS

CHASSIS ELECTRICAL

54A-512

• Keyless entry system

However, when the ignition switch is at the ON posi-
tion, the functions below will work.

• Reading diagnosis code and checking input sig-

nal by M.U.T.-III.

• Central door locking

• Headlamp and tail lamp

• Hazard warning lamp

• Room lamps

PROBABLE CAUSES

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list
Check the power supply voltage of the ETACS-ECU.

• Turn the ignition switch to the "LOCK" (OFF)

position

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 2.

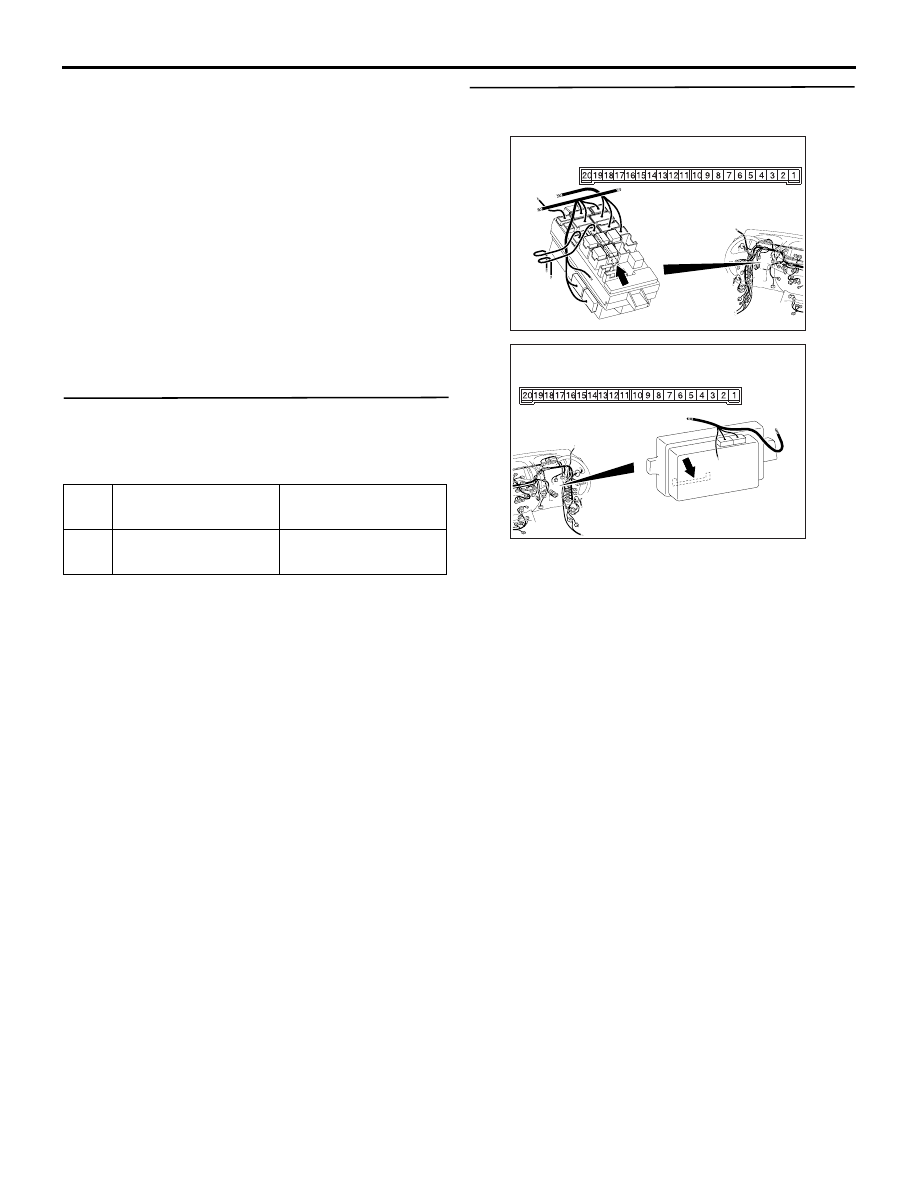

STEP 2. Connector check: C-218 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

Item
No.

Item name

Normal condition

55

Battery
voltage(battery)

System voltage

AC509934

Connector: C-218 <LHD>

AJ

Junction

block

Junction block side

AC509943

Connector: C-218 <RHD>

AC

Junction block

 (Rear view)

Junction block side

ETACS

CHASSIS ELECTRICAL

54A-513

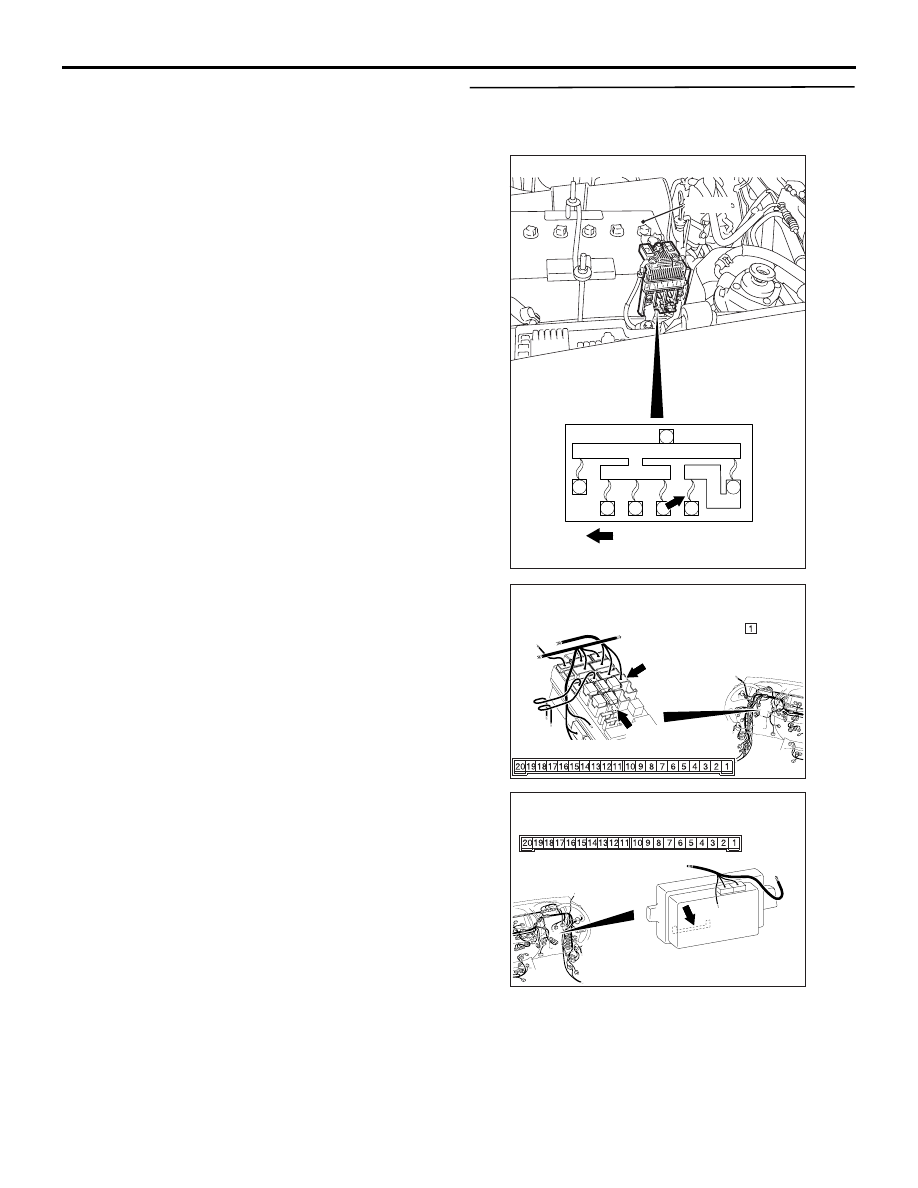

STEP 3. Check the wiring harness between C-218
ETACS-ECU connector terminal No.20 and
fusible link (20).

NOTE:

AC503086

AD

Battery

Front of vehicle

24

23

22

21

20

19

Fusible link (20)

AC509934

Connectors: C-213, C-218 <LHD>

Junction block (Front view)

C-213

C-213

CP

Harness side

C-218

C-218

Junction block side

AC509943

Connector: C-218 <RHD>

AC

Junction block

 (Rear view)

Junction block side

ETACS

CHASSIS ELECTRICAL

54A-514

Prior to the wiring harness inspection, check junction
block connector C-213, and repair if necessary.

• Check the power supply line for open circuit and

short circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

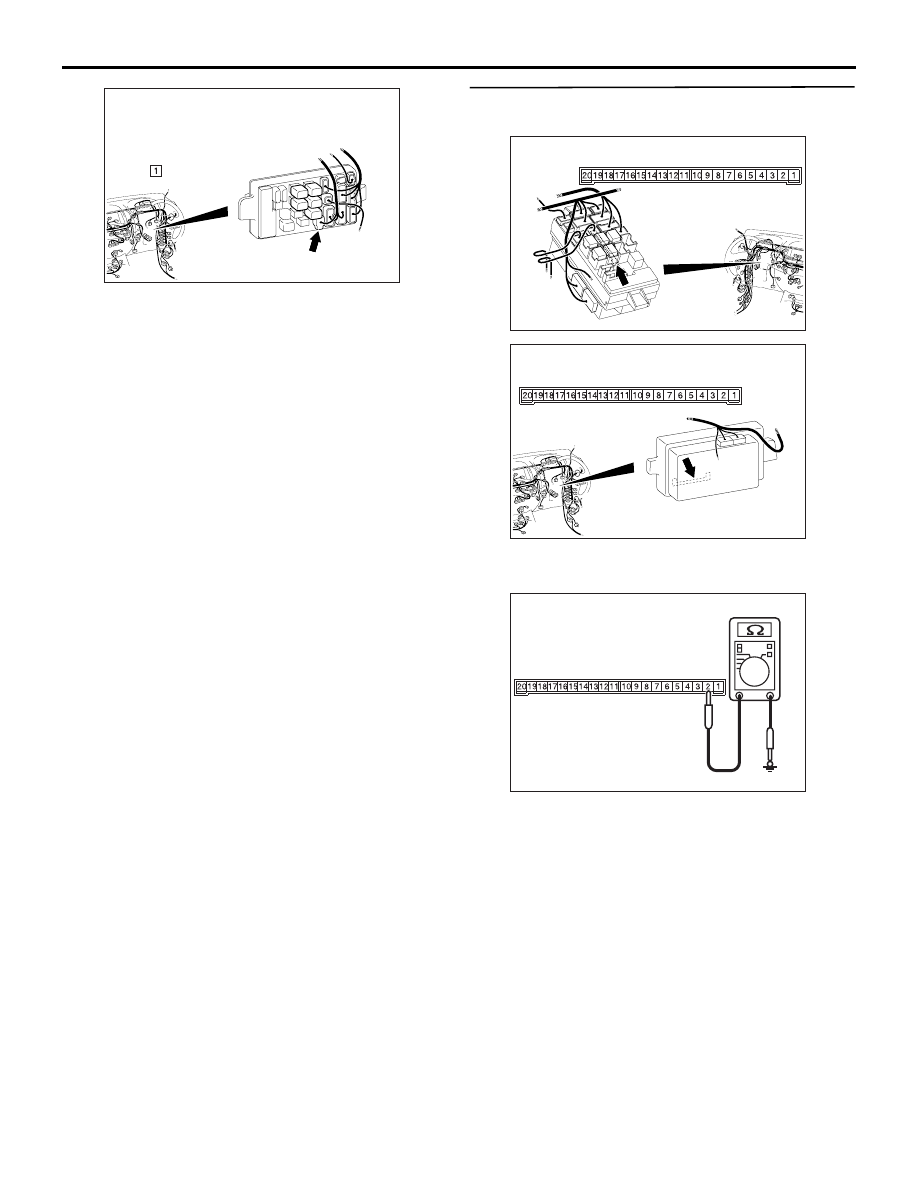

STEP 4. Resistance measurement at the C-218
ETACS-ECU connector.

(1) Remove the ETACS-ECU, and measure at the

junction block side.

(2) Continuity between C-218 ETACS-ECU

connector terminal No.2 and body earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

AC509936

Connector: C-213 <RHD>

Harness side

AI

Junction block

(Front view)

AC509934

Connector: C-218 <LHD>

AJ

Junction

block

Junction block side

AC509943

Connector: C-218 <RHD>

AC

Junction block

 (Rear view)

Junction block side

AC310506FW

Connector C-218

(Junction block side)
