SPEAKER

CHASSIS ELECTRICAL

54A-443

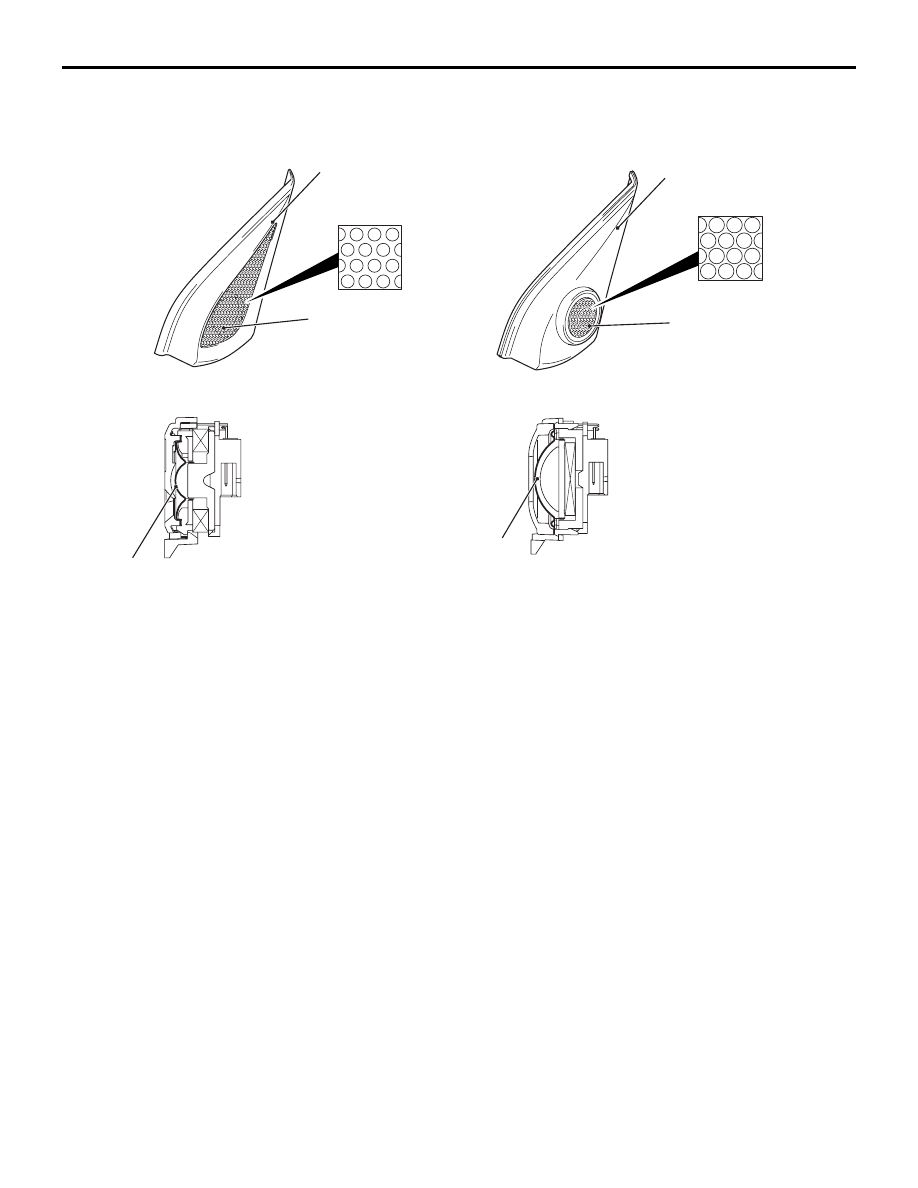

TWEETER

• The 3.5 cm aluminium hard dome tweeter (ridge-

line dome tweeter), established for vehicles with
eight speakers, enables playback of at least 50-
Hz ultra high frequency by using aluminium dia-
phragm. Furthermore, by adopting the ridgeline
dome (CATS EYE), it can play highly pure and
clear treble with less distortion compared with the
balance dome tweeter established for vehicles
with six speakers.

• Also for vehicles with eight speakers, the punch-

ing metal type tweeter cover has been
installed.With the punching metal type, the metal
is adopted for the punching section to enlarge the
punching opening, enabling the playback of
cleaner treble.

AC800464

AC800520

AC800521

Front door sash trim

Front door sash trim

<Vehicles with six speaker>

<Vehicles with eight speaker>

Balanced dome tweeter

Aluminium hard dome tweeter

Diaphragm

Diaphragm

Punching part (Metallic)

Punching part (resin)

SPEAKER

CHASSIS ELECTRICAL

54A-444

SPEAKER

FRONT DOOR SPEAKER
For the diaphragm of 16 cm metalized hybrid PP
(polypropylene) diaphragm speaker established for
vehicles with eight speakers, the PP (polypropylene)
has been adopted. In addition, the vacuum-evapo-
rated metal on PP (polypropylene) surface improves
sound propagation speed of paper cone, playing
crisper bass sound and life-like sound.

REAR DOOR SPEAKER
The 16 cm metalized hybrid PP (polypropylene) dia-
phragm coaxial 2 way speaker, established for vehi-
cles with eight speakers, is the 2 way speaker that
the balance dome tweeter is combined with the
speaker whose diaphragm sound propagation speed
is improved by vacuum-evaporated metal on PP
(polypropylene) with the same manner as the front
door speaker. It can play high quality sound from tre-
ble to bass.

For vehicles with eight speakers, in addition to the
improvement of speaker performance, the sound-
absorbing sheet and damping sheet have been
attached to the waterproof film of front door and rear
door. This reduces buzz noise from the door and the
reflected sound inside the door which comes from
the service hole of the door, providing higher quality
of sound without distortion.

The 16-cm speaker (with 3 tabs, fixed by rotating)
which can be installed by one-touch improves serv-
iceability.

AC800463

Water proof film

Water proof film

Front door speaker

Rear door speaker

Damping sheet

Sound-absorbing sheet

Sound-absorbing
sheet

Tweeter

<Front door>

<Rear door>

AC

AC502928AC

SPEAKER

CHASSIS ELECTRICAL

54A-445

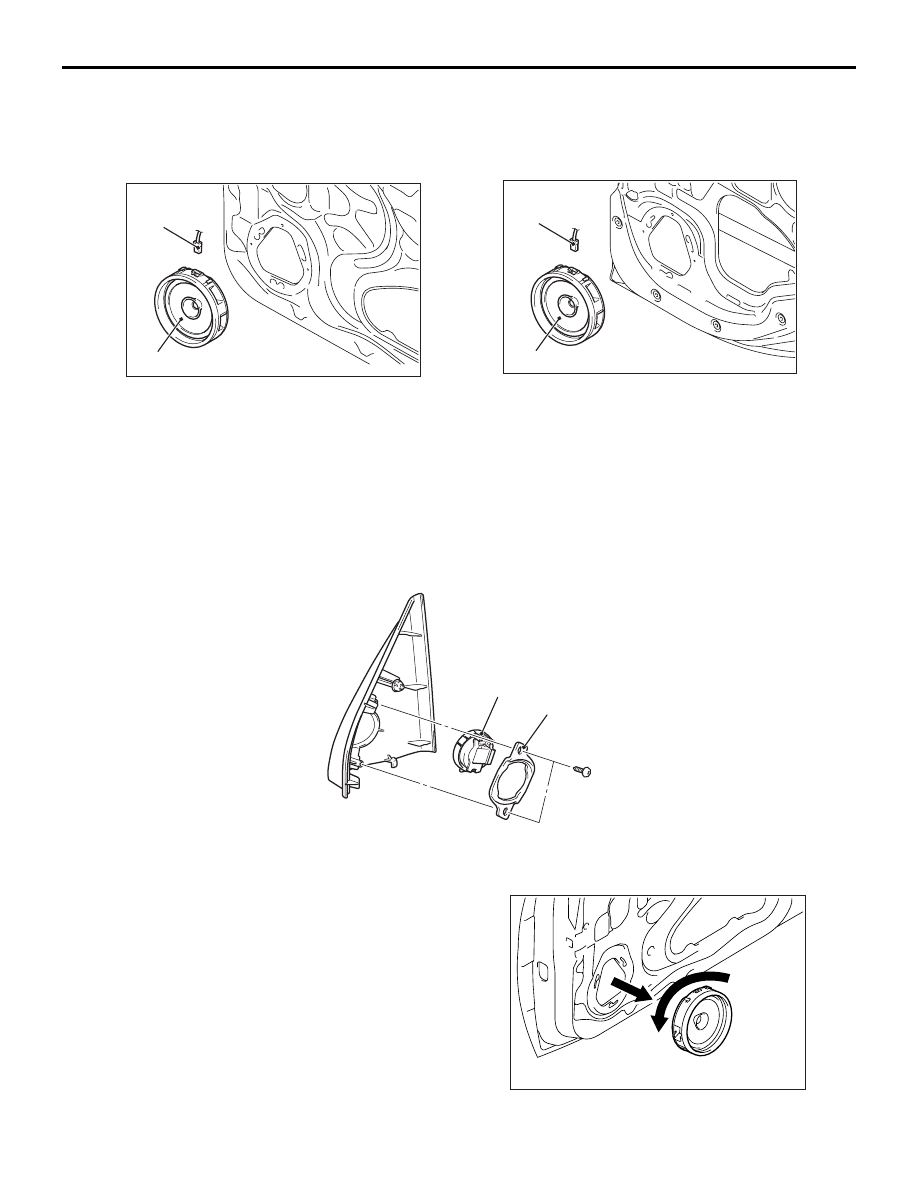

REMOVAL AND INSTALLATION

M1544100300034

DOOR SPEAKER

TWEETER

REMOVAL SERVICE POINT

<<A>> SPEAKER REMOVAL

1. Disconnect the connector from the speaker.
2. Remove by turning the speaker to the left.

AC508699

AC509346

AC508700

2

3

1

1

AB

Front door speaker removal
steps

•

Front door trim (Refer to GROUP
52A, Door Trim  .

1.

Door Speaker connector
connection

<<

A

>>

2.

Front door Speaker

Rear door speaker removal
steps

•

Rear door trim (Refer to GROUP
52A, Door Trim  .

1.

Door Speaker connector
connection

<<

A

>>

3.

Rear door Speaker

AC508701

2

AB

1

Removal steps

•

Front door sash trim (Refer to
GROUP 52A, Door Trim  .

1.

Tweeter bracket

2.

Tweeter

AC502928AB

ANTENNA

CHASSIS ELECTRICAL

54A-446

ANTENNA

GENERAL INFORMATION

M1544200500143

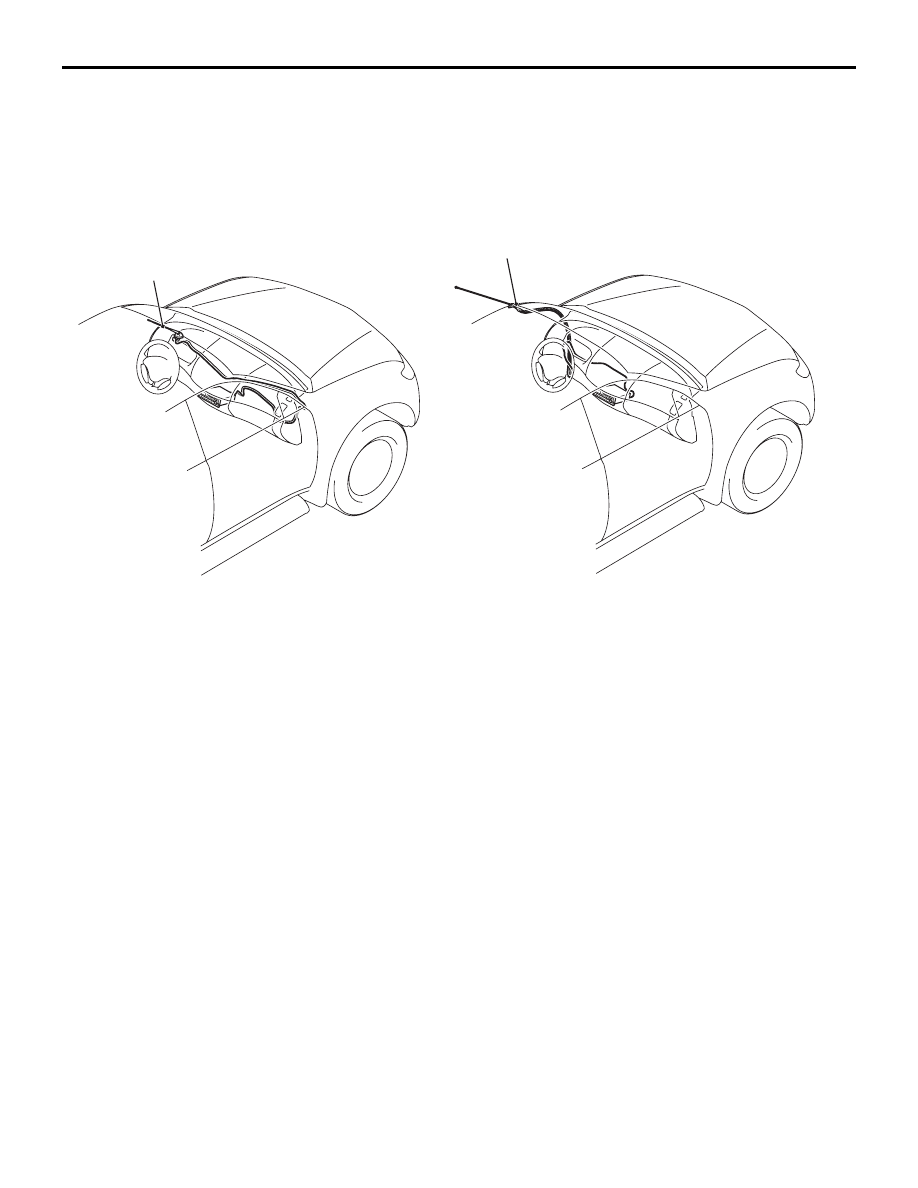

There are 2 types of roof antennas; the roof antenna
and pillar antenna.

CONSTRUCTION DIAGRAM

AC509214

Pillar antenna

Roof antenna
