Mitsubishi L200. Manual - part 758





HANDS FREE-ECU

CHASSIS ELECTRICAL

54A-399

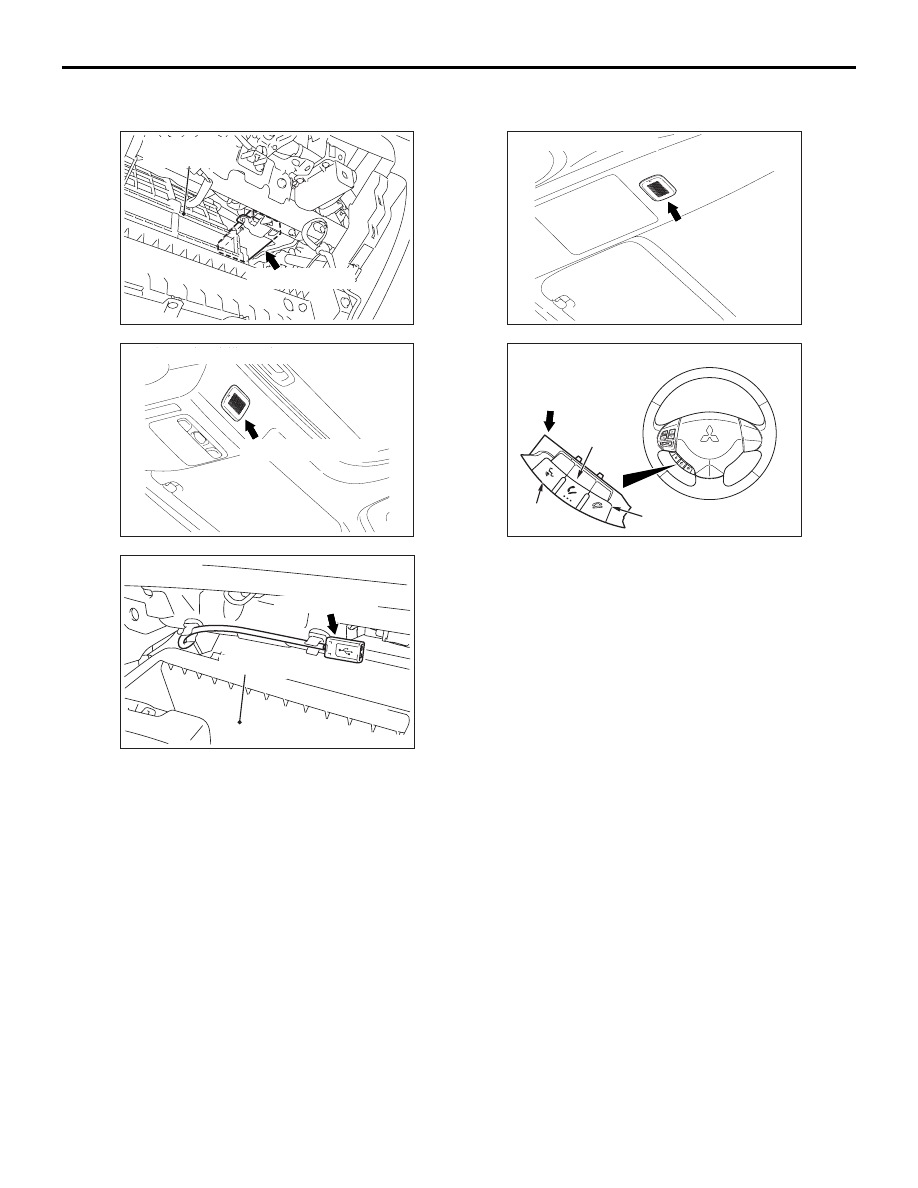

CONSTRUCTION DIAGRAM

ACB01730

ACB01729

Hands free ECU

Heater blower
assembly

Glove box

Microphone assembly

Microphone assembly

<Vehicles with sunroof>

<Vehicles without sunroof>

Steering wheel
voice control switch

USB connector

“Speech”
switch

“Pick-up”
switch

“Hang-up” switch

AC

HANDS FREE-ECU

CHASSIS ELECTRICAL

54A-400

SYSTEM BLOCK DIAGRAM

ACB00791

Speaker

Steering wheel voice
control switch



Bluetooth

R

Phone voice
         or
      music

Voice

Microphone power

Microphone assembly

Hands free ECU

Radio and CD player
or
Multivision display

Communication

USB
connector



Music

Audio control

USB device



Bluetooth  device

R

AC

HANDS FREE-ECU

CHASSIS ELECTRICAL

54A-401

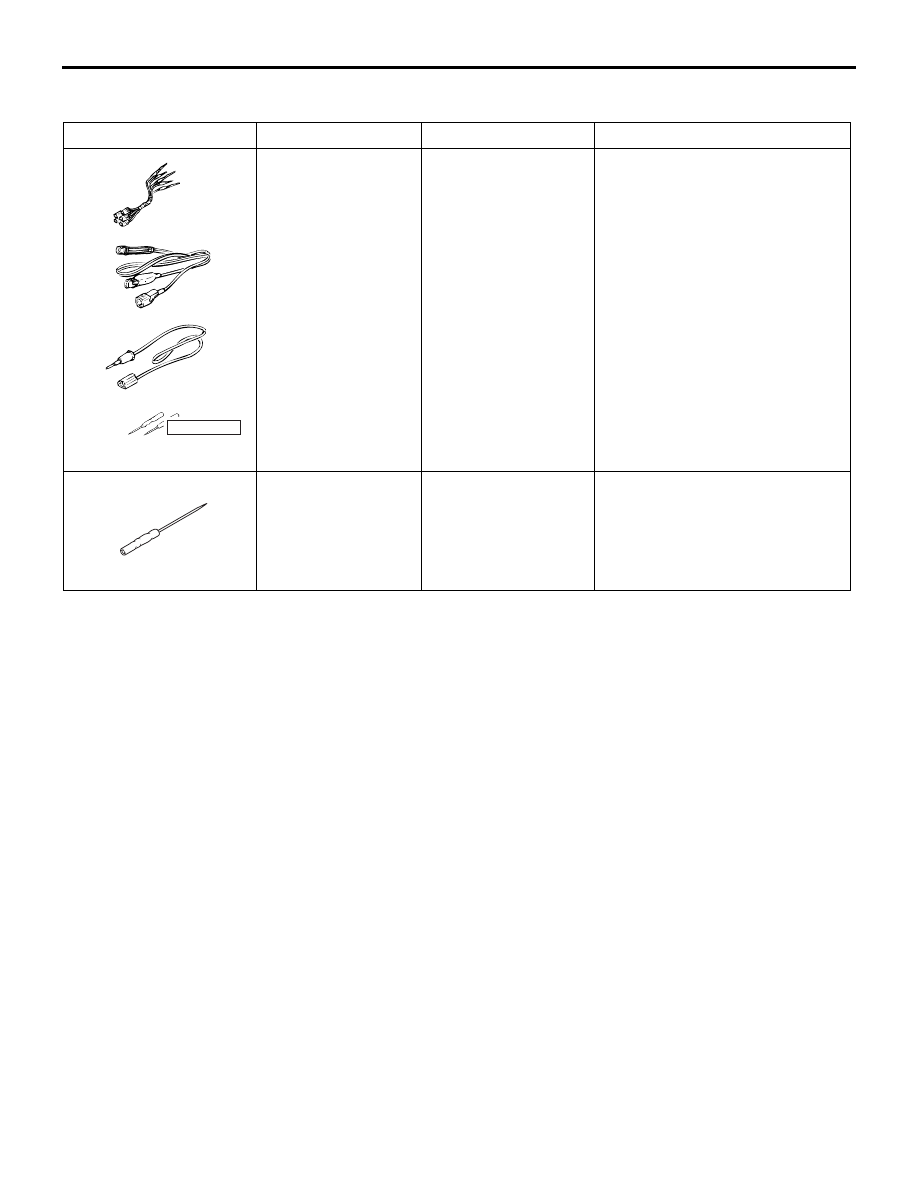

SPECIAL TOOLS

M1544403500210

TROUBLESHOOTING

INTRODUCTION TO DIAGNOSIS

M1544404500291

Prior to the troubleshooting, check if the causes below can be the case. If any, take actions according to the
solution method.

Tool

Number

Name

Use

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally

sourced tester

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

MB991223

a

d

c

b

DO NOT USE

BA

MB992006

HANDS FREE-ECU

CHASSIS ELECTRICAL

54A-402

Pairing of the bluetooth

®device (mobile phone or music player) and hands free ECU cannot be made.

The hands free ECU does not recognize the bluetooth

®device (mobile phone or music player).

Calling cannot be made using the hands free cellular phone function.



Bluetooth

®The music player cannot be replayed.

The music data received from the USB adapter cannot be replayed.

Cause

SOLUTION

The power of the
bluetooth

®device is off.

With the power of the bluetooth

®device turned on, check the trouble

symptom again.

In addition to the
bluetooth

®device to be

recognized, two or more
bluetooth

®device exist in the

vehicle.

• With the voice operation, select the device to be connected.

• Select the device to be connected on the multivision display.

Power supply abnormality in
the hands free ECU, or
communication error
between the the radio and
CD player or multivition
display, and hands free
ECU.

Turn the electric motor switch to the "ON" position and check if iPod
connected to the USB adapter or USB device can be played. If the music
cannot be played, the power supply of hands free ECU or the communication
between the the radio and CD player or multivition display, and hands free
ECU may have a problem. Perform the Inspection procedure 2: The USB
memory device data cannot be replayed (Refer to

P.54A-414

 <vehicles with

radio and CD player> or

P.54A-415

 <vehicles with MMCS>). If the diagnosis

mode of hands free ECU can be made an entry, the module status can be
checked by the hands free ECU self-check, however, if the power supply of
hands free ECU, or the communication with the the radio and CD player or
multivition display may have a problem, the module status can not be
checked (Refer to

P.54A-403

 <vehicles with radio and CD player> or

P.54A-

406

 <vehicles with MMCS>).

Cause

SOLUTION

The Bluetooth

® connection

is not made between the
hands free ECU and
bluetooth

®device.

Connect the bluetooth

®device to the hands free ECU via Bluetooth®.

The vehicle is not located in
the communication area of
the cellular phone.

Check the radio wave condition of the cellular phone shown on the display, or
check the radio wave condition shown on the cellular phone itself.

AUDIO communication error
between the hands free ECU
and the the radio and CD
player or multivition display.

Check if the data of music file sent to the hands free ECU can be replayed. If
there are no problems, the communication between the hands free ECU and
the the radio and CD player or multivition display may have a problem.
