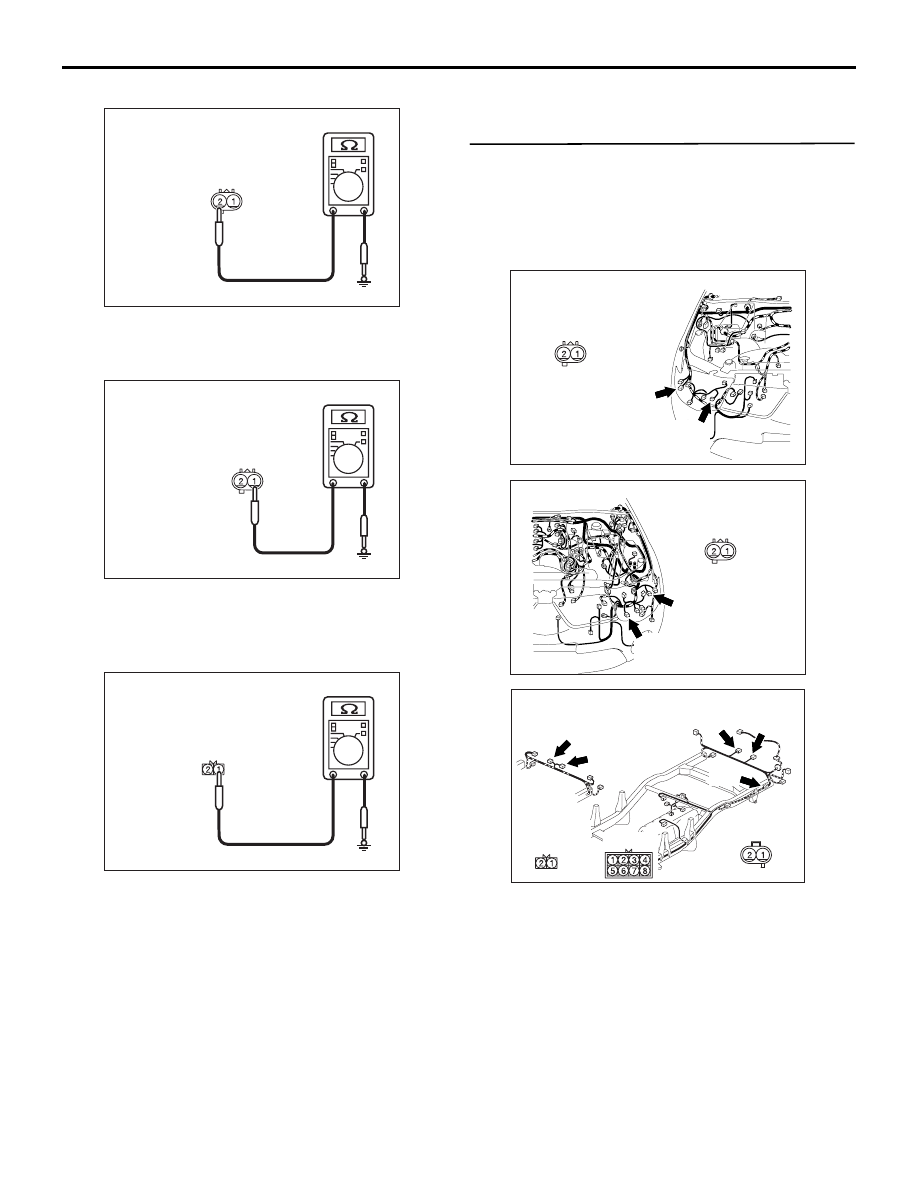

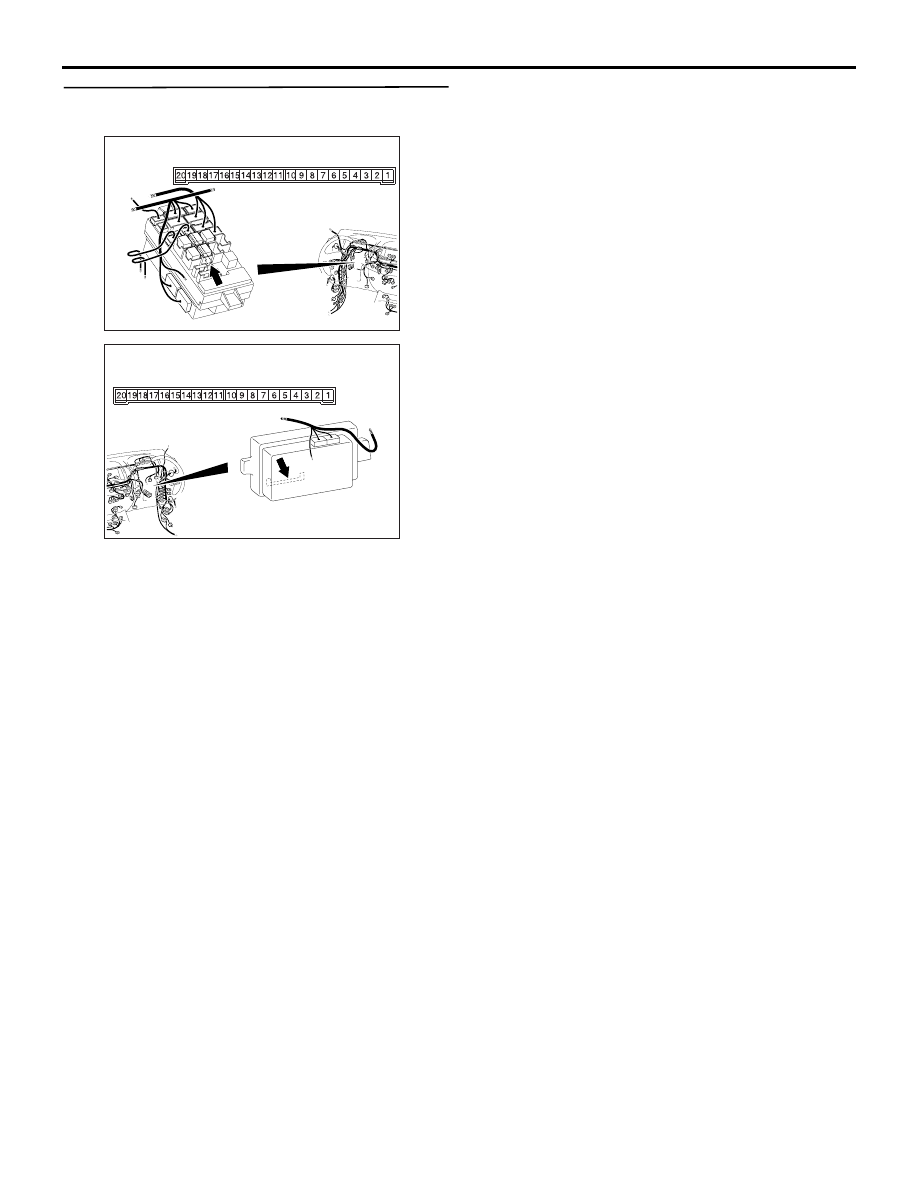

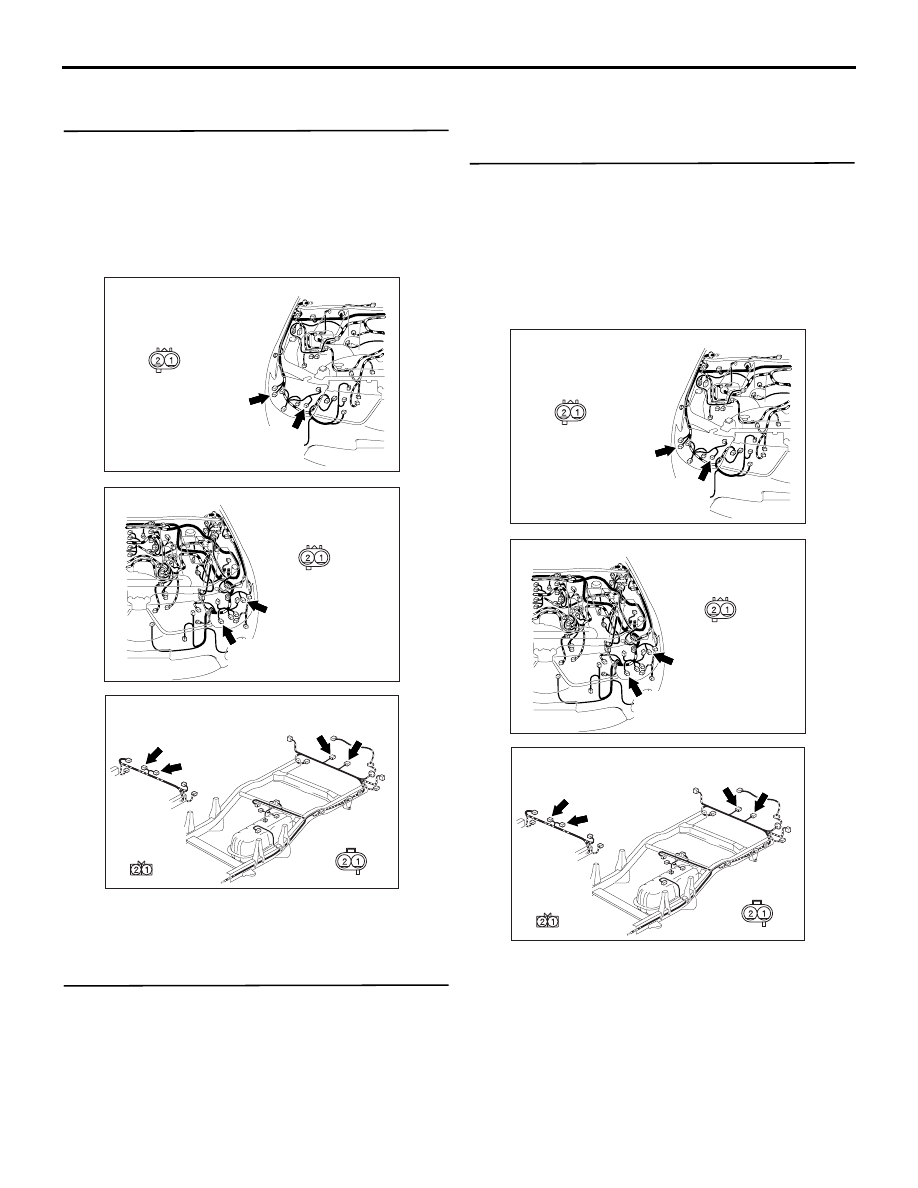

HEADLAMP

CHASSIS ELECTRICAL

54A-119

Inspection Procedure 4: One of position lamps or licence plate lamps does not illuminate.

CAUTION

Whenever the ECU is replaced, ensure that the input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM
If the position lamps or the licence plate lamps do not
illuminate, the wiring harness connector(s), the bulb
or the fuse may be defective or burned out.

PROBABLE CAUSES

• Burned-out bulb

• Damaged harness wires and connectors

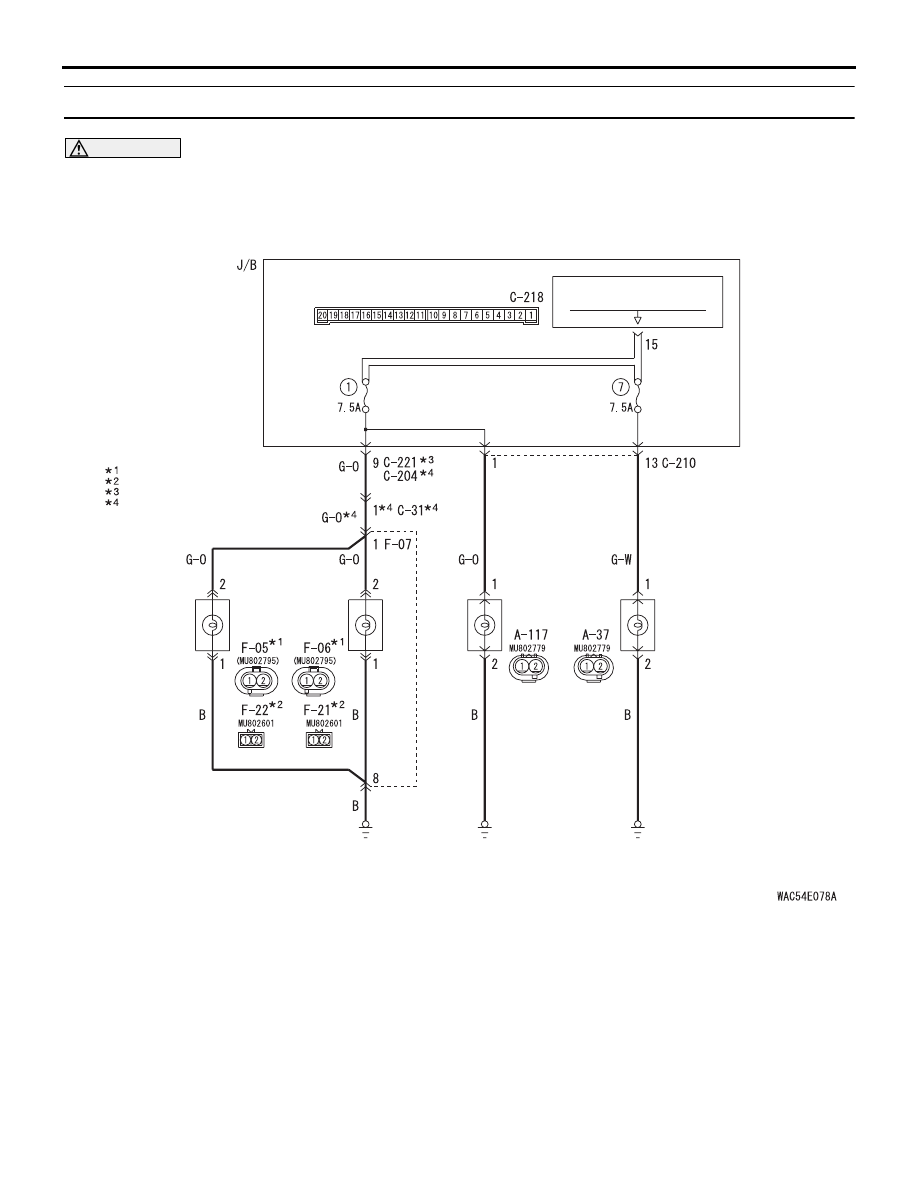

Position Lamps and Licence Plate Lamps Circuit

ETACS-ECU

LICENCE PLATE
LAMP

TAIL LAMP RELAY

POSITION LAMP

(LH)

(RH)

(RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

NOTE

: VEHICLES WITH REAR BODY
: VEHICLES WITHOUT REAR BODY
: LHD
: RHD

(LH)

HEADLAMP

CHASSIS ELECTRICAL

54A-120

DIAGNOSIS PROCEDURE

STEP 1. Connector check: A-117 position lamp
(LH) connector or A-37 position lamp (RH)
connector, F-05 <vehicles with rear body> or F-22
<vehicles without rear body> licence plate lamp
(LH) connector or F-06 <vehicles with rear body>
or F-21 <vehicles without rear body> licence
plate lamp (RH) connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

STEP 2. Check the bulbs of the position lamps or
the licence plate lamps.
Check the bulb of the lamp which does not illumi-
nate.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the bulb of the lamp which does not
illuminate.

STEP 3. Resistance measurement at the A-117
position lamp (LH) connector or A-37 position
lamp (RH) connector, the F-05 <vehicles with rear
body> or F-22 <vehicles without rear body>
licence plate lamp (LH) connector or F-06
<vehicles with rear body> or F-21 <vehicles
without rear body> licence plate lamp (RH)
connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Check the resistance between the lamp

AC903897

AE

Connector: A-37

Harness side

A-37 (B)

<2-bulb type>

A-37 (B)

<4-bulb type>

AC903898

AF

Connector: A-117

Harness side

A-117 (B)
<2-bulb type>

A-117 (B)
<4-bulb type>

AC903957AE

Harness side

F-06 (GR)

F-05, F-06

Connectors: F-05, F-06, F-21, F-22

F-05 (GR)

<Vehicles without
rear body>

F-21 (B)

F-22 (B)

Harness side

F-21, F-22

AC903897

AE

Connector: A-37

Harness side

A-37 (B)

<2-bulb type>

A-37 (B)

<4-bulb type>

AC903898

AF

Connector: A-117

Harness side

A-117 (B)
<2-bulb type>

A-117 (B)
<4-bulb type>

AC903957AE

Harness side

F-06 (GR)

F-05, F-06

Connectors: F-05, F-06, F-21, F-22

F-05 (GR)

<Vehicles without
rear body>

F-21 (B)

F-22 (B)

Harness side

F-21, F-22

HEADLAMP

CHASSIS ELECTRICAL

54A-121

connector and body earth.

•

Resistance between A-117 position lamp (LH) or

A-37 position lamp (RH) connector terminal
No.2 and body earth

•

Resistance between F-05 licence plate lamp (LH)

or F-06 licence plate lamp (RH) connector ter-
minal No.1 and body earth <vehicles with rear
body>

•

Resistance between F-22 licence plate lamp (LH)

or F-21 licence plate lamp (RH) connector ter-
minal No.1 and body earth <vehicles without
rear body>

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

STEP 4. Check the wiring harness from A-117
position lamp (LH) connector terminal No.2 or A-
37 position lamp (RH) connector terminal No.2, F-
05 licence plate lamp (LH) connector terminal
No.1 or F-06 licence plate lamp (RH) connector
terminal No.1 to body earth.

NOTE: Prior to the wiring harness inspection, check
intermediate connector F-07 <licence plate lamp>,
and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the wiring harness.

AC310506

Connectors A-37, A117

(Harness side)

FZ

AC310506GA

Connectors F-05, F-06

(Harness side)

AC310506

Connectors F-21, F-22

(Harness side)

JO

AC903897

AE

Connector: A-37

Harness side

A-37 (B)

<2-bulb type>

A-37 (B)

<4-bulb type>

AC903898

AF

Connector: A-117

Harness side

A-117 (B)
<2-bulb type>

A-117 (B)
<4-bulb type>

AC903957AF

Harness side

F-06 (GR)

F-05, F-06

Connectors: F-05, F-06, F-07, F-21, F-22

F-05 (GR)

<Vehicles without
rear body>

F-21 (B)

F-22 (B)

Harness side

F-21, F-22

F-07

F-07

HEADLAMP

CHASSIS ELECTRICAL

54A-122

STEP 5. Connector check: C-218 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC509934

Connector: C-218 <LHD>

AJ

Junction

block

Junction block side

AC509943

Connector: C-218 <RHD>

AC

Junction block

 (Rear view)

Junction block side
